Suvirinimo aparatas MIG/MMA/TIG ALUMINIUM SYNERGY 255 MP0117

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MMA/TIG ALUMINIUM SYNERGY 255 MP0117. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Majster Polska
• Modelis: PROFESJONALNA SPAWARKA INWERTEROWA

✅ MAJSTER to Poland a company constantly ensuring that the products are:

⭐Quality No1, Refined, Failure-free, at work Convenient, in price-quality Unbeatable

✅ Service ✅ parts - all available immediately in Poland 24h

-

⭐MIG ⭐ Flux ⭐ MMA ⭐ TIG-LIFT ⭐ ALUMINUM welding

automatic selection of parameters depending on the welding method chosen

All enclosed in a strong all-steel housing + Top Coolers

clear parameters and very easy to set on the intuitive panel

The longest cables in this class ( others offer 1.2 or 1,4m )

• Length of welding wire (-) MMA / MIG / TIG plug SK25 13mm with increased cross-section to length 2,1m
• Length of welding wire (+) MMA plug SK25 13mm with increased cross-section to length 2,1m
• Length of MIG cable 3m euroconnector

✅ Every even the simplest INVERTER is incomparably BETTER than even the most expensive outdated transformer

MP-0117 is one of the strongest welding machines available on the market in this price class! 100% INVERTER. 255A!

⭐ EFFICIENCY and POWER ⭐ not comparable to others in this price segment

✅ Advanced control panel allows for smooth control of operating parameters.

Selection of MIG/ SYNEGRIA MIG / MMA / TIG operating mode

⭐ (SYN MIG) - a function that allows you to set automatic parameter selection

⭐ Two-bar 2t - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

⭐ Four-point 4t - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

⭐ SPOT - for spot welding

Fully automatic wire feed.

.

✅ Gas selection:

⭐ Co2 - 100%Co2

⭐ MIX - Argon/CO2 blend

⭐ AL - for welding aluminium alloys with magnesium in argon sheath

⭐ FLUX - without gas, self-shielding wire

✅Wire application:

0.6/0.8/0.9/1.0/1.2mm

TIG handle not included (sold separately)

⭐ You do not need to be an experienced welder to bond this metal welding machine with a strong melt, the functions used in the most expensive IGBT welding machines are included in this device!

░░░

It is not a problem to bond the material and show a nice superficial weld

The trick is to bond the material with a large melt, nicely laid weld, practically self-departing trail, which is a guarantee that the weld is clean, full, durable

-

The MP welding machine has high parameters, and all the functions that allow you to bond the material in this way!

• - Bulk cable ⭐
• - Electrode cable ⭐
• - MIG ⭐ handle
• - Hand mask ⭐
• - Brush with hammer ⭐
• - Welding angle ⭐
• - Roll feeder for steel wire 0.8/1.0 ⭐
• - Additional roll U type 1.0/1.2 for aluminium ⭐
• - Current terminals 2 pieces ⭐

⭐ Thanks to its execution, the MP-0117 migomat welder will be used both in home workshops and households as well as in more professional applications, such as performing field work and all kinds of repair work inside buildings.

⭐ The MP MIG machine is a device with a wide range of applications, designed as an inverter power source enabling welding with a consumable wire in a gas shield MIG/MAG or FCAW self-shielding wire , welding with a coated electrode MMA , welding of aluminum and also using the TIG Lift method (this requires the purchase of an additional torch for TIG Lift welding)

⭐ The electronics of the device are based on IGBT transistors combining the advantages of two types of transistors ease of control of field transistors and high breakdown voltage and switching speed of bipolar transistors. The welding current is very stable, which guarantees a perfect weld. Thanks to IGBT technology, the device is lightweight and compact.

Adjustment of welding parameters is carried out steplessly (smoothly), maximum welding current depends on the thickness of the wire / electrode used, welding voltage, as well as the speed of wire feeding in the case of the MIG / MAG / FCAW method. The two-roll feeder works with wire with a diameter of 0,6 / 0,8 / 1,0/ 1.2mm.

The high efficiency of the welding machine allows for welding with 255A current (for MIG / MAG / FCAW), and 255A for (TIG) 230A MMA in 60% duty cycle. The thermal switch will turn off the device if the permissible operating cycle for a given welding current is exceeded, which will prevent overheating of the welding machine.

The current parameters of the device during welding are displayed on two, very readable displays facilitating the selection of optimal operating parameters. Comfortable and very readable manipulators allow you to change welding parameters even with gloves on.

✅ SPECIFICATION:

• Model: MP-0117
• Supply voltage: 230V
• Frequency: 50Hz
• Rated Input Capacity: 3,7KVA
• Welding methods: FLUX - semi-automatic welding with self-shielding wire "without gas"
• Idle current voltage: 58V
• Working cycle: 60%
• Electrode range: 1,6-4 mm
• Wire diameter: 0.8 - 1,0 mm / 1,0 - 1,2mm
• Supported wire spools: max. up to 5 kg
• Wire feeder: 2 - roller ( internal )
• Insulation class: F
• Degree of protection: IP21S
• MIG welding current: 35-255A
• MMA welding current: 25-230A
• TIG welding current: 15-255A
• Dimensions: 44dłx21szex35wys (cm)
• Weight: 10kg

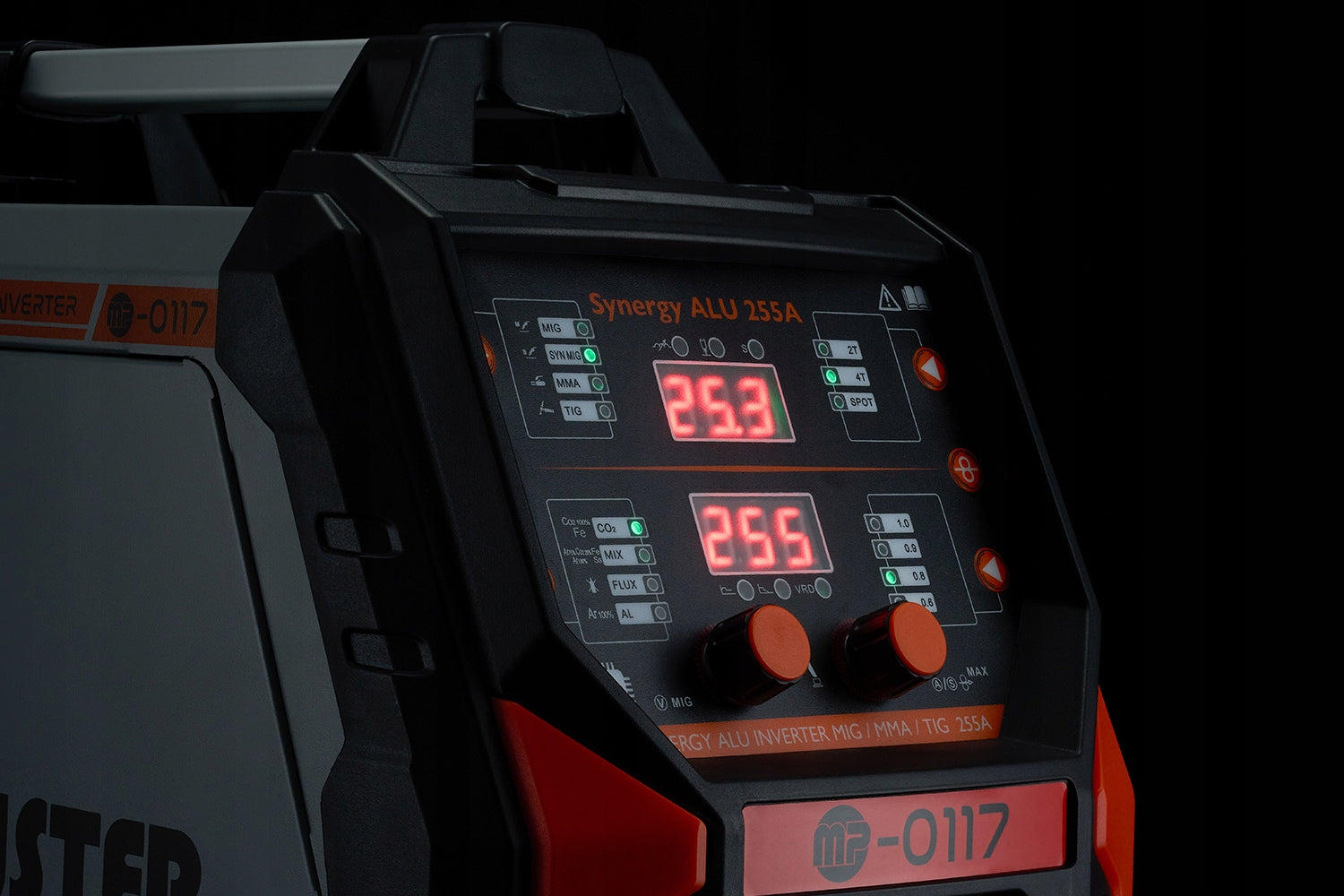

✅ DESCRIPTION OF PANEL ELEMENTS

Popularly called hot start, it allows by temporarily increasing the welding current above the value set by the welder. HOT START works at the moment of arcing and is designed to prevent the electrode from sticking to the material. It is a great convenience when lighting the electrode.

cuts/minimizes welding voltage and current in case of short circuit of the electrode with the welded material. ANTI STICK allows the welder to detach the electrode more easily.

stabilizes the arch regardless of its length. Regulates the dynamics of the welding arc. By reducing the value of the function, it gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. At the highest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

It is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level. The VRD function turns the welding power on and off when the electrical resistance between the electrode and the welded element measured during operation is the appropriate level. When the device is not working, VRD automatically reduces the secondary circuit voltage between the welding tips from 105 V to 14-24 V (this takes several milliseconds).

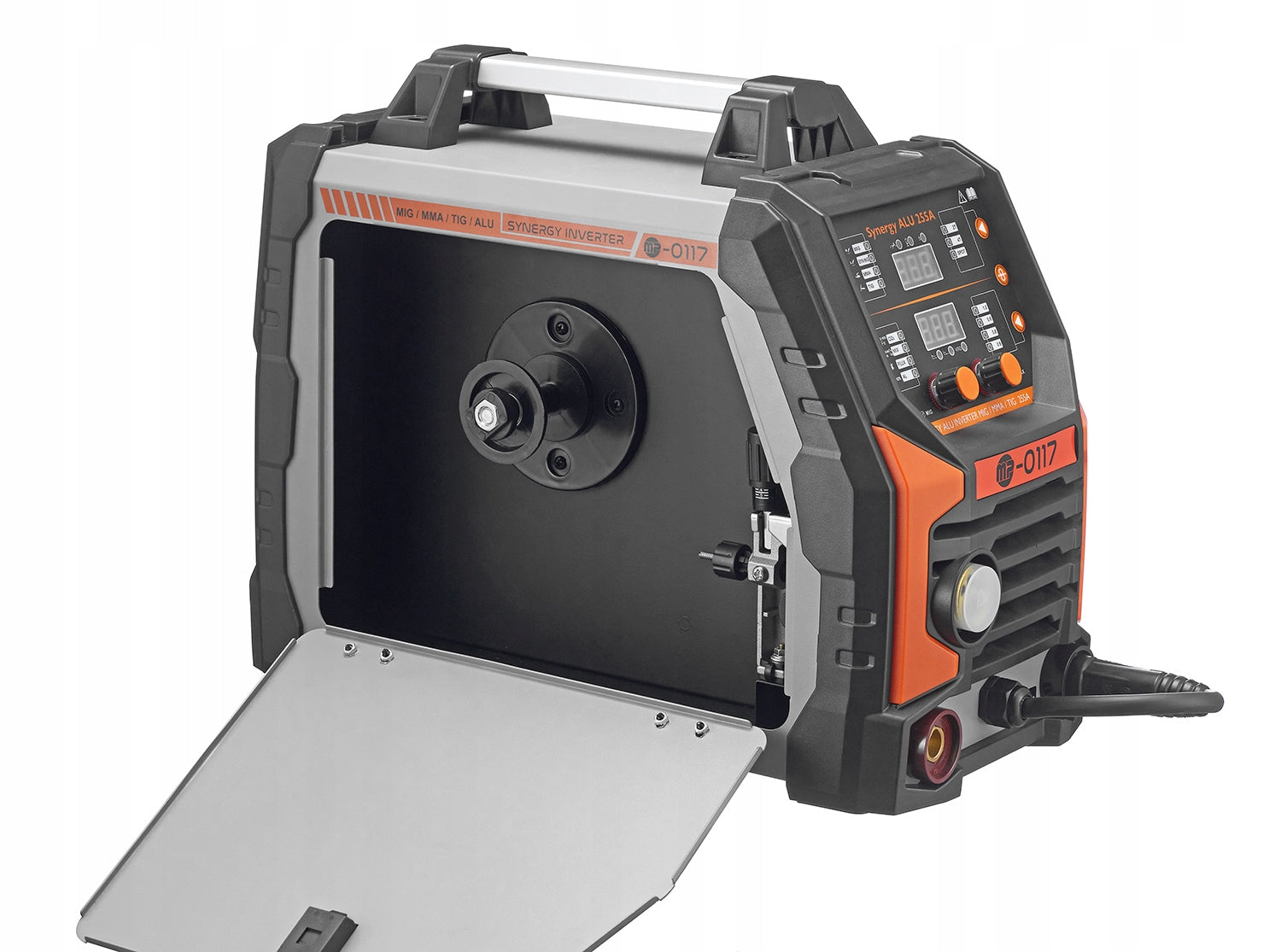

The feeder allows precise extension of the welding wire, excluding its slippage.

- works with wire with a diameter of 0.6/0.8/0.9/1.0/1.2mm

✅ MMA DIN welding cable with electrode holder approx.210cm

✅ DIN mass cable with clamp approx.210cm

✅ + PRACTICAL HAND MASK

✅ + BRUSH WITH HAMMER FOR UPHOLSTERING AND CLEANING THE SHEATH

✅ + WELDING ANGLE

░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░░

The presented model of the welding machine has a standardized EURO socket, thanks to which we can connect any MIG/MAG welding torch that has this plug to the device.

Migomat allows welding with self-shielding wire without the need for shielding gas.

FLUX welding combines the advantages of MIG/MAG welding (wire wound on a spool, is fed using a feeder to the handle) and MMA (there is no need for shielding gas).

After its installation, the welding machine turns into a TIG welding machine while maintaining many parameters of expensive TIG devices.

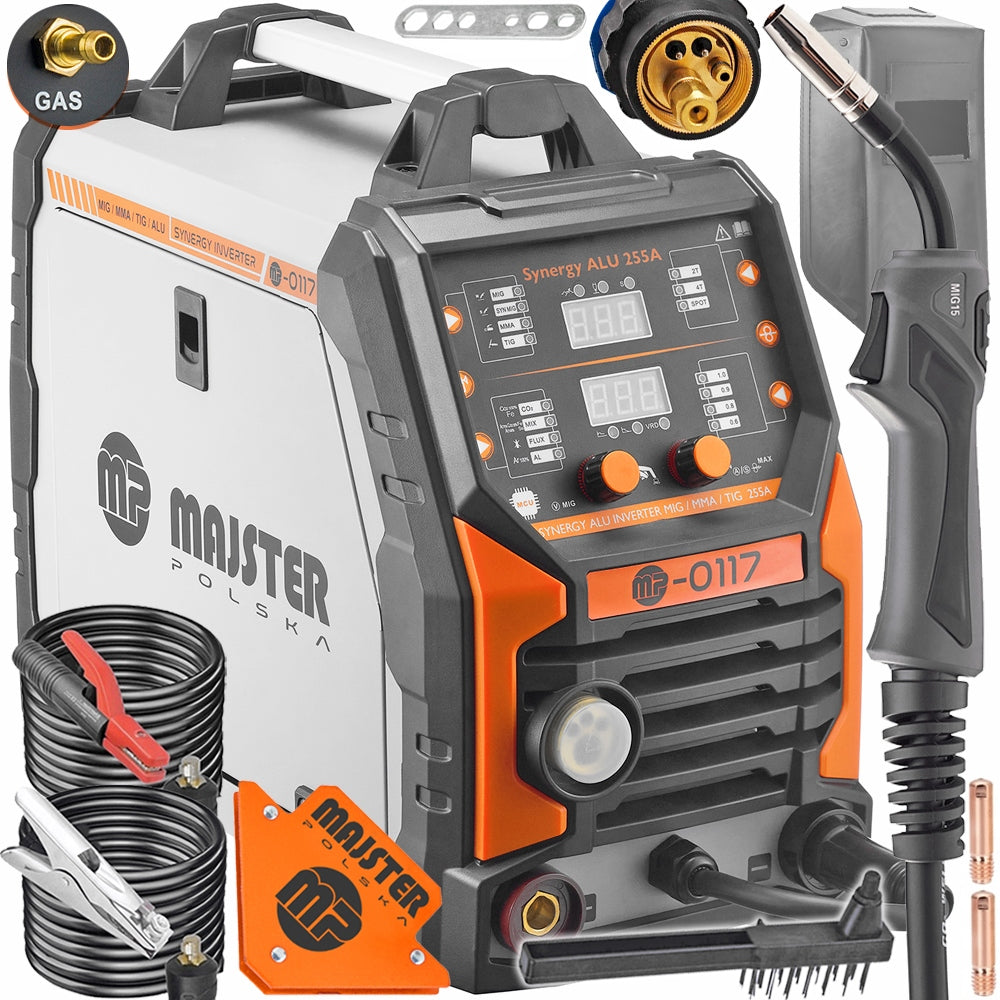

• MP-0117 255A inverter welder
• MMA DIN welding cable with electrode holder
• DIN mass cable with clamp
• Migration cable euro 3m
• Protective shield with glass
• Brush with hammer
• Welding angle
• Current terminals 2 pieces
• Steel Wire Feeder Roll 0.8/1.0
• Roll of adapter for aluminium wire 1.0/1.2
• User manual in Polish
• Original packaging

Specifications
