Suvirinimo aparatas MIG MMA TIG 250A FLUX IGBT be dujų KD1788

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG MMA TIG 250A FLUX IGBT be dujų KD1788. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Kraft&Dele
• Modelis: KD1788
• Ilgis: 310 mm
• Plotis: 155 mm
• Aukštis: 220 mm

• Model: KD1788
• Manufacturer: KRAFT&DELE

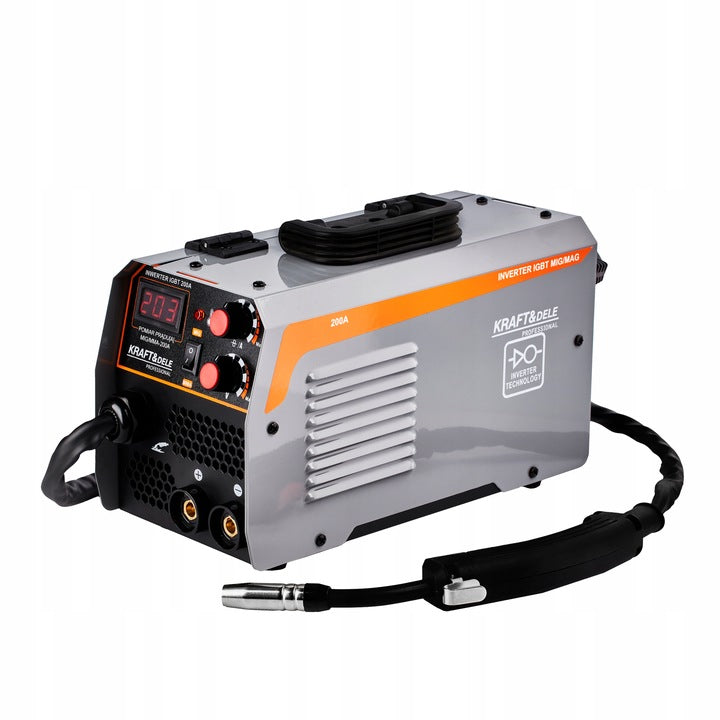

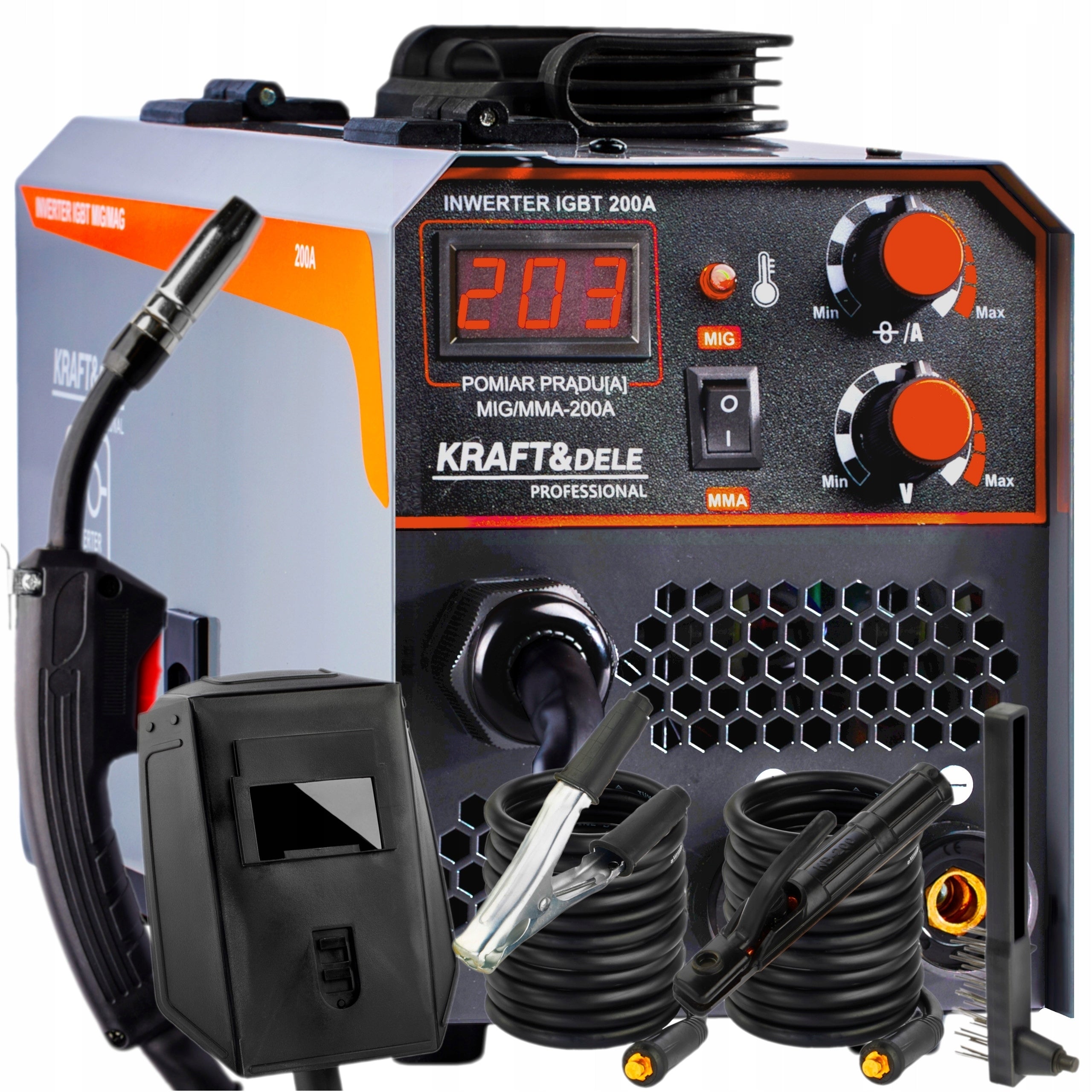

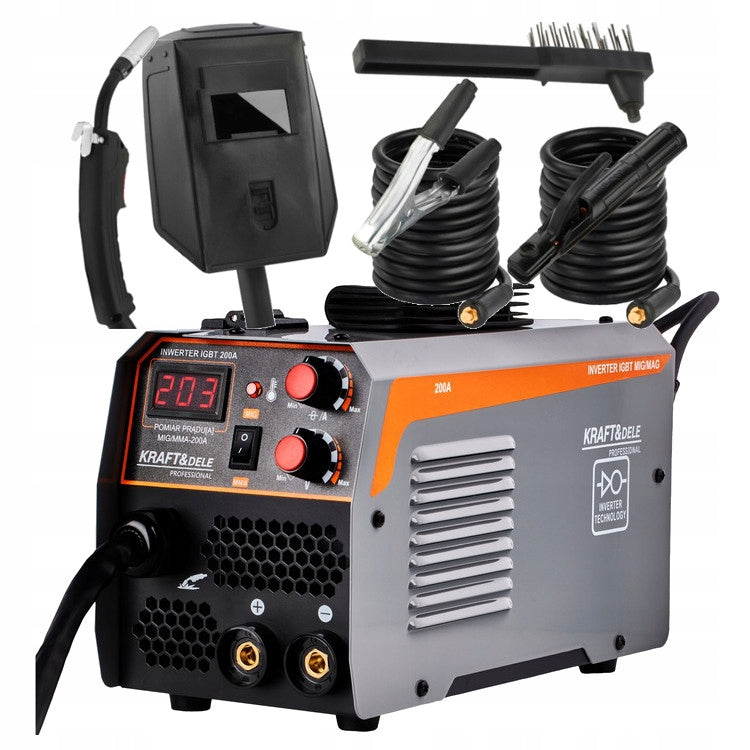

Kraft&Dele KD1788 is a semi-automatic welding machine. It has been equipped with IGBT converters that ensure high reliability. The inverter is ideal for all kinds of welding work: in locksmith workshops, repair and body shops, as well as on a farm.

• Model: KD1788
• Power supply voltage: 220 V
• Frequency: 50/60 Hz
• Rated input capacity: 30 A
• Output current (A): MIG: 40-200 A; MMA: 20-200 A
• Wire wheel diameter (mm): 200
• Wire diameter (mm): 0,8/1,0
• Output Obj. (V): 15,5-24
• Power factor: 0,73
• Efficiency (%): 80
• Working cycle: 60%
• Speed (m/min): 2-13
• Final outflow (S): 1
• MIG welding current: 40-200 A
• MMA welding current: 20-200 A
• Housing protection degree: IP21
• Isolation degree: F
• Weight: 5,2 kg
• Size: 320 mm x 160 mm x 190 mm
• Smooth welding current adjustment: 40-200 A
• Possibility of using electrodes: 1,6-4 mm

Kraft&Dele KD1788 is a semi-automatic welding machine designed for manual, electric welding of steel with self-shielding wire (FCAW Flux-Cored Arc Welding method), MIG/MAG and MMA.

➡ Note! It offers the possibility of TIG Lift welding after using the appropriate welding torch.

✅Smooth adjustment up to 200 A

✅Fan and thermostat (ensure optimal temperature)

✅Digital display

✅IGBT transistors (ensure minimum electromagnetic interference)

✅Long, thick welding wires

✅Enlarged heat sinks (4xMAXX)

✅Large capacitor

Kraft&Dele KD1788 – cables:

• Welding wire length (-) MMA / MIG / TIG plug SK25 9 mm with increased cross-section up to a length of 2,1 m
• Welding wire length (+) MMA plug SK25 9 mm with increased cross-section up to a length of 2,1 m
• The length of the MIG cable integrated 1,7 m

Attention!

✅ In the case of MMA welding, the mass holder should be plugged into the socket - (minus).

✅ In the case of MIG NO GAS (FLUX) welding with self-shielding wire, the mass holder should be connected to the + (plus) socket.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Kraft&Dele
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	5 kg
Parametry	Welding range	40–200 A
Parametry	Height	220 mm
Parametry	Length	310 mm
Parametry	Width	155 mm
Parametry	Product weight with unit packaging	14 kg
Parametry	Manufacturer code	KD1788
Parametry	EAN (GTIN)	5903957016085
Parametry	Model	KD1788
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,LCD display
