Suvirinimo aparatas MIG MAG SPARTUS EASYMIG 210 LED

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG MAG SPARTUS EASYMIG 210 LED. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: 210 LED

SPARTUS® EasyMIG 210LED is a small semi-automatic welding machine based on IGBT transistors.

Allows MIG/MAG, TIG Lift welding with current up to 200A and MMA up to 160A. It is powered from a single-phase 230V network.

EasyMIG 210LED is an intuitive welding device characterized by simplicity, which will certainly be appreciated by novice welders.

Thanks to its light weight and compact design, it is perfect as a portable semi-automatic welding machine. All field renovation work is an ideal task for this machine.

3 WELDING METHODS IN ONE DEVICE

WELDING MIG SYNERGY

EasyMIG 210LED is equipped with a simple synergistic system for MIG/MAG welding with steel wires with a diameter of 0,6 / 0,8 / 1,0 mm with the possibility of manual parameter correction.

The device also has functions supporting the welding process for MIG/MAG methods:

• Inductance – control of face width and depth of melting, reduces the number of welding chips
• Weldable in two modes: 2T/4T.

Manual mode

The device also works in manual mode, which allows you to set all welding parameters according to the individual requirements of the user.

Change of polarity

External polarity change of welding in EasyMIG 210LED, allows welding with self-shielding wires without gas.

WELDING TIG Lift

EasyMIG 210LED enables TIG Lift 200A welding, with a high 60% duty cycle. The device works with TIG welding torch with valve (recommended SPE17V-4-H100-X-SK35)

WELDING MMA

The device also allows for basic MMA welding. Built-in functions to support this process are:

• Hot Start – so-called. hot start - facilitated glowing of the electrode
• Arc Force – arc dynamics adjustment – facilitated welding in forced positions
• VRD – reduced idle voltage, increased operational safety.

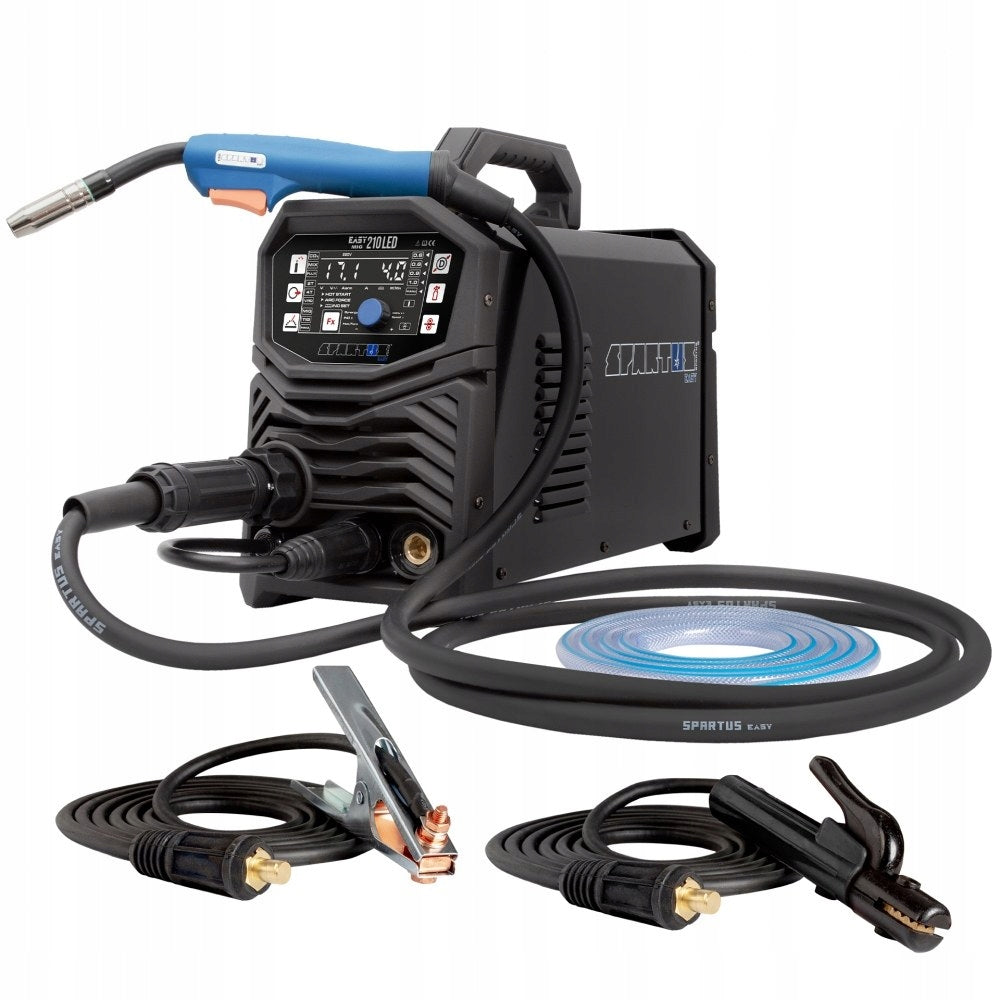

Package includes:

• EasyMIG 210LED

• handle SPARTUS® MIG SPE 150 3m

• electrode holder

• mass cable

• gas hose

• User Manual

Technical parameters

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• MIG welding current: 50 - 200A
• MIG duty cycle: 60%
• Output voltage: 16.5 - 24V
• Type of feeder: built-in, 2 - roller
• Wire feed speed: 2 - 12.5m/min.
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.6 / 0.8 / 1.0mm
• Synergy: yes
• Working mode 2T/4T: yes
• Arc Force: yes
• Hot Start: yes
• VRD: yes
• Power consumption: MIG 39 / TIG 29 / MMA 34
• Power factor (cosφ): 0.73
• Efficiency η: 77%
• Isolation class: H
• Degree of protection: IP21S
• Weight: 10kg
• Dimensions: 470 x 190 x 330mm

SPARTUS® EasyMIG 210LED is made in accordance with the latest trends in the production of welding equipment. The compact size and simplicity make this welding machine an excellent device for minor repairs and overhauls. It will also be used in broadly understood hobby and workshop works.
