Suvirinimo aparatas MIG/MAG/MMA/TIG LIFT, 200A, pusiau automatinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG/MMA/TIG LIFT, 200A, pusiau automatinis. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-PAS-200L

INVERTER WELDING MACHINE

MIG/MAG / MMA TIG LIFT | SYNERGY AND PULSE | WELDING CURRENT 200A | 230V | FLUX WITHOUT GAS | LCD DISPLAY | IGBT TECHNOLOGY | EURO CONNECTOR

Model: PM-PAS-200L

Inverter welder for MIG/MAG, MMA and TIG LIFT methods, which allows you to weld various materials in the workshop and terrain. Thanks to the synergy and IGBT technology, it is easier to set parameters, get a stable arc and repeatable welds, which reduces working time and increases control over the process.

⚙ TECHNICAL DATA

• Welding methods: MIG/MAG, MMA, TIG LIFT
• Power supply: 230V/50Hz
• Recommended protection: 25 A
• Power consumption: 10,5 kVA (MIG/MAG), 10 kVA (MMA, TIG)
• MIG/MAG welding current range: 35 – 200 A
• MMA welding current range: 20 – 190 A
• TIG LIFT welding current range: 15 – 200 A
• MIG/MAG welding voltage: 15,8 – 24 V
• MMA welding voltage: 20,8 – 27,6 V
• TIG LIFT welding voltage: 10,6 – 18 V
• Welding current at 60% duty cycle (MIG/MAG): 200 A
• Welding current at 60% duty cycle (MMA): 190 A
• Welding current at 60% duty cycle (TIG): 200 A
• Welding current at 100% duty cycle (MIG/MAG): 154 A
• Welding current at 100% duty cycle (MMA): 146,3 A
• Welding current at 100% duty cycle (TIG): 154 A
• Idle Voltage: 62 V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• MMA electrode diameter: 1,6 – 5 mm
• TIG electrode diameter: 1,0 – 3,2 mm
• Housing Protection Class: IP21S
• Supported wire spools: 1 kg
• Length of power cord: 2 10 cm
• Product weight: 3,8 kg
• Product weight with packaging: 7,3 kg
• Product Dimensions (L. / W. / h. ): 32 cm x 17 cm x 19 cm

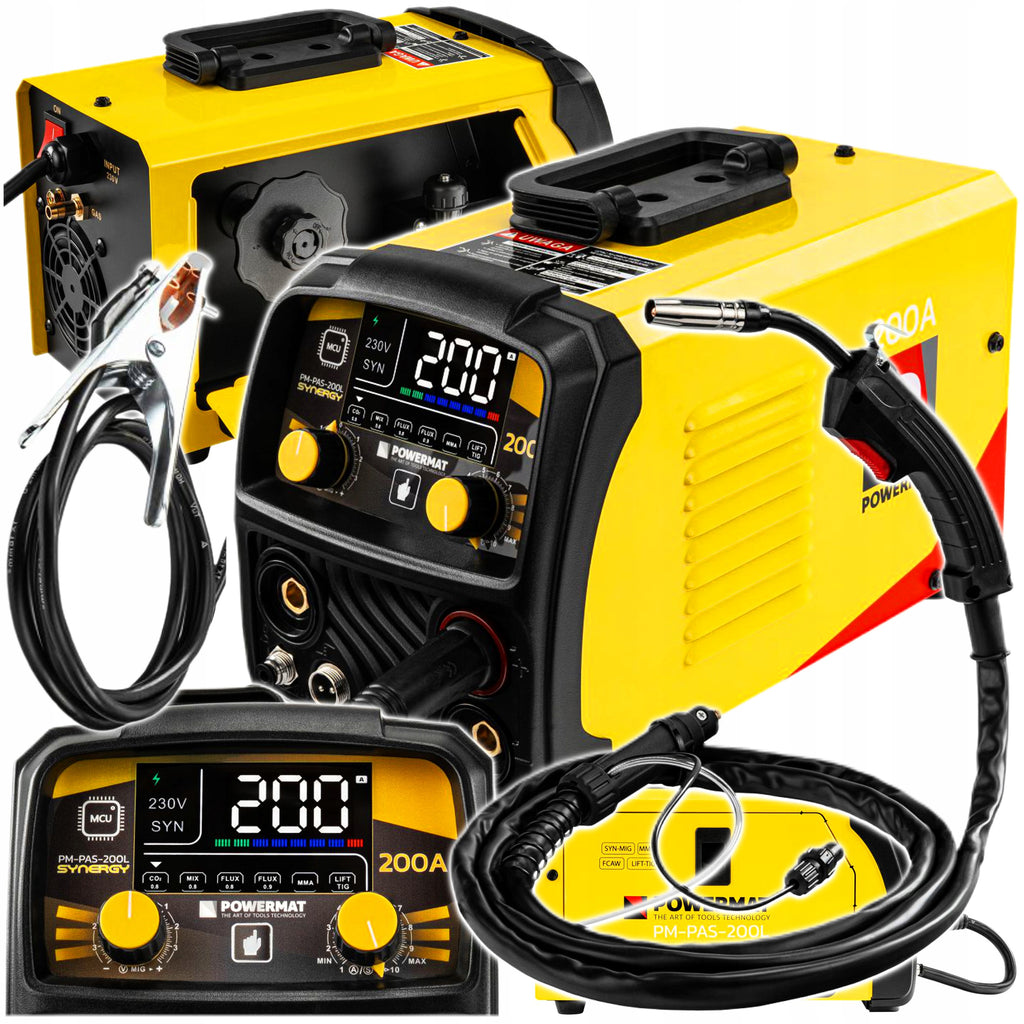

✅CONTENT OF THE SET

• Powermat PM-PAS-200L inverter welder
• Bulk holder (-) 205 cm
• MMA electrode holder (+) 205 cm / plug diameter 9 mm
• Welding wire holder 250 cm
• Current terminal 0,9 mm
• Current terminal 0,8 mm
• Double-sided roller: 0,8 / 0,9
• Welding mask
• Brush with hammer
• Self-shielding wire FLUX E71T-GS 0,8 mm 0,45 kg – 2 pcs.
• Universal key
• User manual
• Original packaging

WHEN A QUICK START AND STABLE WORK COUNT

• Don’t want to waste time on settings? The synergy function selects parameters more easily, and you move to welding faster.
• When you work on different materials, you have MIG/MAG, MMA, TIG LIFT and FLUX without gas at your disposal.
• IGBT, pulse and easy-to-read LCD help you maintain control of your arc and settings while you work.

WHY CHOOSE OUR PRODUCT?

⭐ONE MULTITASKING DEVICE

You don’t have to buy a few welding machines. You have MIG/MAG, MMA and TIG LIFT in one device, so you can adjust the method to the material and work without unnecessary equipment changes.

⭐EASIER SETTINGS, BETTER EFFECT

Thanks to the synergy function, you can set parameters faster. You gain a stable arc and repetitive welds without constantly correcting settings.

⭐WORK WHERE YOU NEED IT

The 230V power supply allows you to work in the workshop and in the field. The FLUX function gives you the ability to weld without gas when mobility matters.

WHAT SETS OUR WELDING MACHINE APART?

⭐IGBT TECHNOLOGY AND PULSE FUNCTION

IGBT stabilizes work and improves arc control. The pulse function facilitates welding of demanding materials.

⭐READABLE PANEL AND PARAMETER CONTROL

The LCD display shows the current settings. You adjust the tension and feed of the wire without guessing.

⭐CONVENIENT OPERATION AND QUICK CHANGE OF HANDLE

The EURO connector allows you to quickly connect the handle. The 2-roll feeder ensures smooth wire feed.

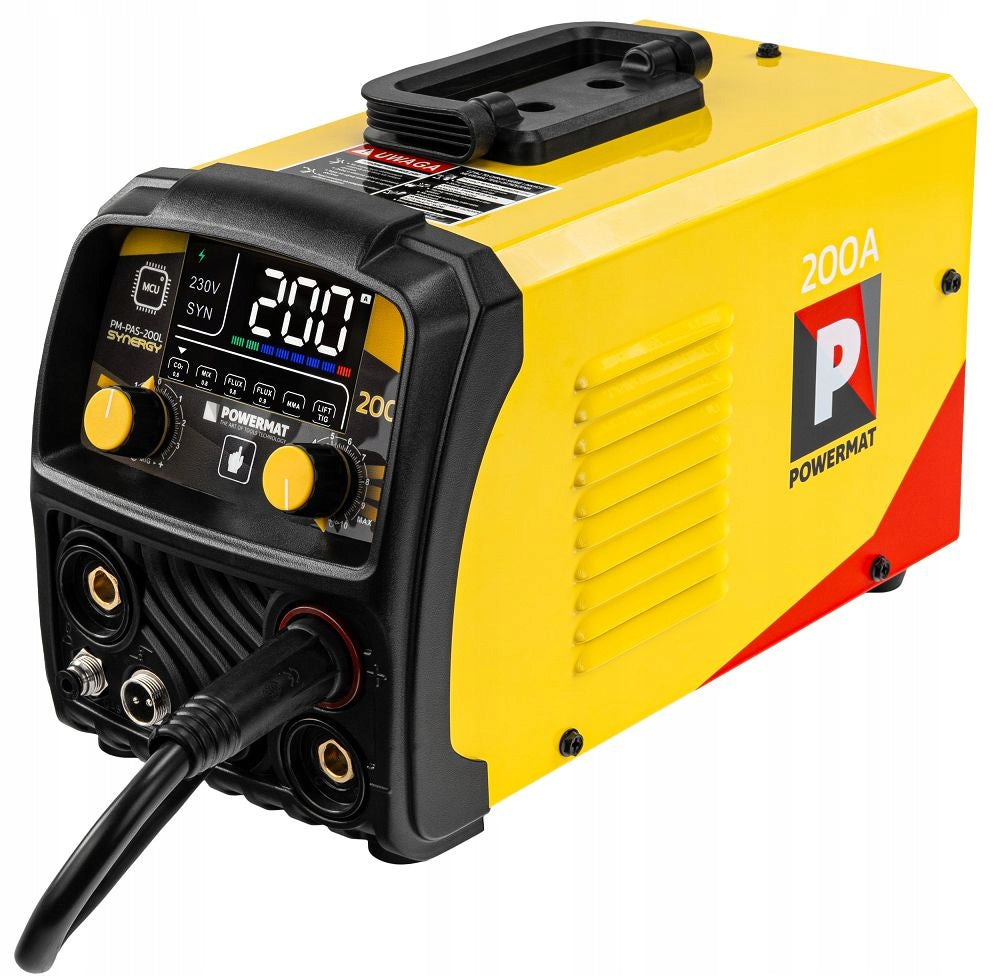

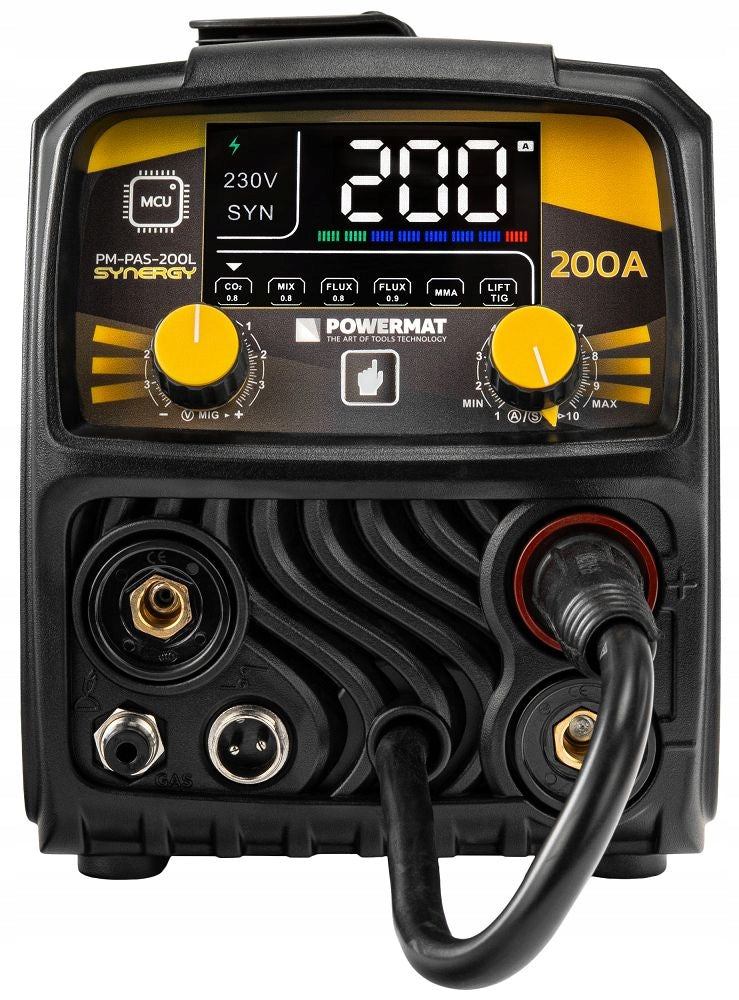

⭐READABLE CONTROL PANEL WITH LCD DISPLAY

On the control panel you will find a button for selecting MIG/MAG, MMA and TIG LIFT methods, which allows you to quickly switch the operating mode.

You adjust the parameters with two knobs, which are responsible for the voltage or current and feed of the wire.

The LCD display shows the current values, so you control the settings during welding.

⭐ WELDING POWER UP TO 200A

The device offers a maximum welding current of 200 A, which allows you to adjust the power to different materials and range of work.

In the MIG/MAG method, the range is 35 to 200 A, in MMA 20 to 190 A, and in TIG LIFT 15 to 200 A.

This range gives you the ability to precisely adjust the parameters to the thickness of the element and the selected welding method.

With a duty cycle of 200 A – 60%, you can work efficiently, and with about 154 A – 100% you weld continuously without frequent interruptions.

⭐3 WELDING METHODS IN ONE DEVICE

You work in MIG/MAG, MMA and TIG LIFT modes, so you can match the equipment to the task without changing the device. You gain time savings and more flexibility in the workshop and terrain.

⭐PRECISION AND STABILITY THANKS TO IGBT TECHNOLOGY

You have IGBT, 200A and pulse function at your disposal, which gives you a stable arc and repeatable effects. This is real control over the weld and less risk of errors during operation.

➡ MIG/MAG WELDING

The MIG/MAG method enables welding of carbon, alloy, stainless steels, aluminum and copper, which gives wide application in workshops and repairs.

Synergistic mode automatically selects parameters, so you get started faster and get more repeatable welds.

The current range of 35 – 200 A and the voltage of 15,8 – 24 V allow you to adjust the settings to different material thicknesses.

Support for 0,6 – 1,0 mm wire and 200 A – 60% and 154 A – 100% duty cycle enable stable and efficient operation.

➡ MMA WELDING

The MMA method allows welding with a wrapped electrode, which works well in assembly, repair and field work.

Support for electrodes with a diameter of 1,6 to 5 mm allows you to adjust the equipment to different material thicknesses and types of work.

The current range of 20 to 190 A and the voltage of 20,8 to 27,6 V provide adequate power for most applications.

The operating cycle of 190 A – 60% and 146,3 A – 100% enables stable welding without frequent overheating of the device.

➡ WELDING TIG LIFT

The TIG LIFT method allows for precise welding of materials such as stainless steel and aluminum, which is suitable for accurate work.

Arching by rubbing (LIFT) eliminates the need for high frequency, which simplifies the operation of the device.

The current range of 15 to 200 A and the voltage of 10,6 to 18 V allow control over welding of thin and more demanding elements.

For work, you need a TIG handle with a gas valve and a shielding gas connection, which allows you to control welding conditions.

The duty cycle of 200 A – 60% and 154 A – 100% allows for stable operation without frequent interruptions.

⭐IGBT TECHNOLOGY AND PULSE FUNCTION

IGBT technology provides a stable power source, resulting in an even arc and more predictable welding results.

Pulse and double pulse improve control over the welding lake, which translates into more accurate weld guidance.

The combination of these solutions allows you to reduce chipping and achieve a cleaner finish, especially when working with aluminum and stainless steel.

Stable electronics and arc control make it easier to maintain reproducible parameters, which gives better results with longer work.

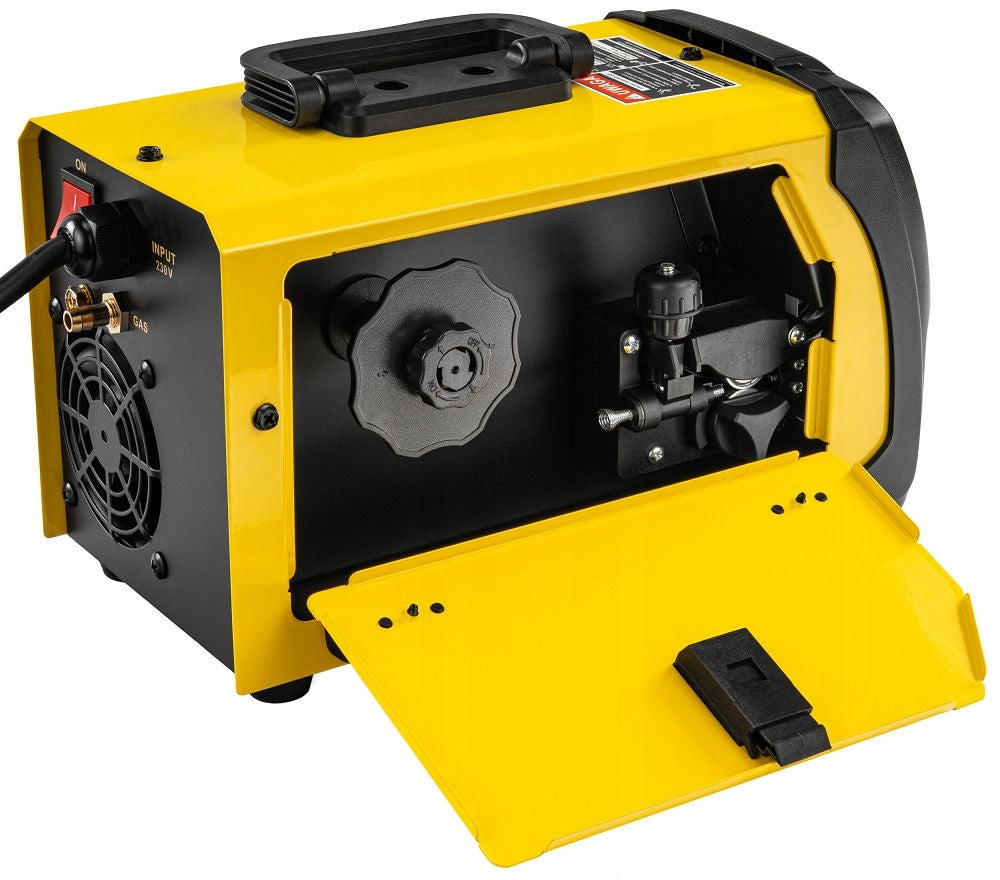

⭐WIRE FEEDING SYSTEM

The welder is equipped with a 2-roll wire feeder, which ensures a stable and even feed of the material during operation.

This ensures that the wire is guided in a more controlled manner, which helps to reduce slippage and improve welding smoothness.

The system supports wires with a diameter of 0,6 / 0,8 / 0,9 / 1,0 mm, so it is easier to adjust the settings to the type of work performed.

Even wire feeding supports arc stability and translates into better weld repeatability.

⭐EURO CONNECTOR

The device is equipped with a EURO connector, which allows you to quickly connect and disconnect the welding torch without stripping the housing.

This solution facilitates the replacement of the cable and reduces the time of preparing the equipment for work.

The EURO standard is widely used, so it is easier to choose compatible handles and accessories. You gain more comfortable handling and more freedom during everyday use of the welding machine.

⭐A SURE CHOICE FOR EVERYDAY WORK

• You have MIG/MAG, MMA and TIG LIFT at your disposal, so one device covers several typical workshop applications.
• Operating range up to 200 A, 230 V power supply and clear parameter adjustment help to position the equipment under the material and method of welding.
• The single pulse and double pulse functions give you more control where quiet, repetitive work counts.

FAQ

WHAT METHODS CAN BE USED TO WELD THIS DEVICE?

The device supports three welding methods: MIG/MAG, MMA and TIG LIFT.

DOES THE WELDING MACHINE HAVE A PULSE FUNCTION?

Yes. The model has a single pulse and double pulse function.

CAN YOU WELD WITH SELF-SHIELDING WIRE WITHOUT GAS?

Yes. The device supports welding with FLUX self-shielding wire without the use of protective gas.

WHAT IS THE POWER SUPPLY OF THE DEVICE?

The welder is powered from a 230 V / 50 Hz mains.

WHAT IS THE WELDING CURRENT RANGE?

The welding current range is 35 to 200 A for MIG/MAG, 20 to 190 A for MMA and 15 to 200 A for TIG LIFT.
