Suvirinimo aparatas MIG/MAG MMA TIG 200A Magnum MIG 208 MMA NV IGBT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG MMA TIG 200A Magnum MIG 208 MMA NV IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 208 MMA
• Ilgis: 520 mm
• Plotis: 230 mm
• Aukštis: 400 mm

⭐ Professional semi-automatic welding machine for workshop

Semi-automatic welding machine Magnum MIG 208 MMA NV is a versatile, portable power source designed for precise connection of low-carbon steel, low-alloy steel, alloy steel and aluminum and its alloys. Thanks to the use of modern inverter technology, the device offers excellent arc parameters while maintaining compact dimensions and low weight.

The Magnum MIG 208 MMA NV is perfect for locksmith workshops, repair shops, field work and production plants, ensuring reliable and efficient operation for a variety of welding tasks.

📦 Standard equipment

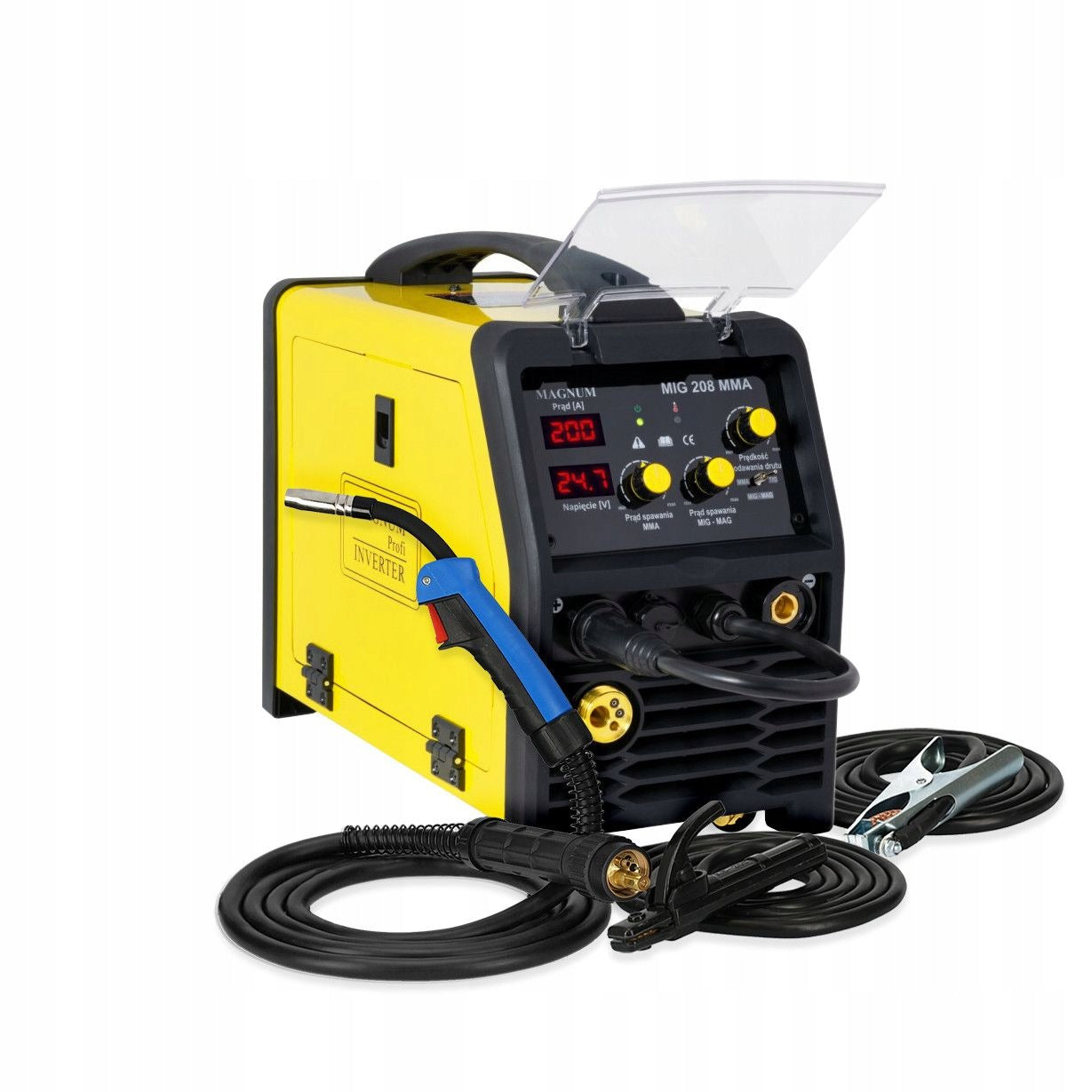

Included with the Magnum MIG 208 MMA NV are the necessary accessories to get started immediately:

• Welding machine Magnum MIG 208 MMA NV
• MIG/MAG MB-15 / 3 m welding torch with EURO connector
• MMA Electrode Holder
• Bulk holder with clamp
• User manual

🎛 Clear and intuitive control panel

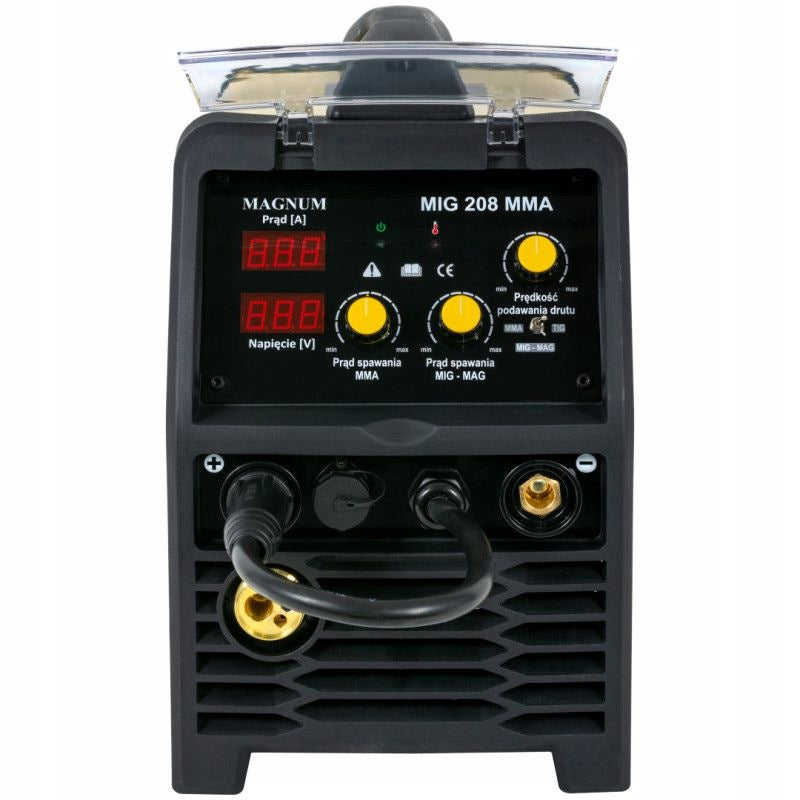

The front panel of the Magnum MIG 208 MMA NV is designed for maximum ease of use and full control over the welding process:

1. Power signaling.
2. Indication of overheating / failure.
3. Wire feed speed adjustment knob.
4. MMA/MIG/TIG LIFT welding method switch.
5. Welding current adjustment knob for MIG-MAG method.
6. Welding current adjustment knob for MMA method.
7. Display – the value of welding current.
8. Display – welding voltage value.
9. Output socket with polarity PLUS.
10. Output socket for connecting MIG/MAG work handle (euro connector).
11. Spool-gun handle control socket.
12. Plug on the cable selectable polarity for the MIG/MAG method (when welding by MIG/MAG method must be plugged into one of the sockets).
13. Output socket with polarity MINUS.

⚡ Modern IGBT transistor technology

The current source of the Magnum MIG 208 MMA NV welding machine was built on advanced IGBT transistors. This design ensures a minimum level of electromagnetic interference, higher efficiency and rapid adjustment of current parameters to changes during arc guidance.

• Less energy consumption while maintaining high efficiency up to 60%
• Stable welding arc and reliable operation in difficult workshop conditions
• 2-roller feeder for smooth and even wire feeding without jams
• Possibility of using wire spool up to 5 kg (D200)

🔥 Versatility – MIG/MAG, MMA, TIG Lift and FLUX

The Magnum MIG 208 MMA NV model allows you to work in several popular welding methods, making it a versatile tool for any repair and construction work:

• MIG/MAG – classic gas shielded welding with current regulation in the range 40 - 200 A
• FCAW self-shielding welding (FLUX) – wire work without the need for an external gas cylinder (requires a change in polarity: minus on the handle, plus on the mass)
• MMA – welding with rutile and alkaline electrodes to current 160 A
• TIG Lift – TIG welding capability with touch ignition up to 160 A
• Control socket for connecting the spool-gun type handle

🔧 Full technical specification

• Power supply: AC 230 [V], 50/60 [Hz],
• Max. Power consumption: 5,7 kW
• Protection required: 20 A [C]
• MIG/MAG welding current: 40 - 200 A
• Max. MMA/TIG Lift welding current: 160 A
• Idle Voltage: 60 V
• Efficiency: 60%
• Wire spool weight: max. 5 kg
• Wire diameter: 0,6 / 0,8 / 0,9/ 1,0 mm
• Welding "without gas": YES
• Housing Protection Class: IP21S
• Weight: 10,3 kg
