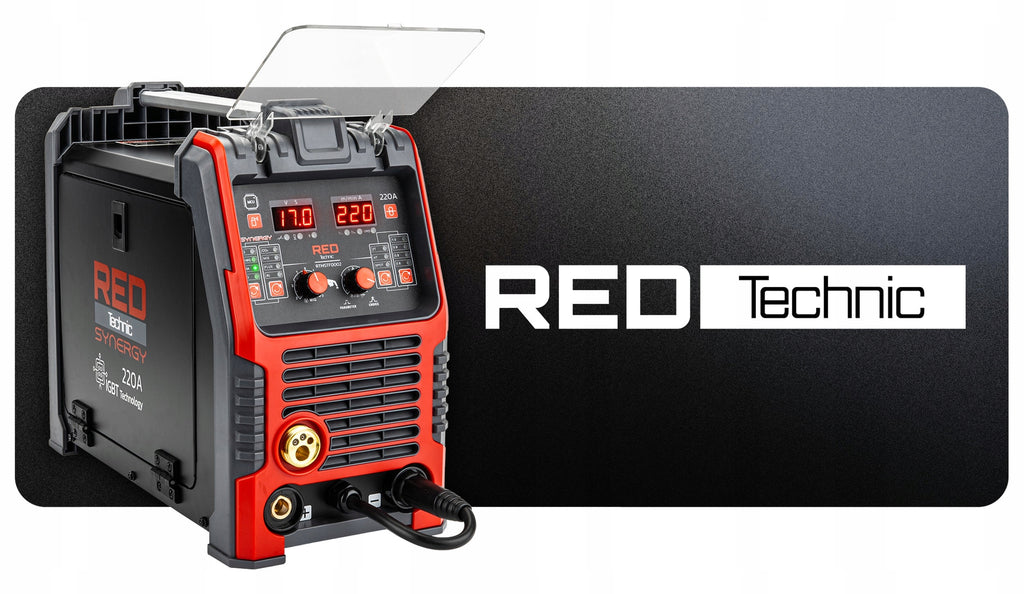

Suvirinimo aparatas MIG/MAG/MMA/FLUX/TIG, 220A, SYNERGY

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG/MAG/MMA/FLUX/TIG, 220A, SYNERGY. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: RED TECHNIC
• Modelis: RTMSTF0002
• Ilgis: 450 mm
• Plotis: 220 mm
• Aukštis: 380 mm

MIG/MAG / FLUX / MMA / TIG LIFT | 220A | IGBT TECHNOLOGY | SYNERGY | 230V | LCD DISPLAY | EURO CONNECTOR | HOT START | ARC FORCE | ANTI STICK

Model: RTMSTF0002

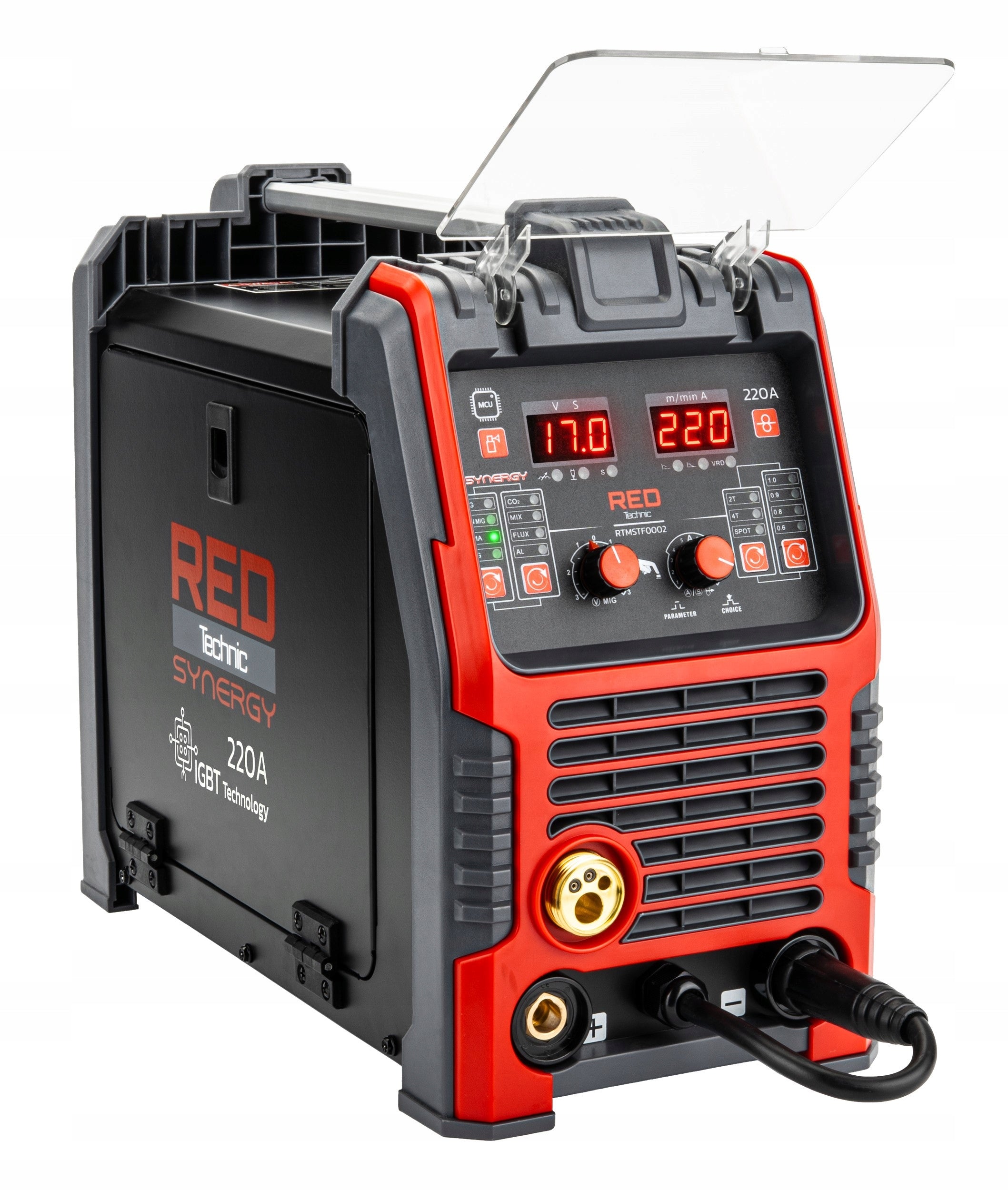

Multifunctional inverter welding machine that allows you to weld using MIG/MAG, MMA, TIG LIFT and FLUX methods with one device. With up to 220A power and synergistic mode, you can easily adjust parameters for stable arc and precise welds. The intuitive panel with two LCD displays, lightweight design with aluminum handle and efficient cooling make it an ideal solution for precise welding of various materials.

⚫ LESS SETTING, MORE WELDING

▪ When you waste time selecting parameters, the synergic mode helps you set the welding machine to work faster and reduces corrections.

▪ One device supports MIG/MAG, FLUX, MMA and TIG LIFT methods, so you can easily match the method to the task.

▪ Power 220A, IGBT, functions HOT START, ARC FORCE and ANTI STICK facilitate arcing and stable operation.

🔴 WHY CHOOSE OUR PRODUCT?

🔻 ONE DEVICE FOR MULTIPLE TASKS

You have one welding machine that supports MIG/MAG, MMA, TIG LIFT and FLUX, so you don’t waste time changing equipment. You gain comfort and full control regardless of the material and working conditions.

🔻 FASTER WORK THANKS TO AUTOMATION

Synergistic mode automatically selects parameters, so you don't have to guess settings. Weld faster and more confidently, even if you don’t have much experience.

🔻 STABLE ARC AND BETTER WELDS

IGBT technology ensures even operation and a stable arc, which translates into more accurate welds. You get a repetitive effect without tugging and interruptions.

🔴 WHAT SETS OUR WELDING MACHINE APART?

🔻 POWER UP TO 220A AND WIDE OPERATING RANGE

You work on different materials without changing the equipment. You gain more flexibility and less downtime.

🔻 INTUITIVE OPERATION AND EASY-TO-READ PANEL

You can see the settings right away on the LCD display. You gain faster control and fewer errors during operation.

🔻 FUNCTIONS FOR EASY WELDING

HOT START, ARC FORCE and ANTI STICK help with arcing. You get smoother work and fewer problems.

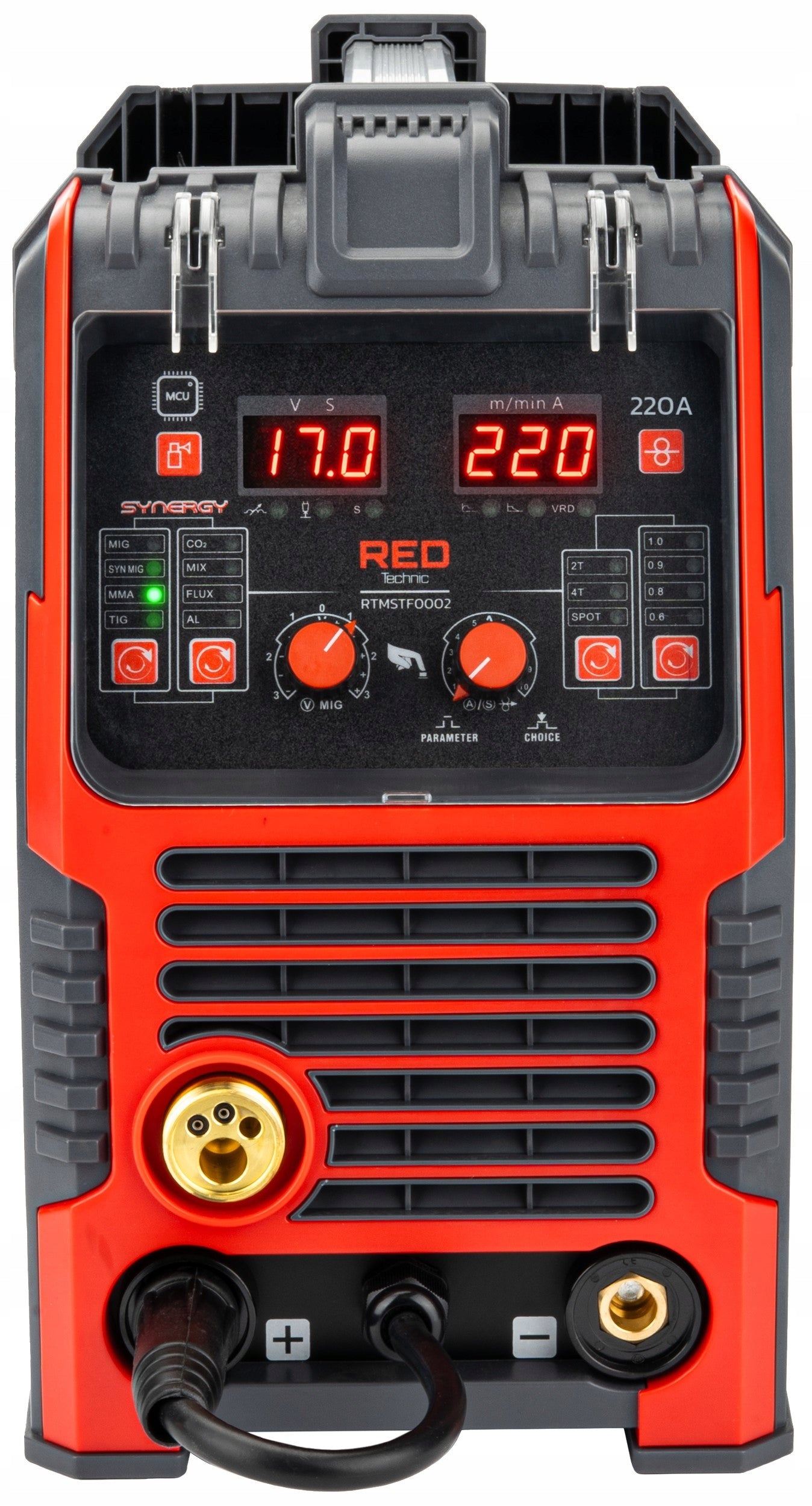

🔴 EASY TO READ LCD PANEL AND INTUITIVE ADJUSTMENT

The control panel with LCD displays shows the current operating parameters, so you have full control over the settings.

Knob adjustment allows you to quickly adjust values without unnecessary searching for functions.

You get easier handling and faster response during operation. This translates into greater precision and comfort with every welding.

🔴 WELDING POWER UP TO 220A

The device offers a maximum welding current of 220A, which allows you to work with both thinner elements and thicker steel structures.

You gain more versatility without the need to change equipment for various tasks.

Stable operating parameters supported by IGBT technology help maintain an even arc and better control over the weld. This means more reliable work and fewer corrections with each welding.

⚫ SYNERGISTIC MODE THAT SAVES YOUR TIME

Synergy helps you set parameters faster, while HOT START, ARC FORCE and ANTI STICK improve welding comfort. Plus, you have LCD, 2-roll feeder and EURO connector, so operation is simple and specific.

🔴 TECHNICAL DATA

• Welding method: MIG/MAG, FLUX, MMA, TIG LIFT
• Power supply: 230V / 50Hz
• Recommended protection (MIG/MAG): 38,6 A
• Recommended Protection (MMA): 39,2 A
• Recommended protection (TIG LIFT): 29 A
• Power consumption (MIG/MAG): 8,9 kVA
• Power Consumption (MMA): 9 kVA
• Power consumption (TIG LIFT): 6,7 kVA
• Welding current range (MIG/MAG): 30 – 220 A
• Welding Current Range (MMA): 25 – 200 A
• Welding current range (TIG LIFT): 15 – 220 A
• Welding voltage (MIG/MAG): 15,5 – 25 V
• Welding Voltage (MMA): 21 – 28 V
• Welding voltage (TIG LIFT): 10,6 – 18,8 V
• Operating cycle welding current 60% (MIG/MAG): 220 A
• Working cycle welding current 60% (MMA): 200 A
• Working cycle welding current 60% (TIG LIFT): 220 A
• Working cycle welding current 100% (MIG/MAG): 169 A
• Working cycle welding current 100% (MMA): 154 A
• Working cycle welding current 100% (TIG LIFT): 169 A
• Idle voltage: 62 V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Electrode diameter: 1,6 – 5 mm
• Housing protection class: IP21S
• Power cord length: 210 cm
• Product weight: 10 kg
• Product weight with packaging: 14,5 kg
• Product Dimensions (L. / W. / h. ): 45 cm x 22 cm x 38 cm

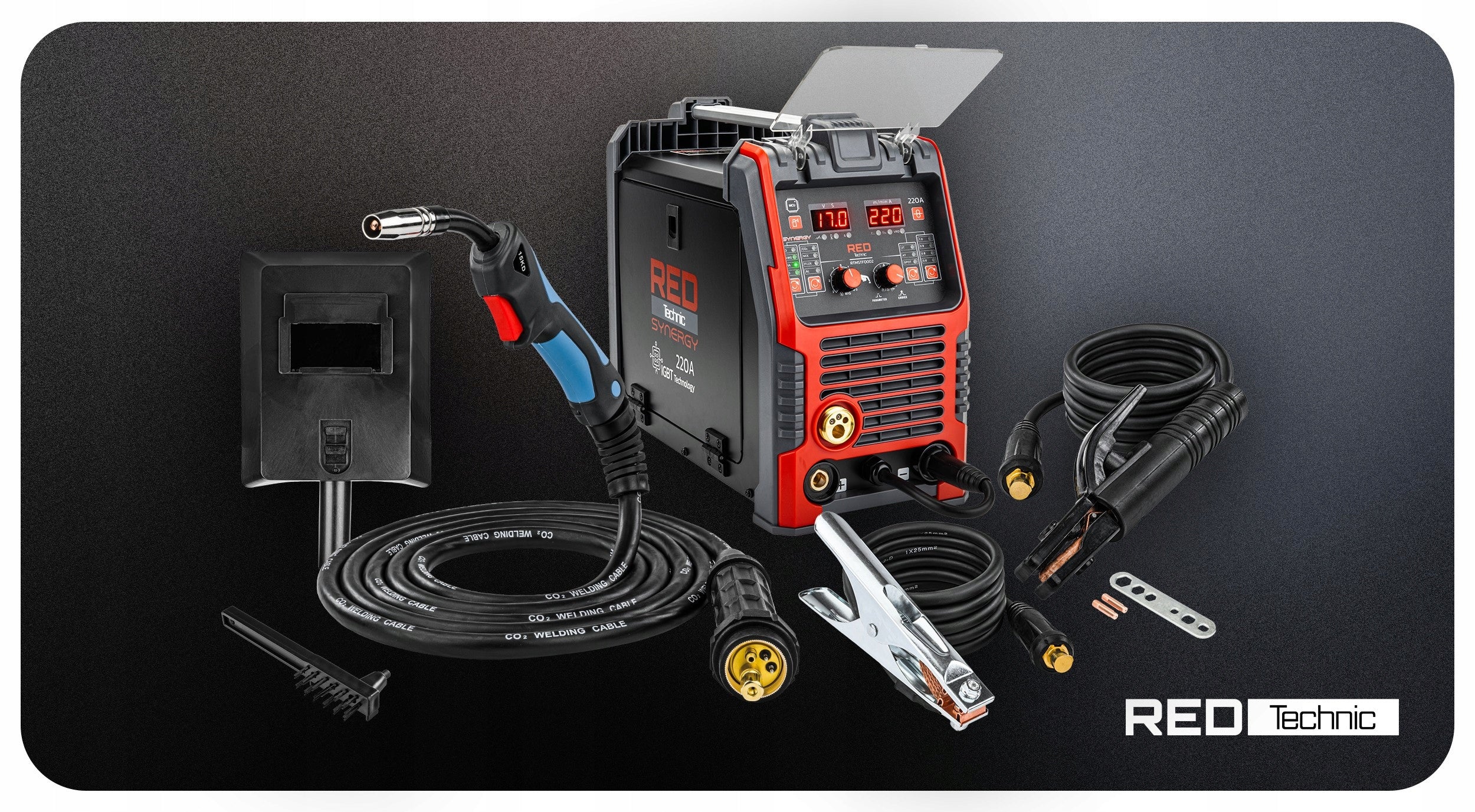

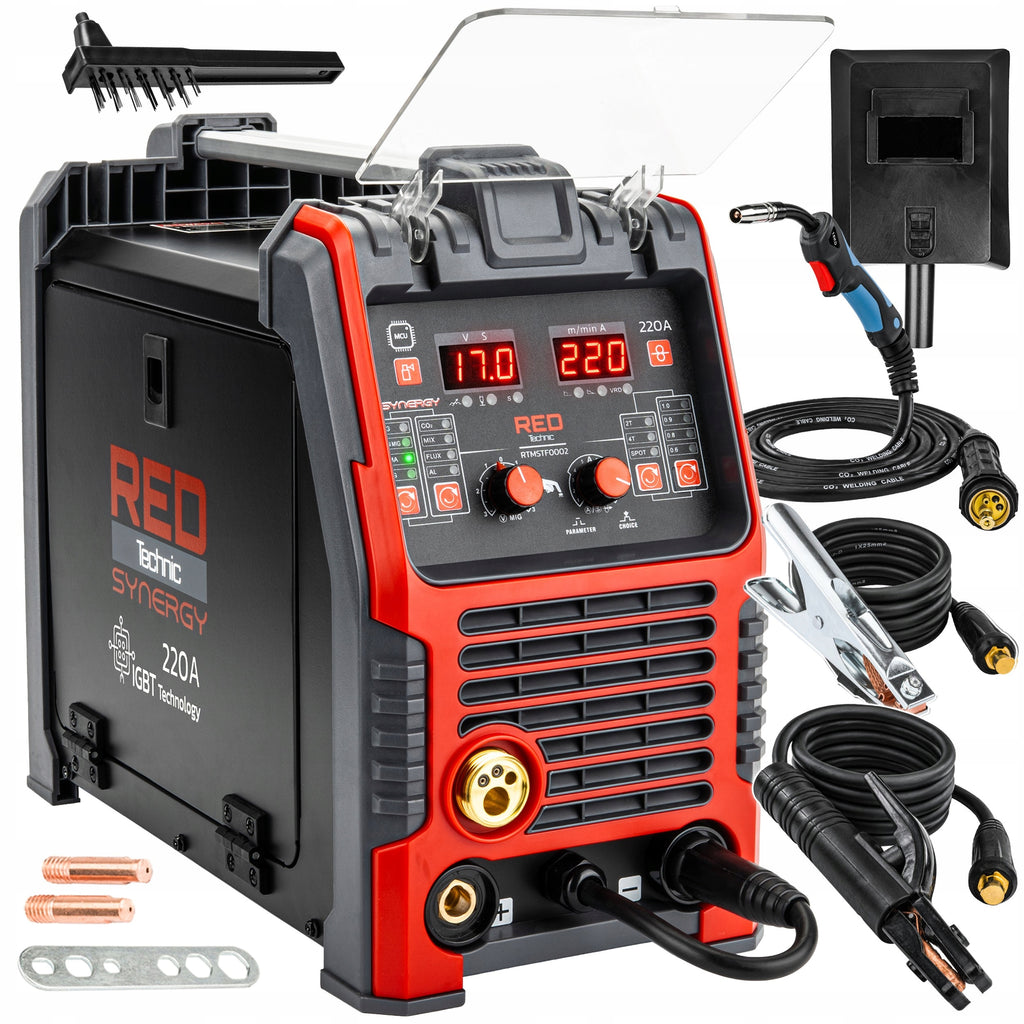

🔴 CONTENTS OF THE SET

• Bulk holder (-) 205 cm
• MMA electrode holder (+) 210 cm / plug diameter 13 mm
• EURO MIG/MAG holder - 400 cm
• Current terminal 0,8mm
• Current terminal 1,0 mm
• Roller (double-sided) supporting wire: 0,8 mm and 1,0 mm; type U
• Welding mask
• Brush with hammer
• Universal key
• User manual
• Original packaging

⚫ POWER 220A AND 4 WELDING METHODS IN ONE MACHINE

You choose MIG/MAG, FLUX, MMA or TIG LIFT without changing the equipment, so you work faster and more comfortably. You get 220A, IGBT technology and features that really make everyday work easier.

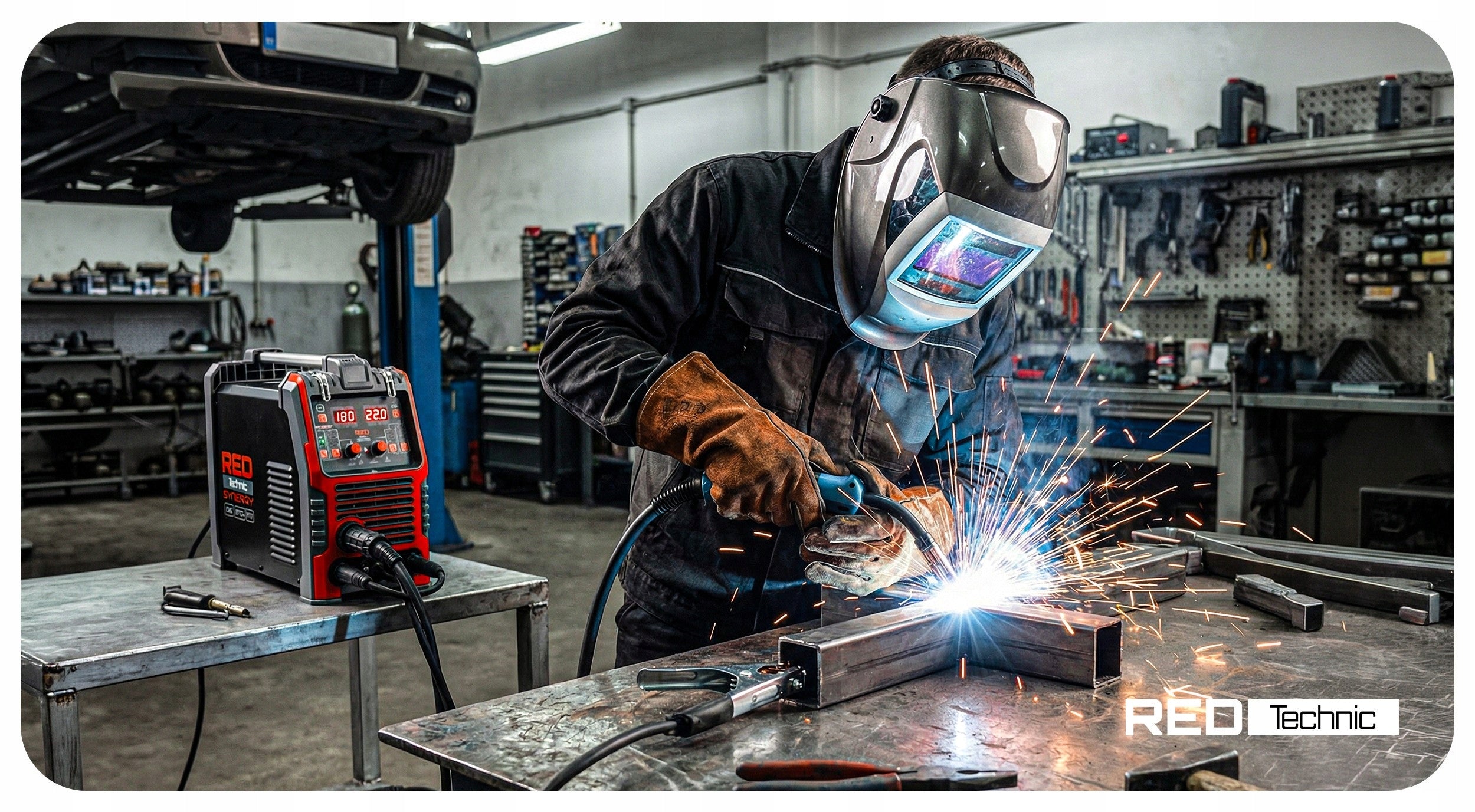

🔴 MIG/MAG AND FLUX WELDING

MIG/MAG methods work in the range of 30 – 220A and voltage 15,5 – 25V, which allows you to adjust the parameters to different material thicknesses.

In FLUX mode, you can weld without gas, using self-shielding wire, which works well outdoors and in harsh environments.

The 2-roll feeder ensures smooth wire routing, which translates into stable operation.

You gain faster welding, greater efficiency and the ability to work without additional equipment.

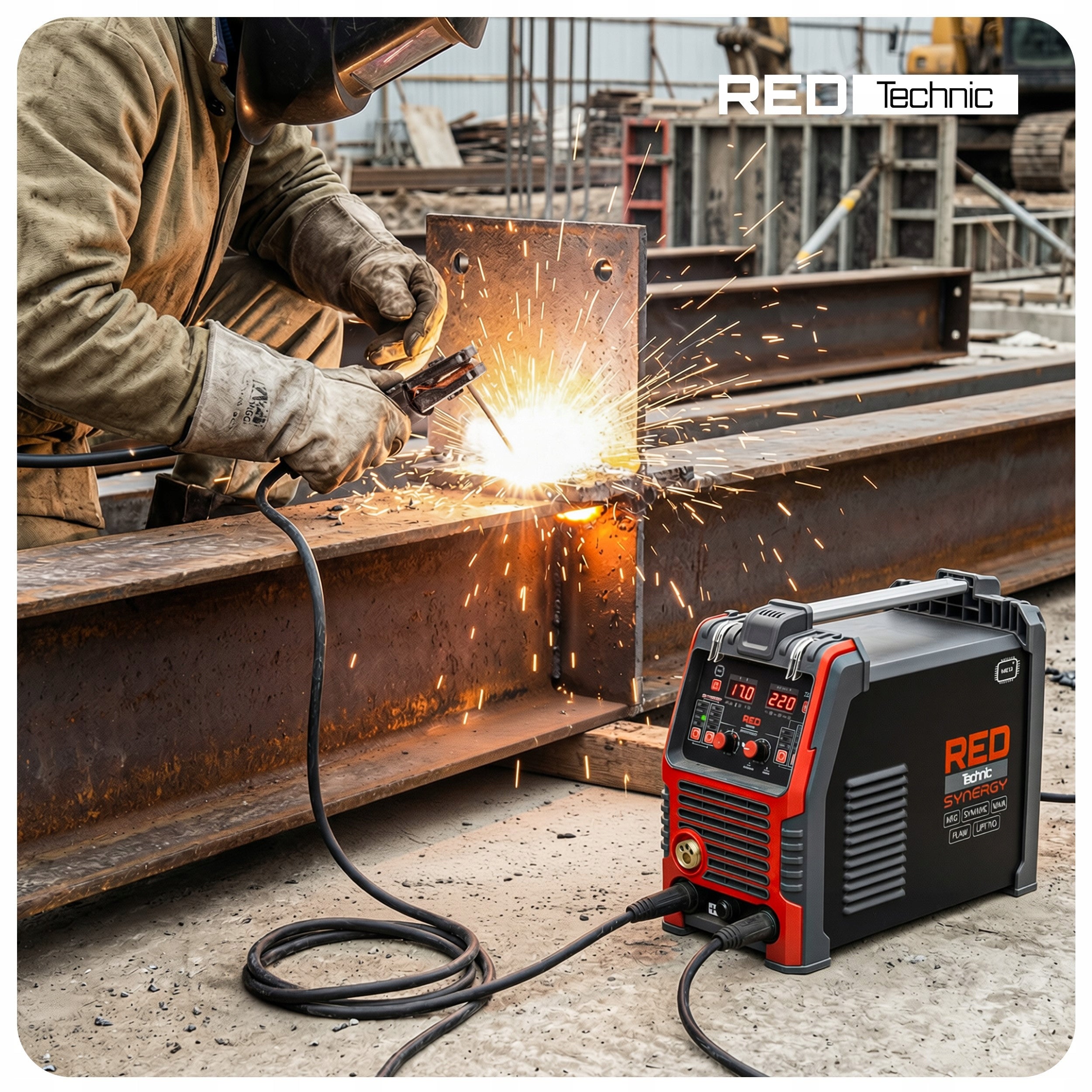

🔴 MMA WELDING

Welding using the MMA method takes place in the range of 25 – 200A at a voltage of 21 – 28V, which allows you to work with various electrodes with a diameter of 1,6 – 5 mm.

You do not need shielding gas, so you can operate in the field and with soiled materials.

The HOT START function automatically increases the current at the beginning of welding, which facilitates arcing and eliminates the problem of sticking the electrode at the start.

ARC FORCE stabilizes the arc during operation, adjusting its dynamics and improving the melting of the material, which translates into better weld quality.

ANTI STICK reduces current in the event of an electrode short circuit, making it easier to tear it off and continue working without downtime.

🔴 WELDING TIG LIFT

The TIG LIFT method operates in the range of 15 – 220A at a voltage of 10,6 – 18,8V, which gives full control over thin and accurate welds.

The arc glow by touch eliminates the need for more complex HF systems.

To work, you need a TIG handle with a gas valve and a shield gas connection, which allows you to control welding conditions.

The process provides clean welds without splatter and high aesthetics. You work more precisely and have more control over the end result.

🔴 IGBT TECHNOLOGY AND STABLE WELDING ARC

The use of IGBT transistors ensures stable operation and better control over the welding arc.

You gain even welding without sudden voltage drops and interference. This technology also affects lower energy consumption, which is important for longer operation. Stable arc translates into more accurate and aesthetic welds.

Thanks to this, you achieve better end result with less effort.

🔴 WIRE FEEDING SYSTEM

The welder is equipped with a 2-roll wire feeder, which ensures stable and even feed of the material during operation.

Thanks to this, the wire is guided in a more controlled way, which helps to reduce slip and improves the smoothness of welding.

The system supports wires with a diameter of 0,6 / 0,8 / 0,9 / 1,0 mm, so you can easily adjust the settings to the type of work performed.

Even wire feeding supports arch stability and translates into better weld repeatability.

🔴 EURO CONNECTOR AND SOLID CONNECTION

Equipped with a standard EURO connector, it allows you to quickly connect and replace the handle without stripping the device.

You gain time saving and convenience during everyday work and servicing of equipment.

The EURO standard gives you easy compatibility with a wide range of accessories available on the market. This solution increases practicality and flexibility of use.

⚫ A CHOICE THAT ORGANIZES EVERYDAY WORK

▪ This device combines 4 welding methods in one housing, so you do not have to look for separate equipment for different tasks.

▪ Synergy, 220A and HOT START, ARC FORCE, ANTI STICK functions help you work more efficiently and with fewer fixes.

▪ When you want simpler operation and stable parameters, this set simply gives you a calmer operation.

⚫ FAQ

▪ WHAT WELDING METHODS DOES THE DEVICE SUPPORT?

The welder supports MIG/MAG, FLUX (self-shielded wire), MMA and TIG LIFT methods.

▪ CAN WELD WITHOUT GAS?

Yes, in FLUX mode, you can use self-shielding wire without having to connect gas.

▪ WHAT IS THE MAXIMUM WELDING CURRENT?

The maximum welding current is 220A for MIG/MAG and TIG LIFT methods and 200A for MMA.

▪ DOES THE DEVICE HAVE AUTOMATIC PARAMETER SELECTION?

Yes, synergistic mode automatically selects parameters for wire, gas and material type.

▪ WHAT FUNCTIONS SUPPORT WELDING?

The device has HOT START, ARC FORCE and ANTI STICK functions that facilitate arcing, stabilize welding and limit electrode sticking.
