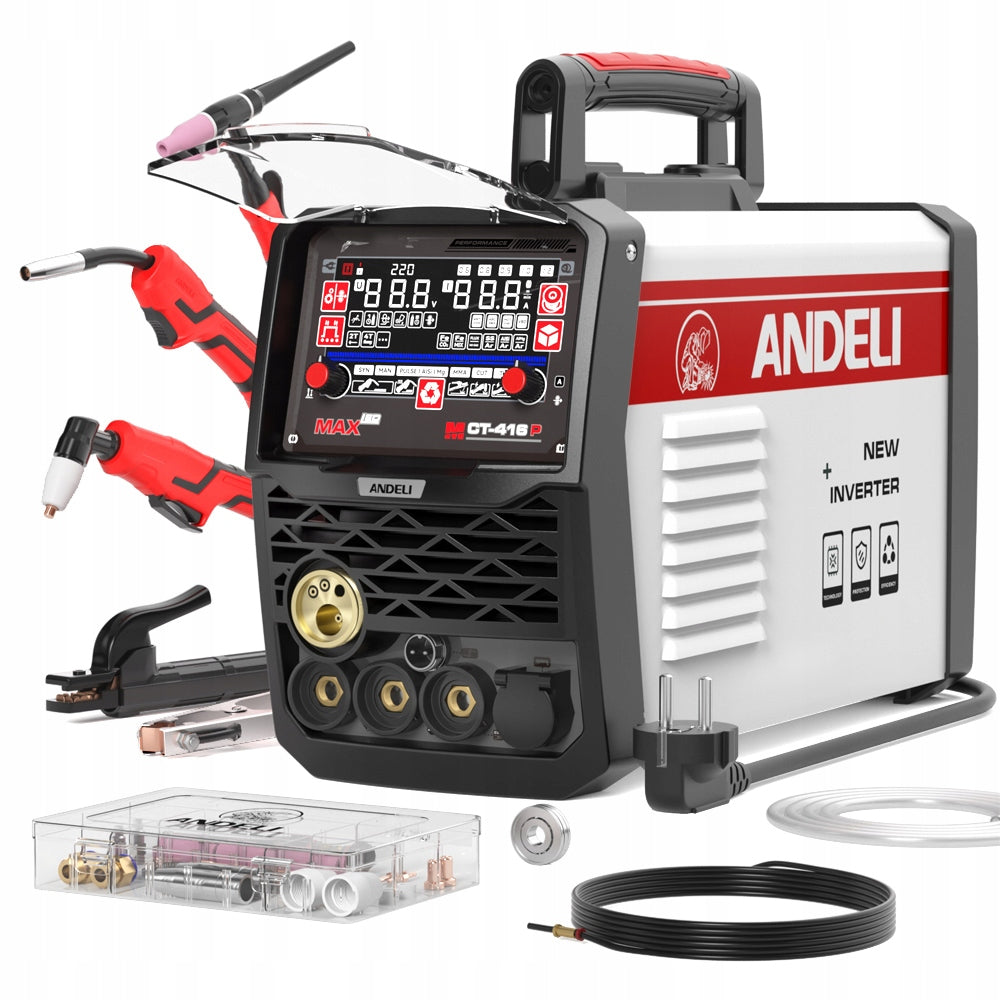

Suvirinimo aparatas MIG MAG 4-in-1 Synergy Plasma MIG MMA TIG DC pusiau automatinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIG MAG 4-in-1 Synergy Plasma MIG MMA TIG DC pusiau automatinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Andeli
• Modelis: MCT-416P
• Ilgis: 460 mm
• Plotis: 170 mm
• Aukštis: 290 mm

ANDELI Plasma Cutter Welder Combo MIG Pulse/HF TIG/HF Cut/Stick/Flux Core 6-in 1 Multifunctional Welder Aluminium MIG Welding Machine

SPECIFICATION:

Voltage: 230V

Welding methods: MIG, TIG DC, MMA, PLASMA CUTTING

Input Current：22.5A

Dimensions: 460*170*290 mm

Net weight: 9.7kg

Protection class: IP21

Insulation Class:F

MIG welding parameters:

Duty cycle: 60%

Current：160A

Volts at Rated Current:22V

Welding Current Range: 30-160A

Open Circuit Voltage:62V

Welding Voltage Range:15.5-22V

Wire Diameter：0.6-1.0mm

HF TIG welding parameters:

Duty cycle: 60%

Current：160A

Volts at Rated Current:16.4V

Welding Current Range: 15-160A

Open Circuit Voltage:62V

Welding Voltage Range:10.6-16.4V

Tungsten Electrode:1.6-3.2MM

MMA welding parameters:

Duty cycle: 60%

Current：160A

Volts at Rated Current:26.4V

Welding Current Range:25-160A

Open Circuit Voltage:62V

Welding Voltage Range:21-26.4V

Electrode Size：1.6-3.2mm

Plasma cutting parameters：

Duty cycle: 60%

Current：45A

Volts at Rated Current:96V

Welding Current Range:20-40A

Open Circuit Voltage:312V

Welding Voltage Range:84.8-98V

6-in 1 Multi-Functional Welder

The Multi-Functional Welder combines HF TIG/HF CUT/Pulse MIG/SYN MIG/MAN MIG/MMA/FLUX CORE,2T/4T modes,offering a comprehensive solution for a wide range of welding and cutting tasks, making it ideal for professionals and DIY enthusiasts alike.

Automatically Memorized Mig Welder

Our multiprocess welding machine can auto save and recover welding parameters,reducing downtime between jobs and ensuring repeatable precision and uniformity in every weld.This mig welding machine is suitable for ordinary thin steel, iron, stainless steel, low-carbon steel, mold repair and etc.

Pulsed MIG Aluminum Welder

Utilizing advanced IGBT inverter and pulsed arc technology, it effectively resolves common challenges in aluminum welding，ensures a smooth, stable, and spatter-reduced welding experience that adapts to your project’s needs.SYN/MAN MIG: automatically adjusts parameters based on your current settings,also you can adjust the welding current according to your welding habit.

HF TIG

Delivers a powerful 160A output, making it versatile for welding a wide range of material thicknesses and suitable for extended operation. The torch head does not need to touch the metal plate, making it effective on rough, painted, and rusty surfaces metal surfaces,ensuring a focused and stable arc.

HF CUT

Features a 20-40A adjustable output, ideal Clean Cut: 0.6"(15mm) on 220V, Maximum Cut:0.71"(18mm) on 220V. The arc ignites without contact, effortlessly cutting through paint and rust. Enjoy extended consumable life, cleaner cuts and versatility.

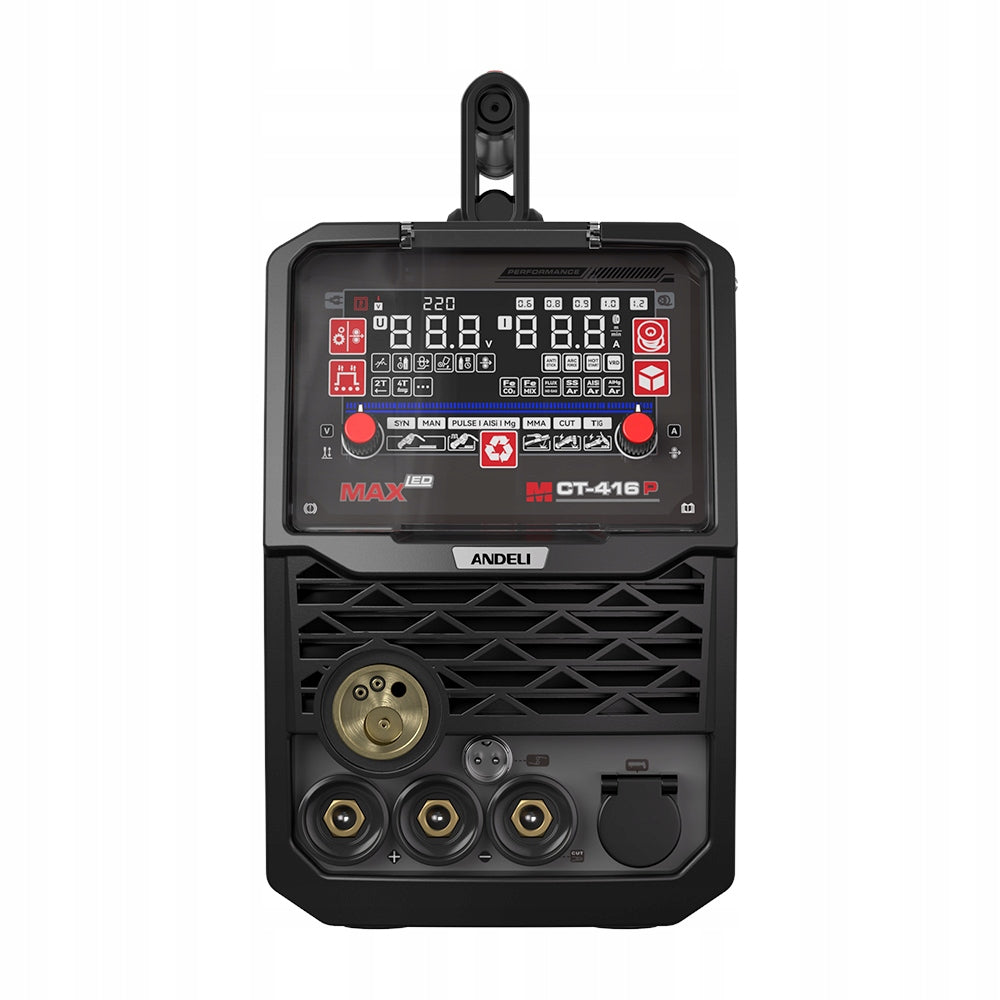

5 inches LED Displayed

It is super easy and convenient to chose the welding mode, material, welding wires, tungsten rods, electorde and the workpiece thicness you need by spinning and pressing the buttons. It will shows all the parameters clearly, large High-Definition, large screen, increases the visual clarity and improves the efficiency of the operation.

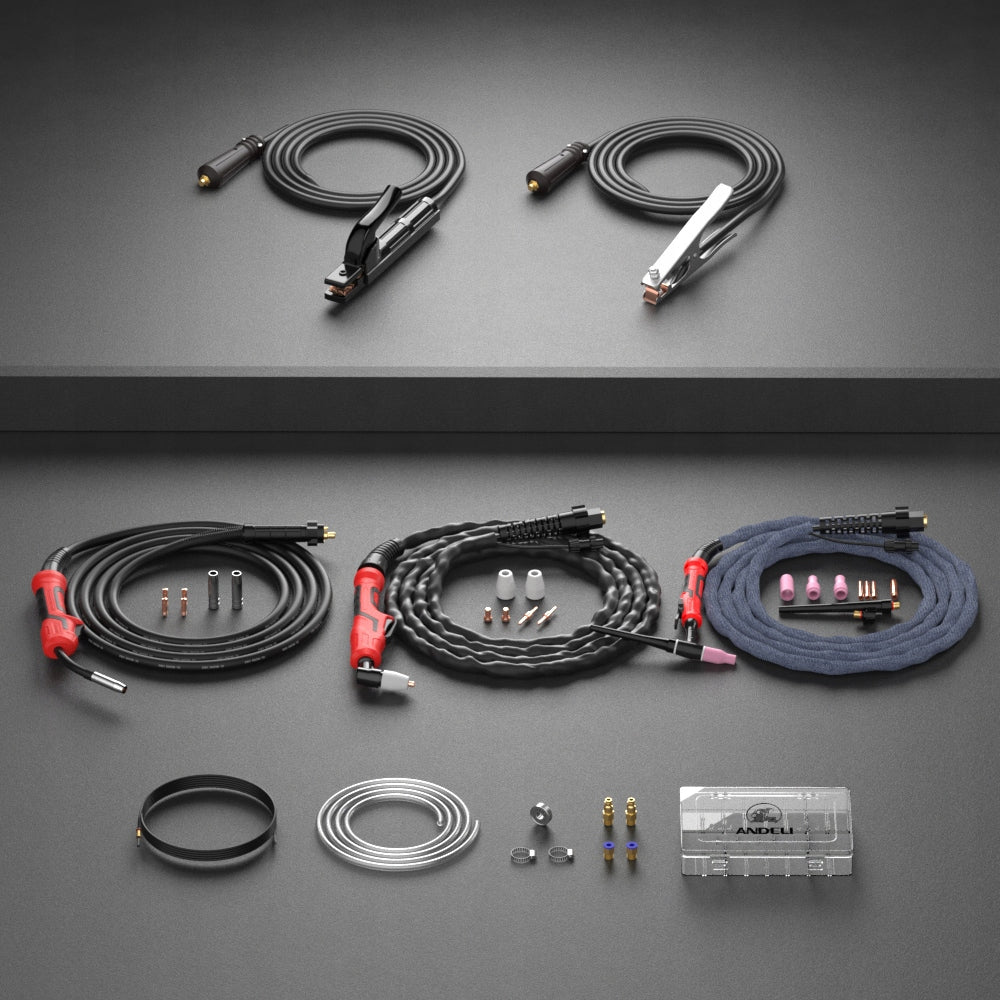

GROUND CLAMP *1

MMA HOLDER *1

GAS HOSE*1

TIG TORCH *1

PLASMA CUTTING TORCH *1

MIG TORCH *1

AIR FILTER REGULATOR *1

GRAPHENE LINER *1

PNEUMATIC JOINT *2

HOSE HOOP *2

Some welding torch consumable parts
