Suvirinimo aparatas MAGNUM THF MIG 202P AC/DC SYNERGY LCD MMA TIG ALU PULSE

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM THF MIG 202P AC/DC SYNERGY LCD MMA TIG ALU PULSE. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U I THF202MIG LCD
• Ilgis: 640 mm
• Plotis: 215 mm
• Aukštis: 360 mm

Manufacturer: MAGNUM ║ Welding methods: TIG AC/DC, PULS, MIG/MAG, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

• Welding MIG/MAG, MMA, TIG AC/DC
• One device for welding aluminum with "migomat" and "tigiem"

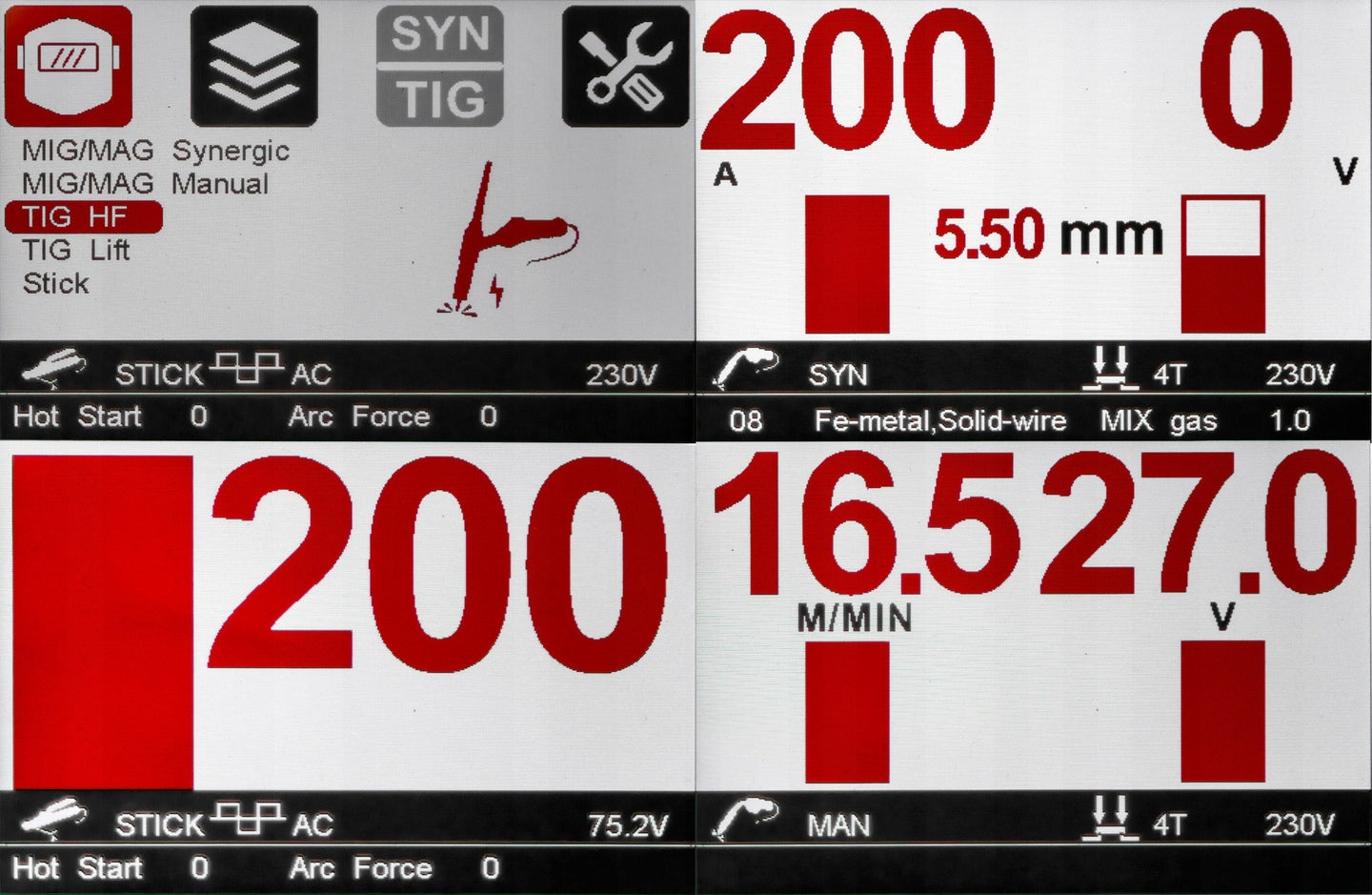

• Large and colorful display LCD
• Menu in Polish
• Synergy in MIG-MAG mode
• Manual control
• 16 programs for welding
• TIG with LIF and contactless HF
• Function 2T/4T
• BURN BACK function
• Regulation of gas outflow and outflow
• Inductance regulation - less chipping
• Option LUTOWELDING CUSi3
• 30 memory channels - 10 for each method
• Equipped with strong welding handles

• Maximum current 200A in cycle 60%
• BI-LIVEL function
• Spot - spot welding
• Choosing an AC Waveform
• Welding with PULSEM TIG
• PFC system
• PANEL IN POLISH!
• Ability to work on long extension cords
• Anti Stick
• HotStart
• ArcForce
• Optimal size and weight
• FAN STOP - intuitive fan
• Sturdy and durable housing

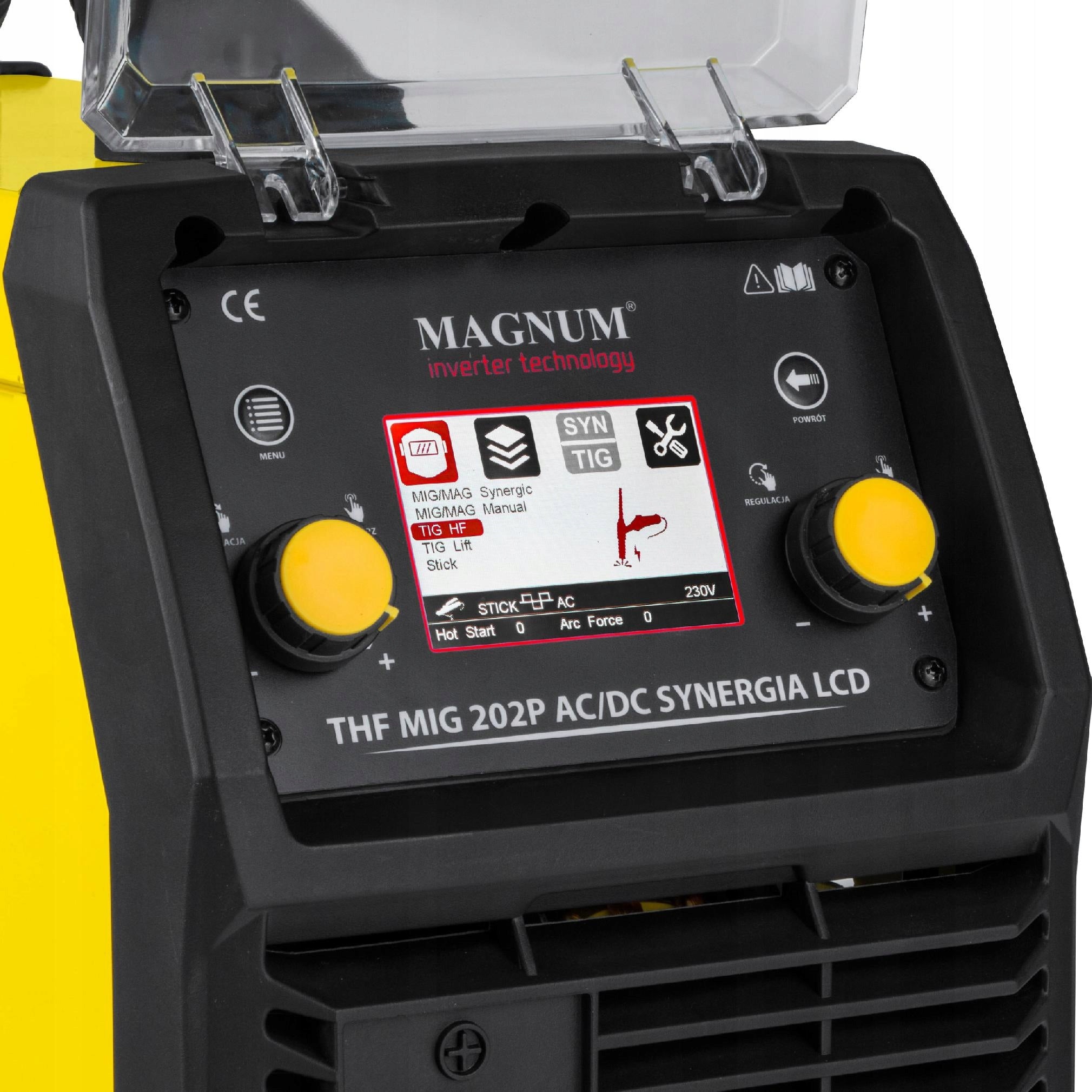

• Flap to protect the front control panel
• Lower energy consumption

MULTIFUNCTIONAL DEVICE

MAGNUM THF MIG 202P AC/DC SYNERGY LCD is an inverter welding machine that impresses with its capabilities and wide range of applications. The device combines the most popular welding methods (MIG/MAG, TIG AC/DC, PULS, MMA) with very high technical parameters. The welding machine allows you to weld each alloy of aluminum, steel, copper alloys and other weldable materials with a maximum current of 200A!

MIG/MAG WELDING - MANUAL/SYNERGY modes

The device allows welding with MIG/MAG wire from 0,6 to 1,0mm thickness. From the welding machine menu, we can choose manual mode or use ready-made settings. We have 16 synergistic programs for ordinary steel, stainless steel, aluminum and soldering. This arrangement allows you to set the welding machine for each metal very precisely without wasting unnecessary time.

TIG AC/DC to ALUMINIUM

If we care about the high quality and appearance of the weld, we can use the TIG AC/DC function. We have pulse current and waveform selection, which makes TIG welding of the highest quality. All pulse parameters are fully regulated. Each of the settings can be saved and returned to them, e.g. when we have repetitive work. There are 10 memory channels to use.

• PLAIN STEEL IN CO2 SHEATH WITH WIRES 0,6-1,0
• PLAIN STEEL IN AR+CO2 (MIX) WIRE 0,6-1,0
• WELDING WITH SELF-SHIELDED WIRE (FLUX) 0,8-1,0
• STAINLESS AND ACID-RESISTANT STEEL IN ARGON SHEATH WITH WIRES 0,8-1,0
• WELDING ALUMINIUM IN ARGON SHEATH WITH WIRE 1,0
• WELDING CUSI3 (LUTOWELDING) IN ARGON SHEATH WITH WIRE 0,8

IN TOTAL, WE HAVE THE OPPORTUNITY TO USE 16 PROGRAMS

BI-LEVEL - a function that allows you to switch between two different welding current values, without interrupting operation. The change is done by quickly pressing the button on the handle. Functions used for welding elements of variable thickness.

PUNKT - spot welding by MIG/MAG and TIG method. The function is mainly used to connect sheet metal "on tab" or pre-connect the structure.

CHANGE OF WAVEFORM AC - welding machine allows you to choose the wave shape from:

• SQUARE rectangular - recommended for welding aluminium with magnesium
• SINE Sine Wave - recommended for welding pure aluminum 99,999%
• TRIANGULAR - setting the triangular shape of the current wave is optimal for welding thin elements, including anodized aluminum

FULL SYNERGY - this is a modern electronic microprocessor control that automatically selects operating parameters depending on the wire diameter, type and thickness of the material.

PFC - Module ensuring the resistance of the device to voltage drops. It guarantees a stable welding process with large voltage drops in the network. This is a beneficial solution when working on long extension cords and when using a generator set.

PRE GAS + POST GAS - a function helpful to cover the welding lake. The lack of additional gas shielding may result in oxidation of the weld.

MMA HOT START FUNCTION "hot start" - consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.

MMA ARC FORCE “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length.

Advantages of TIG SR 26 handle

• Length 4 meters
• High current carrying capacity
• Allows you to work in long cycles
• Remote control in the handle
• Easier work - professional model
• Possible change of welding current during operation - control in the handle
• Ergonomic handle
• Proven and robust construction

STRONG HANDLE WITH CONTROL

The device is equipped with a welding torch TIG SR 26 length 4m, with a high current capacity, thanks to which it will withstand work even in long cycles. The handle also has remote control in the handle, which definitely facilitates work and it is possible to change the current during welding.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Frequency: 50/60Hz
• Number of phases: 1ph
• Network security: 20A "C"

TIG AC/DC PARAMETERS

• TIG DC welding current: 5 ÷ 200A
• TIG AC welding current: 5 ÷ 200A
• Work cycle: 60%
• Welding cycle time at point: 0,2 ÷ 10s
• Gas outflow time before: 0,1 ÷ 2s
• Initial current: 5-200A
• Power build-up time: 0 ÷ 10s
• Base current: Full range
• Welding current/peak current: Full range
• Pulse balance: 5 ÷ 95%
• Pulse frequency: 0,5 ÷ 999Hz
• AC balance: -5 ÷ 5%
• AC frequency: 50 ÷ 250Hz
• Power drop time: 0 ÷ 10s
• Final current: Full range
• Gas outflow time after: 0 ÷ 10s
• Bi Level: 2 ÷ 10s

MIG/MAG PARAMETERS

• MIG/MAG welding current range: 40 ÷ 200A
• Work cycle: 60%
• Idle voltage: 75V
• Gas flow before welding: 0.1 ÷ 2.0 s
• Gas flow after welding: 0 ÷ 10 s
• Wire access speed (so-called. soft start): 0 ÷ 10 s
• Wire burning height (burn back): 0 ÷ 10 s
• Welding time at point (with spot welding): 0.1 ÷ 10 s
• Distance between points (with spot welding): 0.5 ÷ 10 s
• Inductance: -5 ÷ 5
• Feeder: 2R

PARAMETERS MMA

• MMA welding current range: 5 ÷ 200A
• Work cycle: 60%
• Hot Start: 0 ÷ 100%
• Arc Force: 0 ÷ 100%

ADDITIONAL FUNCTIONS

• PULSE function: YES
• TIG function POINT: YES
• HF function: YES
• Function 2T/4T: YES
• PRE GAS: YES
• POST GAS: YES
• Increase in electricity: YES
• Power drop: YES
• HOT START function: YES
• ARC FORCE function: YES
• SYNERGY: YES
• SETTINGS MEMORY: 10 channels

PHYSICAL PARAMETERS

• Degree of protection: IP23
• Housing protection class: H
• Weight: 20kg
• Dimensions: 640x215x360mm

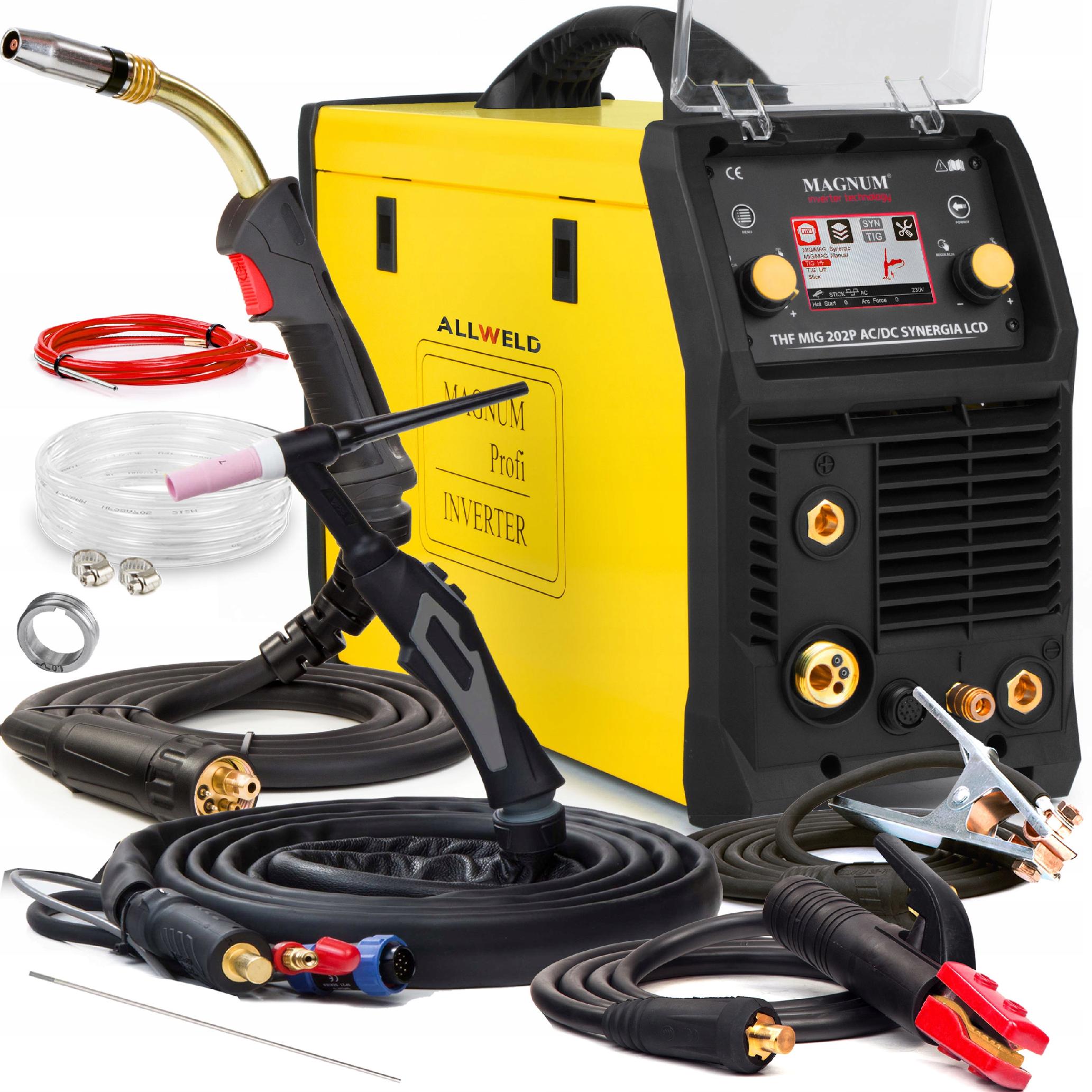

THE SET INCLUDES:

• Welding machine MAGNUM THF MIG 202 PULS SYNERGY PFC
• Welding torch TIG type SR26 - 4m
• Welding torch MIG/MAG type MB24 - 3m
• Bulk holder - 3m
• Electrode holder - 3m
• Operating elements of the handle
• Hose for gas connection
• Clamp ties - 2 pcs.
• User manual and warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	0 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	20 kg
Parametry	Welding range	5–200 A
Parametry	Height	360 mm
Parametry	Length	640 mm
Parametry	Width	215 mm
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	20 kg
Parametry	Manufacturer code	U I THF202MIG LCD
Parametry	EAN (GTIN)	5901206100080
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
