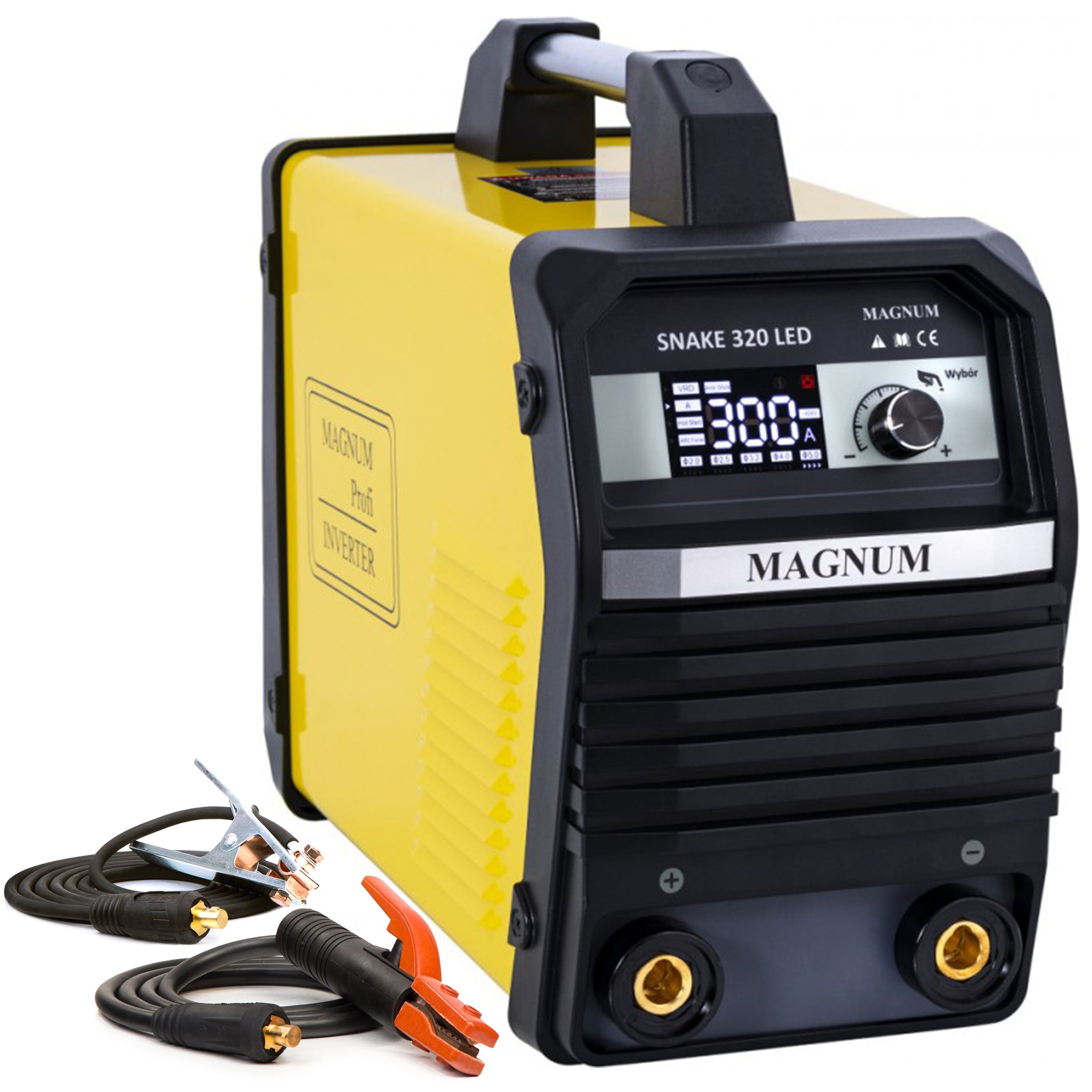

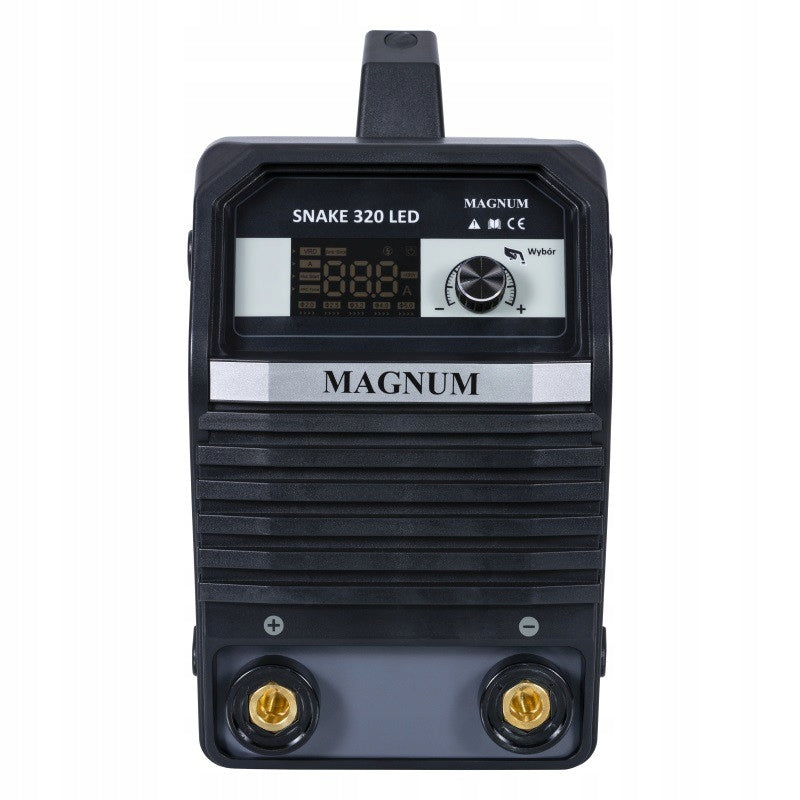

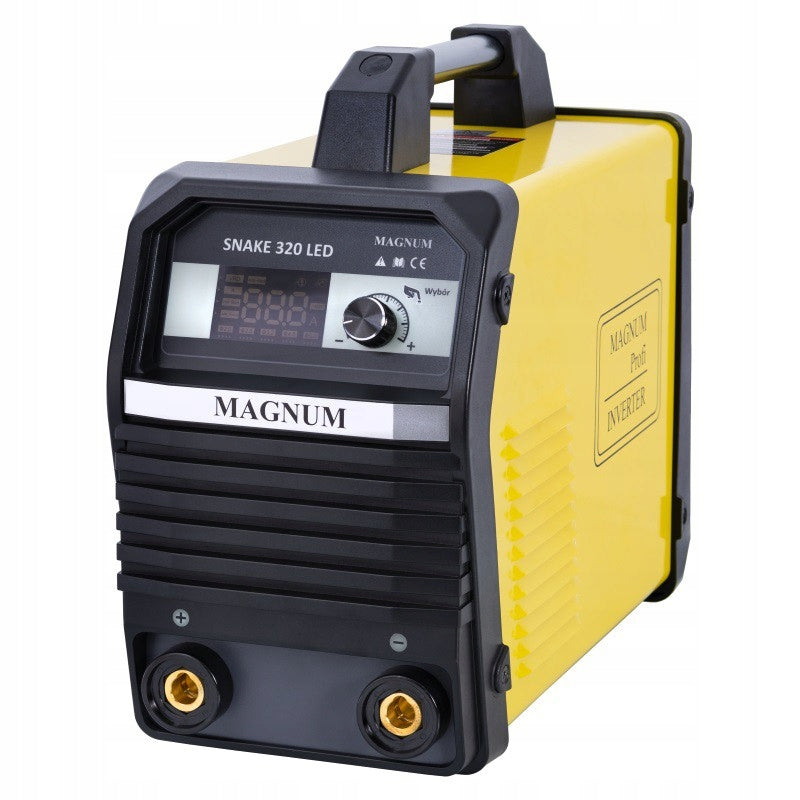

Suvirinimo aparatas MAGNUM SNAKE 320 LED MMA TIG IGBT 400V 30-300A

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM SNAKE 320 LED MMA TIG IGBT 400V 30-300A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Snake320LED

Manufacturer: MAGNUM ║ Welding methods: MMA, TIG LIFT ║ Welding current: 300A ║ Efficiency: 60%

• Welding current 300A in 60% cycle
• Excellent workmanship
• Works with all types of electrodes
• Designed for field work and stationary tasks
• Failure-free operation - the highest standard of workmanship
• Multifunctional LED display
• HOT START function
• ARC FORCE mode
• VRD function
• IGBT technology
• Built-in overheating protection
• Easy-to-use soft control panel
• A handle for easy transport
• Application for work in the workshop, in the field, semi-professional tasks

The welder can also be used for TIG welding using a special TIG torch with a valve (TIG LIFT method). The arc is then ignited by lightly rubbing the non-consumable electrode against the welded material.

Snake 320 IGBT devices are based on the latest, most advanced technology using IGBT transistors.

Thanks to their special design, bipolar power transistors with an insulated gate ( IGBT - Insulated Gate Bipolar Transistor) are in many respects a more advantageous solution and in many applications they are a better solution than traditional MOSFET transistors. The IGBT transistor-based source offers a stronger , more concentrated and more stable arc while consuming less energy.

HOT START ( hot start) - a function that makes starting welding much easier. When the arc is ignited, the welding current is briefly increased. This leads to the heating of the material and the electrode at the contact point, as well as to the proper shaping of the penetration and the weld face (in the initial phase of the welding process).

ARC FORCE - a function that provides the best settings for a stable arc and low spatter. In other words, thanks to ARC FORCE, the electric arc necessary for welding glows uniformly, without short circuits that make it difficult or impossible to connect materials. Welding often produces large amounts of spatter, i.e. drops of molten metal, which must be removed. After turning on the ARC FORCE function, the amount of spatter is significantly reduced, which allows for more comfortable work .

VRD (Voltage Reduction Device) - it turns off the power within milliseconds after welding is completed and reduces the voltage on the coated electrode to a safe level. Another attempt to start welding starts the device and allows the electric arc to ignite. The VRD voltage reduction system provides additional safety for the welder, especially in environments where there is an increased likelihood of electric shock, such as hot and humid environment.

IGBT - the welder uses modern transistors, a solution that ensures minimum electromagnetic interference, low power losses in the basic systems, enabling increased efficiency and reliability of the power source.

Purpose :

• Solving tasks in households (welding: metal water and gas pipes, stainless steel smoke and sewage ducts, metal pipe circuits, sheet metal sections).
• Preparation of some areas and residential houses (greenhouses, sheds, gazebos, workplaces).

POWER PARAMETERS

• Power supply: 400V
• Frequency: 50Hz
• Required protection: 20A

TECHNICAL PARAMETERS

• MMA welding current: 30÷300A
• Idle voltage: 62V
• Efficiency: 60%

ADDITIONAL FEATURES

• ARC FORCE: YES
• HOT START: YES
• VRD: YES
• Display: YES

PHYSICAL PARAMETERS

• Housing protection class: IP21S
• Weight: 8.5kg

THE COMPLETE SET INCLUDES:

• MAGNUM SNAKE 320 LED device
• Electrode holder 3m
• 2m mass holder
• User manual EN

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Welding methods	MMA
Parametry	Power consumption	12.9 kVA
Parametry	Supply voltage (V)	400
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	6 mm
Parametry	Device weight	8.5 kg
Parametry	Welding range	30–300 A
Parametry	Length of ground cable	250 cm
Parametry	Welding cable length	250 cm
Parametry	Product weight with unit packaging	9 kg
Parametry	Manufacturer code	Snake320LED
Parametry	EAN (GTIN)	5901013100204
Parametry	Packaging status	original
Parametry	Additional features	infinitely adjustable welding current,LCD display
