Trumpai apie prekę
Prekė: Suvirinimo aparatas MAGNUM MIG 280A ALU Synergy LCD 4-ROLL FEEDER CHASSIS. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: Magnum MIG 291 Alu/Cu RSH
- Ilgis: 320 mm
- Plotis: 210 mm
- Aukštis: 430 mm
Welding methods: MIG/MAG, Soldering CuSi3, TIG DC Lift, MMA | Feeder 4R | Power supply: 400V 3ph | Manufacturer: Magnum
Why choose this model?
✅modern electronics inside - great arc characteristics, advanced features,
✅Synergy 3D - advanced programs with a choice of material thickness, the possibility of manual correction to the program,
✅gas-free welding, TIG Lift welding. MMA synergistic welding,
✅function 2T/4T - choose the most convenient mode of operation during MIG/MAG welding,
✅regulation of welding inductance - is the control of the face shape and width of the weld and the number of welding chips.

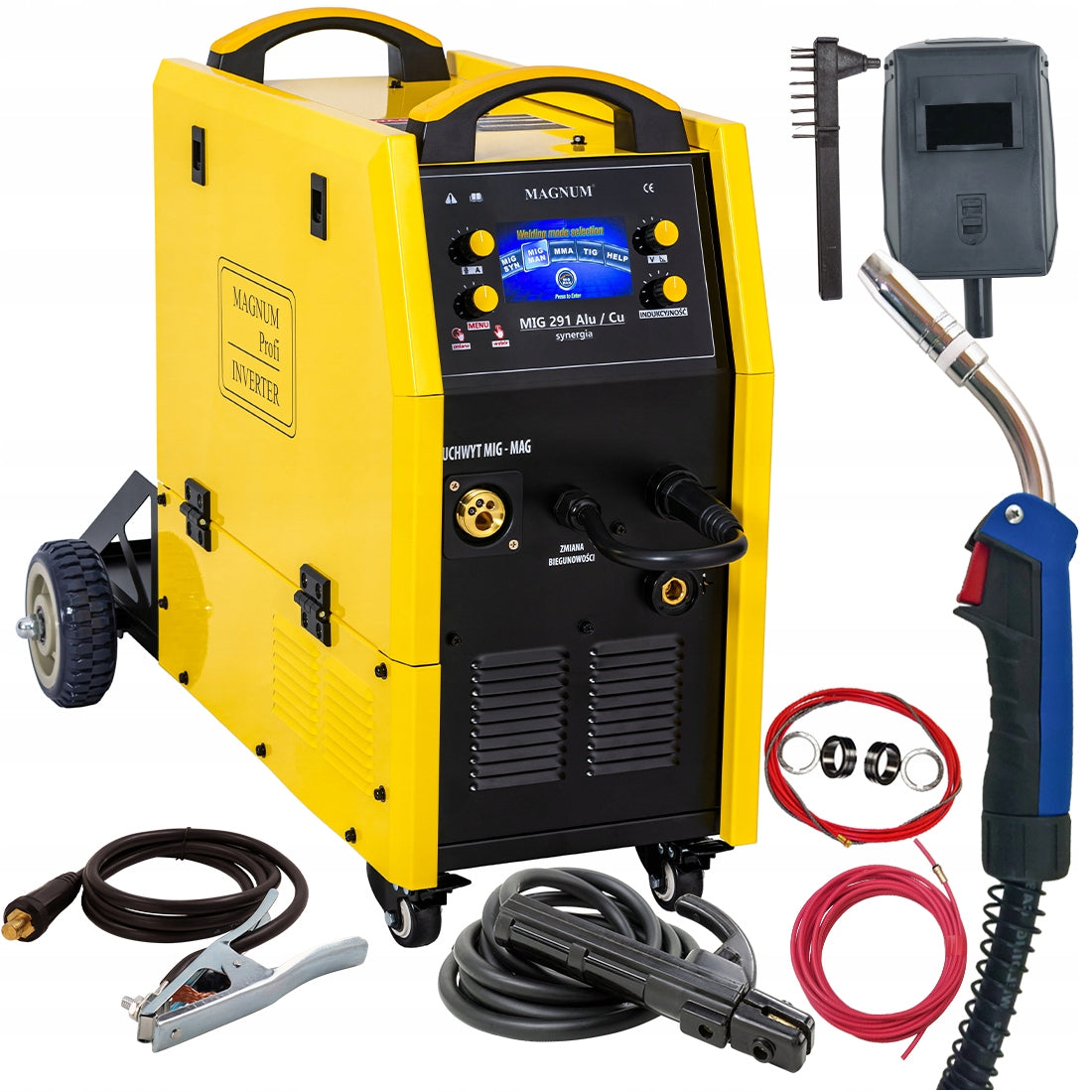

- Device Magnum MIG 291 Alu/Cu Synergy
- MIG EURO MB 25 3m welding torch
- MMA Electrode Holder
- Bulk cable
- User manual PL
- Welding mask
- Brush-hammer
+ ADDITIONAL ACCESSORIES
- Teflon armor red for wire diameter 1.0/1.2 mm
- Red steel armor for wire diameter 1.0/1.2 mm
- Rollers for steel wire with diameter 0.8/1.0
- Rollers for aluminium wire with diameter 1.0/1.2

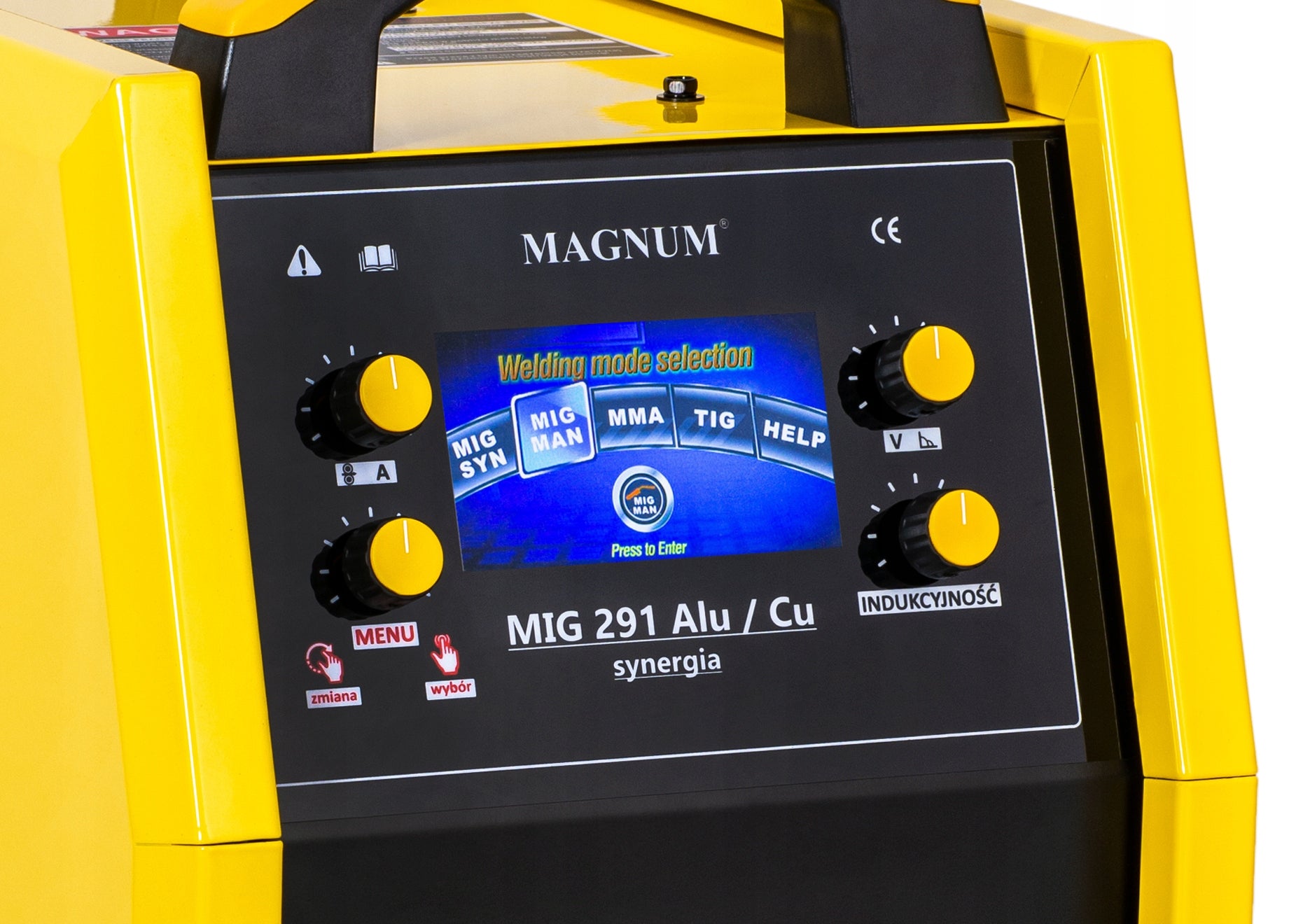

MIG 291 Alu/Cu Synergy is a source that sets new trends in this group of devices. Extremely easy to use and intuitive interface, allows for precise and quick adjustment of parameters. Synergistic MIG/MAG programs reduce operating time to a minimum, it is valuable to be able to correct Synergies to your needs. In addition, the user can go into manual settings mode at any time and adjust the device as it suits him.
MIG 291 Alu/Cu SYNERGY has the possibility of soldering. It is an intermediate metal joining process between hard soldering and welding. The temperature of the process is reduced in relation to welding, thanks to which it does not burn the galvanized layer as much as in the case of welding.
The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating. The welder is equipped with a professional 4-roll wire feeder with a socket "euro connector" which allows you to connect different types of welding brackets.
The power source was constructed using modern and proven technologies. The IGBT power transistors used translate into lower power consumption, resistance to interference and stable output parameters. .
The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating.
The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in production plants, locksmith workshops, repair workshops, etc.
PROFESSIONAL 4x4 FEEDER
Professional 4R feeder - reliable wire feeding regardless of spool weight, handle length and welding wire type. A proven mechanism.
- Power supply: 400V
- Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
- Maximum welding current: 280A (MIG/MAG/TIG) 250A (MMA)
- Working cycle: 60%
- Maximum power consumption: 12kVA
- Net weight: 26,3kg
MIG/MAG welding parameters
- Welding Current: 40-280A
- Welding Voltage: Smooth Adjustment
- Wire diameter: 0,6 / 0,8 /0,9 /1,2 mm
- Wire spool weight: max. 15kg (max. D300)
- 3D Synergy - advanced synergistic programs*,
- Color LCD
- Welding MIG 2T /4T
- Regulation of MIG/MAG welding inductance
* possibility of introducing correction to synergistic programs, possibility of MIG/MAG welding in manual settings mode.
TIG welding parameters
- Welding Current: 10-250A
- Output Current: DC - Constant
- Adjustment: smooth
- Arch initiation: TIG Lift - facilitated contact ignition
MMA welding parameters
- Welding Current: 10-250A
- MMA synergistic welding
- Arc Force Function
- Idle Voltage: 69V
PHOTO GALLERY:
Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.
A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.
Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Supply voltage (V) | 400 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Wire diameter (mm) | 0,8-1,2 |
| Parametry | Device weight | 26.3 kg |
| Parametry | Welding range | 40–280 A |
| Parametry | Height | 430 mm |
| Parametry | Length | 320 mm |
| Parametry | Width | 210 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | migomat MAGNUM MIG 280 A Syn |
| Parametry | EAN (GTIN) | 5904624023900 |
| Parametry | Model | Magnum MIG 291 Alu/Cu RSH |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | transport wheels,welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
