Suvirinimo aparatas Magnum MIG 240 Dual Pulse Synergy 240A, aliuminiui, nerūdijančiam plienui

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 240 Dual Pulse Synergy 240A, aliuminiui, nerūdijančiam plienui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: SPAWARKA MAGNUM MIG 240 LCD XRS3

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

Welding methods: MIG/MAG, FLUX, MMA, TIG DC Pulse | Important functions: Synergy, Pulse, Dual Pulse, LED Screen | Welding current: up to 200A

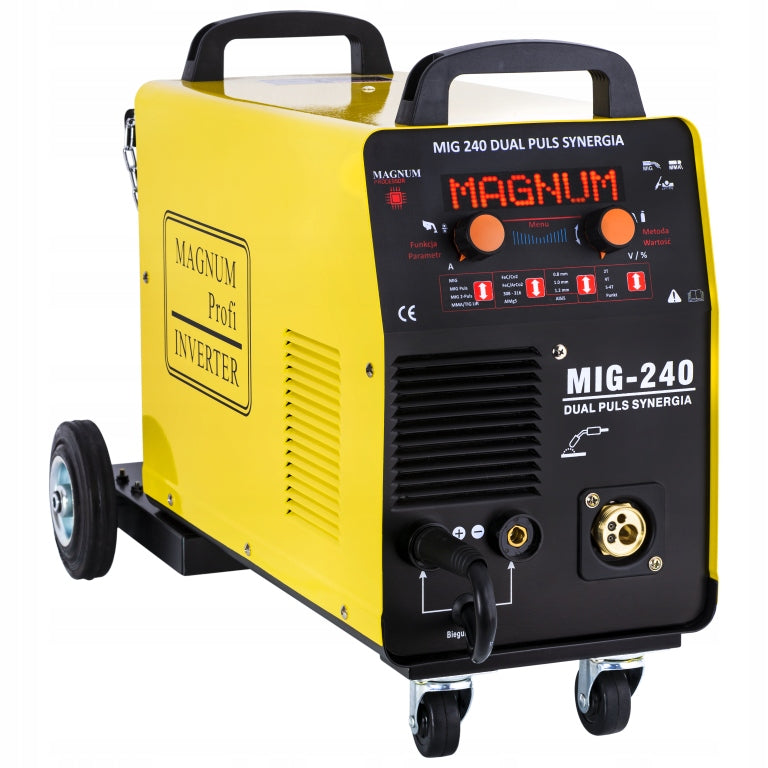

The MAGNUM MIG 240 DUAL PULS SYNERGIA is a lightweight portable semi-automatic welding machine powered from a single-phase 230V network with a maximum welding current of 240A. MIG 240 welding machine is designed primarily for welding materials made of stainless steel and aluminum as well as low-carbon steels, low-alloy steels and high-alloy steels.

Offered device made in inverter technology with MCU microcontroller (integrated microprocessor system). It features a large, easy-to-read LED display and an intuitive, easy-to-use control panel that allows you to quickly set all the most important welding parameters. The welder has single and double PULSE function, synergistic control.

AVAILABLE WELDING METHODS:

• - MIG - synergistic welding MIG-MAG
• - MIG PULS - synergistic welding with a single pulse,
• - MIG 2-PULS - synergistic welding with double pulse,
• - TIG LIFT DC- TIG LIFT / TIG LIFT welding with pulse,
• - MMA - wrapped electrodes (rutile, alkaline, acidic).

FUNCTIONS FACILITATING WELDING:

• - Inductance - optimizes arc characteristics depending on the thickness of the welded material. This function is useful when welding thin elements using the MIG/MAG method - it prevents them from burning out (the thinner the inductance element should be greater). Inductance affects the shape of the weld, its width, depth of melting and the number of splashes,
• - Two-bar 2t - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow
• - Four-bar 4t - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,
• - S-2T - special double bar with HOT Start and end current (crater filling),
• - S-4T - special four-bar with HOT Start and end current (crater filling),
• - Synergy - automatically selects welding parameters, when adjusting the voltage, the wire feed speed is selected automatically,
• - PULS/DUAL PULS - synergistic welding functions with single or double pulse, thanks to which it is possible to obtain high-quality welds similar to the TIG method (husk effect). The PULS function is helpful in welding any weldable materials, especially those made of stainless steel (PULS function) and aluminum (DUAL PULS function),
• - Memory - the device has 36 memory channels on which the user can save and recall any settings,
• - MODE SPOT - spot welding (adjustable welding time),
• - MODE CPOT - cyclic spot welding (adjustable welding time, welding break time between points).

The power source was built on the basis of the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source and significantly reduced energy consumption. The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating. The welder is equipped with a 4-roll wire feeder with a "euro connector" socket allows you to connect different types of welding brackets.

The welding machine is characterized by a wide range of applications, it is dedicated to all kinds of welding work in locksmith workshops, repair workshops, etc.

TECHNICAL DATA:

• - Power supply: AC 230 [V], 50 [Hz],
• - Protection required: 25 [A] class C
• - Efficiency: 200/60 [%]
• - Wire spool weight: max: 5 [kg]
• - Wire diameter: 0,8/1,0/1,2 [mm]
• - Housing protection class: IP21S
• - Weight: 16,4 [kg]

MIG/MAG WELDING PARAMETERS:

• - MIG/MAG welding current: 30 - 240 [A]
• - MIG/MAG welding voltage: 16,5 - 24 [V]
• TIG LIFT/MMA WELDING PARAMETERS:
• - MMA welding current: 30 - 200 [A]
• - Idle voltage: 56 [V]

Description

• MMA welding current [A]: 200
• TIG welding current [A]: 200
• Efficiency [%]: 60
• Power protection [A]: 25
• Power supply: 230 V
• 2T/4T function: YES
• ANTI STICK function: YES
• ARC FORCE function: YES
• HOT STAR Function: TTAK
• MMA Function: YES
• Dual PULSE function: YES
• PULSE function: YES
• SYNERGY function: YES
• TIG LIFT function :YES
• VRD function:YES
• Memory:YES

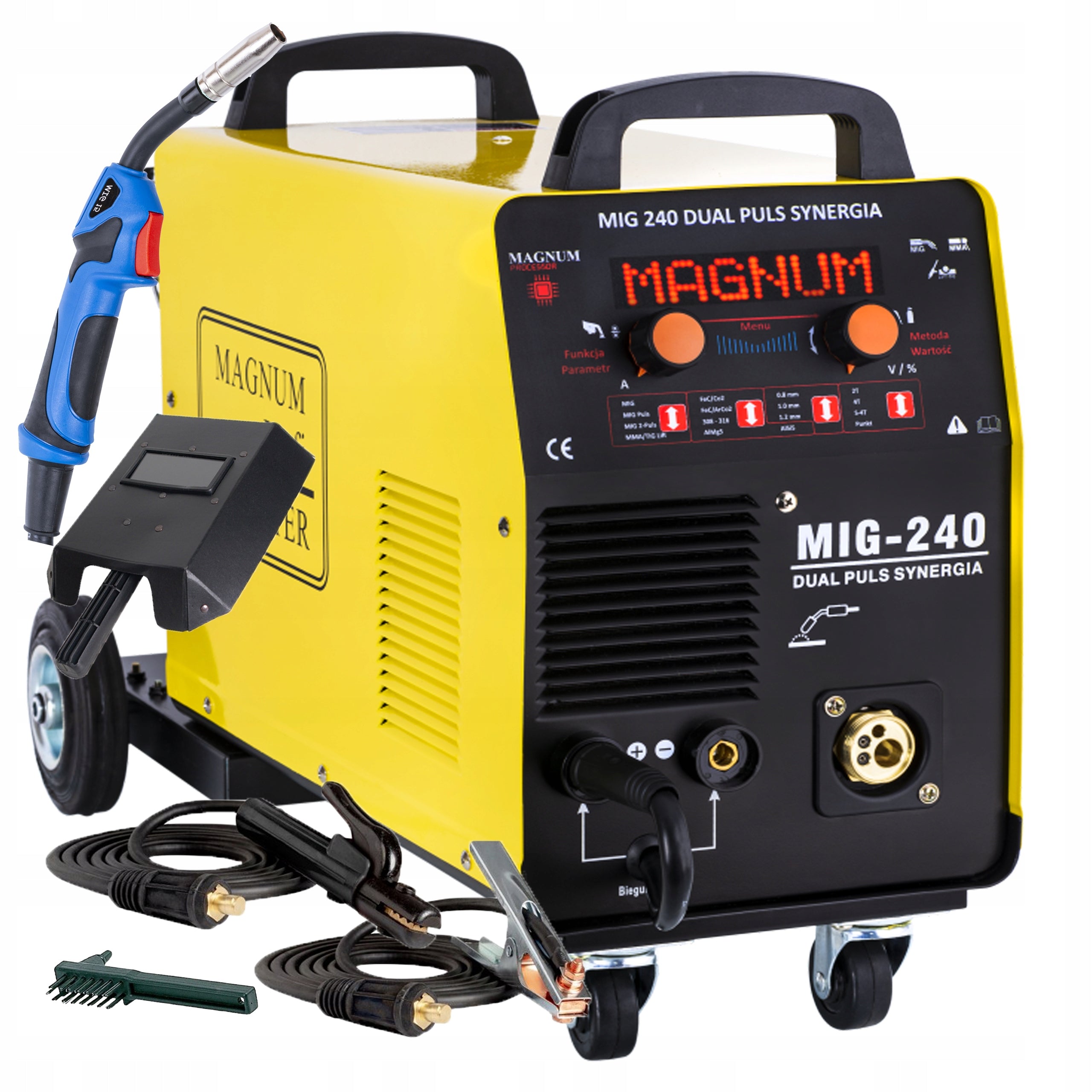

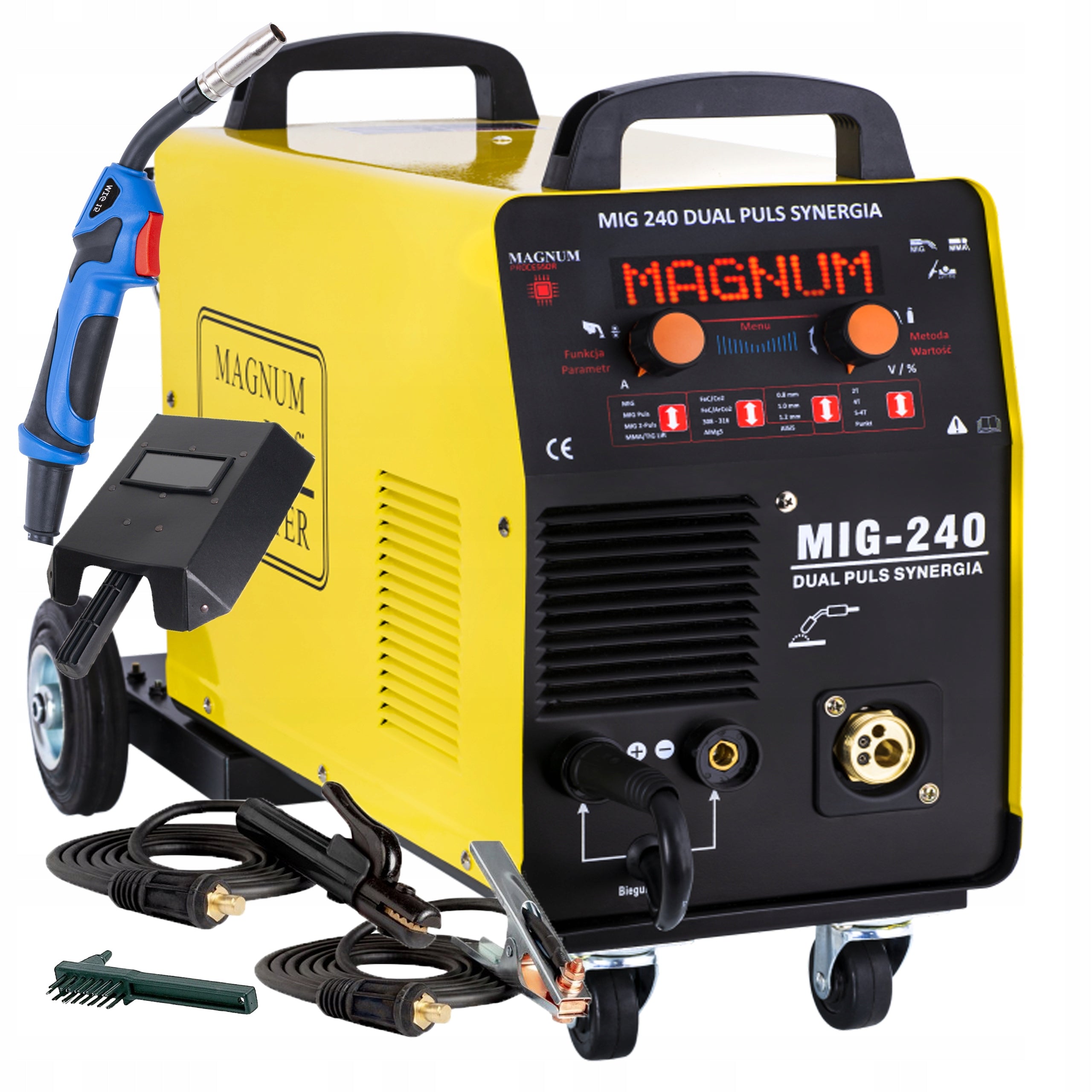

• Welder MAGNUM MIG 240 Dual Pulse LCD
• MIG MB15-3metry welding torch
• mass handle
• electrode holder
• Operating parts for MIG handle
