Suvirinimo aparatas MAGNUM MIG 230/2 ALU SYNERGY 230V 400V TIG DC LIFT MMA SPOT 4R

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 230/2 ALU SYNERGY 230V 400V TIG DC LIFT MMA SPOT 4R. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 230/2 ALU SYNERGIA

• Welding methods: MIG/MAG, MMA, SYNERGY, TIG LIFT, SPOT WELDING
• Power supply: 230V/400V
• Operating cycle 60% at maximum welding current 200A (230V) and 230A (400V)
• For welding: low carbon, low alloy, high alloy steels, aluminium and its alloys
• SYNERGY - automatic selection of parameters with the possibility of manual correction
• Professional, 4-roll wire feeder
• Smooth adjustment of parameters, inductance, spot welding time
• Features and modes: 2T/4T/S4T, HOT START, ARC FORCE, VRD, PRE-GAS/POST-GAS
• Ability to save settings - 21 channels
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• SPOT WELDING - point joining of elements; allows for fast, precise, durable connections, minimizing deformation and wear of materials,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• S4T - regulation of current rise/fall,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• IGBT - bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V/400V 50/60Hz
• Network security: 25A “C” (230V) | 16A “C” (400V)
• MIG/MAG welding current: 28 - 200A (230V) | 28 - 230A (400V)
• MMA/TIG welding current: 20 - 190A
• Idle voltage: 77V
• Wire diameter: 0.8 / 1.0 / 1.2 mm
• Max. spool with wire: D300; 15kg
• Degree of protection: IP21S
• Weight: 22kg

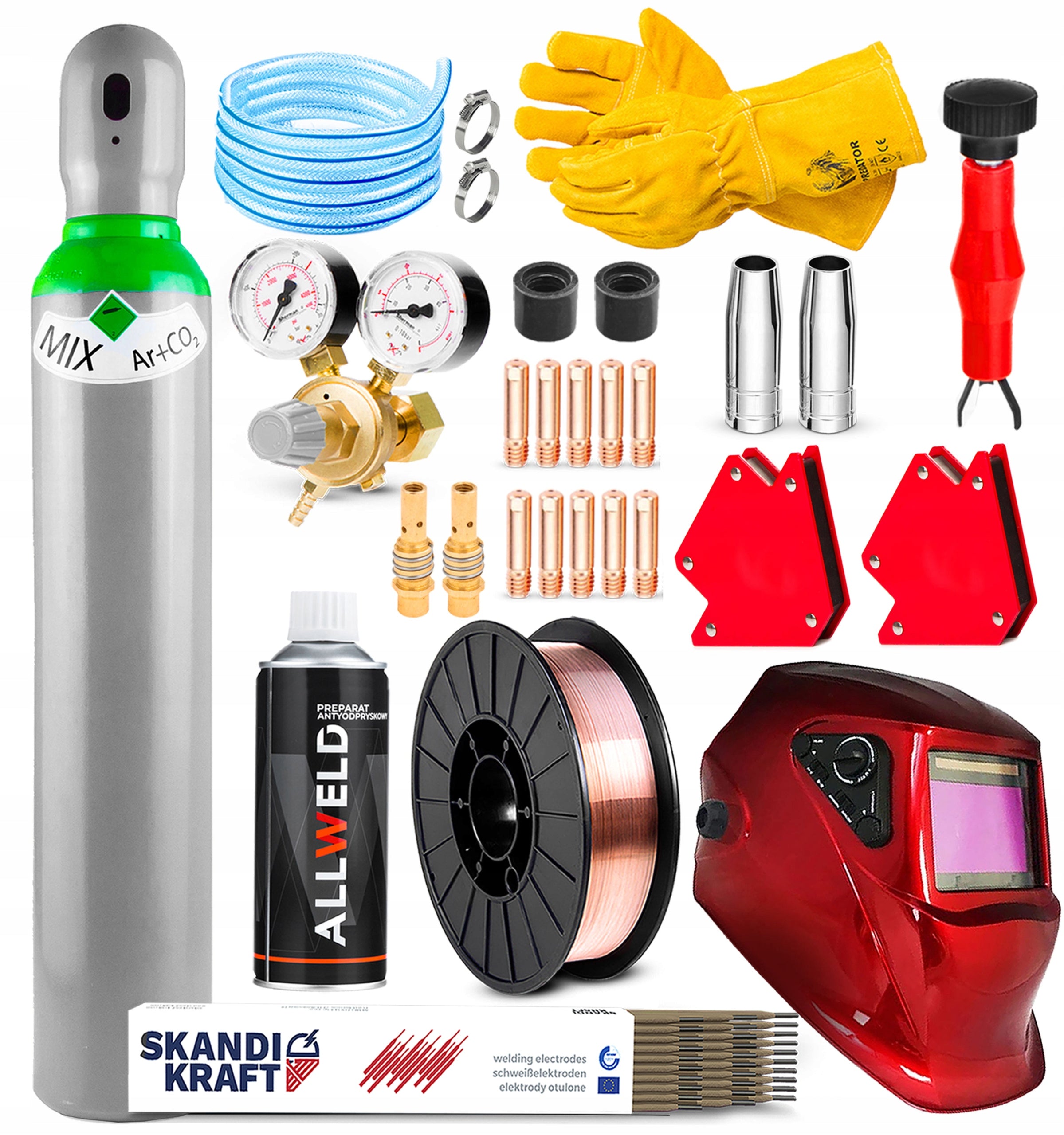

INCLUDED IN THE SET:

• Self-tinting visor MAGNUM TURBO TRUE COLOR - safe mask with enlarged field of view 100 x 60mm, 4 sensors, reaction time 1/30000 s,
• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

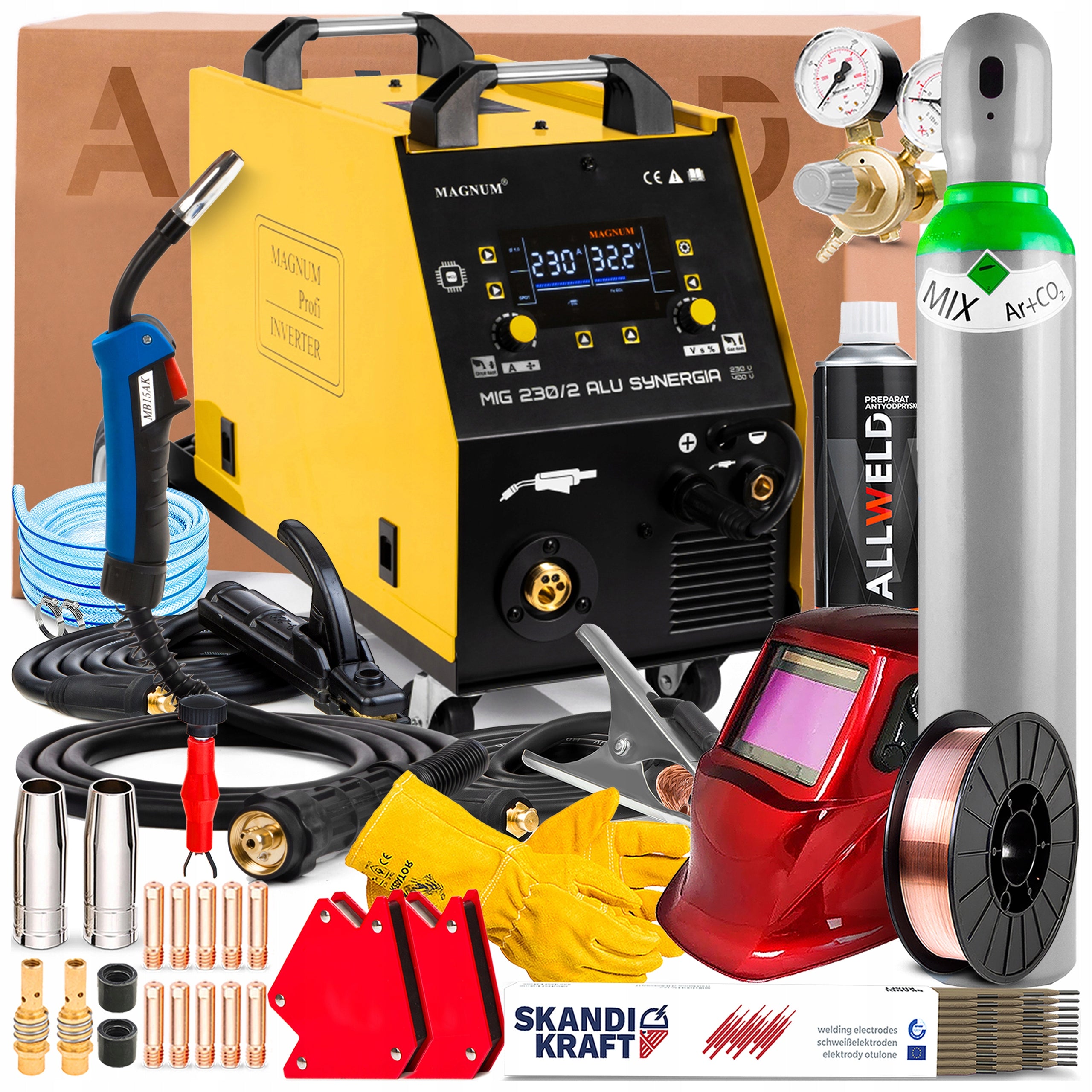

THE SET INCLUDES:

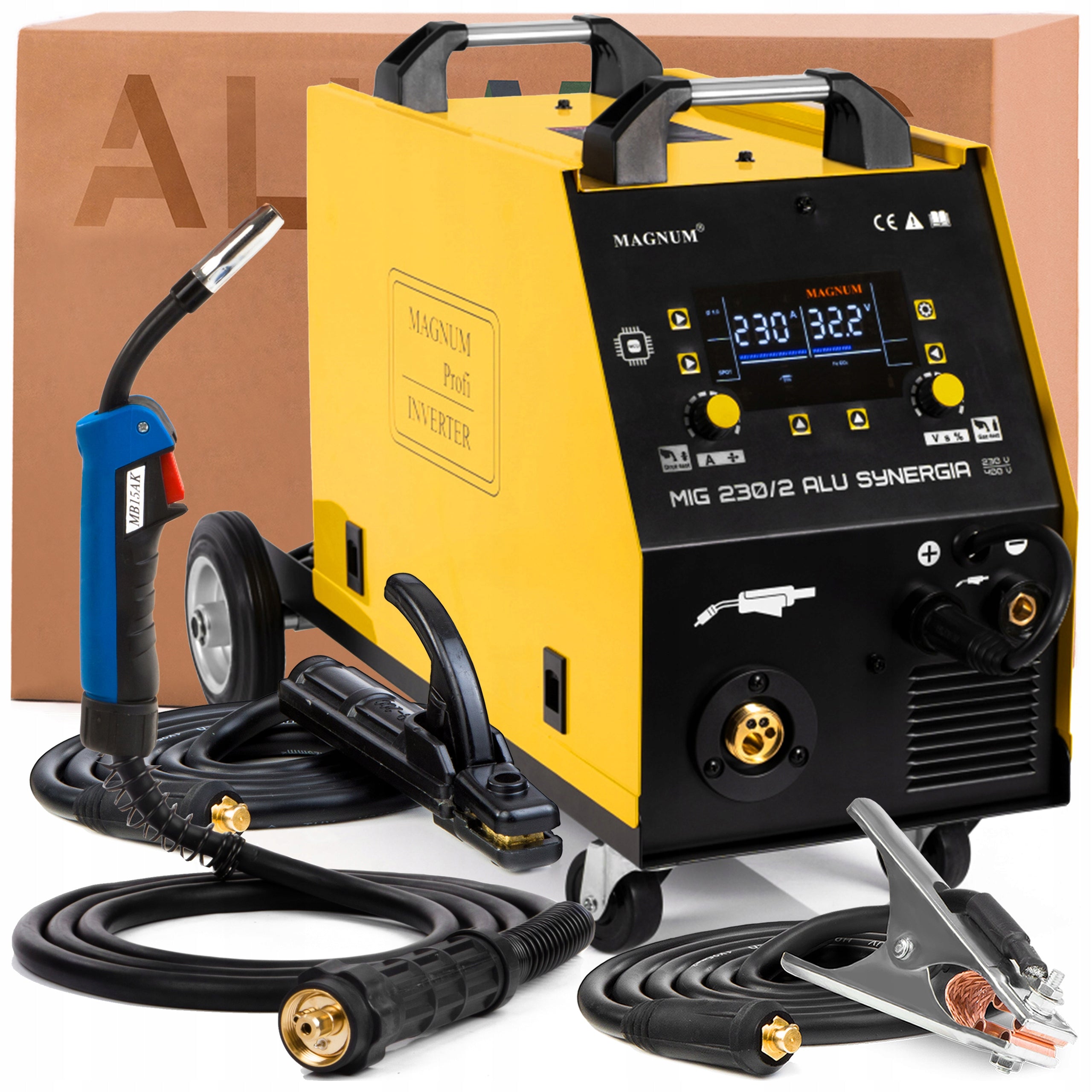

• Welding machine Magnum MIG 230/2 Alu Synergy,
• Welding torch MIG/MAG type MB 15 - 3m,
• mass handle - 2m,
• electrode handle - 2m,
• Adapter 400V/230V,
• User manual.

ADDITIONAL ACCESSORIES:

• Self-tinting visor Magnum TURBO TRUE COLOR,
• Botla with Argon/CO2 gas mixture,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.

Specifications
