Suvirinimo aparatas MAGNUM MIG 230/2 Alu Synergy 230V 400V MAG TIG MMA SPOT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 230/2 Alu Synergy 230V 400V MAG TIG MMA SPOT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: 230/2 Alu Synergia

⏩THE MOST IMPORTANT ADVANTAGES

• MIG/MAG welding up to 230A — the device offers MIG/MAG 28–200A operating range at 230V and 28–230A at 400V
• Power supply 230V / 400V — the welding machine can work from both 230V and 400V The device automatically detects the connected voltage.
• SYNERGY MIG/MAG — synergistic mode facilitates the selection of welding parameters.
• Manual MIG/MAG mode – for more experienced welders, manual mode is available, where you can set the wire feed speed, voltage and inductance separately.
• Aluminum welding — the device has programs for welding aluminum alloys in argon sheath, for 1,0 mm and 1,2 mm wire.
• Programs for different materials — synergistic programs available include m.in. black steel in CO₂, black steel in Ar+CO₂ compound, aluminium in argon and CrNi stainless steel.
• 4-roll wire feeder 4x4 – stable wire routing improves working comfort, especially with aluminum and longer welding.
• Support for spools up to 15 kg — the device supports spools up to 300 mm in diameter and weighing up to 15 kg, allowing you to work longer without frequent wire changes.
• Wire diameters 0,8 / 1,0 / 1,2 mm — the ability to work on popular wire diameters used in workshop and production.
• EURO socket – standard euroconnector allows you to use popular MIG/MAG handles.
• MMA up to 190A — the device allows welding with a wrapped electrode in the range of 20 – 165A at 230V and 20 – 190A at 400V.
• TIG LIFT up to 190A — the welding machine also allows TIG Lift DC welding in the range of 10 – 165A at 230V and 10 – 190A at 400V.
• Regulation of inductance
• Working modes 2T/4T/S4T/SPOT
• HOT START, ARC FORCE and VRD functions for MMA

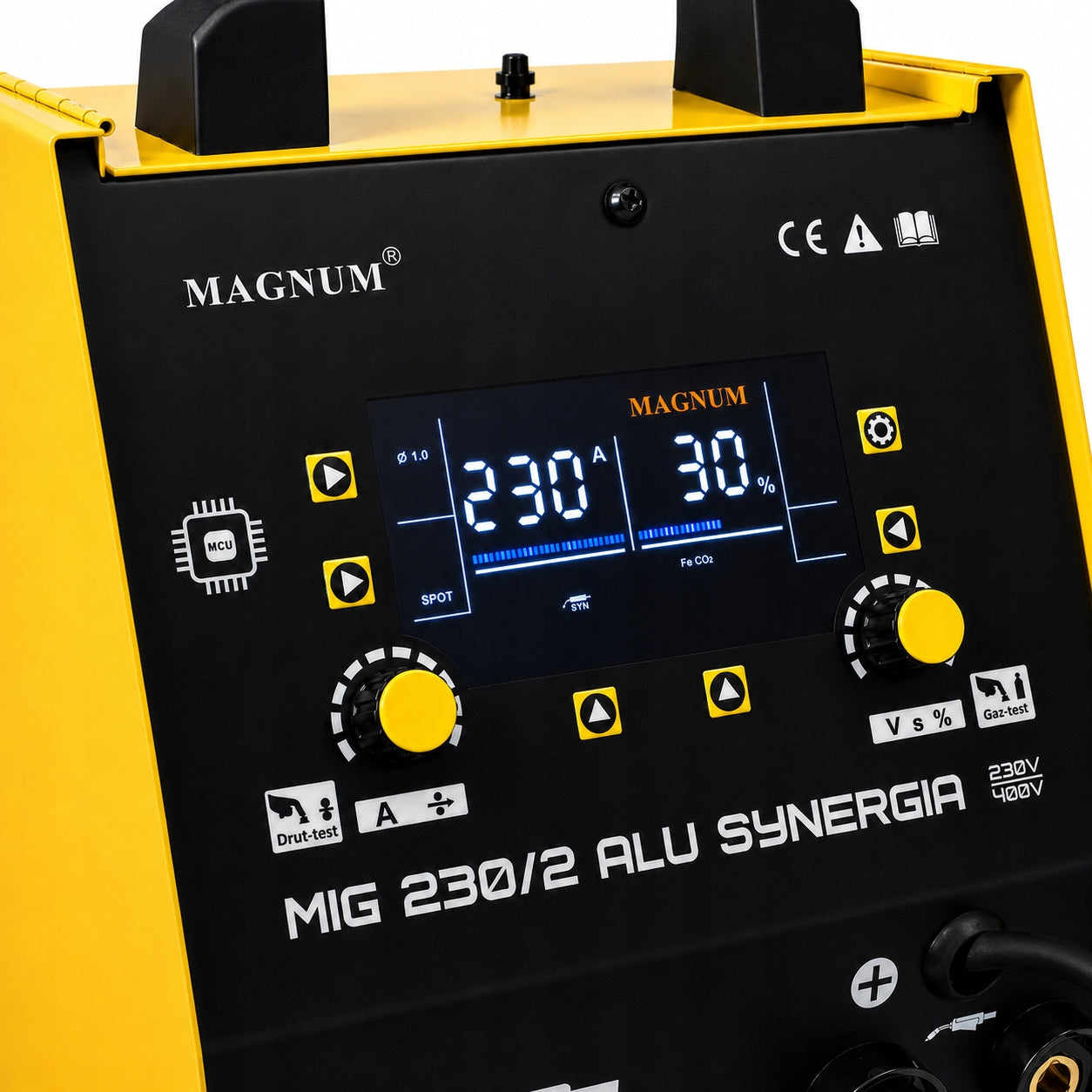

• Settings memory — The device has 21 memory channels in which you can save and recall your own settings.
• WIRE CHECK and GAS CHECK — The left regulator acts as a test wire extension and the right regulator acts as a test gas outflow.
• IGBT technology – a power source based on IGBT transistors ensures high efficiency, quick parameter adjustment and lower energy losses.
• Solid, mobile design — the welding machine weighs 22 kg, has a compact housing and is designed to work in workshops, industrial plants, factories and services.

⏩Welder Magnum MIG 230/2 ALU SYNERGY

The MAGNUM MIG 230/2 ALU SYNERGIA inverter welder is a multifunctional semi-automatic welder designed for electric, manual welding using MIG-MAG, MMA, FLUX and TIG Lift methods. Thanks to the automatic detection function of power supply voltage 230V or 400V and a robust 4x4 four-roller feeder, the device ensures perfect arc stability in all operating conditions. The equipment completely eliminates the need to reconfigure settings – built-in memory covering 21 channels allows you to save your favorite parameters and recall them with one click. The user receives full synergistic support with ready-made programs for welding of black steel in a CO2 shield or Mix mixture, stainless steel and aluminum.

⏩SYNERGY — QUICK SETTINGS

MAGNUM MIG 230/2 ALU SYNERGIA is equipped with MIG/MAG synergistic mode, which significantly facilitates the setting of welding parameters. Simply select the MIG SYN method, material type, shielding gas and wire diameter, and the device will automatically select the appropriate base settings.

The welder can work on ready-made programs for various materials, such as steel in CO₂ shield, steel in Ar+CO₂ mixture, aluminium in argon and stainless steel CrNi. The device supports the popular wire diameters 0,8 / 1,0 / 1,2 mm, which allows you to adjust the work to a specific task.

Synergy accelerates the preparation of the device for work, reduces the risk of incorrect settings and helps to achieve more reproducible effects. At the same time, the user still has full control – he can adjust the voltage, adjust the inductance and, if necessary, switch to manual mode, setting the parameters according to his preferences.

⏩ SYNERGISTIC PROGRAMS MIG/MAG

• Fe CO₂ — CO₂ shielded black steel: wire 0,8 mm: 28 – 200A / 200A and wire 1,0 mm: 52 – 200A / 230A
• Fe Mix — black steel in Ar+CO₂ mix:wire 0,8 mm: 44 – 200A / 230A and wire 1,0 mm: 52 – 200A / 230A
• Al Ar — Argon sheathed aluminium: wire 1,0 mm: 64 – 200A / 230A and wire 1,2 mm: 72 – 200A / 230A
• CrNi — argon sheathed stainless steel: wire 0,8 mm: 48 – 200A / 230A and wire 1,0 mm: 60 – 200A / 230A

⏩ SPOT WELDING

Metal Inert Gas (MIG) spot welding is a welding technique that involves creating single welding points instead of a continuous weld. The method is used when it is necessary to connect two metal elements at specific points, which allows to reduce the heating of the material and minimize deformation.

MIG spot welding is ideal for precise joining of metals at specific points, which minimizes the impact of heat on the material and allows for aesthetic, strong joints.

⏩PROFESSIONAL METAL WIRE FEEDER 4R - 4x4

The welding wire feeder performs one of the key functions in MIG/MAG welding machines. In Magnum devices, proven constructions are installed.

The MIG 230/2 Alu Synergy uses a wire feeder with a 4-roll mechanism. Two guide rollers and two pressure rollers make an excellent team.

Stable feeding of welding wires of various types and the ability to work with MIG handles 3m/4m/5m.

⏩CHANGE OF MIG/MAG WELDING POLARITY

Possibility of welding with self-shielding wire without gas.

⏩CHASSIS FOR GAS CYLINDER

Place the gas cylinder on the chassis and enjoy the mobility of this flashing. No more tangled gas lines between the wheels. The gas cylinder is now where the machine is with you.

With the chain included in the set, you can secure the cylinder.

⏩WHEELS

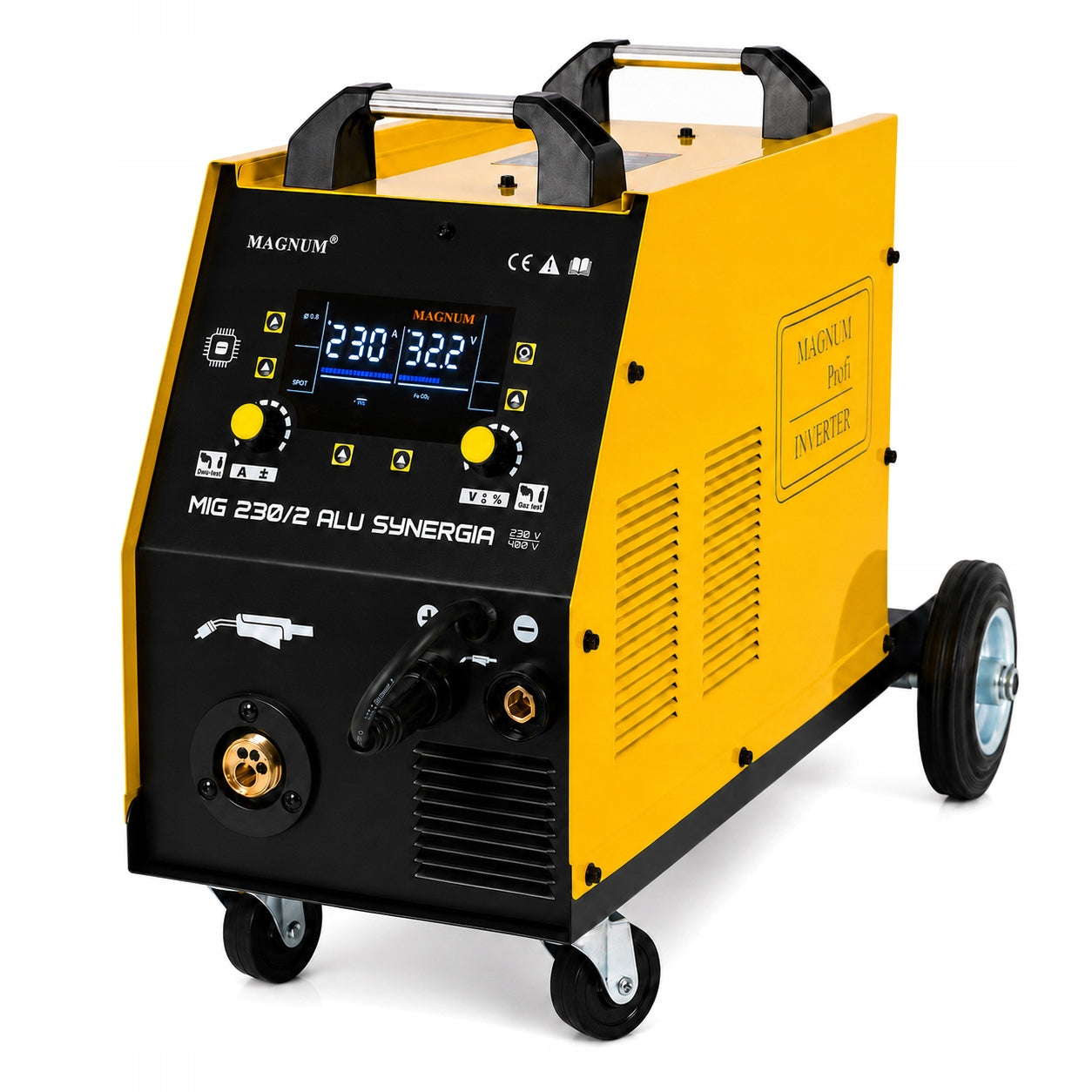

The welder is equipped with two pairs of solid wheels, including front swivel wheels. They will make it easier to move the welding machine from place to place, increase your mobility, and also help transport any items placed on the chassis.

• Power supply: 230V and 400V, 50/60 Hz
• Execution technology: IGBT INVERTER
• Welding methods: MIG/MAG, MMA, TIG Lift
• Maximum MIG/MAG welding current per 230V: 200A
• Maximum MIG/MAG welding current per 400V: 230A
• Efficiency: 60%
• 230V network security: 25A, type C
• 400V network security: 16A, type C
• Idle voltage: 77V
• Housing protection class: IP21S
• Weight: 22 kg

MIG/MAG WELDING PARAMETERS

• MIG/MAG welding current at 230V: 28–200A
• MIG/MAG welding current at 400V: 28–230A
• MIG/MAG synergistic mode: YES
• Manual MIG/MAG mode: YES
• Wire feed speed:
• – 1,0 – 21,7 m/min at 230V
• – 1,0 – 25,0 m/min at 400V
• MIG/MAG manual welding voltage: 12,5 – 27,9V at 230V and 12,5 – 29,1V at 400V
• Wire diameter: 0,8 / 1,0 / 1,2 mm
• Maximum spool diameter: Ø 300 mm
• Maximum spool weight: 15 kg
• Wire feeder: four-roll, 4x4
• EURO socket: YES
• MIG/MAG polarity change: YES
• Working modes: 2T / 4T / S4T / SPOT
• Inductance adjustment: -50% to +50%
• Voltage correction in synergy: -30% to +30%
• SPOT spot welding: 0,1 – 9,9 s
• Gas after welding: 0,1 – 50,0 s
• Memory channels: 21

MIG/MAG SYNERGISTIC PROGRAMS

• Fe CO₂ — CO₂ shielded black steel: wire 0,8 mm: 28 – 200A / 200A and wire 1,0 mm: 52 – 200A / 230A
• Fe Mix — black steel in Ar+CO₂ mix:wire 0,8 mm: 44 – 200A / 230A and wire 1,0 mm: 52 – 200A / 230A
• Al Ar — Argon sheathed aluminium: wire 1,0 mm: 64 – 200A / 230A and wire 1,2 mm: 72 – 200A / 230A
• CrNi — argon sheathed stainless steel: wire 0,8 mm: 48 – 200A / 230A and wire 1,0 mm: 60 – 200A / 230A

WELDING PARAMETERS MMA

• MMA welding current at 230V: 20–165A
• MMA welding current at 400V: 20–190A
• VRD function: YES
• Arc Force: 0 – 100%
• Hot Start MMA: 20 – 150% welding current
• Hot Start MMA time: 0 – 3,0 s

WELDING PARAMETERS TIG LIFT

• TIG Lift welding current at 230V: 10–165A
• TIG Lift welding current at 400V: 10–190A
• Type of TIG: TIG Lift DC

ADDITIONAL FUNCTIONS

• Synergy MIG/MAG: YES
• Manual MIG/MAG mode: YES
• SPOT spot welding: YES
• S4T: YES
• Inductance regulation: YES
• Hot Start: YES
• Arc Force: YES
• VRD: YES
• Gas after welding: YES
• Settings memory: 21 channels
• Wire-test / wire extension: YES
• Gas-test / gas outflow test: YES

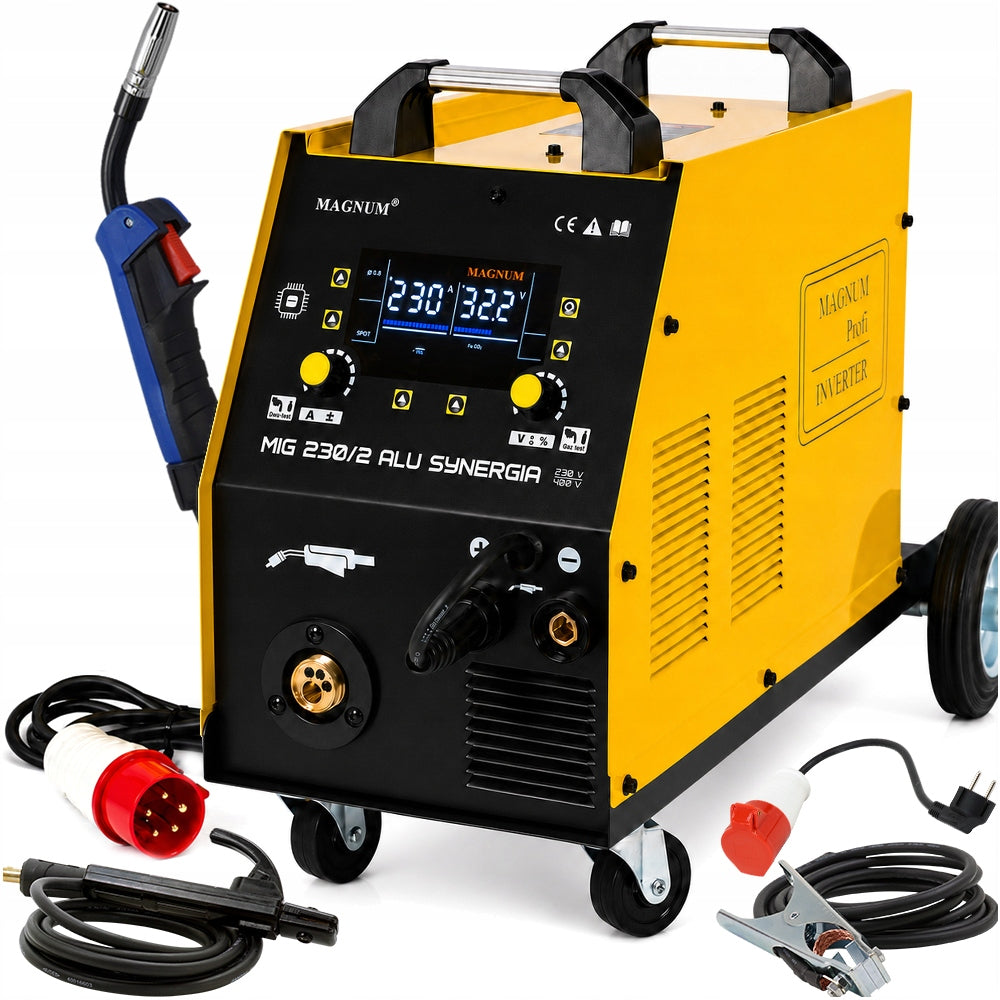

• Welder MAGNUM MIG 230/2 Alu Synergy
• Welding torch MIG MB 15 - 3m
• Bulk cable
• User manual PL

⏩WELDING ACCESSORIES FREE OF CHARGE

• REDUCTION / POWER ADAPTER FROM 400V TO 230V

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	22 kg
Parametry	Welding range	20–230 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Manufacturer code	U MI 230/2AL SY
Parametry	EAN (GTIN)	5905323117631
Parametry	Packaging status	original
Parametry	Model	230/2 Alu Synergia
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Supply voltage (V)	230,400
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle,LCD display
