Suvirinimo aparatas MAGNUM MIG 223 Dual Pulse 220A MMA TIG Lift 3in1 Synergy

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 223 Dual Pulse 220A MMA TIG Lift 3in1 Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Spawarka Magnum MIG 223 Dual Puls HRS

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

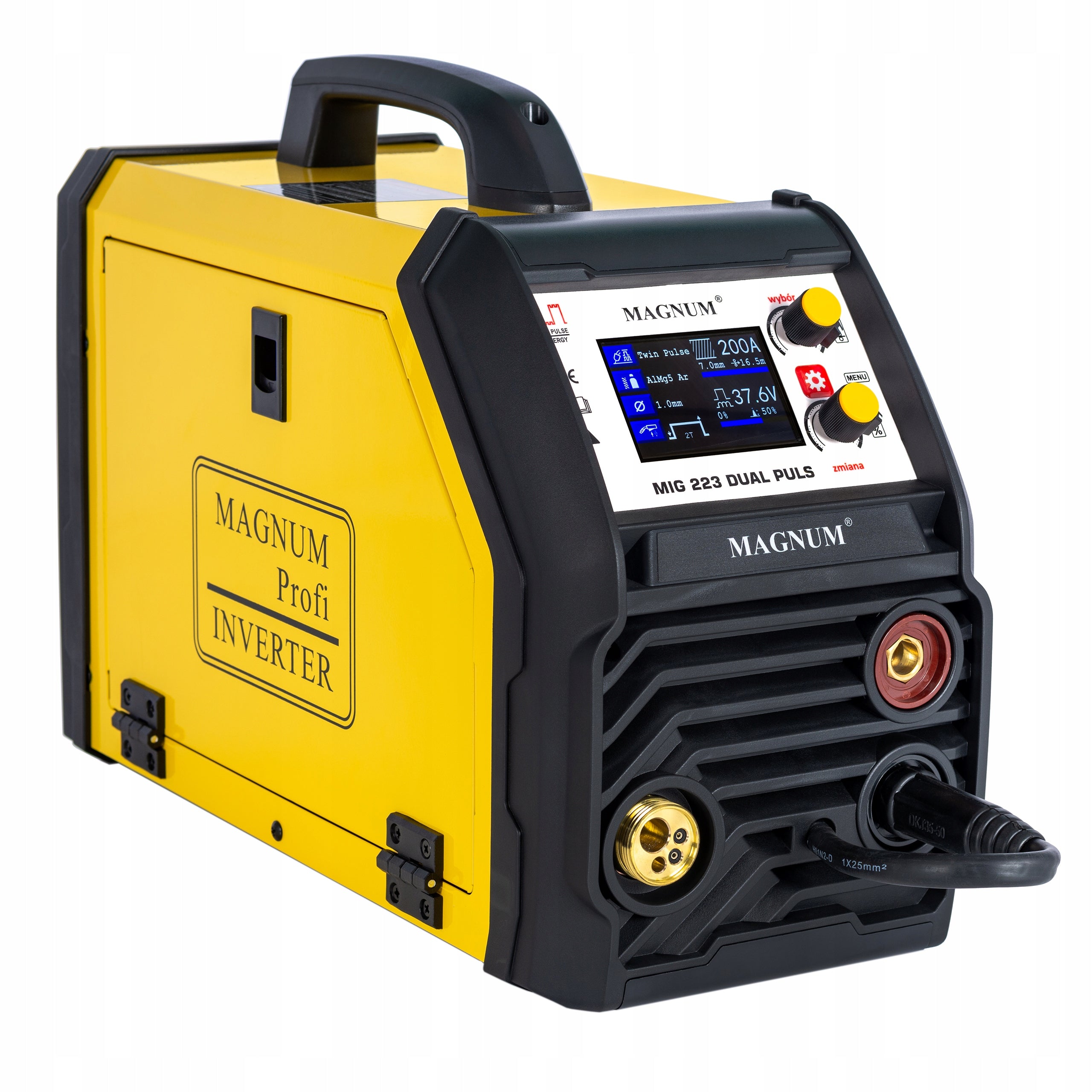

The Magnum MIG 223 Dual Pulse SYNERGY with display LCD is a versatile and technologically advanced welding device for welding using the MIG/MAG, MMA and TIG Lift methods. Designed for manual, electric welding of low-carbon, low-alloy steels, high-alloy stainless and acid-resistant steels and aluminum and its alloys, etc.

Magnum MIG 223 is designed for all kinds of welding work performed by professionals in car workshops, locksmiths, repairs, industrial, etc., as well as by amateurs in home workshops.

The power source is built on high-performance IGBT transistors, providing minimal electromagnetic interference and low power losses to increase the efficiency and reliability of the power source.

Thanks to the extremely simple and transparent control panel, a perfectly selected algorithm of the synergistic program and digital control of the welding process, this device is extremely easy to use and allows a person even without experience to make welded joints.

Features and advantages of the device:

✅ Welding MIG/MAG, MMA, TIG Lift, MIG Pulse, TIG Lift Pulse, MIG Dual Pulse

✅ Welding in manual and synergistic mode

✅ Built-in synergistic programs Fe, AlMg5, AlSi5, CuSi3, CuAl8, E308, E316

✅ Function Pulse and Dual Pulse

✅ Adjustable pulsation frequency

✅ Adjustable pulsation balance

✅ Correction of peak and base current voltage

✅ Welding current amplitude adjustment

✅ Regulation of gas outflow time before and after welding

✅ Final current regulation for welding S2T/S4T

✅ Regulation of the duration of the initial and final current

✅Spot welding time adjustment

✅ Easy-to-read LCD colour display

✅ Functions 2T/4T/SPOT/S2T/S4T/CPOT

✅ Features HOT START, ARC FORCE, VRD

✅ Built-in memory with the ability to save your own settings

✅ Regulation of inductance

✅ Sturdy metal feeder

Technical data:

• Power supply: AC 230, 50/60 [Hz]
• Security required: 20 [A] class C
• MIG/MAG welding current: 35- 200 [A]
• MIG/MAG welding voltage: 17 -26 [V]
• MMA/TIG welding current: 20 - 180 [A]
• Idle voltage: 73 [V]
• Wire diameter: 0,8/1,0/1,2 [mm]
• Reel size: 1-5 [kg]
• Efficiency: 60 [%]
• Housing protection class: IP21S
• Weight: 10,5 [kg]

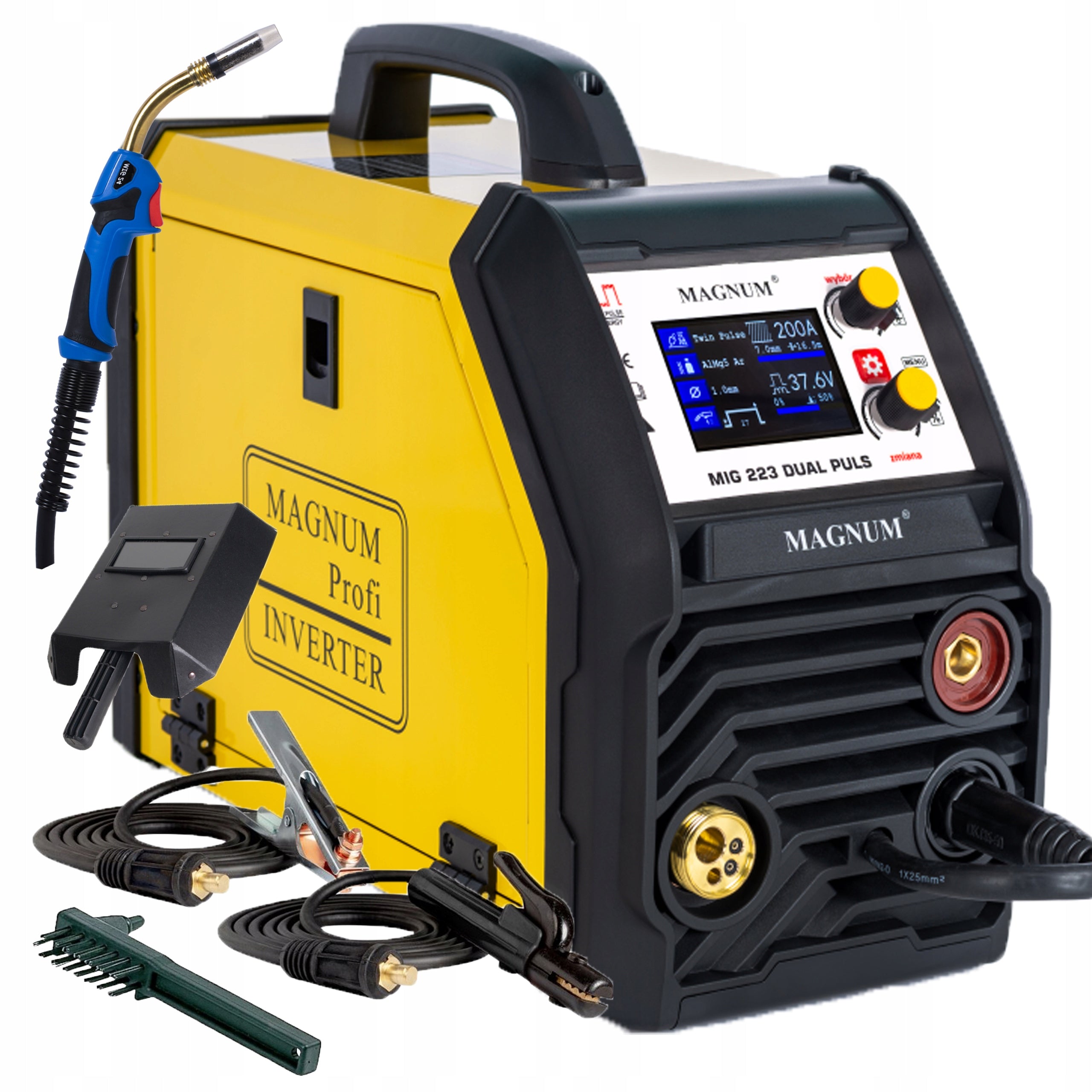

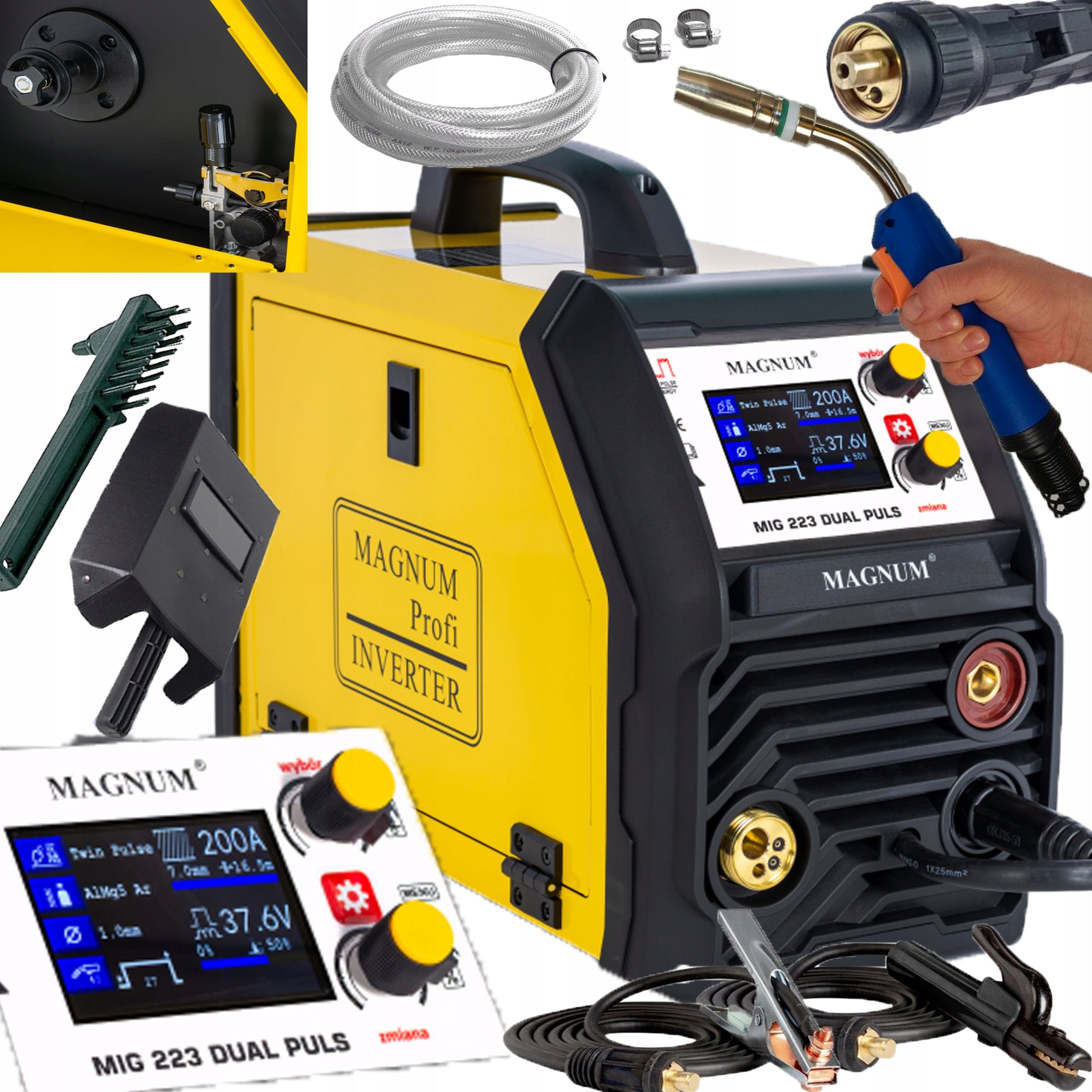

The set includes:

➡ Welding device MAGNUM MIG 223 Dula Pulse Synergy

➡ Working cable MB24 3 m

➡ Working cable MMA 2m

➡ Mass cable 2m

➡ Blue steel insert for wire 0,8 (in working handle)

➡ Feed rollers for steel 0,8/1,0 (mounted in the feeder)

➡ User Manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	10.5 kg
Parametry	Welding range	35–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	13.5 kg
Parametry	Manufacturer code	Spawarka Magnum MIG 223 Dual Puls HRS
Parametry	EAN (GTIN)	5904624048033
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
