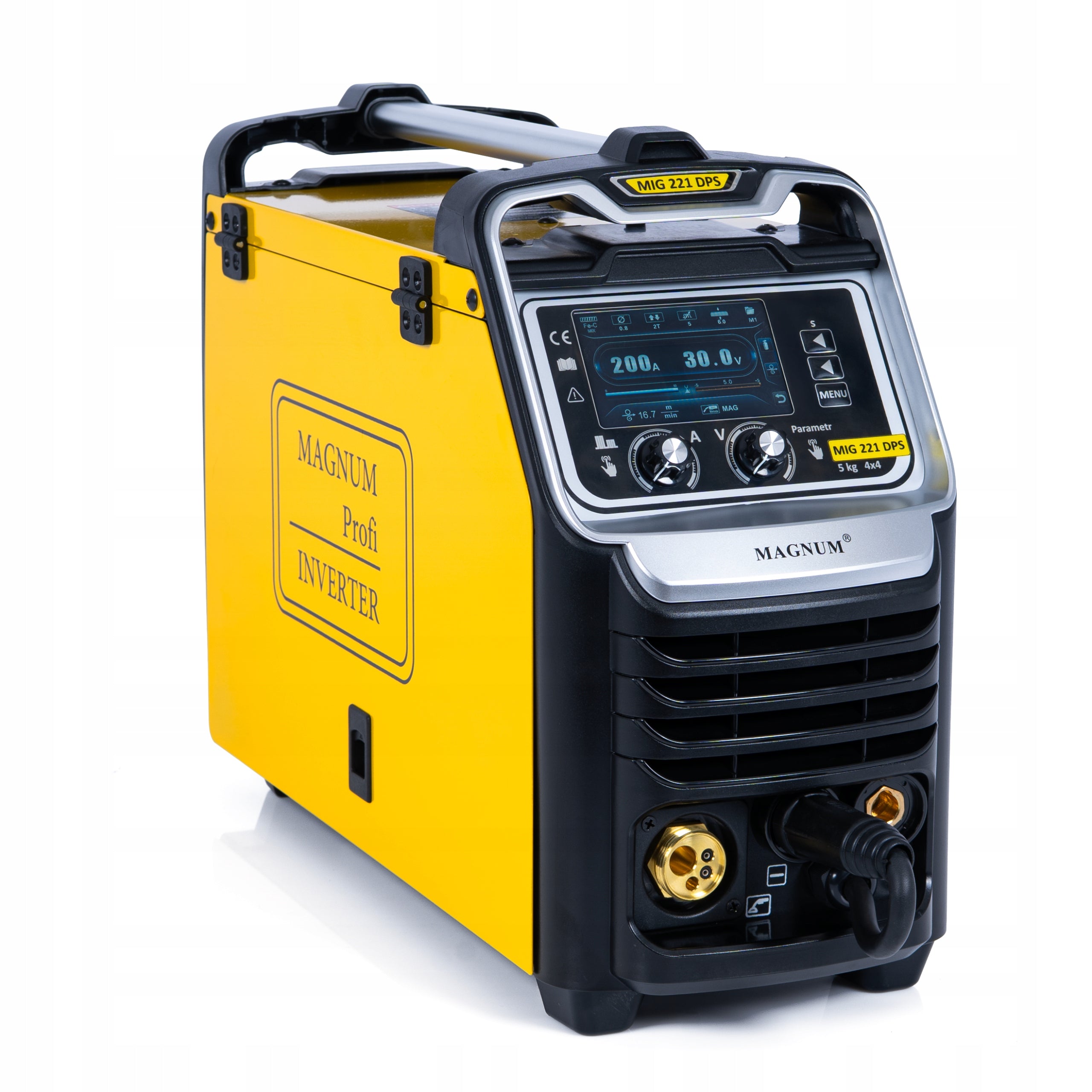

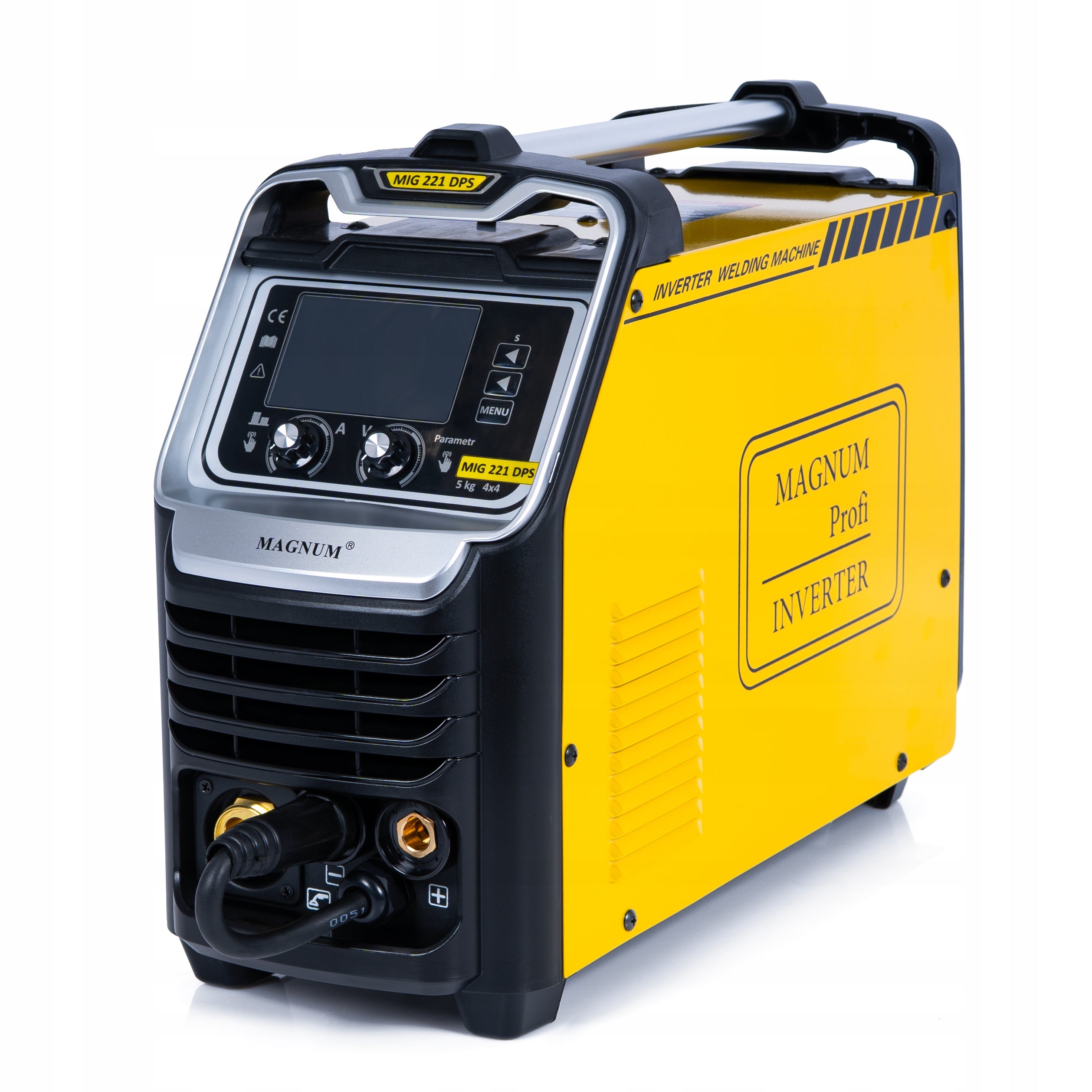

Suvirinimo aparatas MAGNUM MIG 221 DPS MAG TIG PULS SYNERGY 200A 4R, aliuminiui

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 221 DPS MAG TIG PULS SYNERGY 200A 4R, aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM MIG 221 DPS

⚡Do you need a solid wire feeder in your equipment? ✅ Metal 4-roll feeder - efficient equipment ❇

⚡Do you need full control over the weld? ✅ INDUCTANCE - reduces chipping and improves weld quality ❇

⚡Perfect synergy is necessary for you? ✅ Programs for steel, aluminium and stainless steel - for the most demanding ❇

⚡Looking for equipment with high power? ✅ Operating current 200A in cycle 60% - adapted to every need ❇

⚡ Power supply 230V is necessary for you? ✅ Power supply at 230V - stable operation in all conditions ❇

⚡Working on a long handle is a must? ✅ Handle with a length of 3 meters - will help in all conditions and at any distance ❇

⏩MIG 221 DPS - why choose?

✅built-in programs for welding steel, aluminum, stainless steel,

✅inductance – this feature provides full control over the shape of the weld, reducing spatter and improving the quality of joints, which significantly affects aesthetics and durability.

✅3in1 device : MIG/MAG, MMA, TIG DC Lift

✅cuSi3 soldering function,

✅FLUX - welding with self-shielding wire without gas,

✅ MIG/MAG modes: 2T, 4T, POINT, VRD

✅smooth adjustment of welding parameters,

✅modern welding source, made in inverter technology,

✅adjustable wire feed speed

✅adjustable gas outflow time before and after welding

✅adjustable welding time at the point

✅adjustable pulsation balance

✅adjustable pulsation frequency

✅ EURO socket - work with any MIG handle.

⏩Programmable device memory (10 channels)⏪

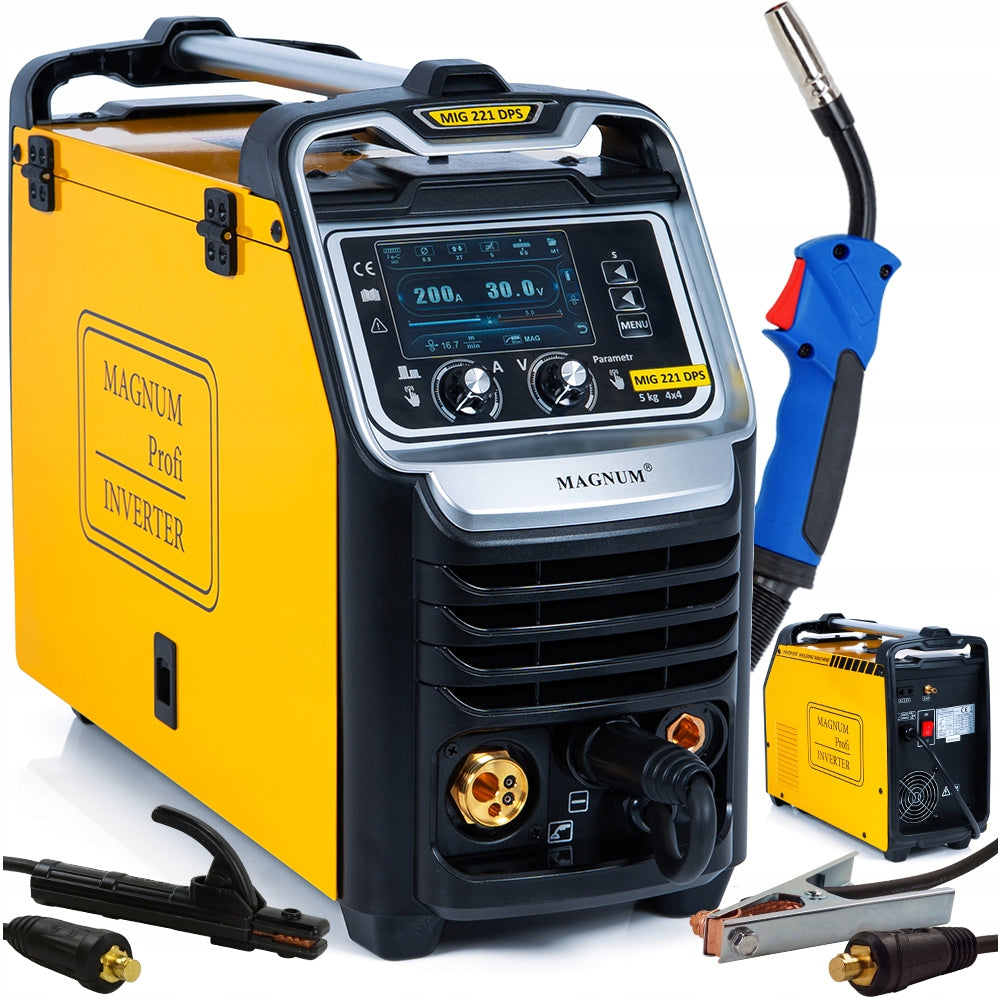

⏩INCLUDED:

✔ Welder MAGNUM MIG 221 DPS

✔ MiG holder MB15 3m

✔ MMA electrode cable

✔ Mass cable

✔ Operating instructions

⏩MAGNUM MIG 221 DPS - better welding with synergistic flash

MAGNUM MIG 221 DPS 4X4 is a compact, professional welding device designed to work in MIG/MAG, MMA and TIG LIFT methods. The version with a 5 kg spool is perfect for workshops, service and light industrial applications. The four-roll wire feeder used ensures stable and precise feeding. The device offers a range of advanced features that allow you to fine-tune your welding parameters to suit your specific task

⏩Welding MIG with pulse

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. during welding of stainless and acid-resistant steels.

⏩Double pulse MIG welding - great program for welding aluminum

Dual pulsation MIG welding is particularly useful for welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, it is possible to obtain a weld that goes far beyond the capabilities of the conventional MIG method.

A well-made MIG weld with double pulsation is aesthetically and qualitatively similar to the welded joint obtained by TIG AC method. However, the difference is that during double pulsation MIG welding much higher efficiency is achieved, and the semi-automatic welding technology itself is much simpler for the operator than TIG welding.

⏩ SPOT WELDING

Metal Inert Gas (MIG) spot welding is a welding technique that involves creating single welding points instead of a continuous weld. The method is used when it is necessary to connect two metal elements at specific points, which allows to reduce the heating of the material and minimize deformation.

MIG spot welding is ideal for precise joining of metals at specific points, which minimizes the impact of heat on the material and allows for aesthetic, strong joints.

⏩Solid execution

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic circuits, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

⏩PROFESSIONAL WIRE FEEDER

Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.

The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 60%
• Network Security: 20A
• Enclosure protection class IP21S
• Net weight: 7,7kg

⏩ MIG/MAG welding parameters:

• Welding Current: 40 - 200A
• Welding Voltage: 14 - 26V
• Wire diameter: 0,8 / 0,9 / 1,0 mm
• Wire spool weight: max. 5kg (max.D200)
• Synergistic programmes

⏩ MMA welding parameters:

• Welding Current: Smooth Adjustment
• Maximum electrode diameter: 3,2mm
• Idle Voltage: 55,5V

⏩ TIG welding parameters (optional):

• Welding Current: Smooth Adjustment
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift
• Requires TIG handle with valve

⏩Synergic programmes:

• Fe - non-alloy low-alloy steels,
• Ss - stainless and acid-resistant steels,
• AL4043 - welding of aluminium alloys with silicon (AlSi5), by MIG method with a single pulsation of welding current. Aluminum alloys with silicon are usually used for welding cast components
• AL5356 - welding of aluminium alloys with magnesium (AlMg5), by MIG method with a single pulsation of welding current. Aluminum alloys with magnesium are usually used for welding rolled elements.
• CuSi - soldering,
• Flux - welding with core wires, self-shielding wire,

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• SYNERGY - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• PULS - pulsing current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

• DOUBLE PULSE - provides better transfer of the binder into the welded material, which fundamentally improves control over the welding process and the quality of the weld itself. It allows you to work in all positions and is especially useful for forced positions. It provides less heat impact, works well in the case of thinner materials or those with increased thermal conductivity, such as: aluminium alloys. Reduces the amount of chipping. The most advanced welding method, in which current pulses occur in two ranges, thanks to which we obtain the optimal aesthetics of the weld face, the so-called. husk effect.

• SPOT WELDING - a function that allows welding with equal points. This method is used in particular when combining thin body elements.

• TIG DC - welding with a non-melting electrode in an inert gas shield, e.g. alloy and non-alloy steels.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• inductance – this feature provides full control over the shape of the weld, reducing spatter and improving the quality of joints, which significantly affects aesthetics and durability.

• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

• LUTOSPELING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much smaller. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work.

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	8 kg
Parametry	Welding range	40–200 A
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	12 kg
Parametry	Manufacturer code	U MI 221 DPS 5
Parametry	EAN (GTIN)	5905323121560
Parametry	Model	MAGNUM MIG 221 DPS
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
