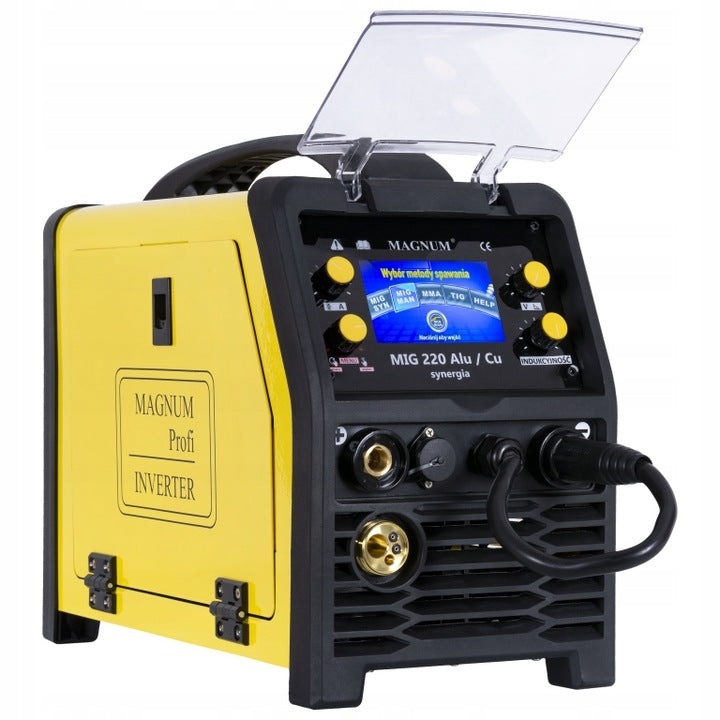

Suvirinimo aparatas MAGNUM MIG 220 ALU CU SYNERGY MMA TIG 230V 200A IGBT 3IN1

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 220 ALU CU SYNERGY MMA TIG 230V 200A IGBT 3IN1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 220 Alu Cu LCD
• Ilgis: 431 mm
• Plotis: 212 mm
• Aukštis: 316 mm

MIG/MAG, TIG DC Lift, MMA, FLUX| Power supply: 230V | LCD display, CuSi3 soldering | Manufacturer: Magnum

• full free post-purchase support
• You can call us at any time and we will help you set the parameters and operate the device

MIG 220 Alu / Cu - enjoy the advantages of full synergy

The MIG 220 Alu/Cu is an improved version of the already iconic 204 and 208 Alu Synergy models. The device is powered from a single-phase 230V network, and a number of modern solutions have been used in its production.

The welding machine is designed for welding using the following methods:

• MIG/MAG - welding with a hot melt electrode in a gas shield,
• FLUX - welding with self-shielding wire without gas (sister method for MIG/MAG),
• Soldering CuSi3 - galvanized sheets,
• MMA - welding with a wrapped electrode,
• TIG Lift - welding with a non-melting electrode in an inert gas shield.

The device is equipped with a color LCD display and an extremely easy-to-use user interface. More information about this interesting model can be found later in the description.

Magnum MIG 220 LCD Alu/Cu Synergy - full Synergy and user-friendly interface

Due to the functionality and welding parameters, this device is addressed to professionals. With full synergy and ease of use - perfect for DIYers and DIY enthusiasts.

MIG 220 LCD Alu/Cu is a multifunctional semi-automatic welding machine made in inverter technology, using IGBT power trazinstor. It has great welding characteristics and color LCD display. Access to advanced features of the device is extremely simple. The welding machine allows welding with current up to 200A and operates with a high duty cycle.

Why choose this model?

• constructed on the basis of modern electronics,
• friendly user interface,
• color LCD display with excellent contrast,
• powered from a single-phase 230V network,
• 3in1 device - MIG/MAG, MMA and TIG welding,
• Magnum - a proven brand for years,
• Amazing price/quality ratio.

Full Synergy with Possibility

introducing manual correction

• has synergistic programs for welding: black steel, stainless steel, aluminum alloys, self-shielding wire and for soldering CuSi3,
• full synergy - selection of material thickness, all parameters are set automatically,
• the possibility of introducing manual correction into the programs,
• possibility of disabling synergy and welding in manual mode - parameter adjustment according to. own recognition and experience.

Regulation of MIG/MAG welding inductance

• setting the characteristics of the welding arc - control of the face width, depth of melting and the number of welding chips.

Hint system for the user

• after selecting Synergy - the system suggests how to connect welding wires,
• The interface displays suggested ranges of optimal voltage values, wire feed and welding inductance.

Professional Wire Feeder

Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.

The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.

Possibility of connecting the handle

SPOOLGUN type

Working with the SPOOLGUN handle is often used when welding aluminum or soldering CuSi3. You do not have to change the device to a different type of material every time, thanks to which you gain on the efficiency of the workplace.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG) 170A (MMA/TIG)
• Color LCD Display: YES
• Rated duty cycle: 60%
• Maximum power consumption: 6,4 kVA
• Network Security: 20A
• Degree of protection: IP21S
• Net weight: 10,4kg

MIG/MAG welding parameters

• Welding Current: 40-200A
• Welding voltage: smooth adjustment,
• Wire feed - smooth adjustment,
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100, D200
• Wire feeder: profi 2R

Synergistic MIG/MAG programs:

• Full synergy: YES
• Available programs: Fe, Ss, Al/MG5 Al/Si, FCAW-S, CuSi CuAl
• Wire Diameter Selection: YES
• Selection of shielding gas: YES
• Choice of thickness of welded material: YES
• Correction to Synergistic Programs: YES

Additional MIG/MAG functions

• Welding inductance adjustment: YES, smooth
• Operating Modes: 2bar, 4bar - 2T/4T
• Burn Back - wire burn time adjustment: YES
• MIG/MAG polarity change: YES
• Working with SPOOL GUN handle - YES

TIG welding parameters*

• Welding Current: 10-200A
• Adjustment: smooth
• Arch Initiation: TIG Lift
• Output current DC

*requires purchase of handle with valve

MMA welding parameters

• Welding Current: 10-170A
• Adjustment: smooth
• MMA Synergy: YES

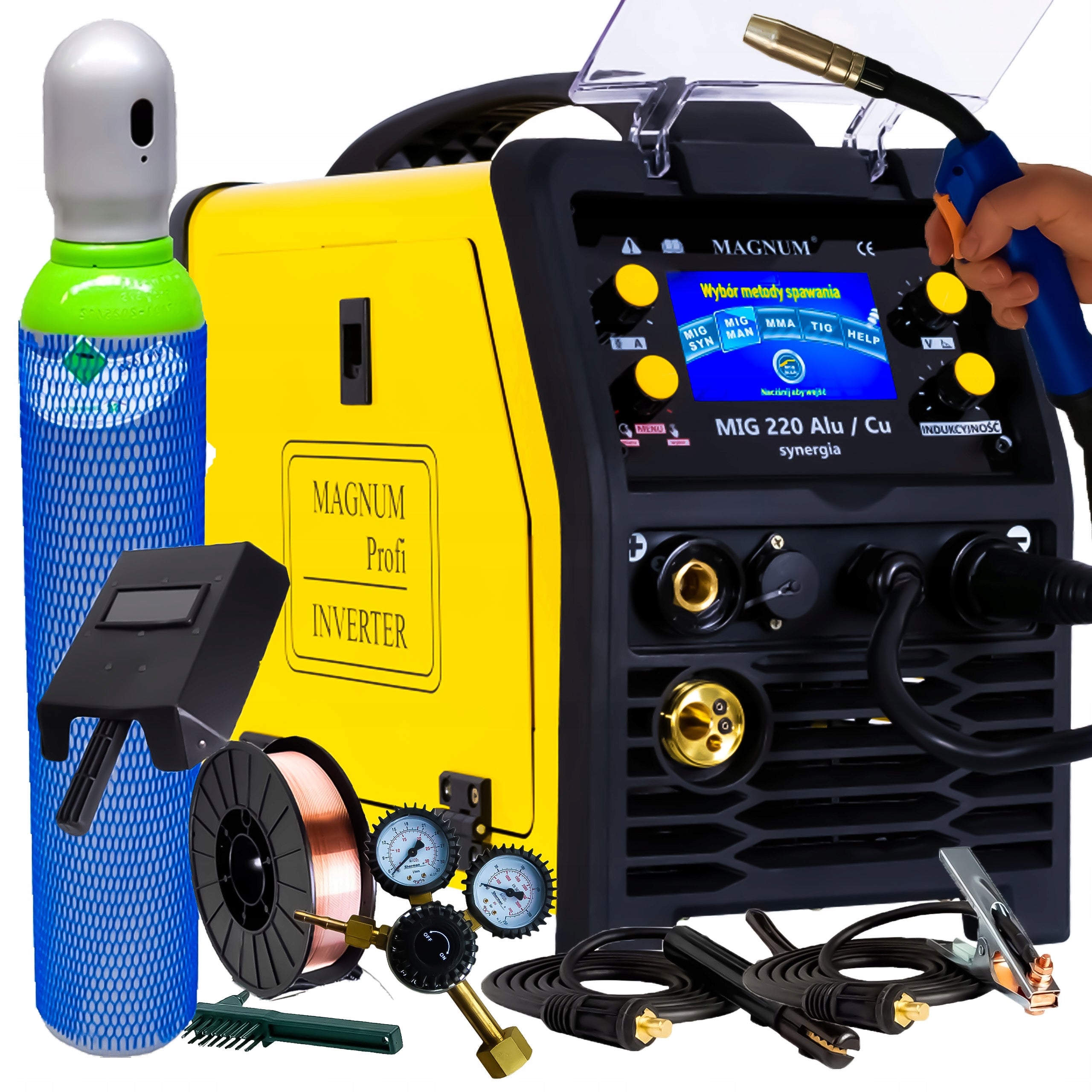

• Device Magnum MIG 220 ALU Synergy
• MIG EURO welding torch
• MMA electrode holder
• Mass cable
• Wire 0,8/5kg
• Co2/Argon cylinder
• Reducer
• Wire 0,8/5kg
• User manual PL
