Suvirinimo aparatas Magnum MIG 210 Synergy, 200A, 230V, inverterinis, 4x4 vielos padavimas

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 210 Synergy, 200A, 230V, inverterinis, 4x4 vielos padavimas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM MIG 210L Synergia 4x4

✅MIG: 40 – 200A, MMA: 10 – 16 0A

✅Adjustable inductance: Full control over weld shape, spatter reduction and better weld quality.

✅constructed on the basis of modern electronics,

✅friendly user interface,

✅smooth adjustment of all welding parameters,

✅Synergic programmes

✅manual settings mode,

✅ Euro socket - the possibility of using any MIG holder equipped with a EURO plug,

✅A number of improvements: VRD, Arc Force, Hot Start, 2T/4T.

⏩WHAT WILL YOU FIND IN THE PACKAGE?

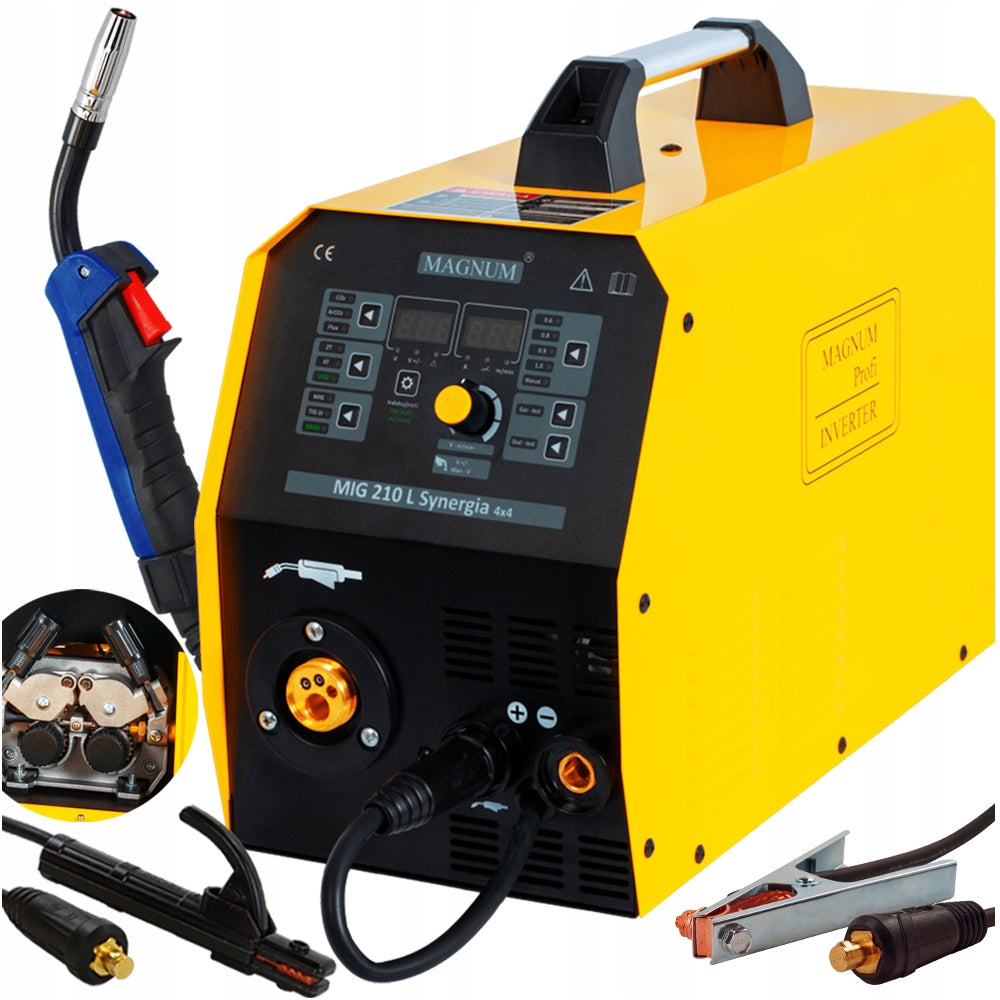

✔ Welding machine MAGNUM MIG 210L Synergy 4X4

✔ MIG MB 15 welding torch - 3m

✔ Bulk cable

✔ MMA electrode holder

✔ User Manual PL

The Magnum MIG 210 L Synergy 4x4 welding machine is a technologically advanced welding device for MIG/MAG, MMA and TIG Lift welding. Designed for manual, electric welding of low carbon steels, low alloy steels, high alloy steels, stainless and acid resistant steels, aluminum and its alloys, etc.

The MIG 210 L Synergy 4x4 device is designed for all welding works performed by amateurs in home workshops as well as for professionals in car workshops, locksmiths, repair workshops, industrial workshops, etc.

Thanks to the extremely simple and intuitive control panel, perfectly selected synergistic program algorithm and digital process control, this device is extremely easy to use, which allows even a person without welding experience to make welded joints.

An additional advantage is the ability to set welding parameters in a traditional (manual) way, bypassing synergies.

The power source is built on the latest technology using IGBT transistors, which translates into reduced electromagnetic interference, low power losses, increased efficiency and reliability of the power source, and lower power consumption.

The device has smooth adjustments of welding parameters, is equipped with an overload thermal protection system, preventing excessive overheating. The welder is equipped with a 4-roll wire feeder with a EURO socket, which allows you to connect different types of welding brackets.

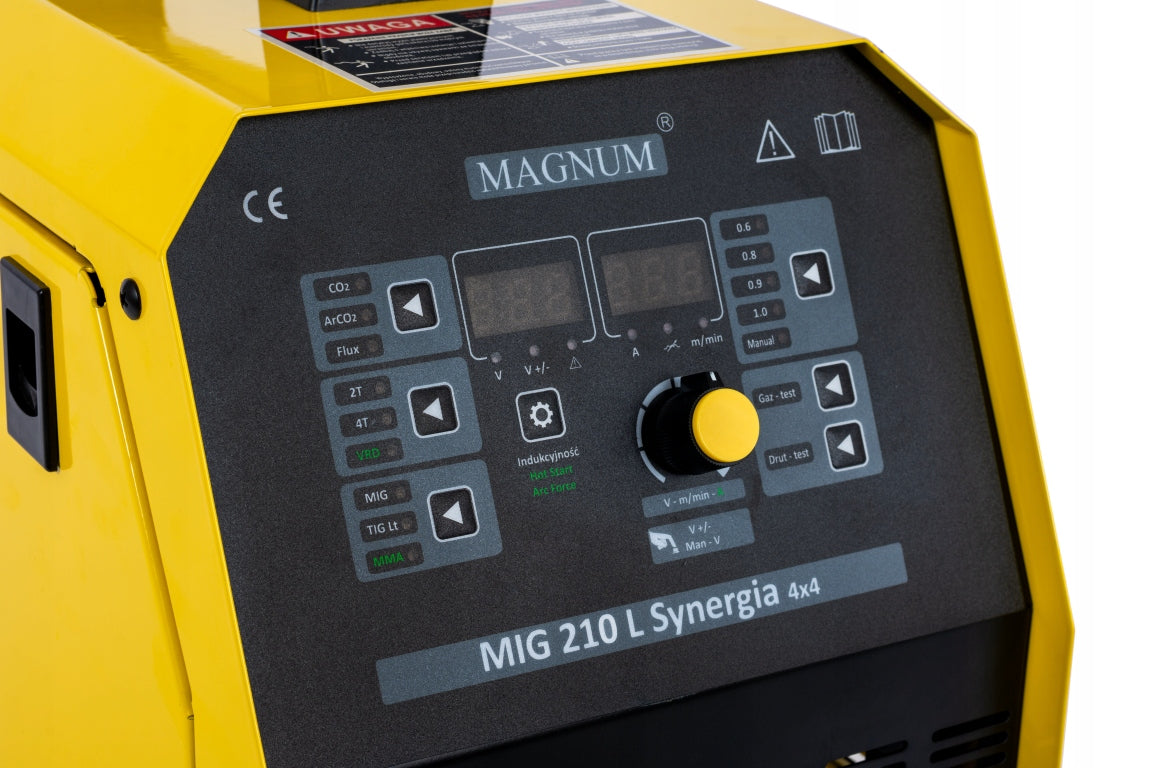

EASY-TO-USE FUNCTION PANEL

The front panel of the MAGNUM MIG 210L Synergy welding machine is designed for maximum user comfort. You will find on it:

Digital display – clear welding parameters such as voltage, current or wire feed rate. ? Adjustment knobs – easy and precise adjustment of settings, including:

• Welding current
• Voltage
• Inductance (ideal for thin sheets).
• Operating mode switches – quick dialing between MIG/MAG, MMA or FLUX methods.

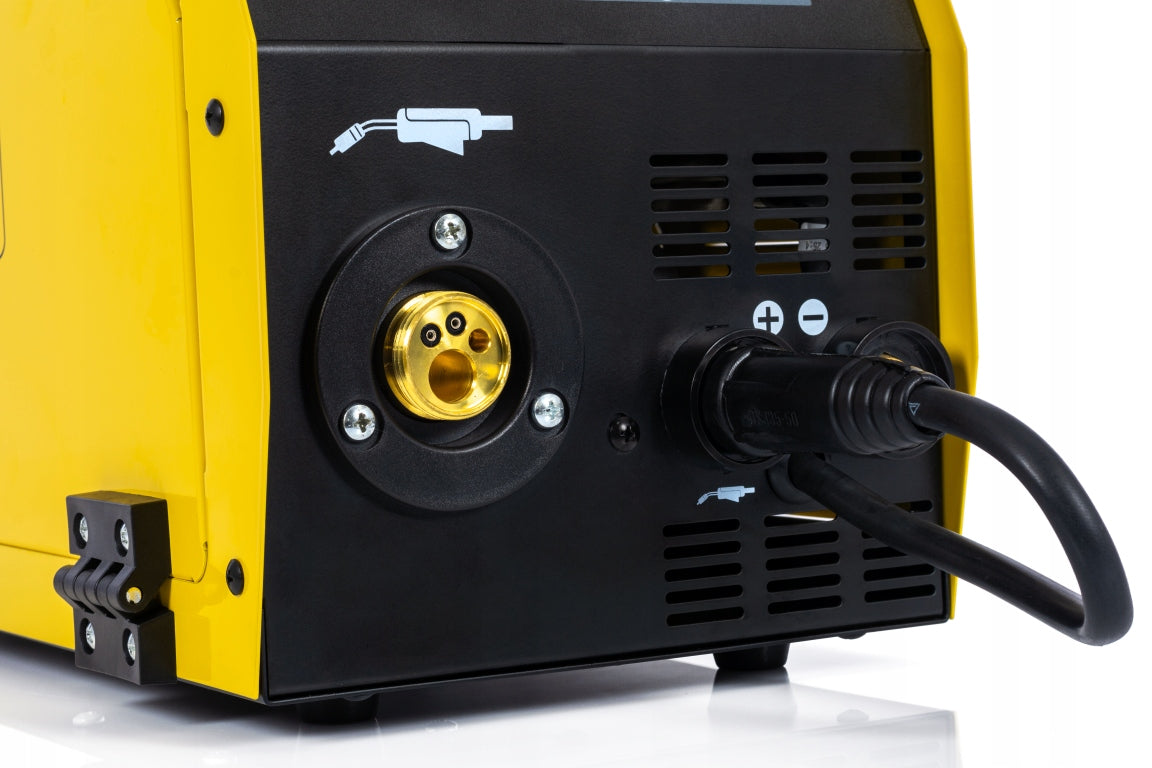

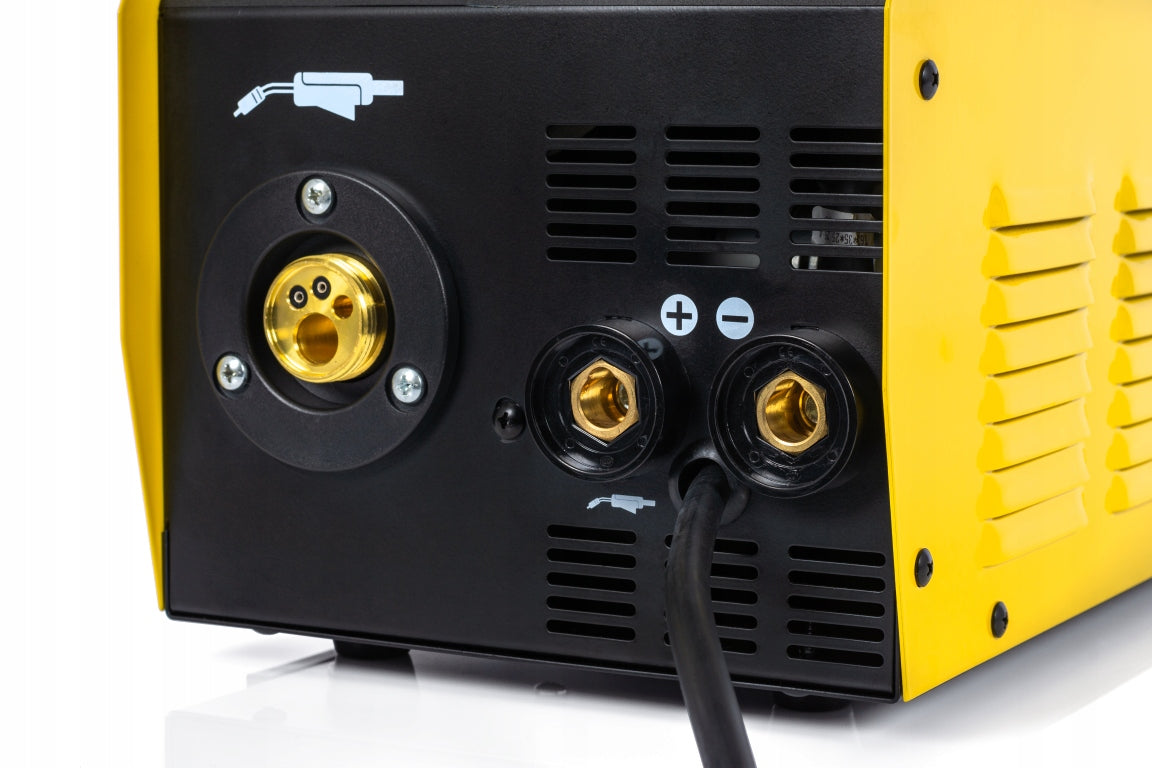

• Connection sockets – robust and easy-to-use connectors for welding torches and bulk wires.

Professional 4R wire feeder (4x4) - this is a reliable wire feeding regardless of the weight of the spool and the type of welding wire. The proven feeder mechanism has a large impact on the smoothness of wire feeding, which translates directly into the welding parameters of the device.

⏩SOLID EXECUTION

The power source was built on IGBT transistors providing a minimum of electromagnetic interference, small power losses in basic circuits, enabling increased efficiency and reliability of the power source. Very high efficiency, which translates directly into lower energy consumption, and high switching frequency, ensure rapid adjustment of the current to changes in parameters during welding.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

⏩POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50/60 Hz
• Power protection: 20 A type C

⏩Welding parameters:

• MIG/MAG welding current: 40 ÷ 200 A
• MIG/MAG welding voltage: 16 ÷ 24 V
• Idle Voltage: 55 V
• Efficiency: 60 %
• Feeder: 4R
• Wire spool diameters: D100 / D200
• Max. spool size: 5 kg
• Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm

⏩Physical parameters:

• Housing protection: IP21
• Cooling: Fan
• Weight: 11,6 kg

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• SYNERGY - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• INDUCTANCE - weld face width control and reduction of welding chipping,

• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
