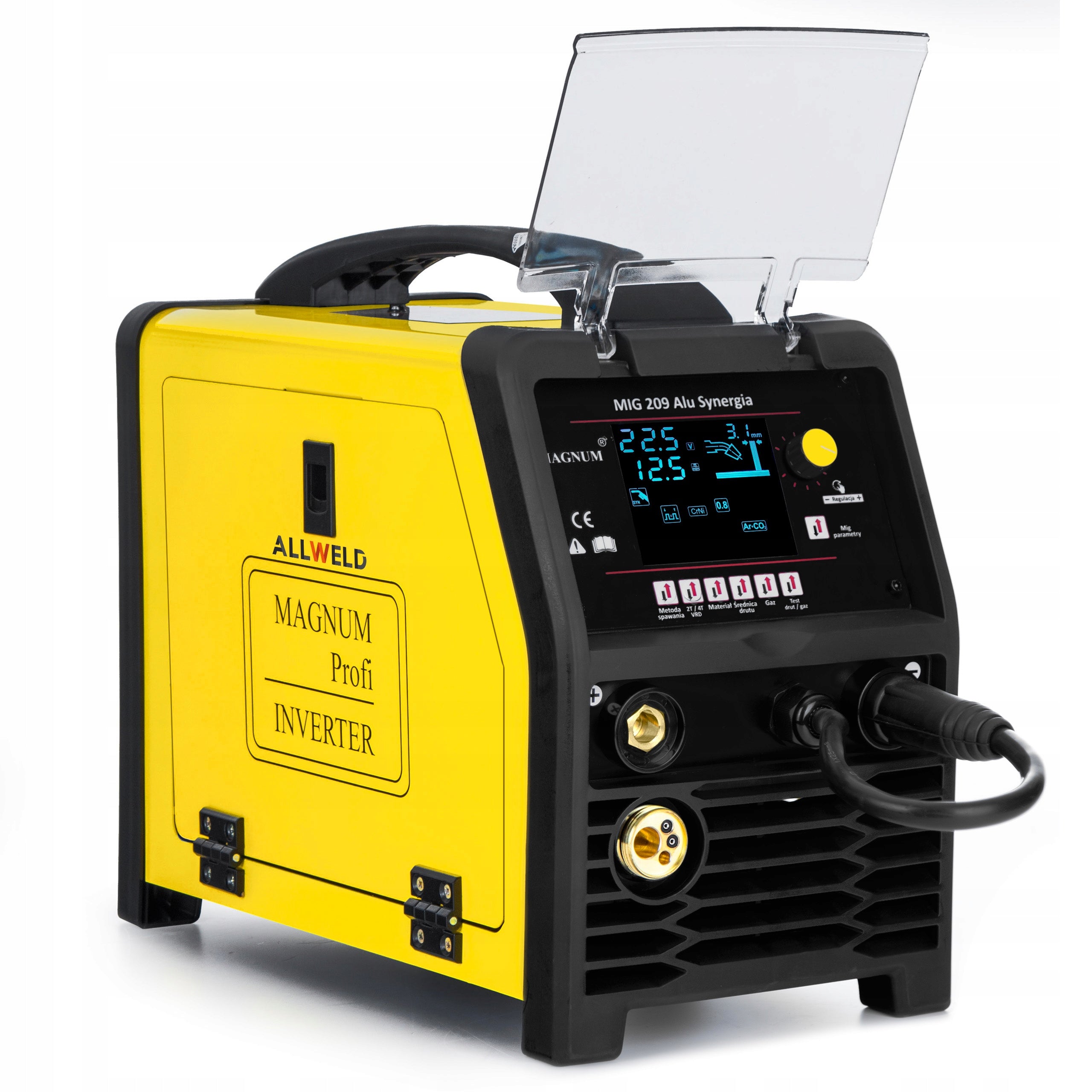

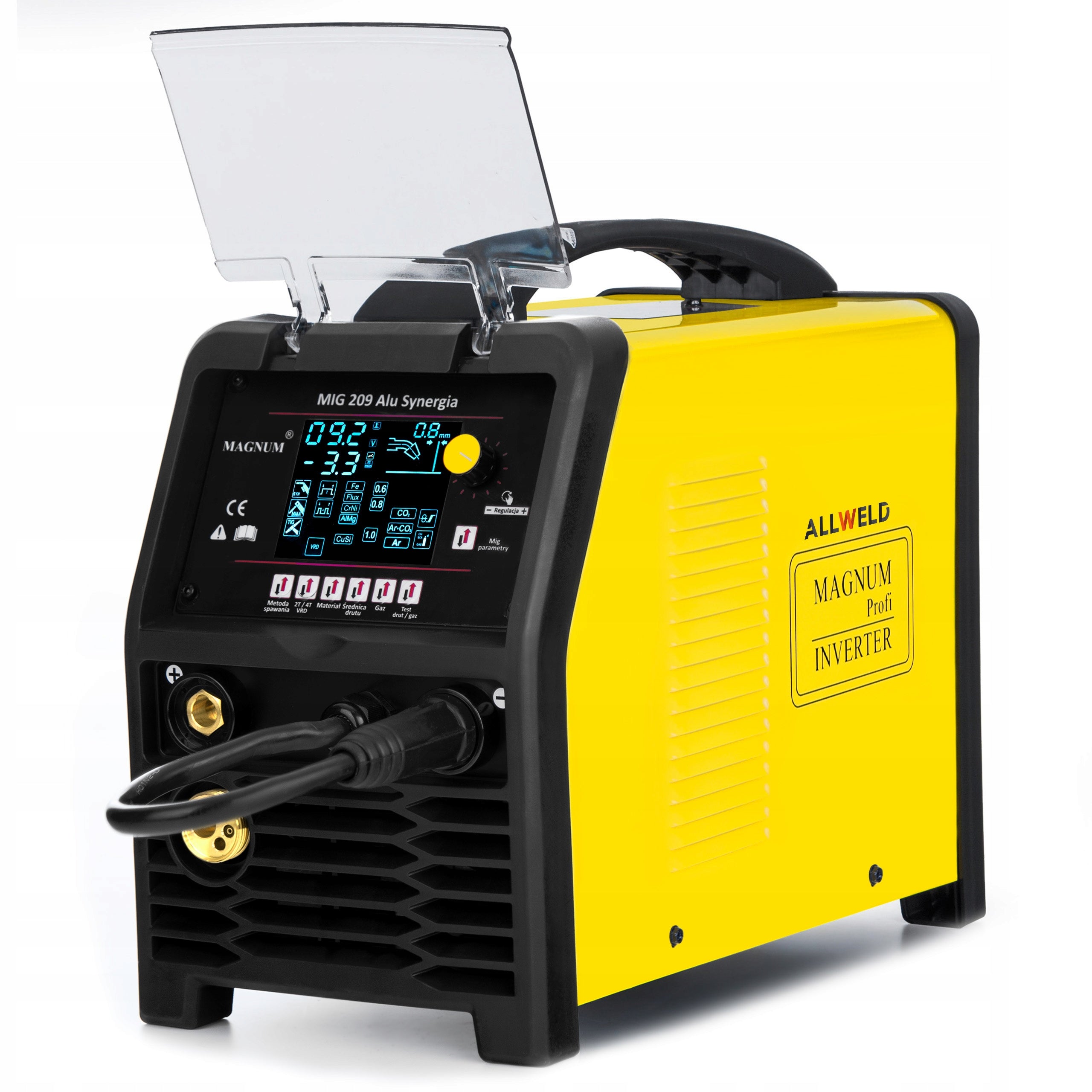

Suvirinimo aparatas MAGNUM MIG 209 ALUMINIUM SYNERGY MMA TIG 200A 230V LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 209 ALUMINIUM SYNERGY MMA TIG 200A 230V LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 209 Alu Synergia
• Ilgis: 316 mm
• Plotis: 211 mm
• Aukštis: 431 mm

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, FLUX, MMA, TIG LIFT ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60% (40°C)

MIGOMAT MAGNUM MIG 209 - SYNERGISTIC WELDING MACHINE LCD 3IN1 WITH TIG FUNCTION AND MATERIAL THICKNESS SELECTION

ONE OF THE MOST POPULAR SYNERGISTIC MIGRAINES!

MAGNUM MIG 209 ALU SYNERGIA is an inverter welding machine that automatically selects welding parameters. Built-in synergic programs for each material ensure that the setting of the welding machine is trivially simple. The device allows for welding with a maximum current of 200A. The welder has a large readable LCD display, which allows for precise positioning of the welding machine and easy control of parameters during the welding process.

LEARN THE ADVANTAGES OF THE DEVICE:

• Automatic or manual selection of parameters
• Built-in synergistic programs for: aluminium, black steel, stainless steel, soldering, core wires
• Inductance adjustment enabling SOLDERING and changing the weld shape
• Welding with wrapped electrode MMA
• Variable polarity - welding without gas FLUX
• Operating modes 2T and 4T for short and long welds
• Professional feeder 2R
• The ARC FORCE function allows you to adjust the dynamics of the welding arc
• EURO socket allows you to use interchangeable handles
• Low weight and dimensions
• IGBT transistors - minimum electromagnetic interference small power losses

Thanks to the use of synergic settings, the device is very easy to use and can be used by welders even with minimal experience. Choosing the type of welded material, wire thickness and gas shield the device will select the welding parameters depending on the thickness of the weld that we set on the display. All settings can be manually tuned if necessary. The welding machine, thanks to its adjustable inductance , allows for precise adjustment of the width and depth of the melt, and also allows for welding without chipping of both thin sheets and thick profiles. The welding machine enables the lutowelding process, thanks to which galvanized sheets can be freely combined, which are often used in car bodies. In addition, the device has the function of change of polarity, thanks to which it is possible welding without gas with self-shielding wires (FCAW), as well as welding with an MMA wrapped electrode.

Fe – ordinary steels 0.6 / 0.8 / 1.0 CO2 / Ar+CO2 - program for welding black steel in CO2 or Ar/CO2 shield.

Flux – core wire welding 0.8/0.9/1.2 - program for self-shielding wire welding.

CrNi – stainless steels and acid-resistant steels 0.8/1.0 Ar+O2 / Ar+CO2 (1-2%) - program for welding stainless steel / acid-resistant steel in Ar+CO2 or Ar+O2 sheath.

AlMg – aluminium and aluminium alloys 0.8/1.0 Ar - aluminum welding program in Ar.

CuSi – soldering 0.8/1.0 Ar - program for welding copper and soldering in Ar.

1. You do not have to manually set the parameters - the welding machine will do it for you! Just specify the type of material and its thickness!
2. If you are an experienced welder, you can use the manual settings.
3. Adjustable inductance gives us the ability to adjust the width and depth of the weld melt.
4. Smooth adjustment of parameters allows for precise "tuning" of the device.
5. Ready-made programs allow welding not only black steel, but also aluminum, stainless and acid-resistant steels.
6. The possibility of welding galvanized sheets makes the device ideal for bodywork.
7. The device has optimization for welding thin elements.

SYNERGY - this is a modern electronic microprocessor control that automatically selects operating parameters depending on the wire diameter, type and thickness of the material.

FLUX (FCAW) - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.

IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, enabling increased efficiency and reliability of the power source.

REG. INDUCTANCE - controls the width and depth of melting and reduces the amount of chipping. Allowing less heat to be introduced into the welding site, the sheet does not deform and the protective zinc layer is not damaged, useful in soldering.

2T/4T - when the start button is pressed, the welding process is stopped after releasing the button - when the button is pressed and released for the first time, the welding process is stopped at the second press, it is a more convenient solution for longer welds.

ARC FORCE - allows you to adjust the dynamics of the welding arc. Reducing the value of the function gives a soft arc and a smaller depth of melt, while increasing the value of the function causes deeper melting and the possibility of welding with a short arc. When setting the largest value for the ARC FORCE function, it is possible to "press the electrode into a lake of molten metal and burn the material through.

TIG LIFT - possibility of TIG LIFT touch welding. Arch ignition is carried out by lightly rubbing the non-melting electrode against the welded material.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Number of phases: 1ph
• Frequency: 50/ 60 Hz
• Power protection: 20A type C

TECHNICAL PARAMETERS

• MIG/MAG welding current: 40 - 200 A
• MIG/MAG welding voltage: 10 - 26 V
• Welding current MMA: 20 - 160 A
• Welding current TIG Lift: 20 - 160 A
• Idle voltage: 60 V
• Efficiency: 60% (for temp. 40°C)
• Feeder: 2R
• Max. Spool size: 5kg
• Wire diameter: 0.6/0.8/0.9/1.0 mm

ADDITIONAL FUNCTIONS

• Function 2/4 BAR: Yes
• TIG Lift: Yes
• ARC FORCE function: Yes

PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: fan
• Weight: 10kg

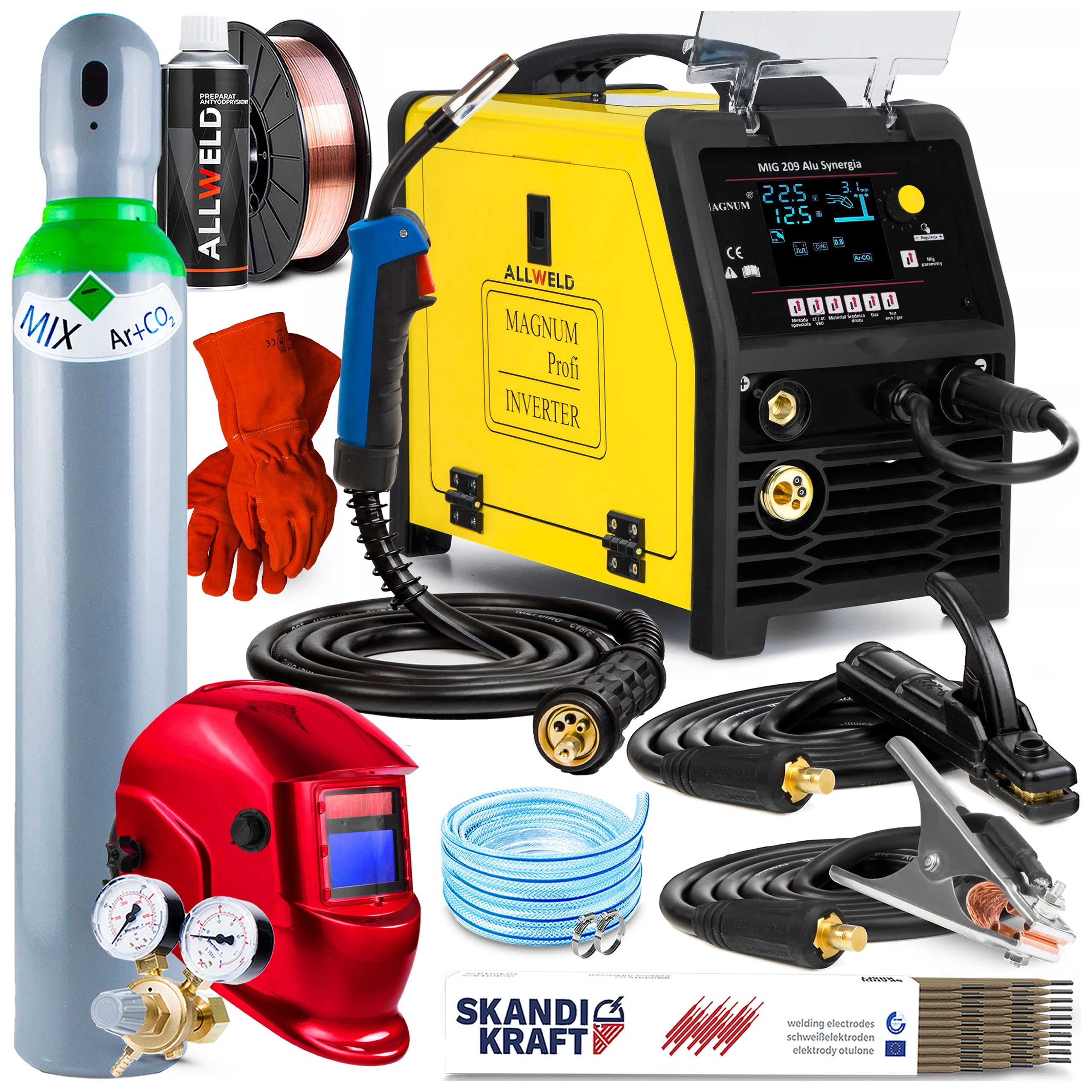

BY BUYING FROM US YOU GET

• Welding machine MAGNUM MIG 209 ALU SYNERGY
• Welding torch MIG/MAG type MB 15 - 3m
• Electrode holder
• Bulk Holder
• User manual in Polish

ADDITIONAL ACCESSORIES

• Cylinder with gas mixture Argon/CO2
• Cylinder reducer Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 - 5 kg
• Anti-chipping preparation ALLWELD
• Gas connection hose - 1 pcs
• Clippers - 2 pcs
• SKANDI KRAFT electrodes 1 kg - 1 pc
• Welding gloves - 1 pair
• Visor self-tinting

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	6.4 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	10 kg
Parametry	Welding range	20–200 A
Parametry	Height	431 mm
Parametry	Length	316 mm
Parametry	Width	211 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	0.8 kg
Parametry	Manufacturer code	U MI 209AL SY #ZESTAW2AK
Parametry	EAN (GTIN)	5907195566401
Parametry	Packaging status	original
Parametry	Model	MIG 209 Alu Synergia
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
