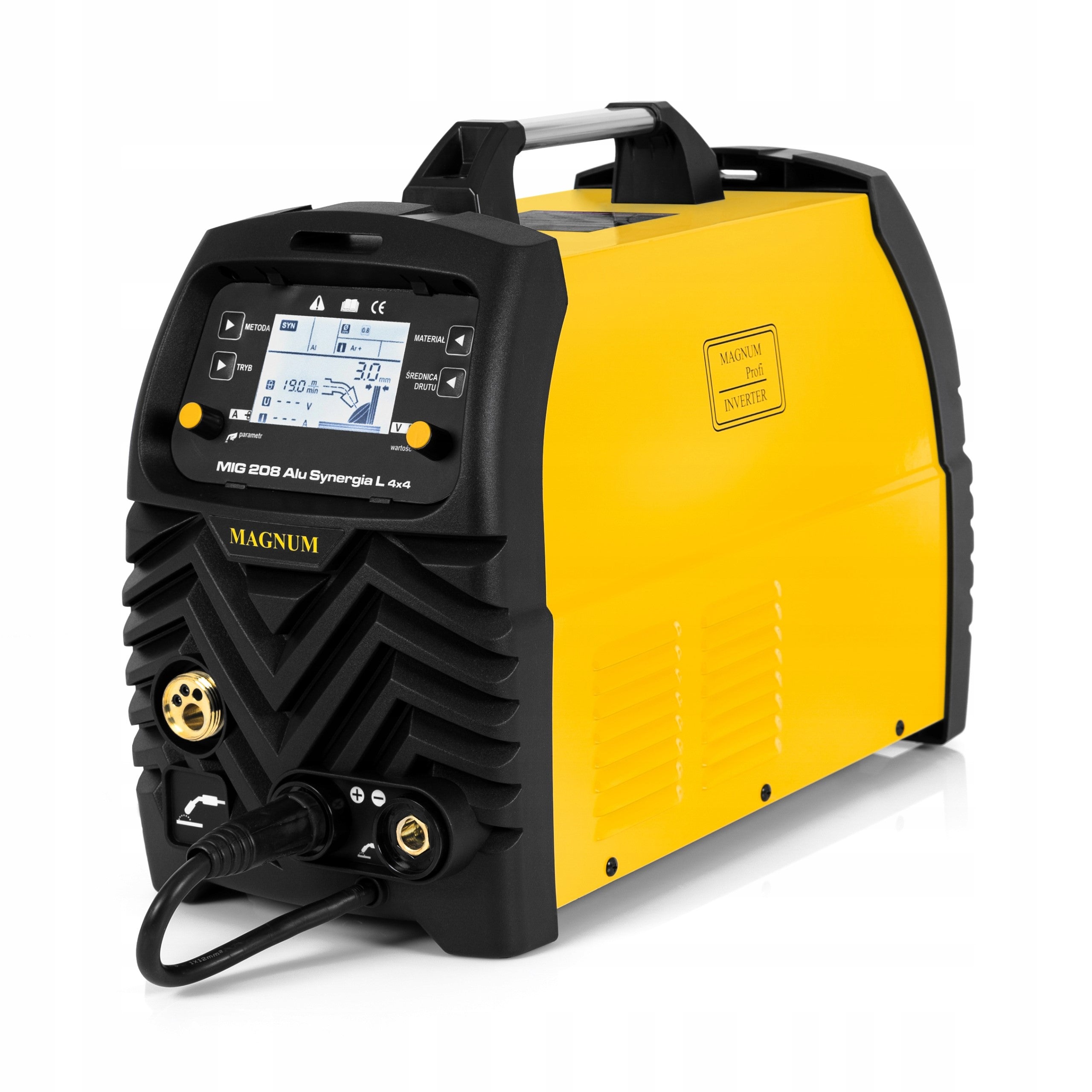

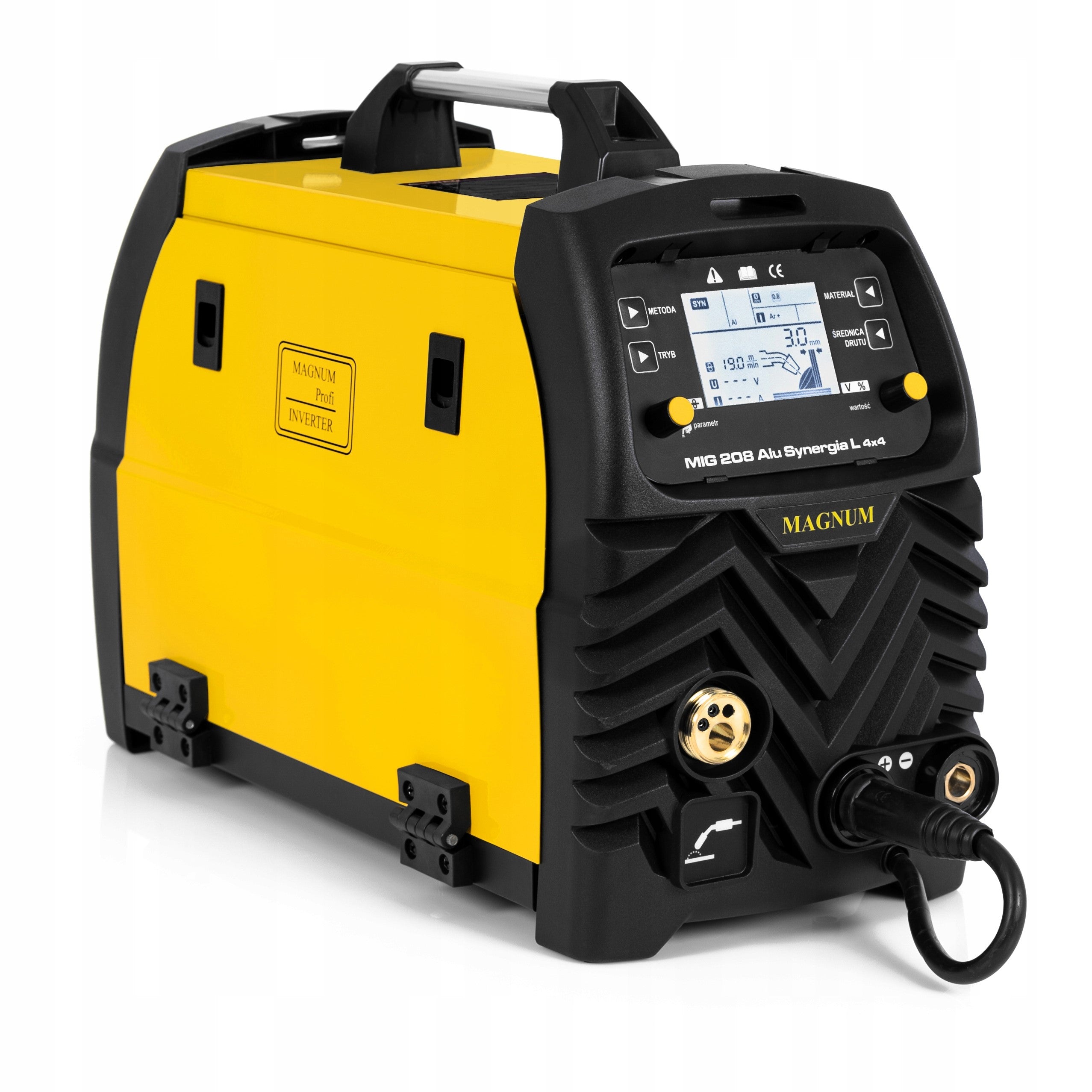

Suvirinimo aparatas MAGNUM MIG 208 ALU SYNERGY 4x4 MMA TIG 200A, aliuminis, 3in1

Trumpai apie prekę

Prekė: Suvirinimo aparatas MAGNUM MIG 208 ALU SYNERGY 4x4 MMA TIG 200A, aliuminis, 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 208 ALU SYNERGIA L 4x4
• Ilgis: 560 mm
• Plotis: 265 mm
• Aukštis: 410 mm

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, TIG Lift, FLUX, Soldering ║ Power supply: 230 V ║ Welding current: 200 A ║ Efficiency: 60 %

Discover the full potential of Magnum MIG 208 Alu Cu! A list of features that will make your job easier.

• Designed for welding low carbon, low alloy, high alloy stainless and acid resistant steels, aluminum alloys, copper, etc.
• Professional, high quality 4-roll wire feeder
• Synergy - automatic selection of parameters for the selected material and its thickness. Synergic programs are precisely selected, eliminating the need for manual corrections.
• Two special synergistic programs: COLDWELD for welding thin sheets without overheating and FASTMIG, i.e. performing fast and deep welds with a minimum amount of chipping

• Less power consumption, stable operation even at higher overloads, thanks to modern IGBT transistors
• Manual mode for people who prefer the traditional way of selecting welding parameters
• The possibility of inductance adjustment, with which we can control the amount of splatter, the appearance and quality of the weld, as well as the stability of the arc.
• Wire feed speed adjustment - allows you to precisely adjust the amount of wire to the welding arc
• Lutowelding is particularly useful when combining galvanized sheets and thin materials (repair of car bodies).

• Burn Back - control the length of the protruding wire after welding. Prevents wire from sticking to the material
• Post Gas - gas flow after welding. They minimize the risk of material and electrode oxidation, which allows for smooth and durable welds.
• 2T/4T/S4T, which increases the convenience and flexibility of work. In two bars, welding is carried out as long as you hold the button in the handle. At four bars, pressing and releasing the button starts welding and ends the process the same way the next time you press and release the button. S4T is a special four-bar with the ability to set and control the time of the initial current (hot start) and final current (crater filling)

• The SPOT function allows you to make spot welds or spot welding of thin plates
• Arc Force automatically regulates welding current depending on arc length
• Hot Start increases welding current for a fraction of a second at arc ignition
• VRD reduces idling voltage, which reduces the risk of electric shock
• Smooth adjustment of all welding parameters
• Overload resistant and overheating, which extends the life of the welding machine
• Simple and transparent control panel
• Extremely easy to use, designed for amateurs and professionals

Professional 4-roll feeder

The Magnum MIG 208 Alu Cu welder is equipped with a professional, metal wire feeder 4R. The metal construction of the feeder provides incomparable durability and resistance to mechanical damage. It eliminates the risk of failure caused by wear or damage to feeder components, which is a common problem with plastic feeders.

Four feed rollers (4R) guarantee even and stable wire feeding, which translates into smooth, aesthetic welds without interference. The use of additional rollers minimizes the risk of wire slipping and ensures its continuous supply.

Summary of synergistic programmes

Synergistic program - Wire diameter [mm] - Shielding gas

SYN - MIG-MAG welding with settings and synergistic programs

• Fe (black steel) - 0.6 / 0.8 / 1.0 - CO2 and Ar + CO2
• Fe - Flux (core wire welding) - 0.8 / 0.9 / 1.2 - self-shielding
• AlMg (aluminum alloys with magnesium) - 1.0 / 1.2 - Ar
• AlSi (aluminum alloys with silicon) - 1.0 / 1.2 - Ar
• ER308 (type 308 stainless steels) - 0.8 / 1.0 - Ar + CO2 (1÷2%) or pure Ar
• ER316 (type 316 stainless steels) - 0.8 / 1.0 - Ar + CO2 (1÷2%) or pure Ar
• CuSi (solder welding, galvanized sheets) - 0.8 - Ar
• CuAl (soldering, aluminium sheets) - 0.8 - Ar

COLD - a special synergistic program MIG-MAG, facilitating welding of thin sheets, made of ordinary and stainless steels, limiting the amount of heat transferred to the material.

• Fe (black steel) - 0.8 / 1.0 - CO2 and Ar + CO2
• ER308 (type 308 stainless steels) - 0.8 / 1.0 - Ar + CO2 (1÷2%) or pure Ar
• ER316 (type 316 stainless steels) - 0.8 / 1.0 - Ar + CO2 (1÷2%) or pure Ar

FMIG - a special synergistic MIG-MAG program facilitating fast welding with a minimum of chipping.

• Fe (black steel) - 1.0 - Ar + CO2
• AlMg (aluminum alloys with magnesium) - 1.0 / 1.2 - Ar
• AlSi (aluminum alloys with silicon) - 1.0 / 1.2 - Ar
• ER308 (Stainless steels type 308) - 1.0 - Ar + CO2 (1÷2%) or pure Ar
• ER316 (Stainless steels type 316) - 1.0 - Ar + CO2 (1÷2%) or pure Ar

Additional special synergistic programmes

Synergistic programs make welding easier for welders, and additional programs such as COLDWELD and FASTMIG give users even more control and process optimization capabilities.

COLDWELD is a program designed to minimize the amount of heat introduced during welding. This is crucial in the case of thin sheets, where excessive heating can lead to deformation, burnout or loss of material properties.

Advantages of COLDWELD:

• Reduced risk of deformation of thin sheets
• Welding of very thin materials without the risk of puncture
• Improved control and aesthetics of welds
• Stress reduction
• Ideal for stainless steel and aluminum

FASTMIG (Fast Welding) is designed to maximize welding speed while maintaining good weld quality. This is especially useful in mass production, where time is a key factor.

Advantages of FASTMIG:

• Significantly reduces the time to make a weld, without losing quality
• Despite the high speed, it ensures proper blending
• Perfect for automated welding processes

Technical specification

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50/60 Hz
• Power protection: 20 A type C

TECHNICAL PARAMETERS

• MIG/MAG welding current: 40 ÷ 200 A
• MIG/MAG welding voltage: 18 ÷ 28 V
• Idle voltage: 73 V / with VRD 13,5 V
• Efficiency: 60 %
• Feeder: 4R
• Spool diameters with wire: D100 / D200
• Max. Spool size: 5 kg
• Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 / 1.2 mm

PHYSICAL PARAMETERS

• Housing protection: IP21S
• Cooling: Fan
• Weight: 11 kg

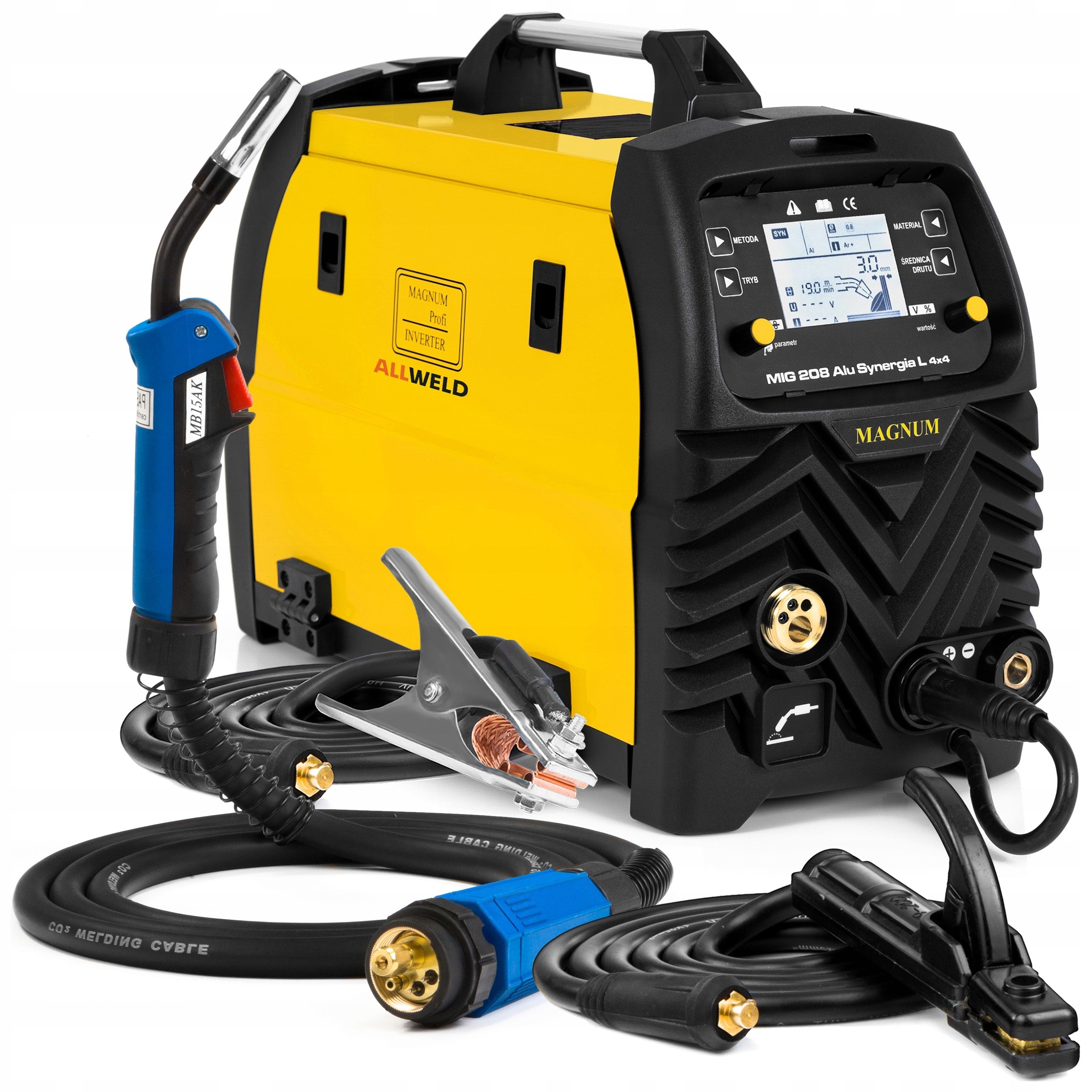

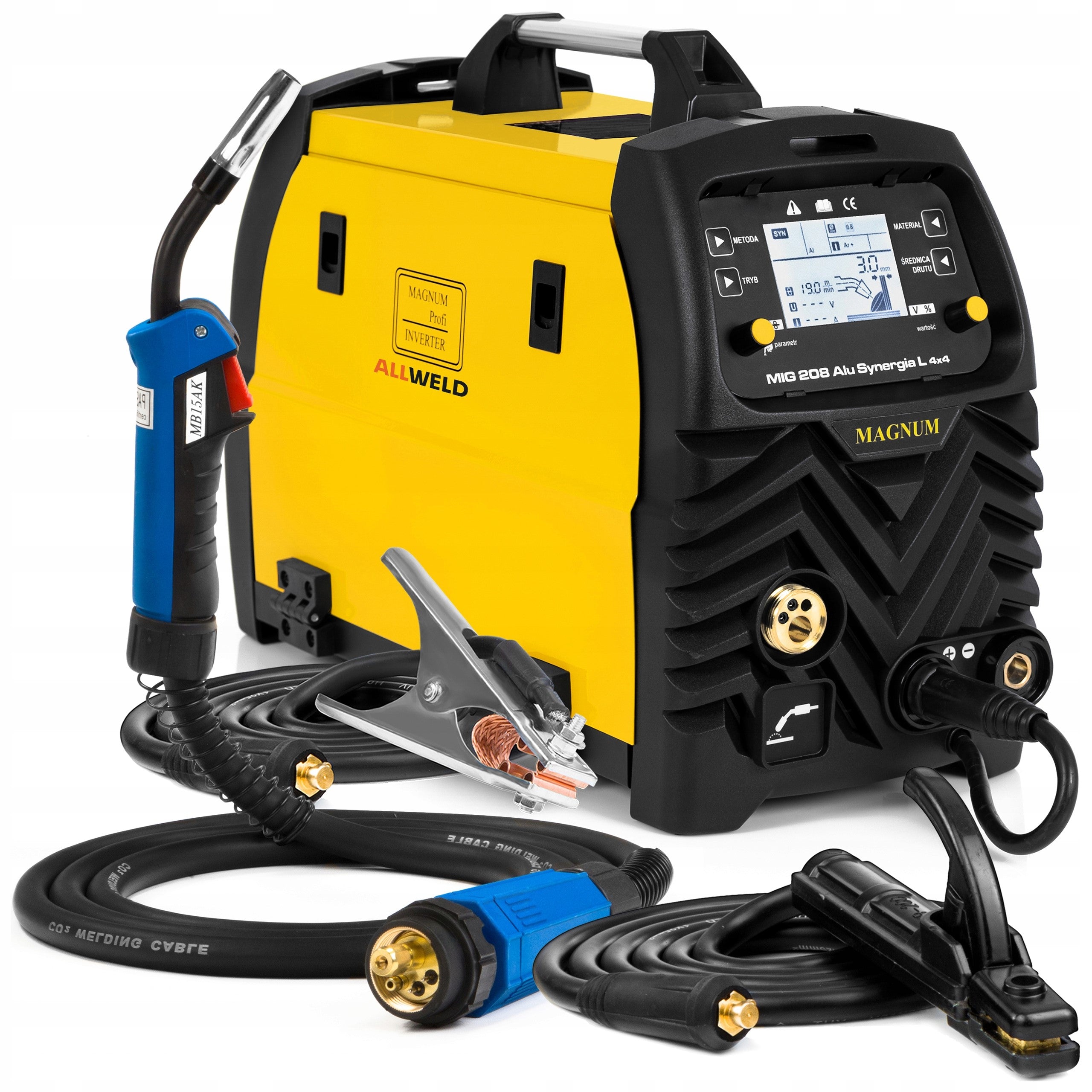

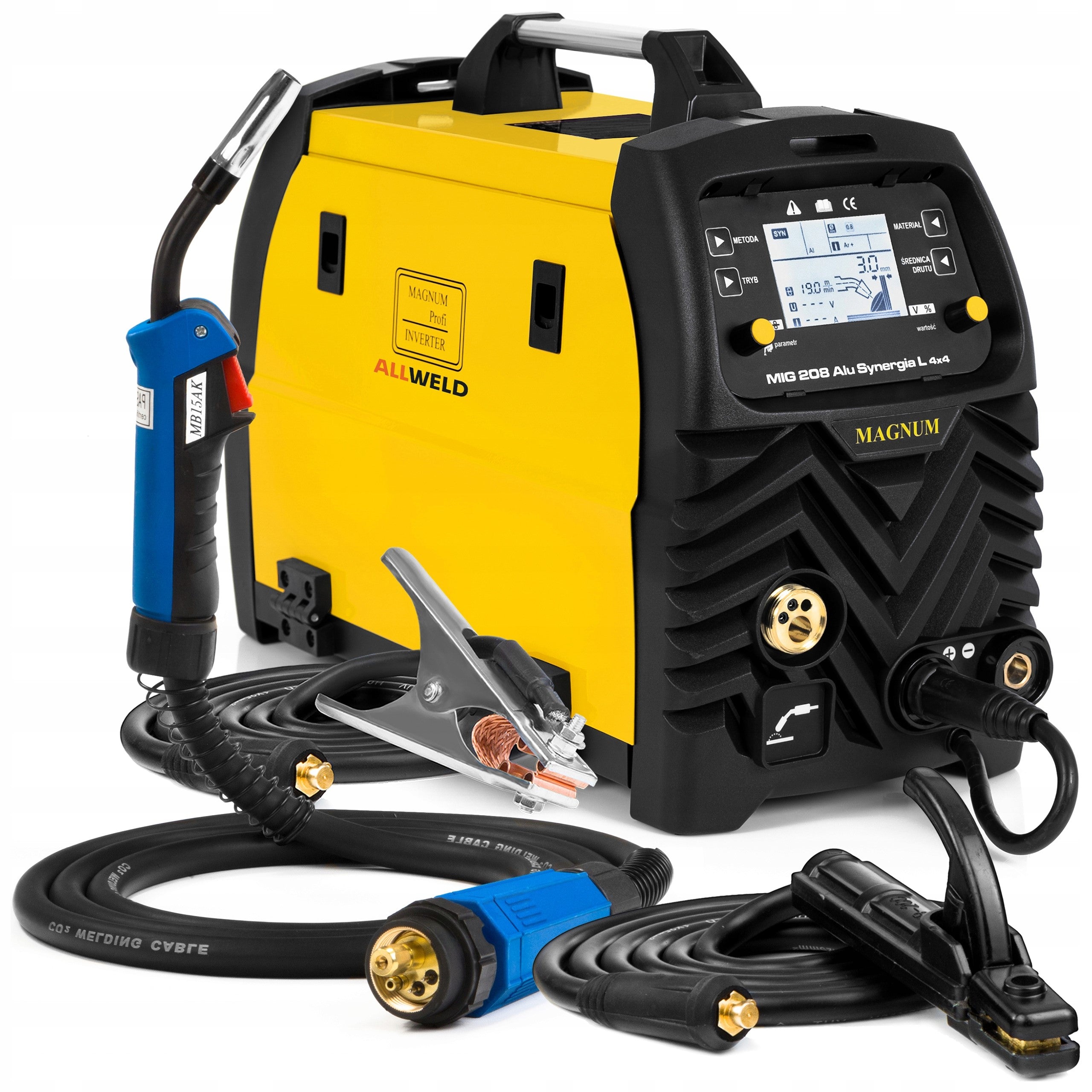

The set includes:

• Welding machine Magnum MIG 208 Alu Synergy L 4X4
• Welding torch MIG/MAG type MB 15 - 3 m
• Electrode holder - 2 m
• Bulk holder - 2 m
• User manual in Polish
