Trumpai apie prekę

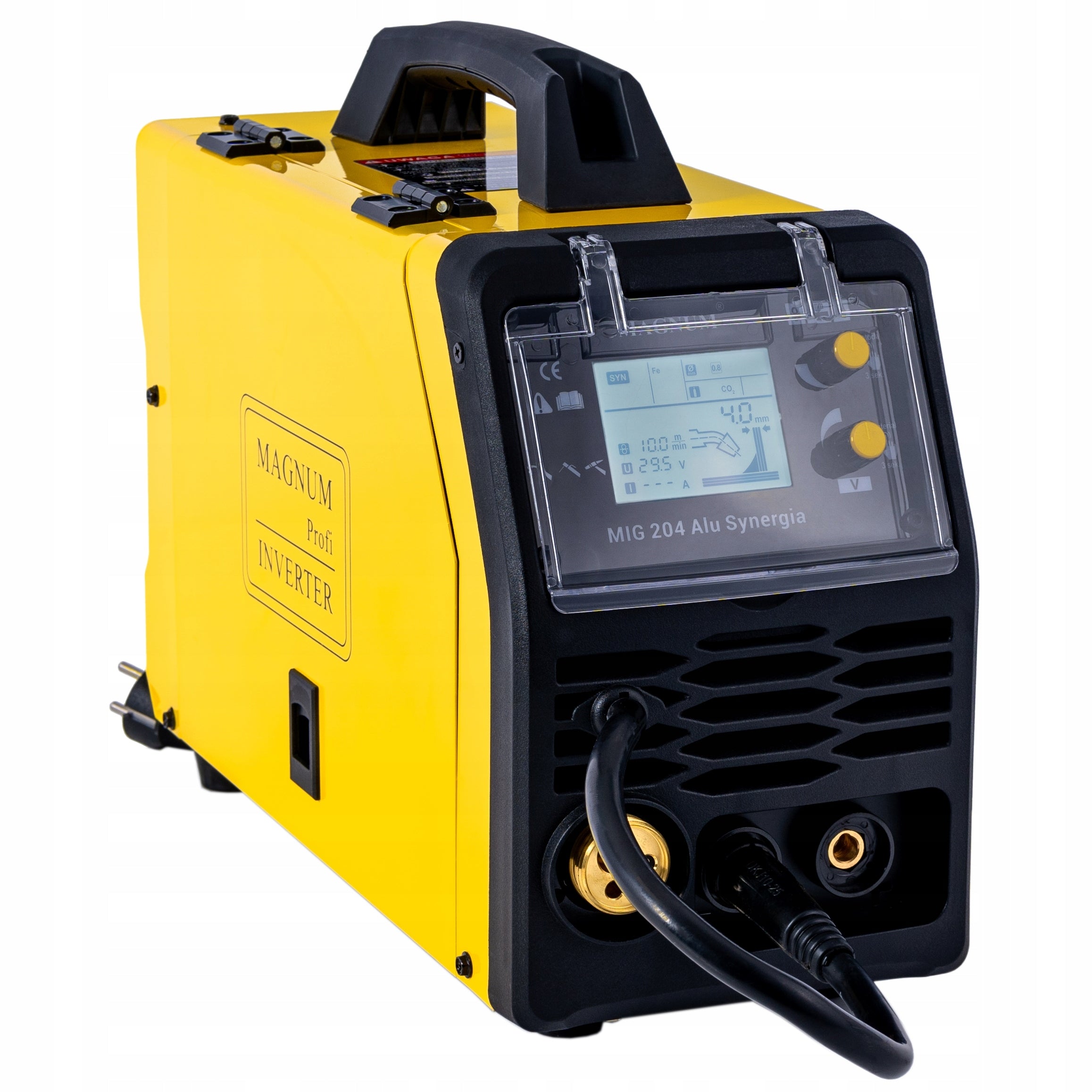

Prekė: Suvirinimo aparatas MAGNUM MIG 204 ALU Synergy 230V 200A 60%. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum
- Modelis: U MI 204AL SY
WITH WELDING HANDLES INCLUDED!!!
TRUST THE EXPERTS!!!
The Magnum MIG 204 ALU SYNERGIA welding machine is a compact welding device. Thanks to modern technology, versatility of applications, this welding machine meets the expectations of both professionals and ambitious amateurs. Irreplaceable in repair workshops, automotive industry, locksmithing and many other sectors where efficiency and quality count.
Designed for manual, electric welding using MIG/MAG, MMA, TIG LIFT, FCAW and lutowelding methods, this device offers versatility and high efficiency in a variety of applications.
Device designed for:
- welding work
- in locksmith workshops
- repair workshops
- industrial workshops
The device allows welding of all weldable metals and their alloys, including low and high alloy carbon steels, aluminum, copper and their alloys. Thanks to the use of modern transistors IGBT, MIG 204 Alu Synergy ensures minimal electromagnetic interference, greater efficiency and reliability, as well as lower electricity consumption.
With its lightweight design and compact dimensions, the MIG 204 Alu Synergy is ideal for field work. The intuitive control panel and a wide range of welding possibilities ensure that every user, regardless of experience, achieves professional results.
Features and advantages of the device:
✅ Compact design
✅ Synergistic programs Fe, Ss, Al, CuSi, CuAl, Flux
✅ Welding in manual mode
✅ Auto-inductance
✅ Working mode 2T/4T and spot welding
✅ Function ATC for welding thin materials
Technical data:
- Power supply: AC 230, 50/60 [Hz]
- Security required: 20 [A], C
- MIG/MAG welding current: 45 - 200 [A]
- MIG?MAG welding voltage: 14 -24 [V]
- Idle voltage: 55,5 [V]
- Wire diameter: 0,6/0,8/0,9/1,0 [mm]
- Efficiency: 60 [%]
- Housing protection class: IP21S
- Weight: 7,7 [kg]
THE SET INCLUDES:
➡ Migomat Mig 204 ALU SYNERGY
➡ MMA working cable 2m
➡ Mass cable 2m
➡ Feed rollers for steel (mounted in the feeder)
➡ User Manual
➡ Original packaging
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Device weight | 7.7 kg |
| Parametry | Welding range | 45–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 12 kg |
| Parametry | Manufacturer code | U MI 204AL SY |
| Parametry | EAN (GTIN) | 5905323119260 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle,LCD display |
