Suvirinimo aparatas Magnum MIG 200 KN MMA 3in1 200A MMA TIG LIFT

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum MIG 200 KN MMA 3in1 200A MMA TIG LIFT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM MIG 200KN MMA 2w1 200A
• Ilgis: 400 mm
• Plotis: 230 mm
• Aukštis: 655 mm

Manufacturer: MAGNUM ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

Security Required: 20A

THE SET INCLUDES:

• Welding machine MAGNUM MIG 200 MMA KN
• Welding torch MIG/MAG type MB15 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• Operating manual and warranty card

• Allows welding of any type of steel and aluminium
• Variable polarity allows welding without gas
• Single-phase power supply 230V
• Heavy-duty chassis with cylinder space
• EURO socket
• Transistors IGBT!
• Driving wheels - even easier transport
• MIG MAG and MMA welding option
• Maximum current 200A
• Adjustable INDUCTANCE
• Option LUTOWELDING CuSi.
• Overload switch
• Flux
• Optimal dimensions and weight
• Solid workmanship

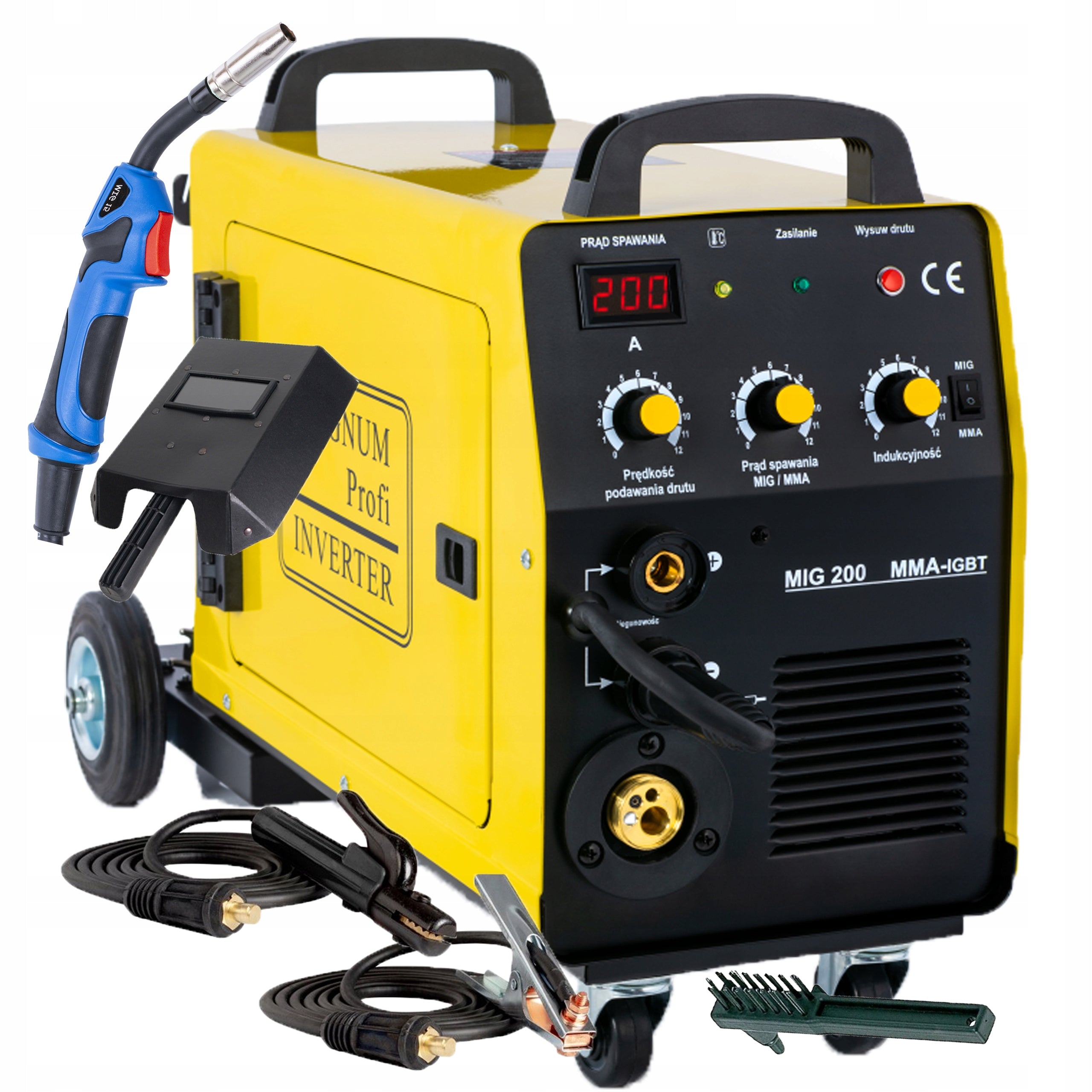

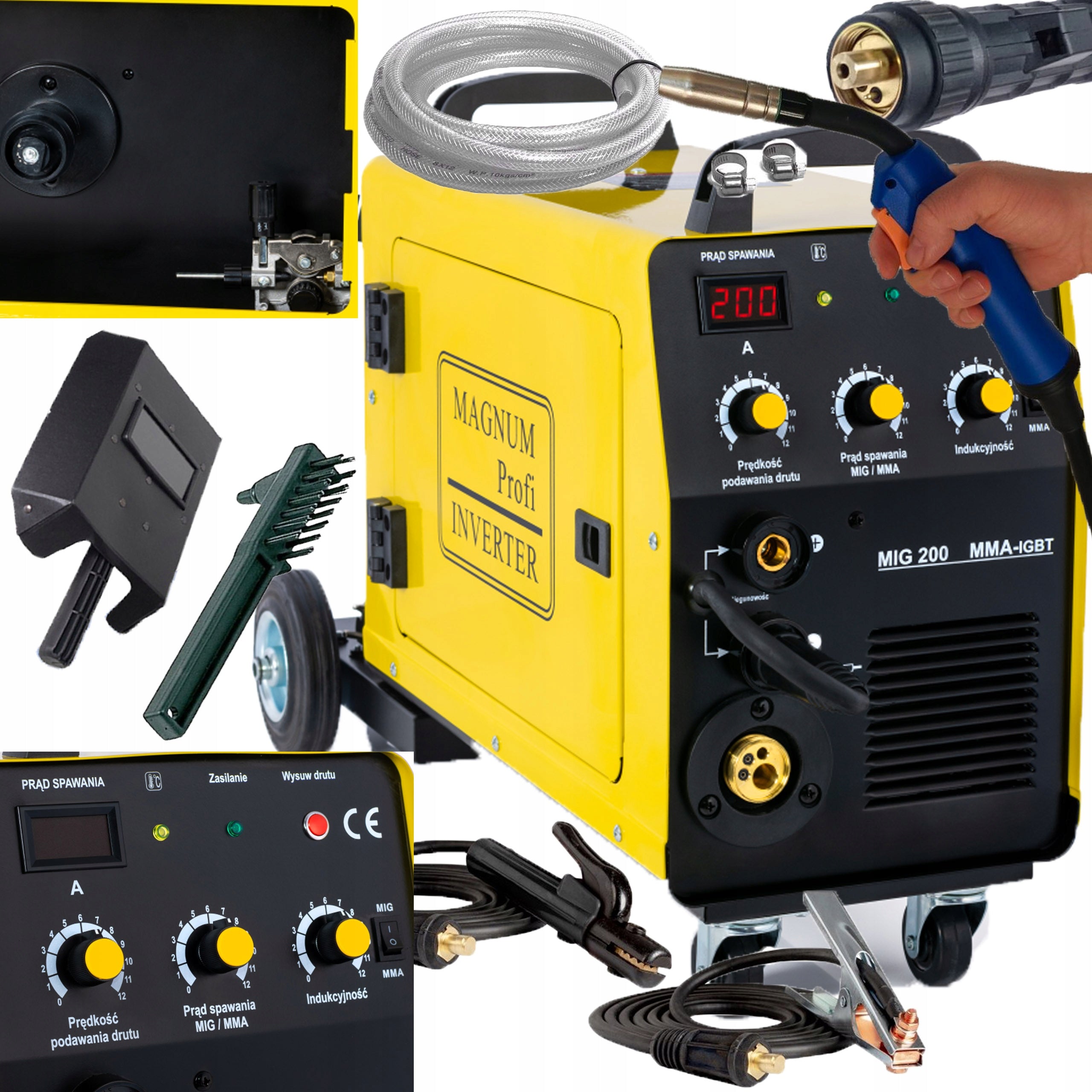

The MAGNUM MIG 200 MMA KN welding machine is a semi-automatic welding machine designed for welding steel using the MIG/MAG method and aluminum and its alloys. Semi-automatic MAGNUM is built on IGBT transistors. This solution provides lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation. The MAGNUM MIG 200KN MMA welder has an easy-to-use function panel with knobs for smooth adjustment of welding current, wire feed speed and inductance. The semi-automatic machine has solid wheels, including two front swivel wheels, which guarantee high mobility and give the possibility of moving the welding machine on uneven ground. The device is equipped with a high-quality professional 2-roller feeding unit designed to work under heavy loads.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 230V
• Number of phases: 1ph
• Power Current Frequency: 50Hz
• Current protection: 20A

TECHNICAL PARAMETERS:

• Maximum power consumption: 6,2kW
• MIG/MAG welding current range: 30-200A
• Maximum MMA welding current: 30-180A
• Efficiency: 60%
• Idle voltage: 57V
• Wire diameter: 0,6/0,8/1,0mm
• Feeder: 2R
• Max. Spool size: 5kg
• Inductance adjustment: Yes
• Welding without gas: Yes

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Size: 655x230x400mm
• Weight: 14kg

EUROCONNECTOR - allowing the interchangeable use of various types of handles.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.

LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

THE SET INCLUDES:

• Welding machine MAGNUM MIG 200 MMA KN
• Welding torch MIG/MAG type MB15 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• Operating manual and warranty card

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	7.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	14 kg
Parametry	Welding range	30–200 A
Parametry	Height	655 mm
Parametry	Length	400 mm
Parametry	Width	230 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	20 kg
Parametry	Manufacturer code	MAGNUM MIG 200KN MMA 2w1 200A
Parametry	EAN (GTIN)	5904624027397
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	transport wheels,EURO handle,LCD display
