Trumpai apie prekę
Prekė: Suvirinimo aparatas Magnum MIG 200 KN 200A, MIG/TIG/MMA, 3in1. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Magnum Technology
- Modelis: 200knrxp
- Ilgis: 400 mm
- Plotis: 230 mm
- Aukštis: 655 mm
One of the best models available on the market for welding. Thousands of units sold, 0 complaints.
The company MAGNUM specializes in welding, which is why the welding machines of this company are characterized by the highest quality that distinguishes them from the competition.
- full free post-purchase support
- You can call us at any time and we will help you set the parameters and operate the device

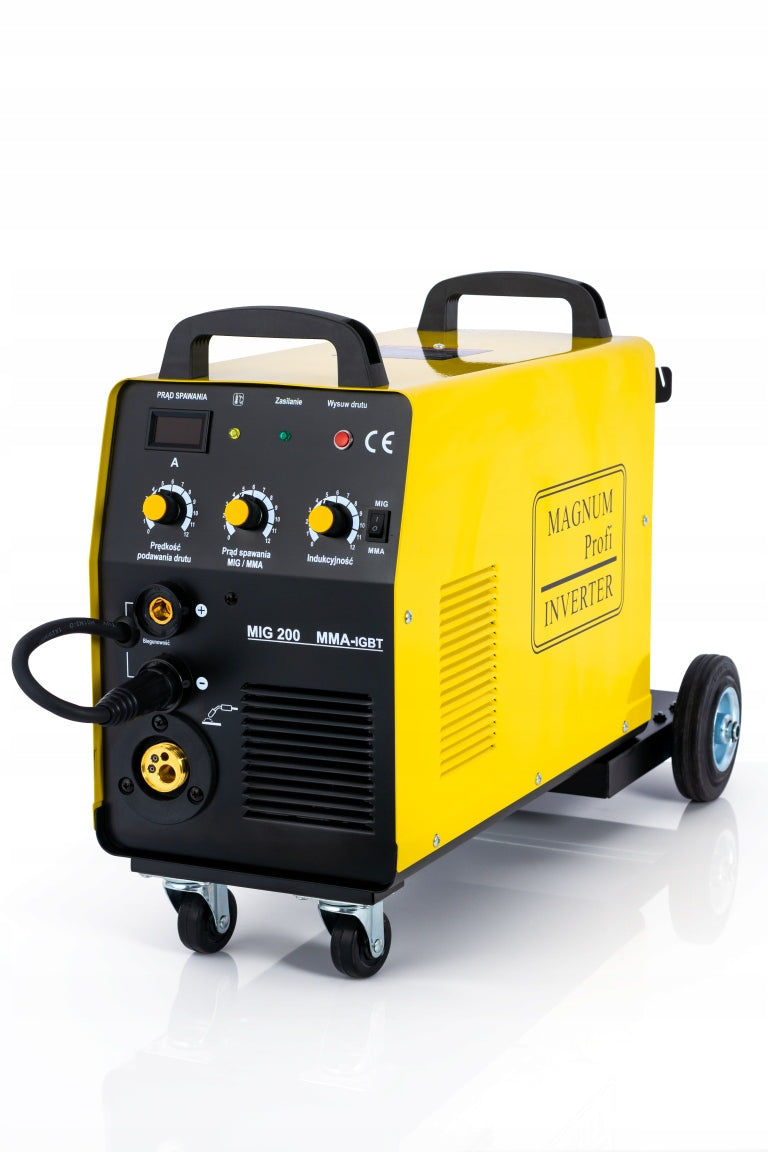

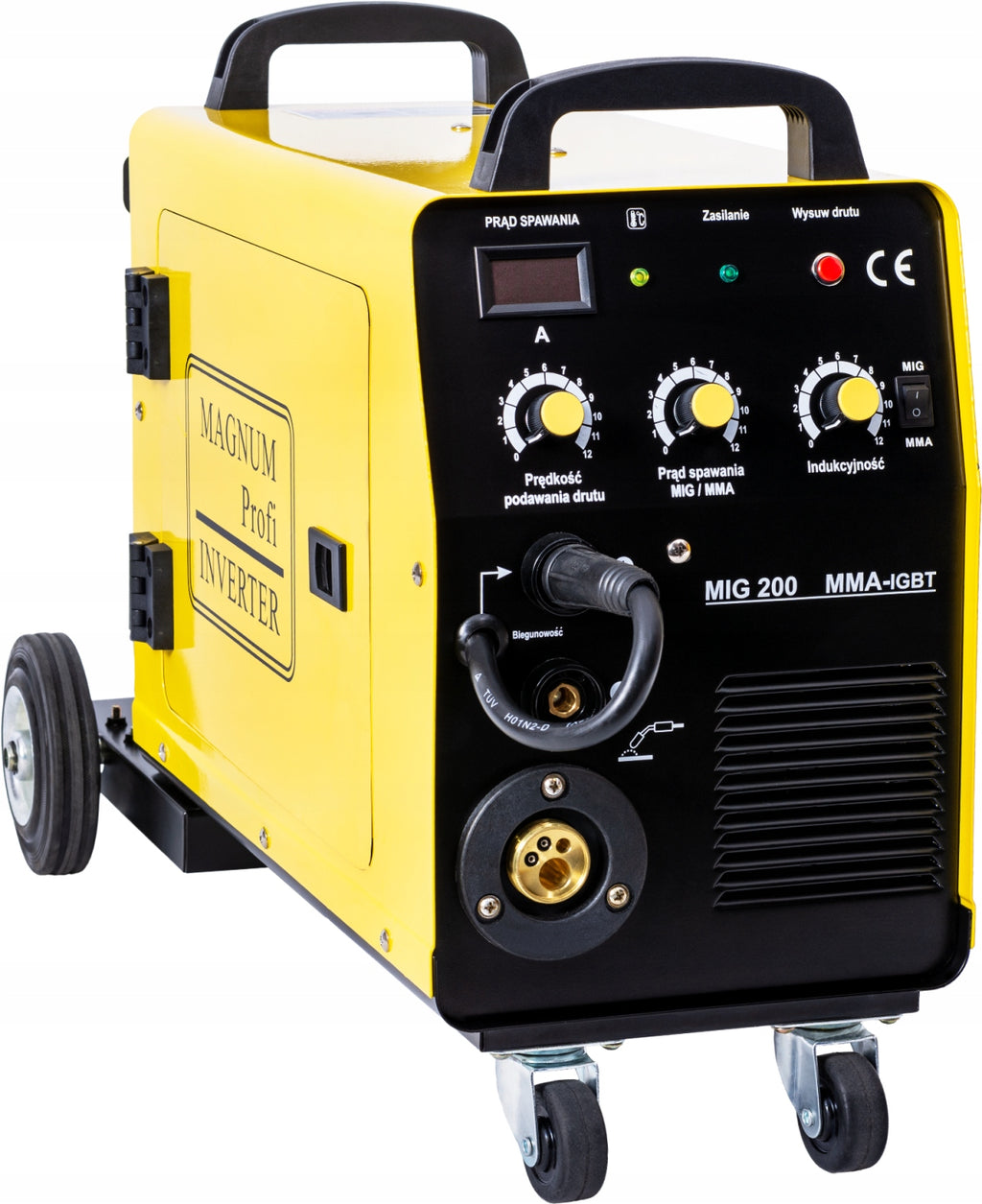

MIGOMAT MAGNUM MIG 200KN MMA is a small semi-automatic welding machine, characterized by a stable chassis. The machine can be welded using two methods: MIG/MAG and MMA. The device allows for welding with a maximum current of 200A, it is powered from a single-phase 230V network. Migomat has an adjustable inductance, which allows you to minimize chipping, and facilitates the process of LUTOSPAWANIA.
The Magnum MIG 200 KN MMA welding machine is a semi-automatic welding machine designed for welding steel, aluminum and its alloys. Migomat has a power of 200A and guarantees a melt at the level of 5mm. The semi-automatic machine is built on IGBT transistors, which reduce energy consumption, as well as resistance to voltage drops and trouble-free operation.
The welder has a variable polarity, thanks to which you can weld with self-shielding wire.

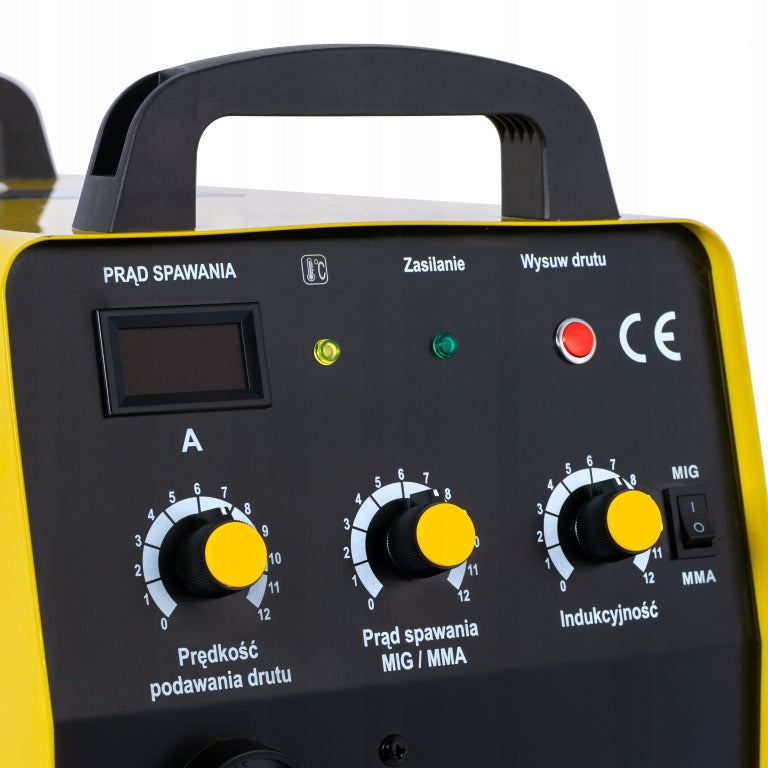

Migomat has an easy-to-use control panel, with three knobs for adjusting welding current, wire feed and indication adjustment.

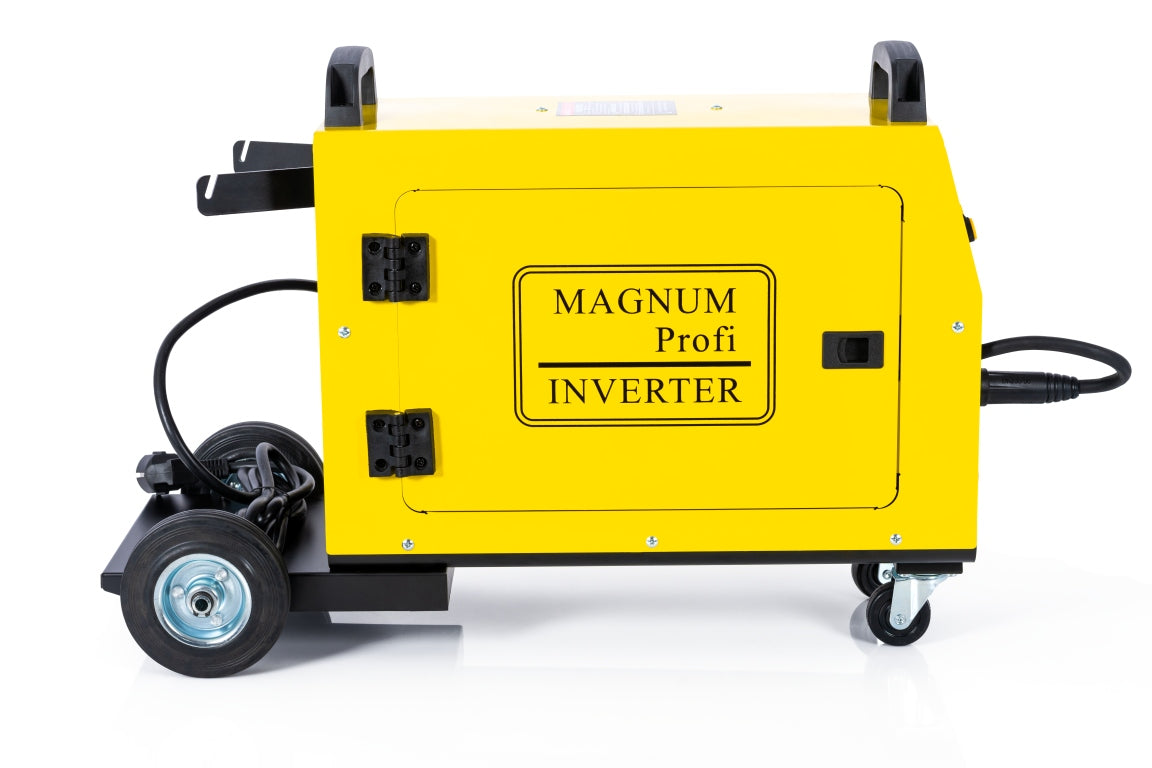

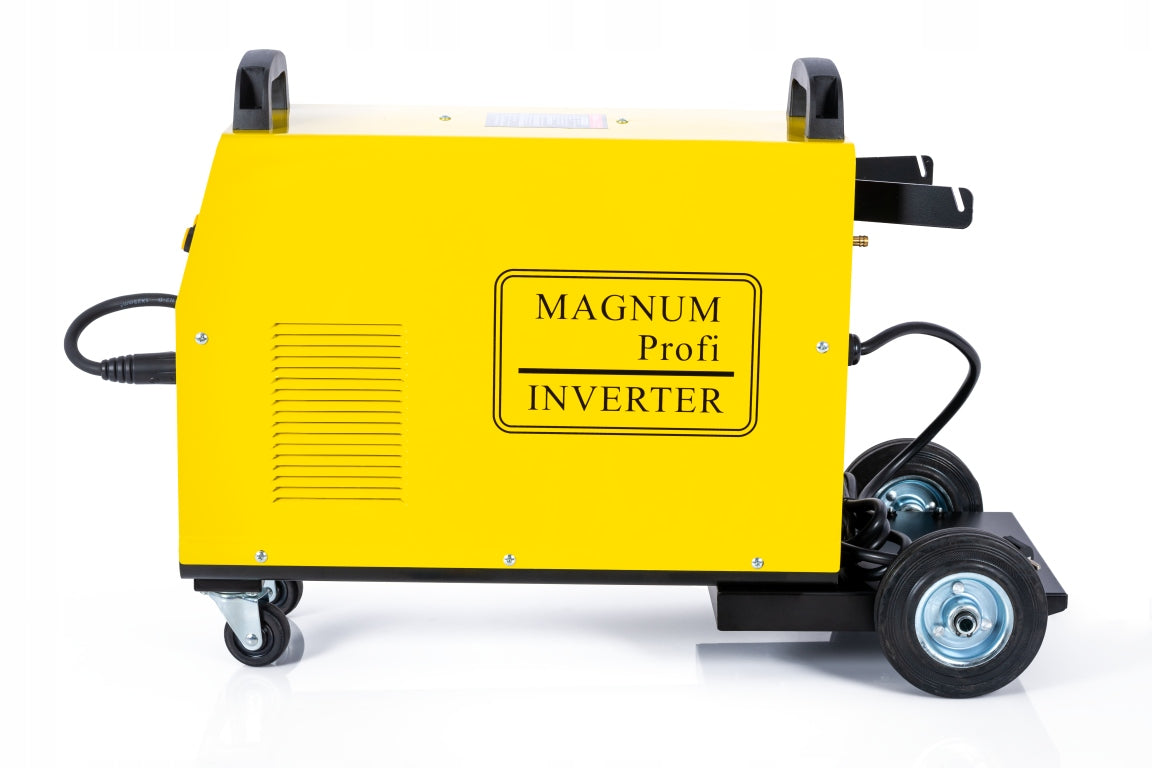

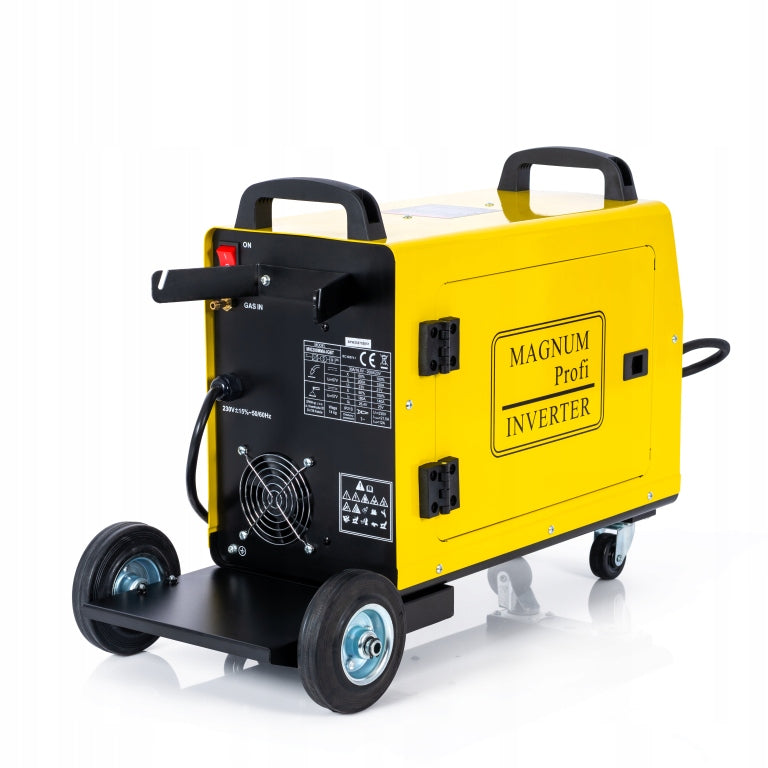

Magnum MIG 200 KN MMA has a very durable chassis, with four wheels including 2 front swivels. The welder has a high-end metal 2-roll wire feeder, which can operate under high load.
ADVANTAGES OF WELDING MACHINE:
- Possibility of welding any type of steel and aluminium
- Possibility of welding with self-shielding wire
- Power supply 230V
- Sturdy chassis with space for cylinder
- Euroconnector
- IGBT transistors

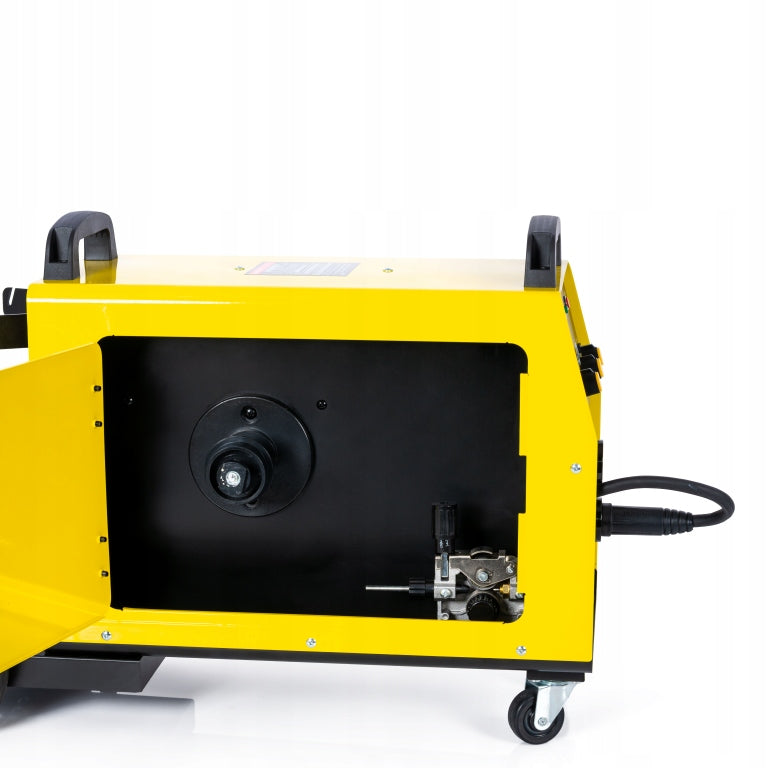

Built-in two-roll feeder, ensures stable feeding of welding wire. Ease of use and advanced welding options make the MIG 200KN an ideal device for both industrial plants and workshops.
- POWER SUPPLY : 230V
- PROTECTED CURRENT: 20A
- MIG WELDING CURRENT: 30-200A
- WELDING CURRENT MMA: 180A
- EFFICIENCY 60%
- MIG/MAG WELDING VOLTAGE: 16,5-23V
- MAX. SPOOL: 5kg
- WIRE DIAMETERS USED: 0,6 - 0,8 - 0,9 - 1,0mm
- IDLE VOLTAGE: 57V
- FEEDER: 2-roll
- WEIGHT: 14kg
- DIMENSIONS: 655x230x400mm
- COOLING: fan
- DEGREE OF PROTECTION: IP21S
- FEEDER: 2-roll

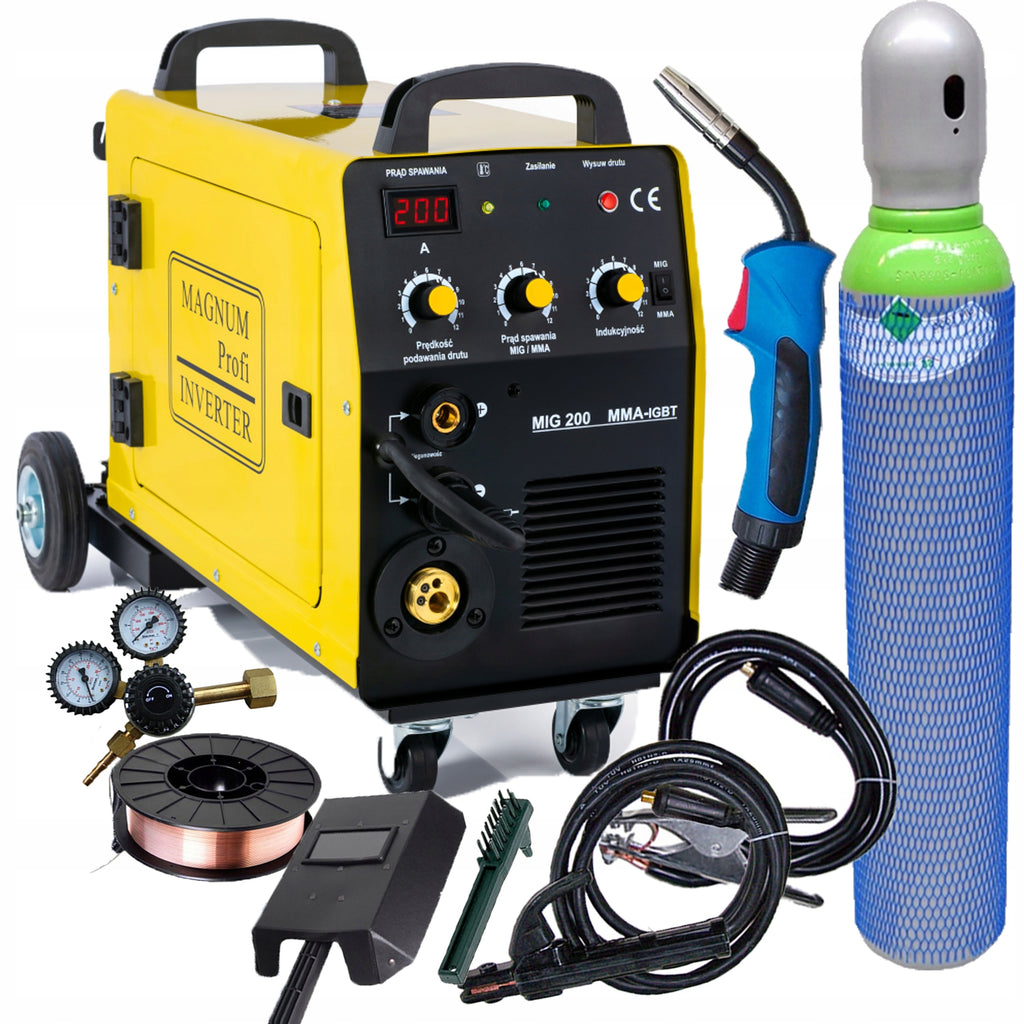

- WELDING MACHINE MAGNUM MIG 200MMA
- MIG welding torch MB15-3meters
- mass handle
- electrode holder
- Co2/Argon cylinder
- Co2/Argon reducer
- Welding wire 0,8/5kg
- Gas hose with bands
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Magnum Technology |
| Parametry | Power consumption | 7.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 40% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 14 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 655 mm |
| Parametry | Length | 400 mm |
| Parametry | Width | 230 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Product weight with unit packaging | 20 kg |
| Parametry | Manufacturer code | 200knrxp |
| Parametry | EAN (GTIN) | 5902001101265 |
| Parametry | Customs tariff code | 85153918 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | transport wheels,EURO handle,LCD display |
