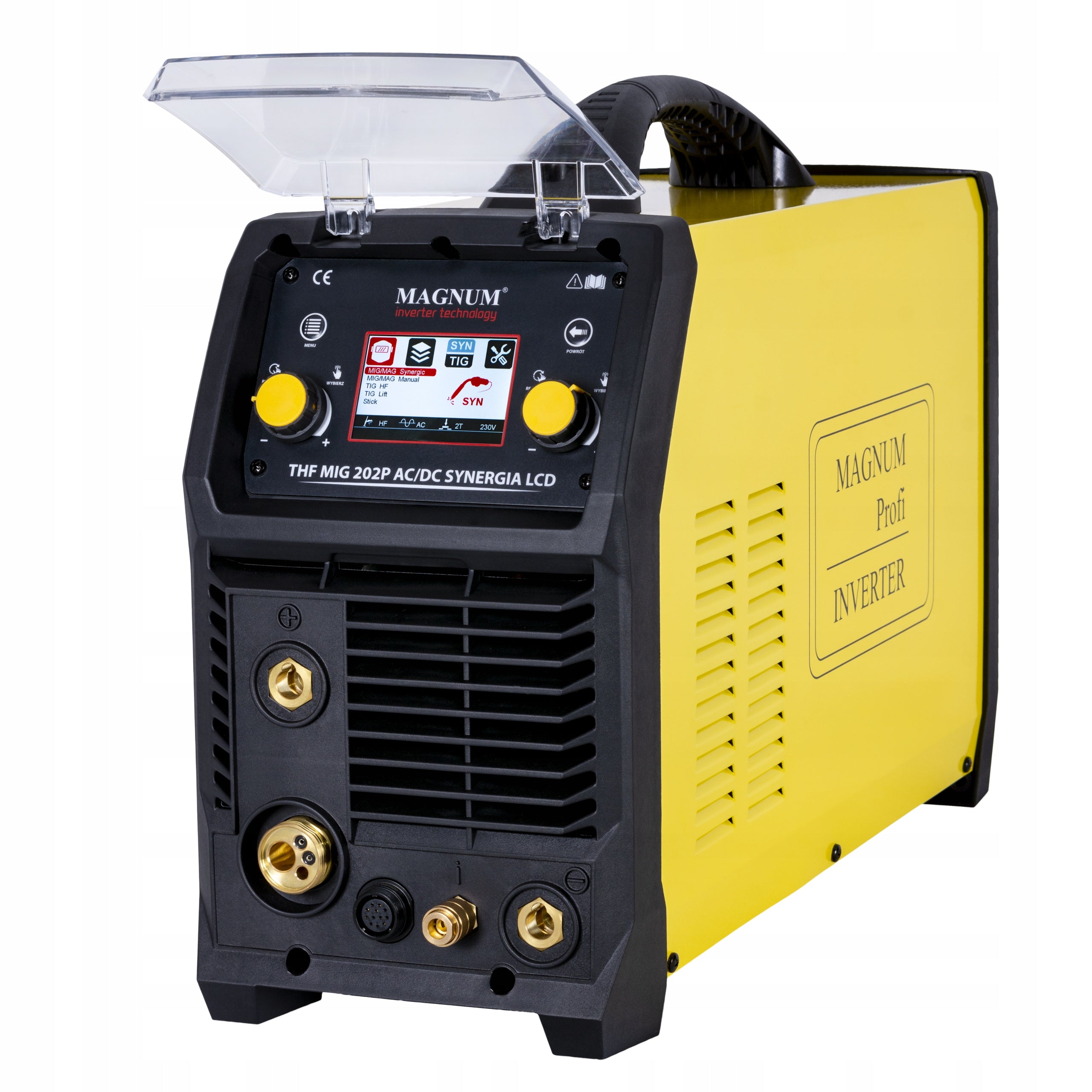

Suvirinimo aparatas Magnum 202 PULS ALU SYNERGY MIG MAG TIG AC DC

Trumpai apie prekę

Prekė: Suvirinimo aparatas Magnum 202 PULS ALU SYNERGY MIG MAG TIG AC DC. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM THF 202P zestaw RSH1
• Ilgis: 640 mm
• Plotis: 215 mm
• Aukštis: 360 mm

✅MIG: 40 – 200A, MMA: 5 – 20 0A, TIG: 5-200A

✅constructed on the basis of modern electronics,

✅friendly user interface,

✅2T/4T operating modes,

✅synergy - 19 synergistic programs

✅TIG with contactless HF

✅color LCD display with excellent contrast,

✅powered from a single-phase network 230V,

✅revolutionary price/quality ratio.

✅regulation of welding inductance

✅Settings memory

✅BI-LEVEL

✅SPOT - SPOT WELDING

✅CHOICE OF WAVEFORM AC

✅PULS

⏭ PFC SYSTEM - reduces current losses and increases the power output of the welding machine when powered from a single-phase network 230V⏮

⏭TIG HANDLE WITH REMOTE CONTROL⏮

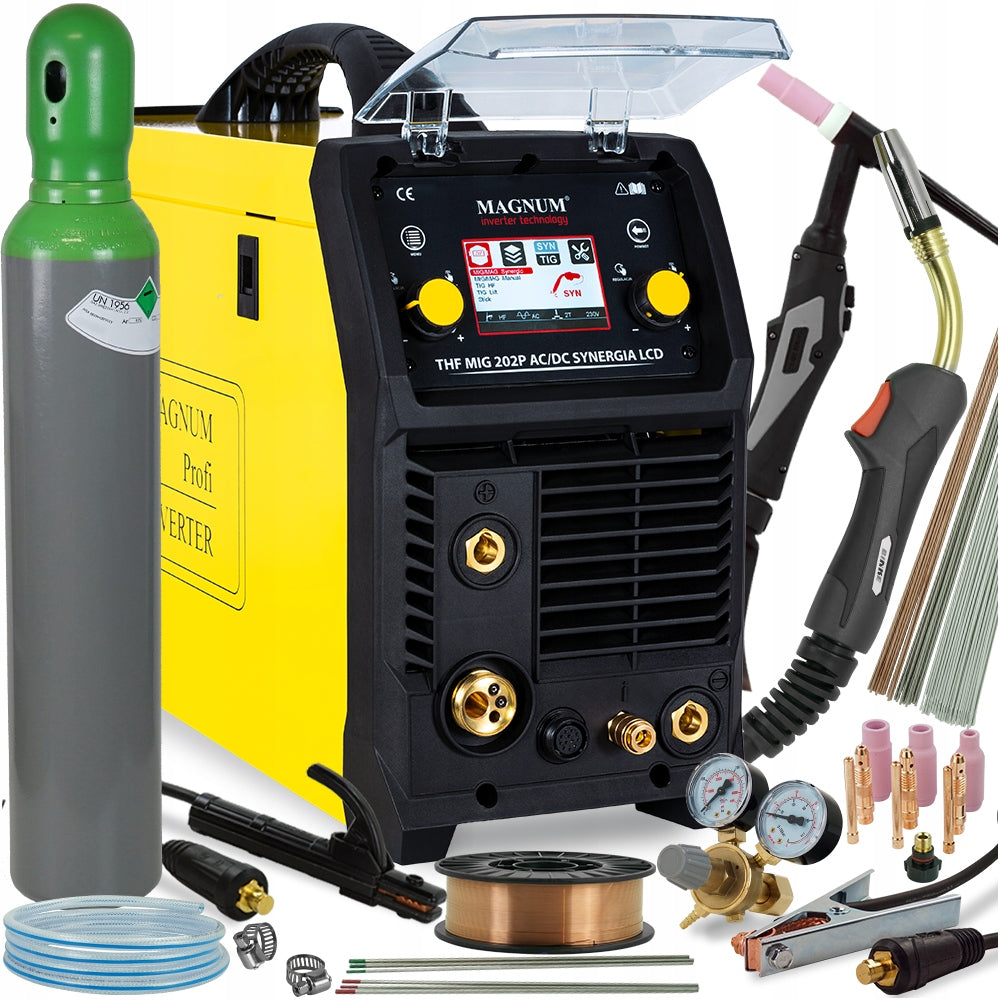

⏭WHAT WILL YOU FIND IN THE PACKAGE?

✔ MAGNUM THF MIG 202 LCD

✔ MIG welding torch MB-24/3m

✔ TIG Type SR 26 handle with remote control - 4m

✔ MMA electrode cable

✔ Mass cable

✔ Instruction manual in Polish

➡ cylinder Ar/CO2 8l - tested, has all the necessary approvals for the Ar/CO2 MIX mixture.

➡ reducer Ar/CO2 with two clocks,

➡ welding wire steel SG2 D200 0,8mm x 5kg,

➡ Gas hose - 2m

➡ Clamp bands - 2 pcs

➡ TIG AC DC torch part starter kit,

➡ welding wire starter kit - SG3 steel wire, 308L stainless steel wire, aluminum wire.

⏭ SYNERGISTIC MAGNUM MIGOMAT WITH TIGI AC DC AND BI LEVEL FUNCTION!

MIGOMAT THF MIG 202 LCD AC/DC synergy pfc brand MAGNUM is a technologically advanced welding device designed for manual, electric welding of all weldable metals and alloys, e.g. low carbon steels, low alloy steels, high alloy steels, stainless and acid resistant steels, aluminum and its alloys, copper, etc. The welding machine is designed for all kinds of welding work wherever reliability and versatility of use are required.

⏭Regulation of MIG/MAG welding inductance

Full control over arc characteristics thanks to MIG/MAG welding inductance adjustment. Control the amount of chipping and the width of the weld face and the depth of melting.

⏭PFC (Power Factor Correction)

Module ensuring the resistance of the device to voltage drops. It guarantees a stable welding process with large voltage drops in the network. This is a beneficial solution when working on long extension cords and when using a generator set.

⏭Bi-LEVEL

function available only in advanced welding sources. Full control of the heat introduced into the material - switching between two set values of welding current, without the need to extinguish the arc.

⏭SPOT function

enables the attachment of thin materials.

⏭WELDING TIG WITH PULSE

The TIG PULS function allows you to control the amount of heat supplied to the welding lake. Thanks to the ability to adjust key parameters of pulsating current parameters - the user has full control over the welding process.

TIG welding with pulse is particularly useful when welding elements made of stainless and acid-resistant sheet metal.

⏭HANDLE WITH TIG CONTROL SR 26 4M

The device is equipped with a TIG SR 26 welding torch length 4m, with a high current capacity, thanks to which it will withstand work even in long cycles. The handle also has remote control in the handle, which definitely facilitates work and it is possible to change the current during welding.

We add consumable parts to each handle to start, so that the handle is armed and ready to work.

⏭Professional wire feeder

Professional 2R wire feeder - it's reliable wire feeding regardless of spool weight and type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

⏭Solid execution

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

⏩Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Network Security: 20A
• Degree of protection: IP 23
• Dimensions: 640x215x360 mm
• Weight: 20kg

⏩ MIG/MAG welding parameters:

• MIG/MAG welding current: 40 - 200A
• MIG/MAG cycle: 60% 200A,
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)
• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES
• Synergistic MIG/MAG programs: YES - 19 programs
• Operating mode in manual settings MANUAL: YES
• Two operating modes: 2T/4T

• Gas flow before welding: 0.1 ÷ 2.0 s
• Gas flow after welding: 0 ÷ 10 s

• Spot welding time (with spot welding): 0.1 ÷ 10 s
• Break time between points (with spot welding): 0.5 ÷ 10 s
• Inductance: -5 ÷ 5

⏩ TIG welding parameters:

• TIG DC welding current: 5 ÷ 200A
• TIG AC welding current: 5 ÷ 200A
• Working cycle: 60%
• Welding cycle time at point: 0,2 ÷ 10s
• Gas outflow time before: 0,1 ÷ 2s
• Initial Current: 5-200A
• Current Rising Time: 0 ÷ 10s
• Base Current: Full Range
• Welding Current/Peak Current: Full Range
• Pulse Balance: 5 ÷ 95%
• Pulse Frequency: 0,5 ÷ 999Hz
• AC balance: -5 ÷ 5%
• AC frequency: 50 ÷ 250Hz
• Current drop time: 0 ÷ 10s
• Final Current: Full Range
• Gas outflow time after: 0 ÷ 10s
• Bi Level: 2 ÷ 10s

⏩MMA welding parameters:

• MMA welding current: 5 - 200A
• Electrode diameter: 1,6 - 4,0 mm
• MMA Welding Current Adjustment: Smooth
• Arc Force Function: YES
• Hot Start Function: YES

• INDUCTANCE - weld face width control and reduction of welding chipping,

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• AC/DC - AC and DC welding. It is possible to weld virtually all weldable materials in the TIG method.

• PULS TIG - TIG welding (non-melting electrode in argon shield) using pulsation of welding current

• SYNERGY MIG/MAG/FLUX - a program that automatically selects the wire feed to the set welding current. Attention! The ability to choose the diameter of the welding wire and the type of gas - greater precision in the operation of Synergy.

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,
• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• ARC FORCE: short-circuit current adjustment (manual) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

• HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.

• ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc

Choose a brand whose history dates back to the beginning of the twenty-first century. Ideal is the leading brand of in Poland.

A wide range of Ideal devices meets the needs of not only novice users, but also those more advanced. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Ideal brand most often due to its high quality, affordable price and reliability.
