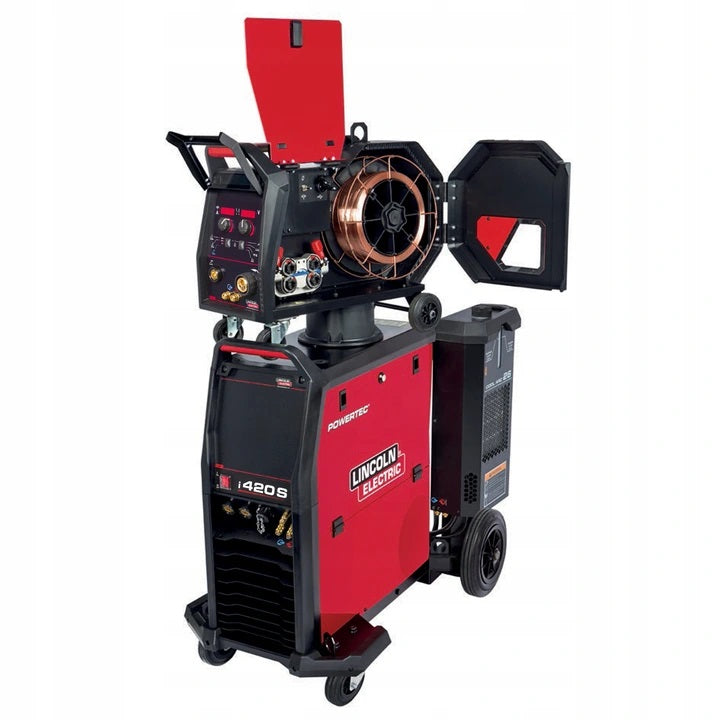

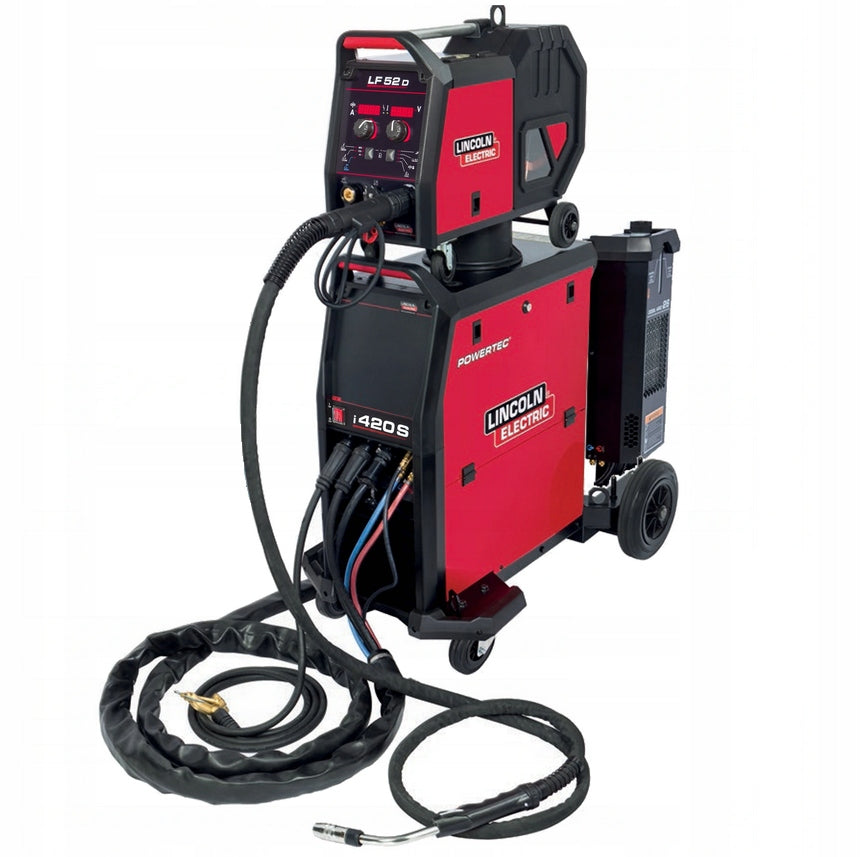

Suvirinimo aparatas Lincoln Powertec i420S Base su vielos padavimo mechanizmu LF52D

Trumpai apie prekę

Prekė: Suvirinimo aparatas Lincoln Powertec i420S Base su vielos padavimo mechanizmu LF52D. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Lincoln Electric
• Modelis: POWERTEC I420S LF52D STANDARD

The set includes:

• Lincoln Powertec i420S power source

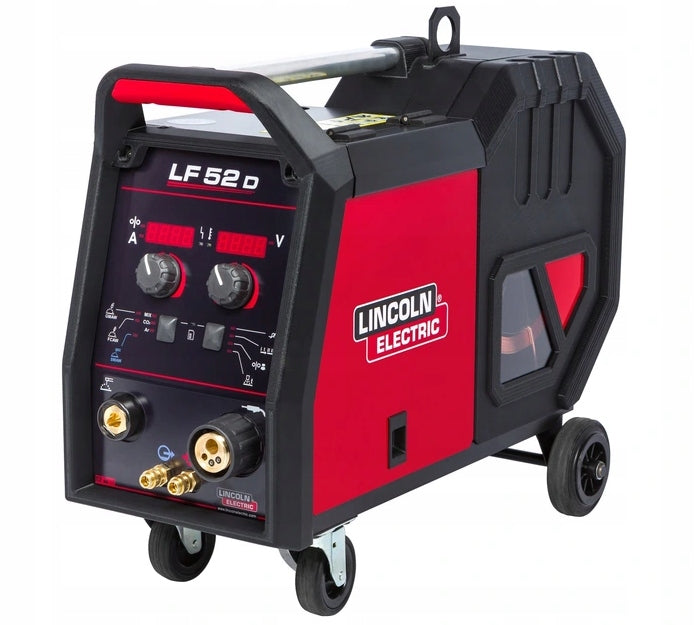

• Lincoln LF52D STANDARD Wire Feeder
• CoolArc26 cooler + Freezcool 9,6L coolant
• Combined cable 5m
• Bulk cable with buckle
• NO welding torch from the photo

POWERTEC®-i SPOWERTEC®-i S series is the latest series of Lincoln Electric products built in modern inverter technology, combining modularity, ease of use with optimal MIG/MAG and MMA welding efficiency and energy savings.

Main features

• Stable welding parameters for CV MIG and MMA wrapped electrode welding process
• Synergistic programmes
• Ready for the toughest working conditions
• Optimized ergonomics, reliability from Lincoln (True HD)

High duty cycle 420A/100%

• High efficiency
• Digital control of welding current
• True Heavy Duty Testing – Ready to Work in Tough Environmental Conditions

Environmentally friendly inverter technology

• Lower electricity consumption due to high efficiency – cost savings
• Automatic energy saving modes (standby/shutdown function)
• Suitable for use with a power generator

• Power supply: 400/3/50/60
• Welding current: 420A/35V@100%
• Fuse: 27A
• Power range: 20-420A
• Dimensions (WxSxD): 932 mm x 560 mm x 925 mm
• Net weight: 78 kg

High-performance, reliable machine for industry

The Powertec® series is a solution for industrial applications. With its modular and compact design, this welding kit is easy to transport on the job site. With the latest high-frequency inverter technology, the arc is accurately controlled, many times faster than conventional analog power sources. The electrical characteristics of the source can be changed by the software in real time. A wide range of synergistic programs are available as standard, enabling simple yet precise control of welding parameters for the best results every time. Powertec® devices use the latest technologies to increase efficiency and reduce energy consumption. Their advanced inverter technology will save both time and energy. Guided by the Lincoln Electric Green Initiative, we aim to reduce costs for you and the environment. These welding kits are available as 350A/50%, 420A/100% or 500A/60% operating mode (at 40°C). With the LF-56D wire feeder, the kit can support MIG processes with synergistic programs for steel, stainless steel, aluminum and core wires. MMA wrapped electrode welding process and gouging are available as standard.

• Optimal welding parameters, ensuring the best arc dynamics and minimum chipping, take into account the type of welding process selected and shielding gas
• Simple navigation in the menu with buttons
• The selected parameter is illuminated by an LED
• Arch dynamics (inductance adjustment) from soft to hard arc
• Setting the operating mode of the welding torch 2/4-bar
• Commuter speed – wire feed speed from the moment of pressing the button in the welding torch to arcing
• Wire burning time – prevents the wire from sticking to the welding lake and prepares the wire tip for the next arc glow

• Source Lincoln i420S
• Lincoln LF52D Wire Feeder
• Coolarc 26 cooler
• Combined cable 5m
• Dedicated liquid for Freezcool 9,6L radiator
• Bulk cable with clamp (3 m)
• Gas hose (2 m)
• USB flash drive with user manual
• Receipt or FV

Specifications
