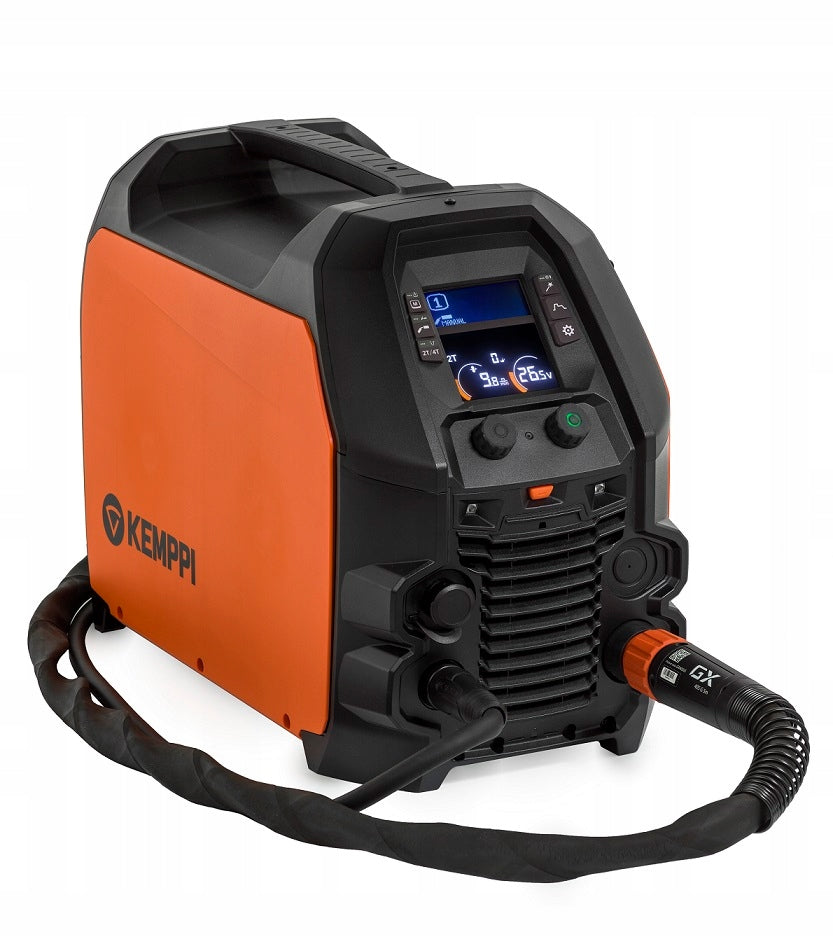

Suvirinimo aparatas KEMPPI MASTERMIG 353 350A 400V

Trumpai apie prekę

Prekė: Suvirinimo aparatas KEMPPI MASTERMIG 353 350A 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Kemppi
• Modelis: MSM353G

• Product code: MSM353G
• Power supply 3~, 50/60 Hz; 380 – 460 V ±10%
• Current max. (40%): 350 A (MMA 330 A)
• Current max. (60%): 280 A
• Current max. (100%): 220 A

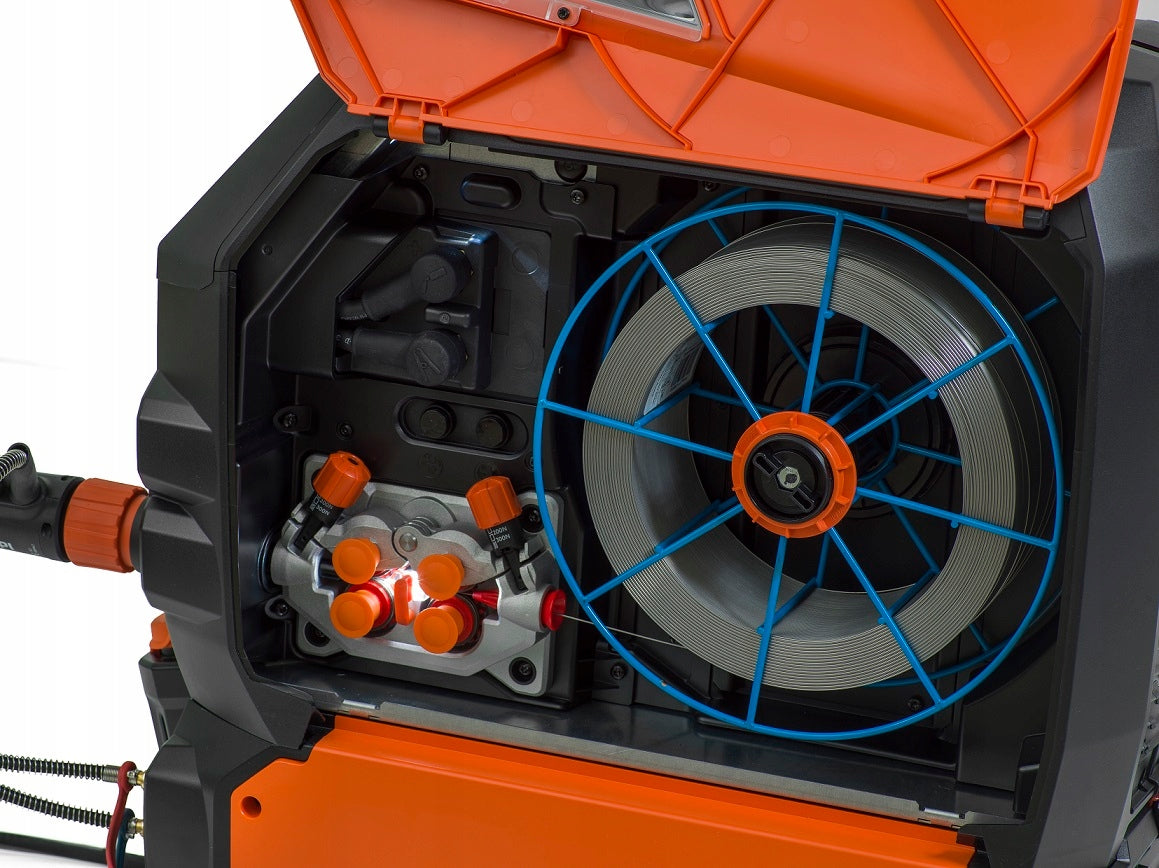

• Wire feeder mechanism: 4-roll, single motor
• Recommended aggregate powers (min): 20 kVA
• Handle Connector: Euro
• Electrode wires: 0.8 – 1.2 mm
• Diameter of feeder rollers: 32 mm
• Welding current and voltage range, MIG: 15 A/10 V to 350 A/45 V
• Welding current and voltage range, TIG: 15 A/1 V to 350 A/45 V
• Welding current and voltage range, wrapped electrode (MMA) welding: 15 A/10 V to 330 A/45 V
• Operating temperature range: -20°C to +40°C
• External dimensions (L. x width x H ): 602 x 298 x 447 mm
• Weight (without accessories): 27 kg
• Degree of protection: IP23S
• Compliant with: IEC 60974–1, –10
• Wire spool weight, max.: 20 kg
• Wire spool diameter, max.: 300 mm
• Electromagnetic compatibility class: A
• Storage temperature range: -40°C to +60°C
• Shielding gas pressure (max. ): 0,5 MPa

Compact MIG/MAG welding machine with manual and synergistic (Auto) welding option. It generates 350 A current at 40%. Intelligent setting of welding parameters thanks to Weld Assist. The color LCD display and LED work light provide great convenience of operation. Includes Work Pack welding programs including Fe, Ss, Al, CuSi, CuAl, Fe metallic, Fe rutile, FC-CrNiMo materials. Efficient work with the aggregate.

• Comprehensive selection of welding processes in industrial conditions: manual, 1-MIG, pulse MIG, DC TIG and MMA
• Welding programs: Fe, Ss, AlSi5 / AlMg5, CuSi3, CuAl, Fe metallic, Fe rutile, FC-CrNiMo
• Weld Assist - Extended synergy. After running this function the device will choose parameters to the thickness of the welded material based on the connector type and welding position
• LED work light with its own rechargeable battery improves work safety
• Optional 2- and 4-wheel transport trolleys for easy movement
• SuperSnake GTX intermediate feeder for maximum range in demanding welding locations
• The kinetic spool brake prevents the wire from unrolling from the spool when the feed is stopped, automatically slowing down and reversing the wire spool when each weld is finished
• Compatibility with aggregates
• Memory channels for saving the best welding parameter settings
• Weight 27 kg (without wires)

FASTER PARAMETER SETTING

Up to 60% faster parameter setting thanks to the Weld Assist MIG/MAG welding tool. To start welding, you only need to choose the type of joint, welding position and material thickness.

LONGER WORKING TIME

The compact and multi-process MasterMig device provides 350 A MIG/MAG welding power at 40% duty cycle, and wrapped electrode welding (only with an optional Euro to DIX adapter) and TIG DC.

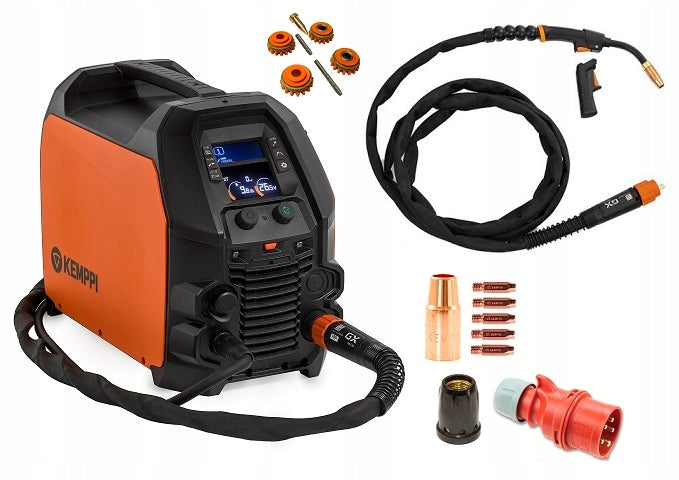

• Welding machine KEMPPI MasterMig 353
• Welding torch Kemppi GX303G 5m
• Set of rollers 1.0
• Set of rollers 1.2
• 5 current terminals
• 1 gas nozzle
• 1 GX insulated current connector
• Plug 32A
• Bulk cable
• Gas hose
• User manual
• Receipt or FV

Specifications
