Suvirinimo aparatas inverterinis, 210A, MIG/MAG/MMA/TIG-LIFT, pusiau automatinis

Trumpai apie prekę

Prekė: Suvirinimo aparatas inverterinis, 210A, MIG/MAG/MMA/TIG-LIFT, pusiau automatinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-PAS-210L
• Ilgis: 440 mm
• Plotis: 200 mm
• Aukštis: 290 mm

MIG/MAG / MMA / TIG LIFT / FLUX | WELDING CURRENT 210A | SYNERGY | POWER SUPPLY 230V | IGBT TECHNOLOGY | WIRE 0,6 TO 1,0 MM | ELECTRODES 1,6 TO 5,0 MM | LCD

Model: PM-PAS-210L

The inverter welder is a universal device for MIG/MAG, FLUX, MMA and TIG LIFT welding, which will work in the workshop and in the field. IGBT technology and synergy mode facilitate the selection of parameters, thanks to which you get a stable arc and repeatable welds. LCD display, pulse function and cooling system increase control, precision and work safety.

⚫ LESS SETTING, MORE WELDING

▪ When you waste time selecting parameters, synergy and readable LCD displays help, so you get to work faster.

▪ If you weld different materials, you have MIG/MAG, FLUX, MMA and TIG LIFT in one device.

▪ IGBT, pulse function and cooling make it easier to maintain a stable arc and repeatable weld.

🔸 ONE DEVICE INSTEAD OF SEVERAL

You weld MIG/MAG, MMA, TIG LIFT and FLUX without changing equipment. You gain versatility and save space and money.

🔸 FASTER WORK WITHOUT GUESSING

Synergy mode automatically selects parameters for material and gas. You focus on welding, not settings.

🔸 STABLE ARC AND BETTER WELD

IGBT technology and pulse function help maintain an even arc. The result is cleaner welds and fewer fixes.

🟠 WHAT SETS OUR WELDING MACHINE APART?

🔸 INTUITIVE OPERATION AND FULL CONTROL

The easy-to-read LCD display makes it easy to set up. You can adjust the parameters to the task faster.

🔸 MOBILE AND COMPACT DESIGN

The low weight allows you to easily carry the device. You work comfortably in the workshop and in the field.

🔸 WORK WITH AND WITHOUT GAS

FLUX operation gives you freedom without cylinders. You weld where other methods fail.

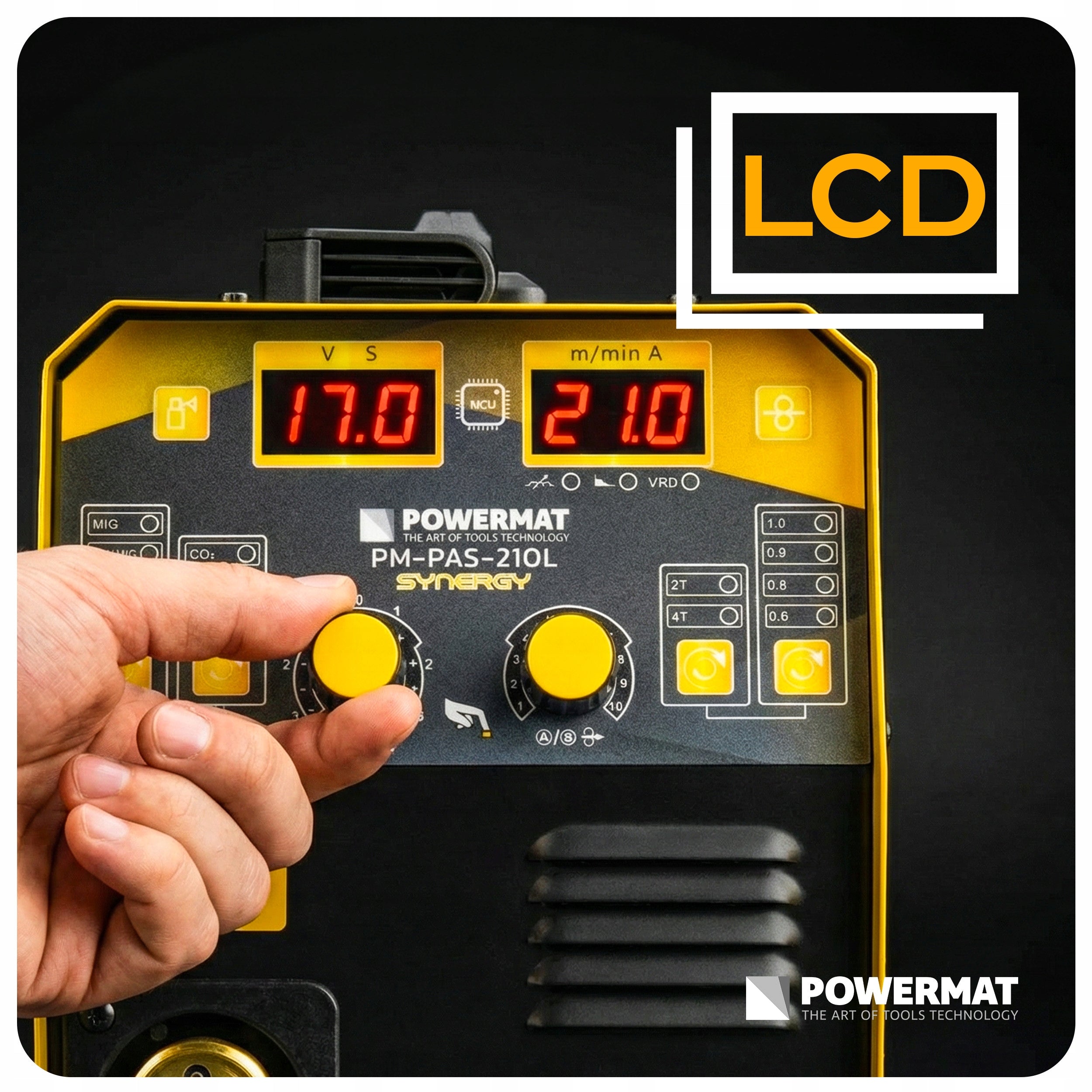

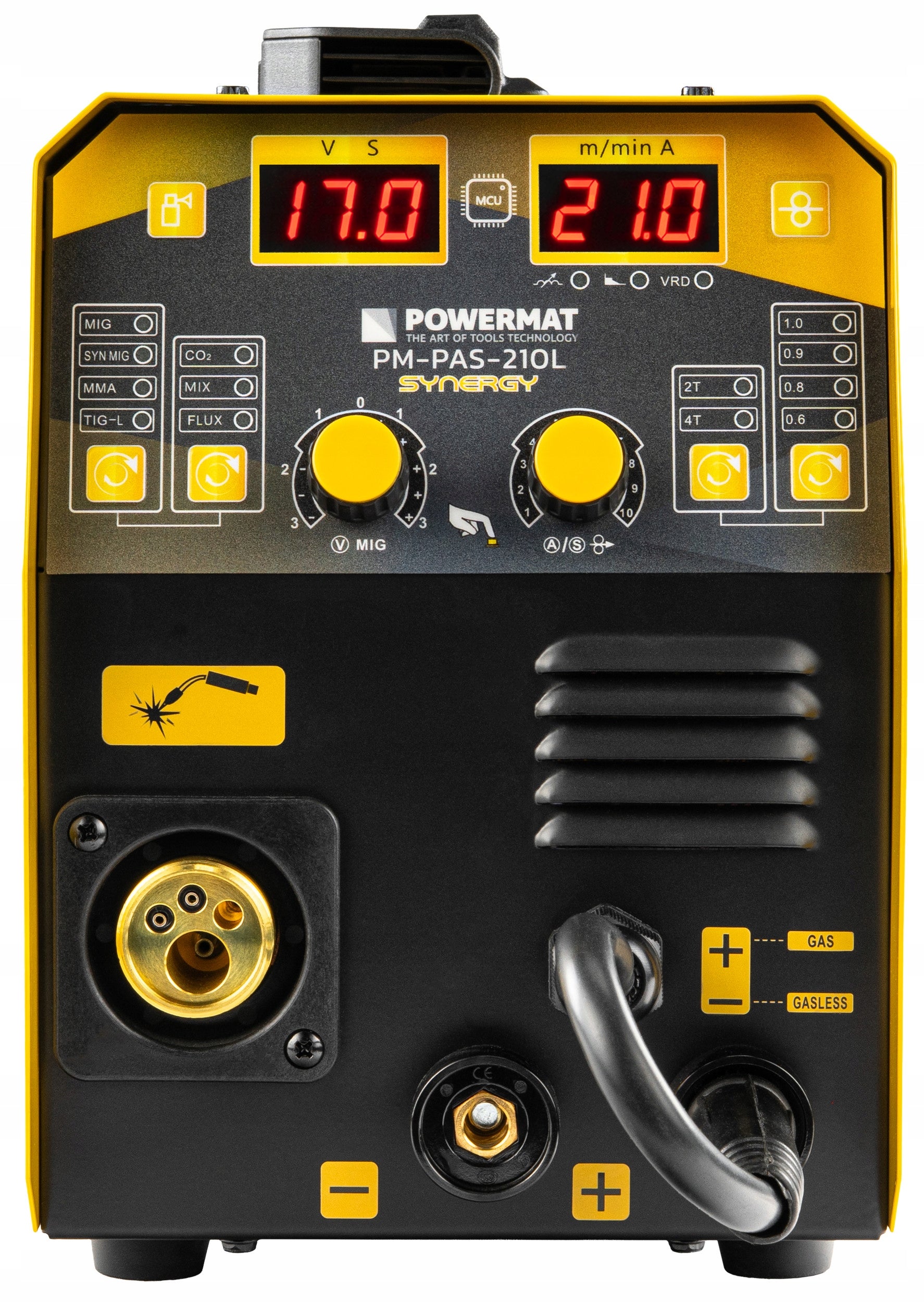

🟠 DUAL LCD DISPLAY AND INTUITIVE PANEL

Two LCD displays show key parameters such as wire feed voltage and speed, so you have full control over your settings in real time.

Clear values allow you to react quickly to changes and avoid errors during operation.

Knobs integrated with buttons allow smooth adjustment without unnecessary complications. You gain convenient operation and precise adjustment of parameters even during intensive work.

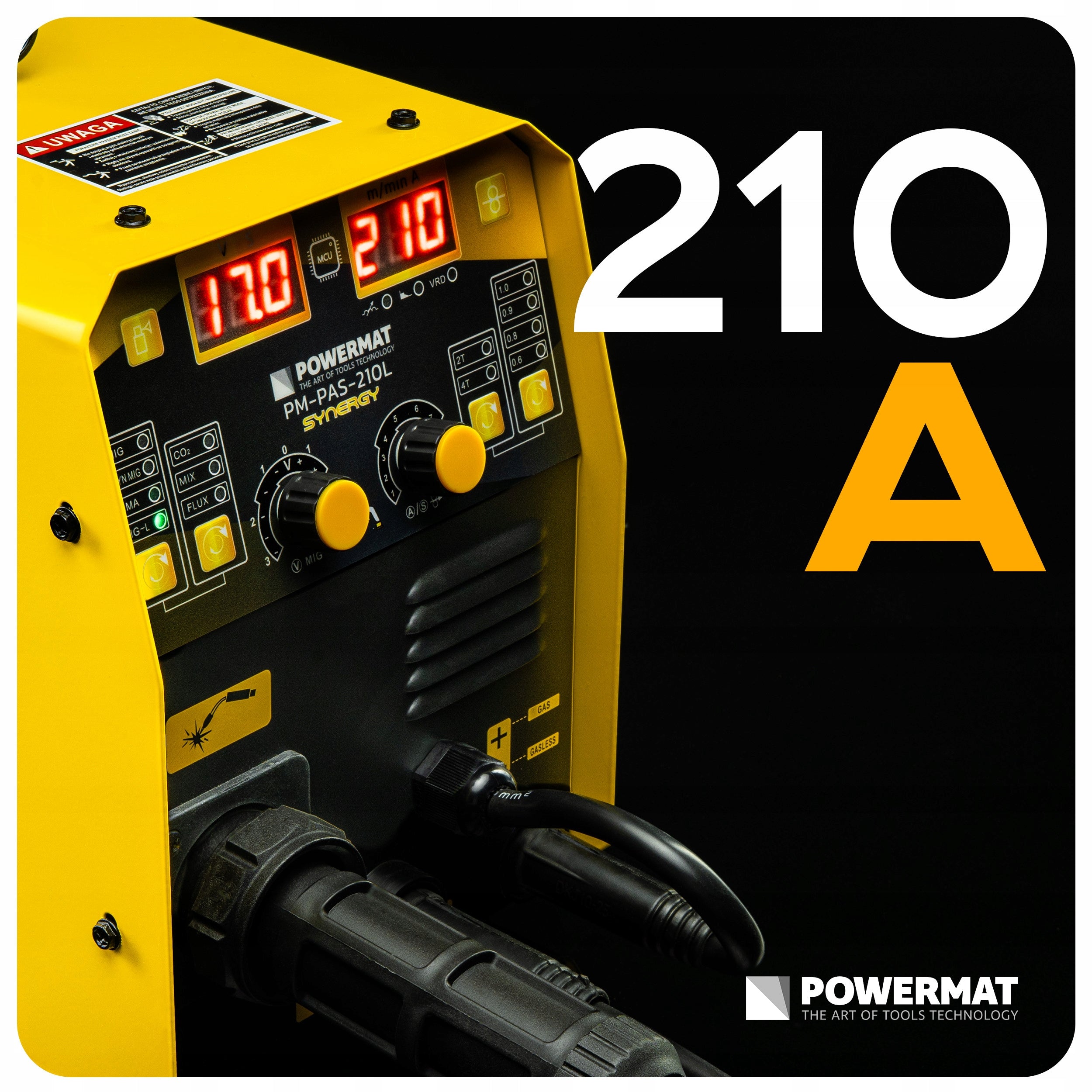

🟠 WELDING POWER UP TO 210A

The welder offers a maximum welding current of 210 A, allowing you to adjust the power to different jobs and materials without changing the device.

The current range is: MIG/MAG 30 – 210 A, MMA 25 – 190 A and TIG 15 – 210 A, so you can easily set the parameters for the selected method.

Wide adjustment makes it easy to work with both thin and thicker elements.

With a duty cycle of 210 A – 60%, the device maintains efficiency, and with 161,7 A – 100% allows longer work without interruptions.

⚫ POWER AND RANGE THAT ACTUALLY WORK

You have a range of up to 210A and IGBT technology, which gives a stable arc and repeatable effects. Support for MIG/MAG, MMA, TIG LIFT and FLUX means one device for many tasks.

🟠 TECHNICAL DATA

• Power supply: 230 V / 50 Hz
• MIG/MAG power consumption: 8,3 kVA
• MMA power consumption: 8,5 kVA
• TIG power consumption: 6,2 kVA
• Recommended MIG/MAG protection: 36,1 A
• Recommended MMA protection: 36,8 A
• Recommended TIG protection: 21,1 A
• Welding methods: MIG/MAG, MMA, TIG LIFT, FLUX
• MIG/MAG current range: 30 – 210 A
• MMA current range: 25 – 190 A
• TIG current range: 15 – 210 A
• MIG/MAG welding voltage: 15,5 – 25 V
• MMA welding voltage: 21 – 27,2 V
• TIG welding voltage: 10,6 – 18,4 V
• 60% MIG/MAG duty cycle: 210 A
• 60% MMA duty cycle: 190 A
• 60% TIG duty cycle: 210 A
• Working cycle 100% MIG/MAG: 161,7 A
• 100% MMA duty cycle: 146,3 A
• 100% TIG duty cycle: 161,7 A
• Idle voltage: 62 V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• MMA electrode diameter: 1,6 – 5 mm
• TIG electrode diameter: 1,6 – 2,4 mm
• Protection class: IP21S
• Power cord length: 210 cm
• Product weight: 7,3 kg
• Product weight with packaging: 10,8 kg
• Product Dimensions (L. / W. / h. ): 44 cm x 20 cm x 29 cm

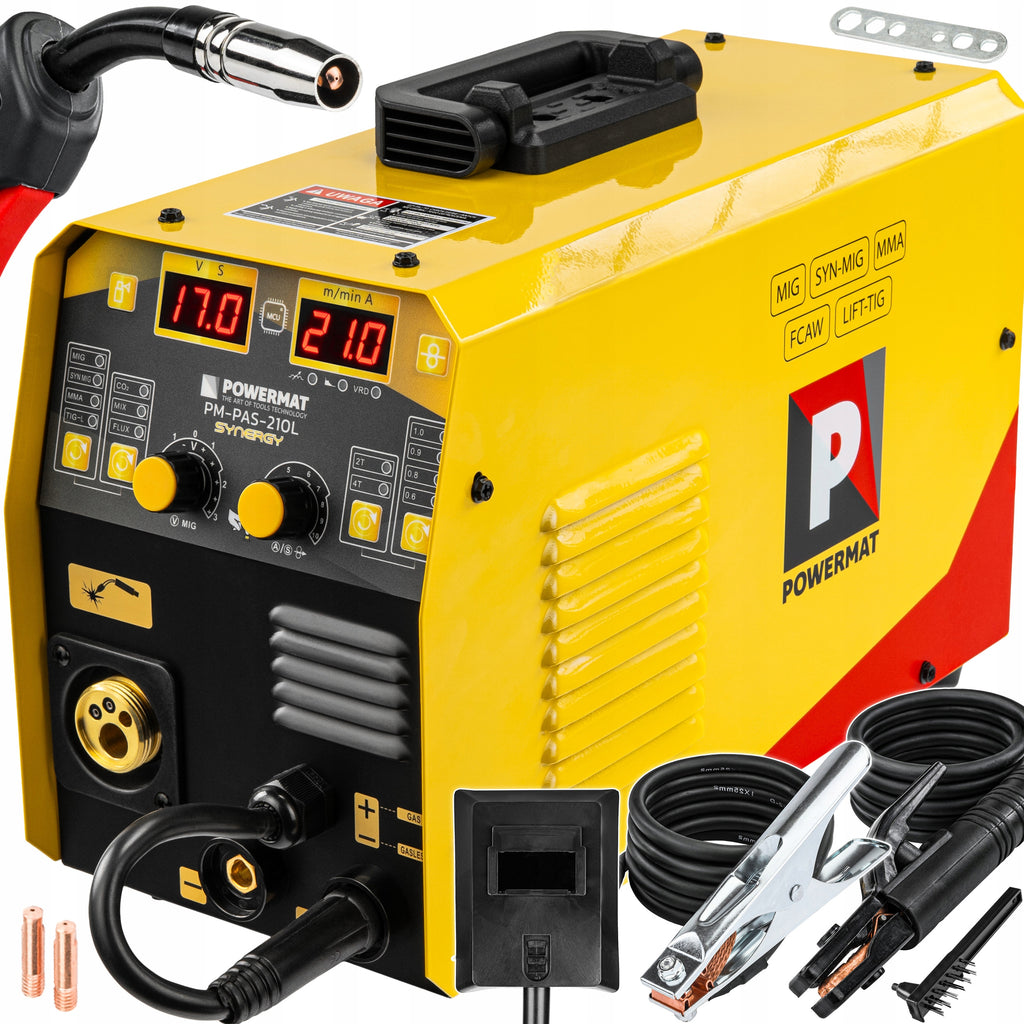

🟠 CONTENTS OF THE SET

• Welding machine Powermat PM-PAS-210L
• Bulk holder (-) 205 cm
• MMA electrode holder (+) 210 cm / plug diameter 9 mm
• Welding wire holder 300 cm
• Current terminal 0,9 mm
• Current terminal 1,0 mm
• Welding mask
• Brush with hammer
• Universal key
• User manual

⚫ FREEDOM OF WORK WITHOUT RESTRICTIONS

You can weld with or without gas, exactly where you need it. The lightweight design ensures that you can take your gear anywhere and work without compromise.

🟠 MIG/MAG WELDING

The MIG/MAG method allows for fast and efficient welding of various materials, from steel to non-ferrous metals, giving you a wide range of applications in one job.

Thanks to the stable arc, you get an even and clean weld without excess slag, which reduces processing time.

Thanks to the 30 – 210 A range and the 15,5 – 25 V voltage, you can precisely adjust the parameters to the thickness and type of material.

Support for 0,6 – 1,0 mm wires allows you to work with both thin and thicker elements. With a duty cycle of 210 A – 60% and 161,7 A – 100% you get efficient work and the possibility of longer welding without interruptions.

🟠 MMA WELDING

The MMA mode allows welding with a wrapped electrode, which works well for many workshop, assembly and construction works.

The HOT START function temporarily increases the current when the arc is lit, making it easier to start welding.

The ARC FORCE system supports arc stability and helps maintain proper working conditions during welding.

The ANTI STICK function reduces sticking of the electrode to the material and facilitates further work.

The device supports electrodes with a diameter of 1,6 – 5 mm and welding current in the range of 25 – 190 A.

🟠 WELDING TIG LIFT

The welder supports the TIG LIFT method, which allows you to make clean and even welds.

The arc is ignited by touching the electrode to the material, which simplifies the start of welding.

To work in this method, you need a TIG handle with a gas valve and a shield gas connection.

The current range of 15 – 210 A allows you to adjust the settings to different materials and is suitable for welding stainless steel and elements requiring precise weld.

🟠 IGBT TECHNOLOGY AND PULSE FUNCTION

The welder uses IGBT technology, which is responsible for stable operation of the power source, better arc control and less energy loss during welding.

The pulse and single pulse and double pulse functions help maintain a more predictable workflow and facilitate control over the weld.

This solution works especially well when welding stainless steel and aluminium, where accuracy and repeatability of the effect are important.

Thanks to stable electronics, it is easier to maintain consistent parameters even during longer operation.

🟠 WIRE FEEDING SYSTEM

The welder is equipped with a 2-roll wire feeder, which ensures stable and even feed of the material during operation.

Thanks to this, the wire is guided in a more controlled way, which helps to reduce slip and improves the smoothness of welding.

The system supports wires with a diameter of 0,6 / 0,8 / 0,9 / 1,0 mm, so you can easily adjust the settings to the type of work performed.

Even wire feeding supports arch stability and translates into better weld repeatability.

🟠 EURO CONNECTOR

The device is equipped with a EURO connector, which allows you to quickly connect and disconnect the welding torch without stripping the housing.

This solution facilitates the replacement of the cable and reduces the time of preparing the equipment for work.

The EURO standard is widely used, so it is easier to choose compatible handles and accessories. You gain more convenient operation and more freedom during everyday use of the welding machine.

⚫ A CHOICE THAT ORGANIZES WORK

▪ One device supports 4 welding methods, so you do not need to look for separate equipment for different tasks.

▪ Synergy, pulse and readable LCD shorten the setting time and help you get to the right effect faster.

▪ Range up to 210A, work with and without gas and mobile form give you more freedom every day.

⚫ FAQ

▪ DOES THE WELDING MACHINE SUPPORT GAS-FREE WELDING?

Yes. The device supports FLUX mode, so you can weld with self-shielding wire without the use of shielding gas.

▪ WHAT WELDING METHODS DOES THIS MODEL SUPPORT?

The welder supports MIG/MAG, MMA, TIG LIFT and FLUX. With this one device, you will perform various welding jobs.

▪ WHAT IS THE WELDING CURRENT RANGE?

The current range is: MIG/MAG 30 – 210 A, MMA 25 – 190 A and TIG 15 – 210 A. This allows you to adjust the settings to different materials and working methods.

▪ WHAT WIRE DIAMETERS DOES THE DEVICE SUPPORT?

The welder supports wires with a diameter of 0,6 / 0,8 / 0,9 / 1,0 mm. Thanks to this, you can choose the right wire for the type of work performed.

▪ IS THE WELDING MACHINE SUITABLE FOR FIELD WORK?

Yes. The compact design, weight of about 7,3 kg and transport handle make it easy to carry and work outside the workshop.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Power consumption	8.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	7.3 kg
Parametry	Welding range	190–210 A
Parametry	Height	290 mm
Parametry	Length	440 mm
Parametry	Width	200 mm
Parametry	Length of ground cable	105 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	10.8 kg
Parametry	Manufacturer code	PM1544
Parametry	EAN (GTIN)	5900748403963
Parametry	Packaging status	original
Parametry	Model	PM-PAS-210L
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO holders,LCD display
