Trumpai apie prekę

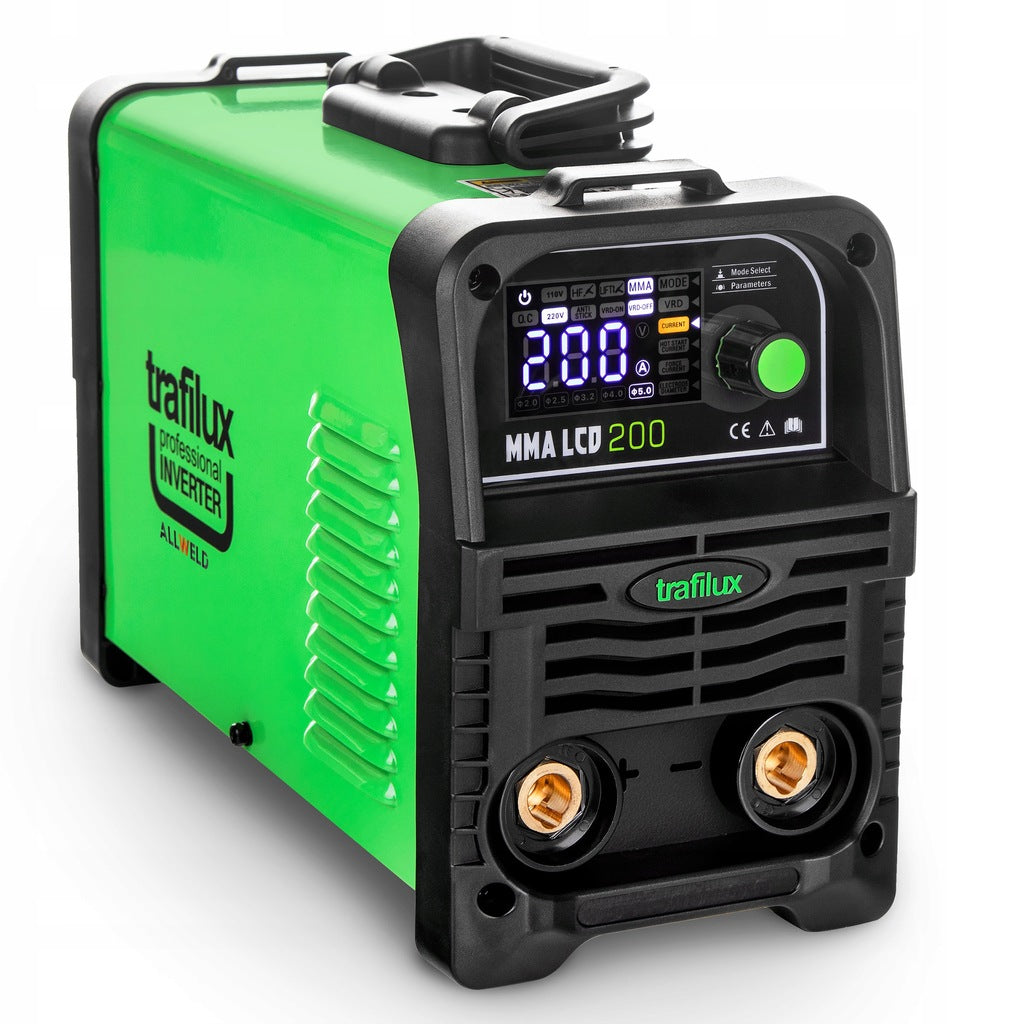

Prekė: Suvirinimo aparatas INVERTER TRAFILUX MMA LCD 200 IGBT 230V 200A VRD. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Trafilux
- Modelis: TRAFILUX 200 LCD
BRAND: TRAFILUX
It is a lightweight, portable inverter device that provides the possibility of welding with coated electrodes. The device has a number of innovative technological solutions, it is suitable for use in household and workshop conditions.
It is ideal for repair, assembly and field tasks. The device is used for welding steel, including stainless steel, heat-resistant steel and cast iron.
DEVICE FUNCTIONS:
- VRD - voltage reduction and safety improvement
- Arc Force - adjustment of the length of the welding arc
- Hot Start - quick ignition of the arc
- Anti Stick - prevents the electrode from sticking
- Made in IGBT technology
- Inductance adjustment
- Choice of electrode diameter

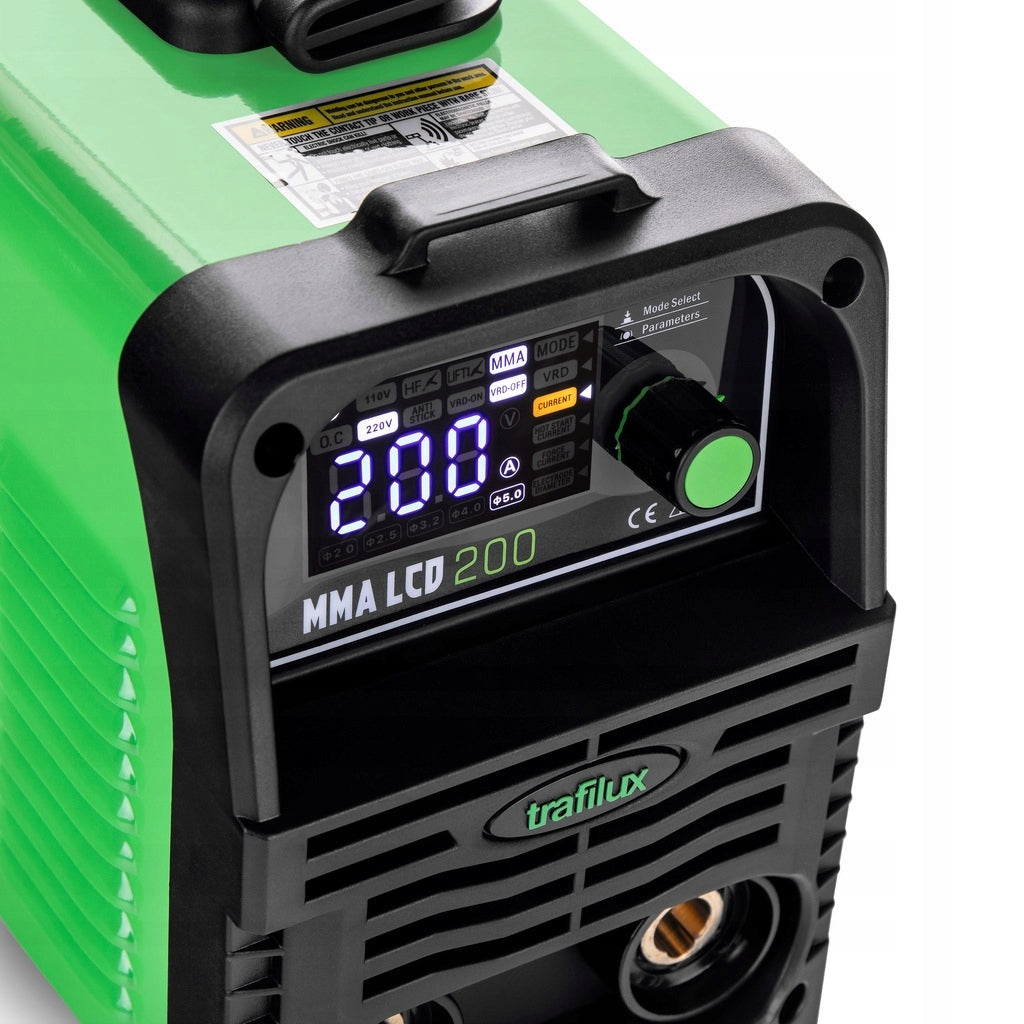

- LED display
- Thermal protection system - prevents excessive overheating of the device

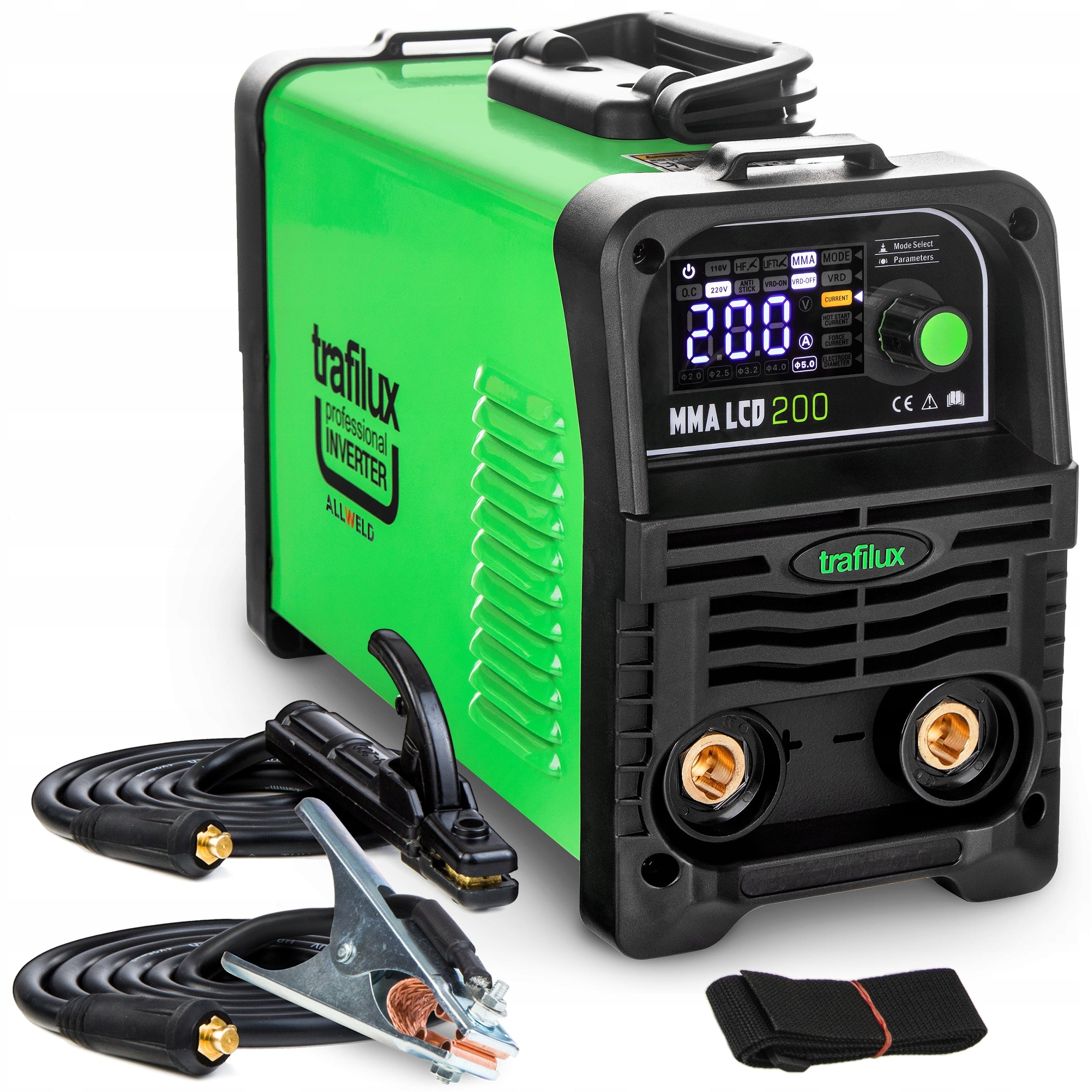

EQUIPMENT:
- Ground wire
- Electrode cable
TECHNICAL DATA:
- Supply voltage (V): 230v ±15%
- Frequency(Hz): 50/60
- Current consumption (A): 230V-41.7A
- Open-circuit voltage (V): 74V
- Working current (A): 30-200A
- Arc dynamic range (A): 0-100
- Duty cycle (%): 60
- Enclosure protection IP: 21
- Dimensions: 38X20X35cm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Trafilux |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Device weight | 4 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 200 cm |
| Parametry | Product weight with unit packaging | 4 kg |
| Parametry | Manufacturer code | TRAFILUX 200 LCD |
| Parametry | EAN (GTIN) | 5904044980418 |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
