Trumpai apie prekę

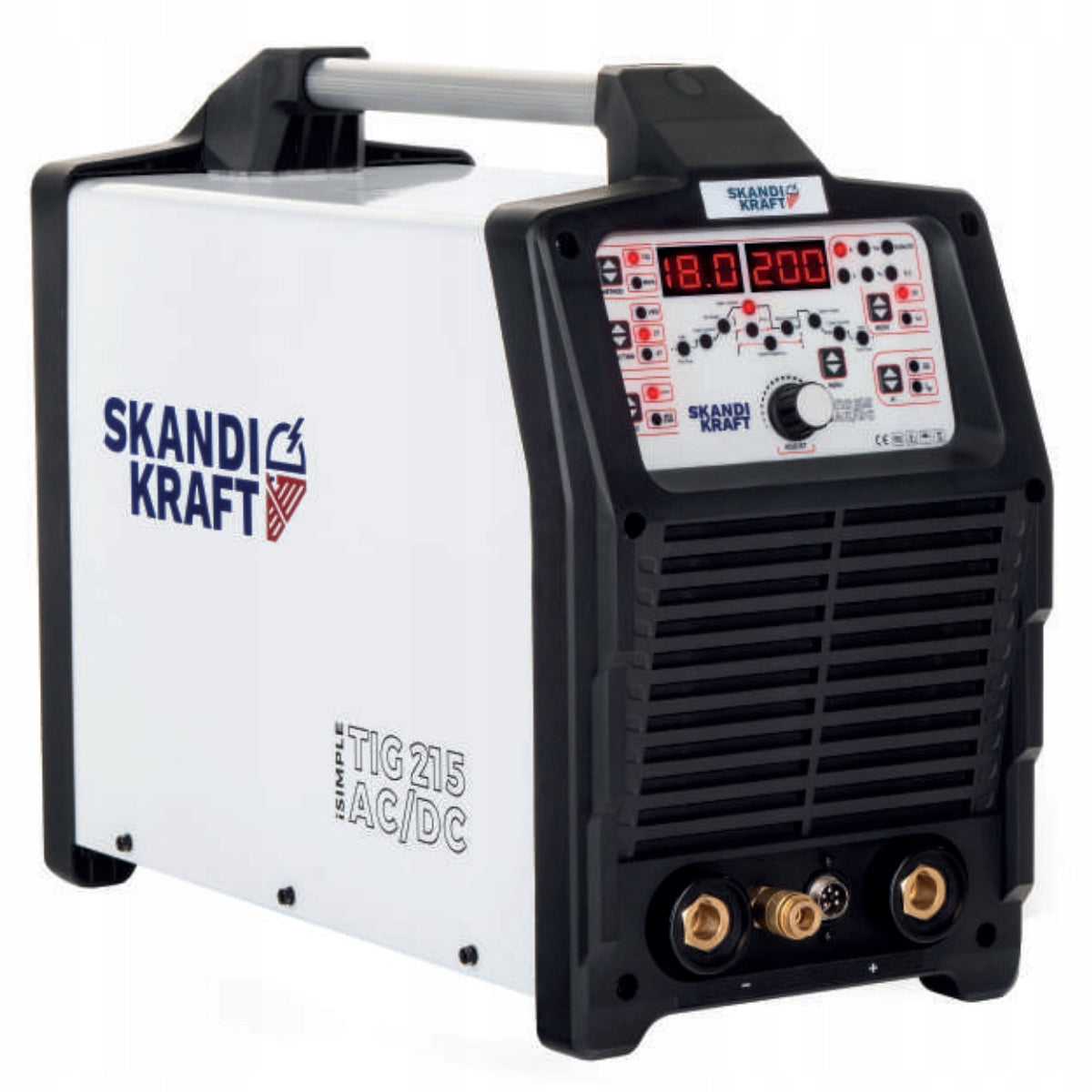

Prekė: Suvirinimo aparatas INVERTER HF iSimple TIG 215 AC/DC MMA ALUMINIUM SKANDI KRAFT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: SKANDI KRAFT
- Modelis: iSIMPLE TIG 215 ACDC
- Ilgis: 480 mm
- Plotis: 210 mm
- Aukštis: 380 mm
BRAND: SKANDI KRAFT | TYPE: TIG AC/DC, MMA | WELDING CURRENT: 200 A | POWER: 230 V
TIG ACDC WELDING MACHINE WITH MMA WELDING FUNCTION, RESISTANT TO MOISTURE, MAKING IT GREAT FOR FIELD WORK
POWER SUPPLY PARAMETERS
- Power supply: 230 V
- Frequency: 50/60 Hz
- Idle Voltage: 65 V
TECHNICAL PARAMETERS
- TIG welding current: 10-200 A
- TIG welding voltage: 10.4-18 V
- TIG efficiency (for temp. 40°C):
- 40%/ 200 A/ 18 V
- 60%/ 163 A/ 16.5 V
- 100%/ 126 A/ 15 V
- MMA welding current: 30-200 A
- MMA welding voltage: 21.2-28 V
- MMA efficiency (for temp. 40°C):
- 40%/ 200 A/ 28 V
- 60%/ 163 A/ 26.5 V
- 100%/ 126 A/ 25 V
TIG AC/DC PARAMETERS
- PRE GAS: 0-1 [s]
- START AMP welding start current: 10-200 [A]
- UP SLOPE current build-up time: 1-15 [s]
- PEAK AMP peak current: 10-200 [A]
- AC Balance: 10-90 [%]
- DOWN SLOPE descent time: 0-25 [s]
- final current: 10-200 [A]
- gas outflow after POST GAS process: 0-10 [s]
- Pulse Frequency: 0,5-200 [Hz]
- Pulse Cycle: 5-95 [%]
PHYSICAL PARAMETERS
- Length x width x height: 48 × 21 × 38 [cm]
- Weight: welding machine [net] 14.8 kg, in carton [gross] 21kg
- Housing protection: IP21S
- Cooling: Patented air flow system
ADDITIONAL FUNCTIONS
- Pulse more qualitative welding, weld more durable and prettier
- Fan stop turning off the fan at rest, quiet operation: yes
- 2 quick couplers for connecting the gas hose (front for connecting the handle and back of the device for connecting the gas cylinder): yes
- VRD voltage regulation and safety improvement: yes
- 2T/4T
- Patented air flow system
The TIG 215 welding machine from the iSIMPLE series will allow you to weld with two TIG and MMA methods. It has a pulse option that allows you to make even nicer and better welds, with little effort of the welder. It is equipped with a TIG SR26 handle with a length of 4 meters, which is equipped with a potentiometer in the handle. This will allow for smooth regulation of welding current without approaching the welding machine. The welder has an innovative, patented air flow system that protects against damage associated with dust, moisture. It is constructed of 3PCB board, which is resistant to moisture. It will work in metalwork, for workshop work, for people accustomed to digital panels.
⚡ Welding by 2 methods: TIG (AC/DC) HF with contactless arc ignition, MMA with electrode
⚡ Welding with pulse for durable, quality performance
⚡ Welder with transparent and easy-to-use digital panel
⚡ TIG handle with potentiometer for adjusting current only from the handle, having lenses that reduce gas consumption and improve weld quality
⚡ 3PCB plate construction, helps to dissipate heat and prevents dampness of the welding machine
⚡ Possibility to set welding in AC/DC mode
⚡ Pulse frequency control AC
⚡ Selection of 2 AC waveforms
⚡ AC Balance Adjustment
⚡ FAN STOP system that turns off the fan at rest of the welding machine, so that the welding machine is quiet and its sound does not interfere with operation
⚡ Use IGBT technology, which allows for high quality welding
⚡ Efficient way to cool the device with a fan, longer and more efficient operation
⚡ 2 quick couplers for quick connection of the hose from the reducer and convenient connection of the TIG handle
⚡ Transport handle for convenient handling of the welding machine, which gives it mobility
⚡ 18 memory channels where it is possible to save the setting
⚡ The TIG 215 welding machine has the possibility to choose 2 welding methods TIG and MMA
⚡ Multifunctional knob allows for smooth adjustment of settings
TIG FUNCTIONS
⚡ PULS the ability to turn the pulse on or off for welding, the pulse function improves the quality of the weld
⚡ The 2T/4T function allows you to operate the feeding of wire from the MIG handle
⚡ 2T - After pressing and holding the button, welding occurs, after releasing, welding is turned off
⚡ 4T - After pressing the torch and releasing, welding occurs, after pressing again and releasing the welding stop. Function useful for long welding
⚡ AC - AC welding mode, for welding aluminium
⚡ DC - DC welding mode, for welding black steel, stainless steel and other materials
⚡ AC frequency setting, AC balance
Regulation of TIG AC/DC welding parameters:
⚡ Gas outflow before ignition [seconds]
⚡ Welding start current in [A] Ampers
⚡ Power build-up time [seconds]
⚡ Peak current (welding current) [Amperach]
⚡ Pulse cycle [%]
⚡ Pulse regulation [%]
⚡ Pulse frequency [Hz]
⚡ Base current (AC mode only)
⚡ Drop time [seconds]
⚡ Final current [Amper]
⚡ Gas flow after the process [seconds]
FUNCTIONS OF MMA
⚡ VRD - voltage reduction, switching off the power supply after welding as soon as possible, helps to maintain safety
⚡ Adjustable current

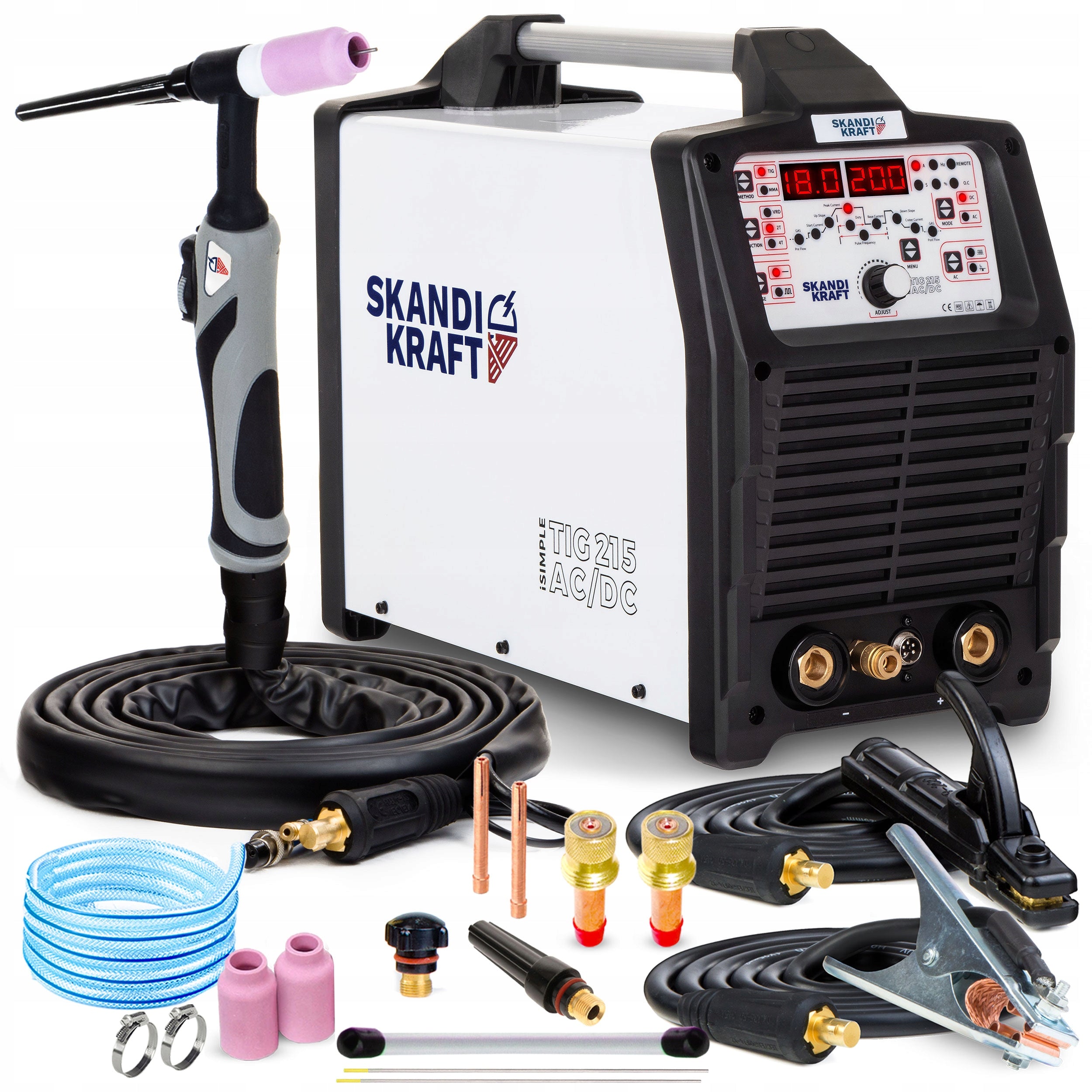

- SKANDI KRAFT iSIMPLE TIG 215 AC/DC welder with integrated power cable with a length of 3 meters and a cross-section of 3×2,5 [mm2]
- TIG SR26 Flex welding torch 4 meters with the possibility of controlling from the handle
- Mass holder fully copper 3 meters, cross section 25 [mm2]
- Copper electrode holder 3 meters, cross section 25 [mm2]
- 3 laminar gas lenses (1.6; 2.0; 2.4 [mm])
- 3 gold tungsten electrodes with diameter (1.6; 2.0; 2.4 [mm])
- 3 stoppers for the handle (long, medium, short)
- 3 x terminal bushing (1.6;2.0;2.4 [mm])
- 1 x Lens Insulator
- 3 x "8" ceramic nozzle
- Gas cylinder mounting elements: 2 x gas reducer mounting band, gas hose 2. meters, key, allen
- Instructions.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | SKANDI KRAFT |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 40% |
| Parametry | Device weight | 14.8 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Height | 380 mm |
| Parametry | Length | 480 mm |
| Parametry | Width | 210 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 21 kg |
| Parametry | Manufacturer code | iSIMPLE TIG 215 ACDC |
| Parametry | EAN (GTIN) | 5905072442206 |
| Parametry | Model | iSIMPLE TIG 215 ACDC |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
