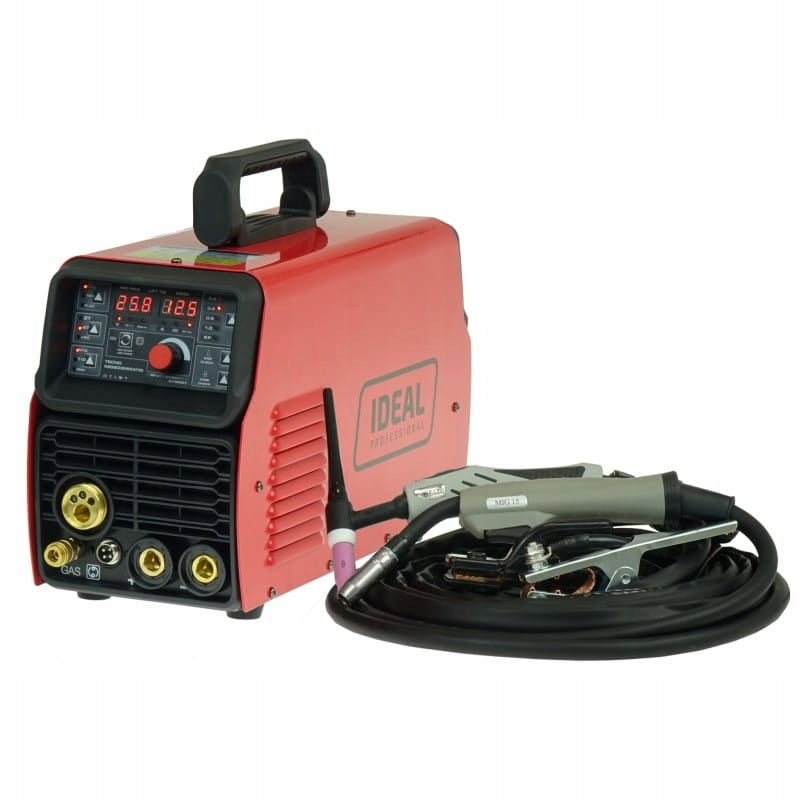

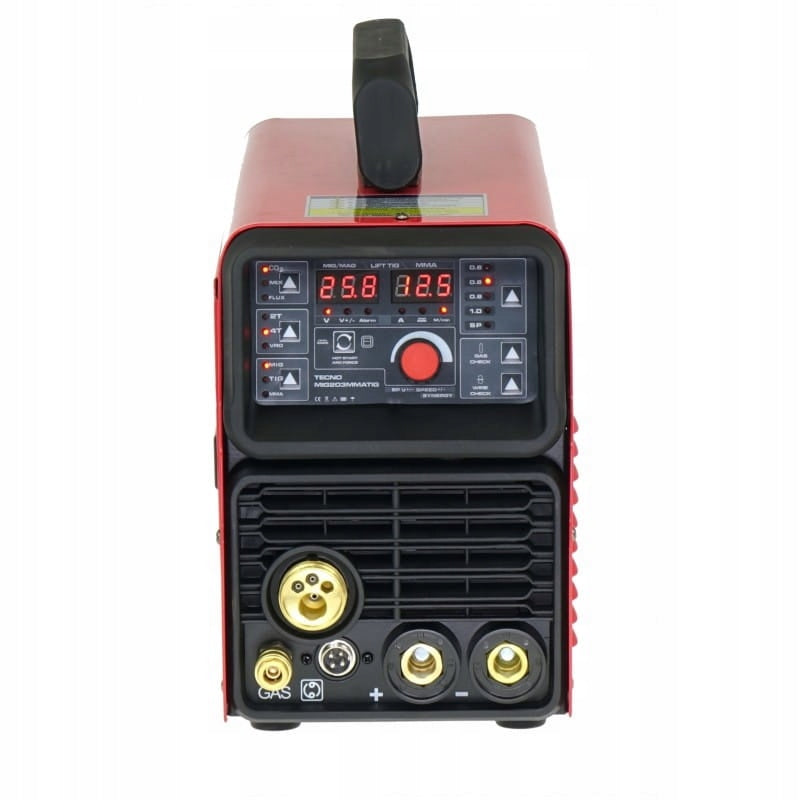

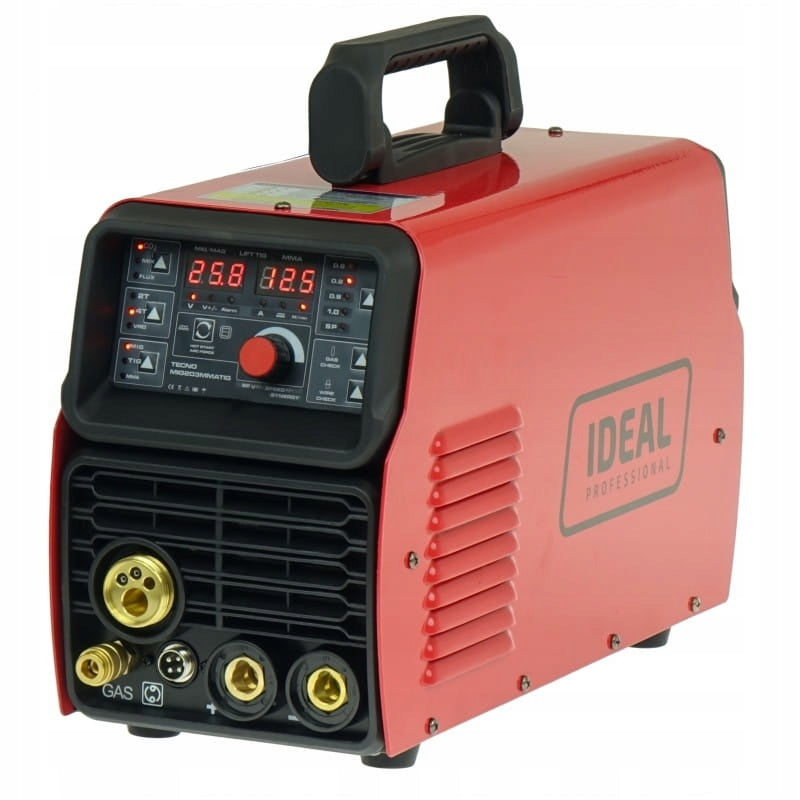

Suvirinimo aparatas IDEAL TECNOMIG 203 MIG/TIG/MMA SYNERGIC

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNOMIG 203 MIG/TIG/MMA SYNERGIC. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG203MMATIG
• Ilgis: 440 mm
• Plotis: 170 mm
• Aukštis: 290 mm

TECHNICAL DATA:

• RATED SUPPLY VOLTAGE: 230 V; 50HZ (1PH)
• PROTECTION OF THE MAINS: 25 A IMMEDIATE (TYPE C)
• POWER: 5,9 KW
• IDLE VOLTAGE: 50 V
• CURRENT AT WORK 100%: 155 A
• CURRENT AT WORK 60%: 200 A
• DIAMETER OF ALUMINUM WIRE: 0,8 - 1,0 MM
• DIAMETER OF WIRE FOR SOLDERING: 0,8 MM
• DIAMETER OF SELF-SHIELDING WIRE: 0,8 - 1,0 MM
• DIAMETER OF STEEL WIRE: 0,6 - 1,0 MM
• DIAMETER OF STAINLESS STEEL WIRE: 0,6 - 1,0 MM
• DIAMETER OF WELDING ELECTRODE: 1,6 - 4,0 MM
• WELDING CURRENT ADJUSTMENT RANGE:
• - 50 - 200 A (MIG)
• 10 - 160 A (MMA)
• 10 - 200 A (TIG)
• WIRE SPOOL SIZE: 5 KG
• DEGREE OF PROTECTION: IP21S
• WEIGHT OF THE DEVICE / SET: 12 / 14 KG

FEATURES OF INVERTER WELDING MACHINE:

• TECNOMIG 203 MIG/TIG/MMA SYNERGIC VRD IS AN INVERTER SYNERGISTIC SEMI-AUTOMATIC WELDING MACHINE DESIGNED FOR ARC WELDING BY MIG/MAG, TIG LIFT, MMA AND FLUX METHODS.
• THE DEVICE HAS BEEN DESIGNED FOR A WIDE RANGE OF APPLICATIONS: FROM MAINTENANCE WORK TO CAR BODY REPAIRS.
• TECNOMIG 203 IS USED FOR SOLDERING GALVANIZED SHEETS, WELDING STAINLESS STEEL, CARBON AND LOW ALLOY STEELS AND ALUMINUM.
• WELDING TAKES PLACE IN AN INERT GAS, ACTIVE GAS OR MIXTURE SHIELD, AND WITH REVERSE POLARITY WITHOUT GAS.
• WITH THE MIG/MAG METHOD, WE CAN CHOOSE THE BUTTON FUNCTION IN THE HANDLE BETWEEN WORKING IN 2T MODE (WITHOUT BUTTON LOCK)/4T (BUTTON LOCK FOR LONG WELDS)
• WITH THE MMA METHOD, WE HAVE THE ABILITY TO ENABLE THE VRD (VOLTAGE REDUCTION DEVICE) FUNCTION - REDUCES THE RESTING VOLTAGE OF THE IDLE STATE ON THE ELECTRODE TO A SAFE VALUE.
• ENSURES SAFETY WHEN WORKING IN HUMID ENVIRONMENTS.
• THE DEVICE HAS A FAN COOLING SYSTEM WHICH DEFINITELY INCREASES ITS EFFICIENCY.
• THE DEVICE IS EQUIPPED WITH OVERLOAD PROTECTION, WHICH INCREASES ITS RELIABILITY.

SCOPE OF DELIVERY:

1. IDEAL TMIG203MMATIG - INVERTER WELDING MACHINE - MIGOMAT
2. HANDLE MIG 15/3 M
3. HANDLE TIG 17/4 M
4. MASS CABLE 2M
5. ELECTRODE CABLE 3M
6. INSTRUCTION MANUAL

CAPABILITIES OF TECNOMIG 203:

• MMA - RUTILE ELECTRODE, FOR ALL NON-ALLOY, LOW-ALLOY AND HIGH-ALLOY STEELS (STEEL, CAST IRON AND NON-FERROUS METALS).
• MIG-MAG - WIRE WELDING. FOR WELDING NON-ALLOY, LOW-ALLOY AND HIGH-ALLOY STEELS, AND NON-FERROUS METALS.
• FCAW - WIRE WELDING, WITHOUT THE USE OF GAS.
• TIG LIFT - ARC WELDING PROCESS WITH A NON-MELTING ELECTRODE IN AN INERT GAS SHIELD
• LUTOWELDING - WIRE WELDING, MAINLY USED BY SHEET METAL WORKERS, FOR WELDING IN GALVANIZED

TECHNOLOGY OF TRACERS - IGBT.

RELATIVELY NEWER, LIGHTER AND SMALLER OVERALL TECHNOLOGY THAN MOSFET, WHICH TRANSLATES INTO GREATER MOBILITY OF SUCH A DEVICE. IN ADDITION, THE DEVICE WORKS BETTER ON WEAKER ELECTRICAL INSTALLATIONS AND IN HIGH-VOLTAGE WELDING. MUCH SMALLER (APPROX. 30% ) POWER CONSUMPTION.

WELDER ASSISTANCE FEATURES:

• TWO-BAR 2T - PRESSING THE BUTTON INITIATES GAS OUTFLOW AND WELDING CURRENT, RELEASING THE BUTTON TURNS OFF WELDING CURRENT AND GAS OUTFLOW
• FOUR-POINT 4T - PRESSING AND RELEASING THE HANDLE BUTTON INITIATES GAS OUTFLOW AND WELDING CURRENT, RE-PRESSING AND RELEASING THE BUTTON TURNS OFF THE WELDING CURRENT AND GAS OUTFLOW,
• INDUCTANCE ADJUSTMENT - THE FUNCTION IS USEFUL DURING MIG/MAG WELDING OF THIN ELEMENTS, PREVENTING THEM FROM BURNING OUT AND SOLDERING GALVANIZED ELEMENTS. THE THINNER THE MET MIG/MAG WELDED ELEMENT, THE HIGHER THE INDUCTANCE SHOULD BE (SOFT ARC - LESS MELTING)
• VRD (REDUCTION OF IDLE VOLTAGE ON THE WRAPPED ELECTRODE TO A SAFE LEVEL) PROVIDING ADDITIONAL SAFETY FOR THE OPERATOR, ESPECIALLY WHEN WORKING IN ENVIRONMENTS WITH HIGH HUMIDITY
• HOT START - MOMENTARY VOLTAGE JUMP ABOVE THE SET VALUE. GREAT FACILITATION WHEN LIGHTING THE ELECTRODE.
• ARC FORCE - REDUCING THE VALUE OF THE FUNCTION GIVES A SOFT ARC AND A SMALLER DEPTH OF MELT, WHILE INCREASING THE VALUE CAUSES A DEEPER MELTING OF THE POSSIBILITY OF WELDING WITH A SHORT ARC.
• REGULATION OF WIRE FEED SPEED
• SPOOL GUN - MIG WELDING TORCH WITH BUILT-IN WIRE FEEDER
