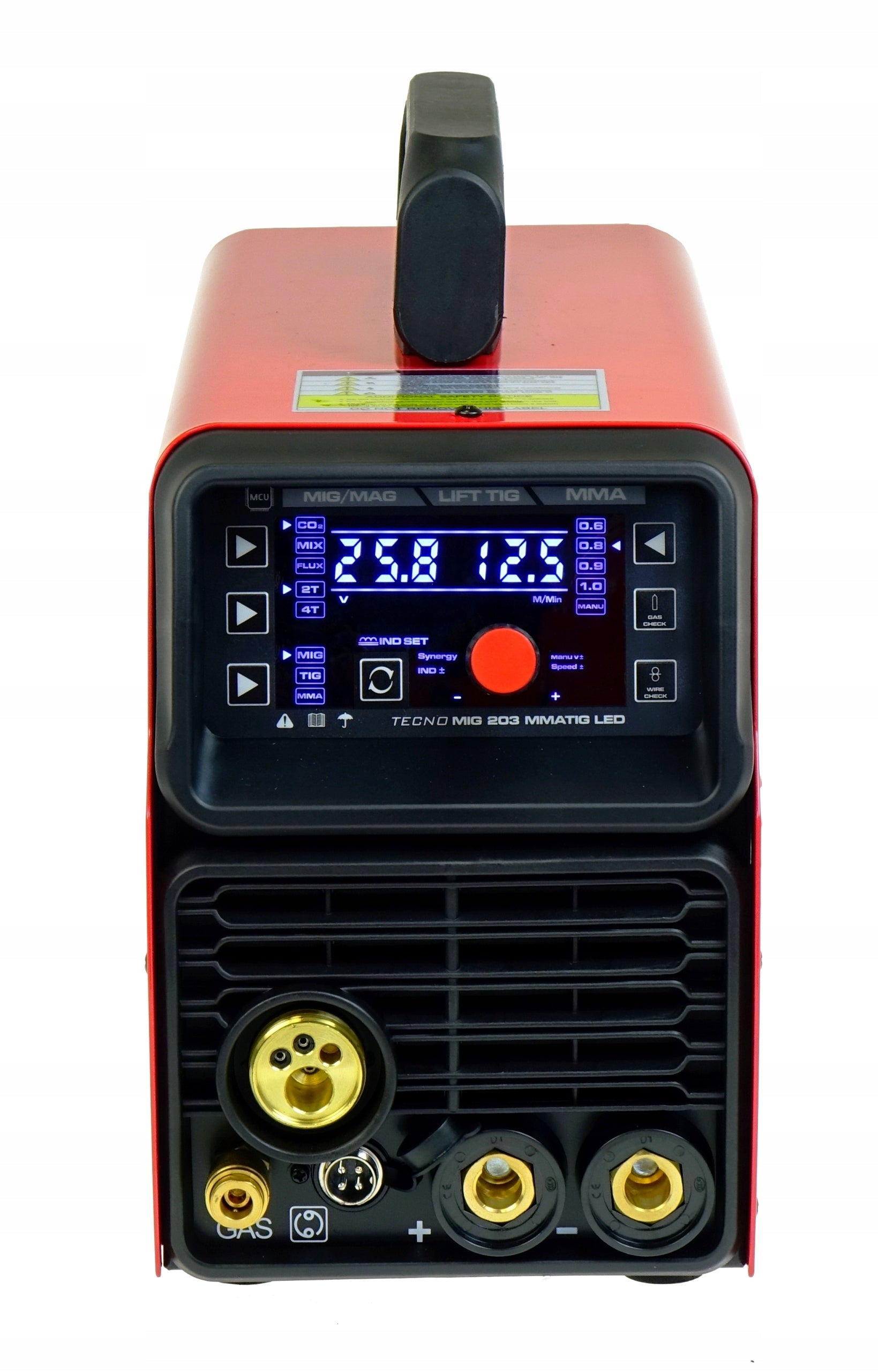

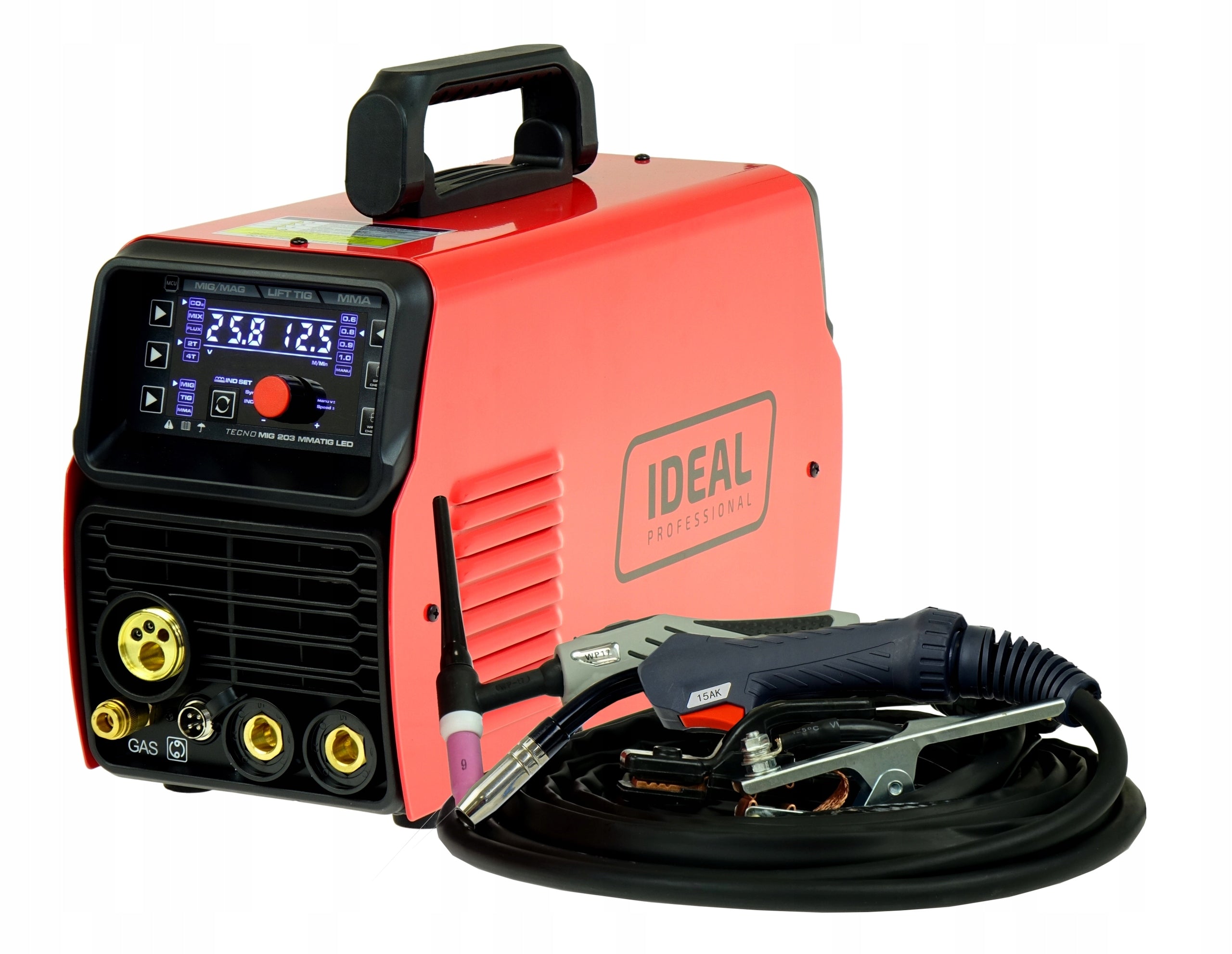

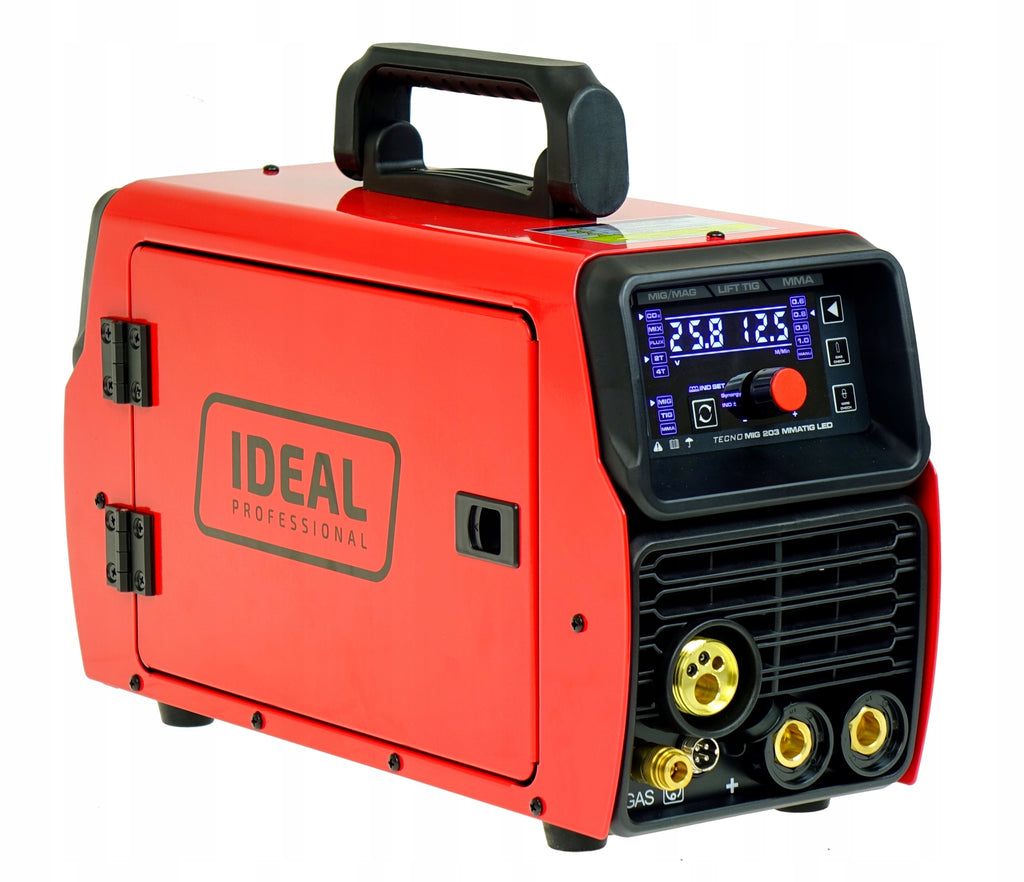

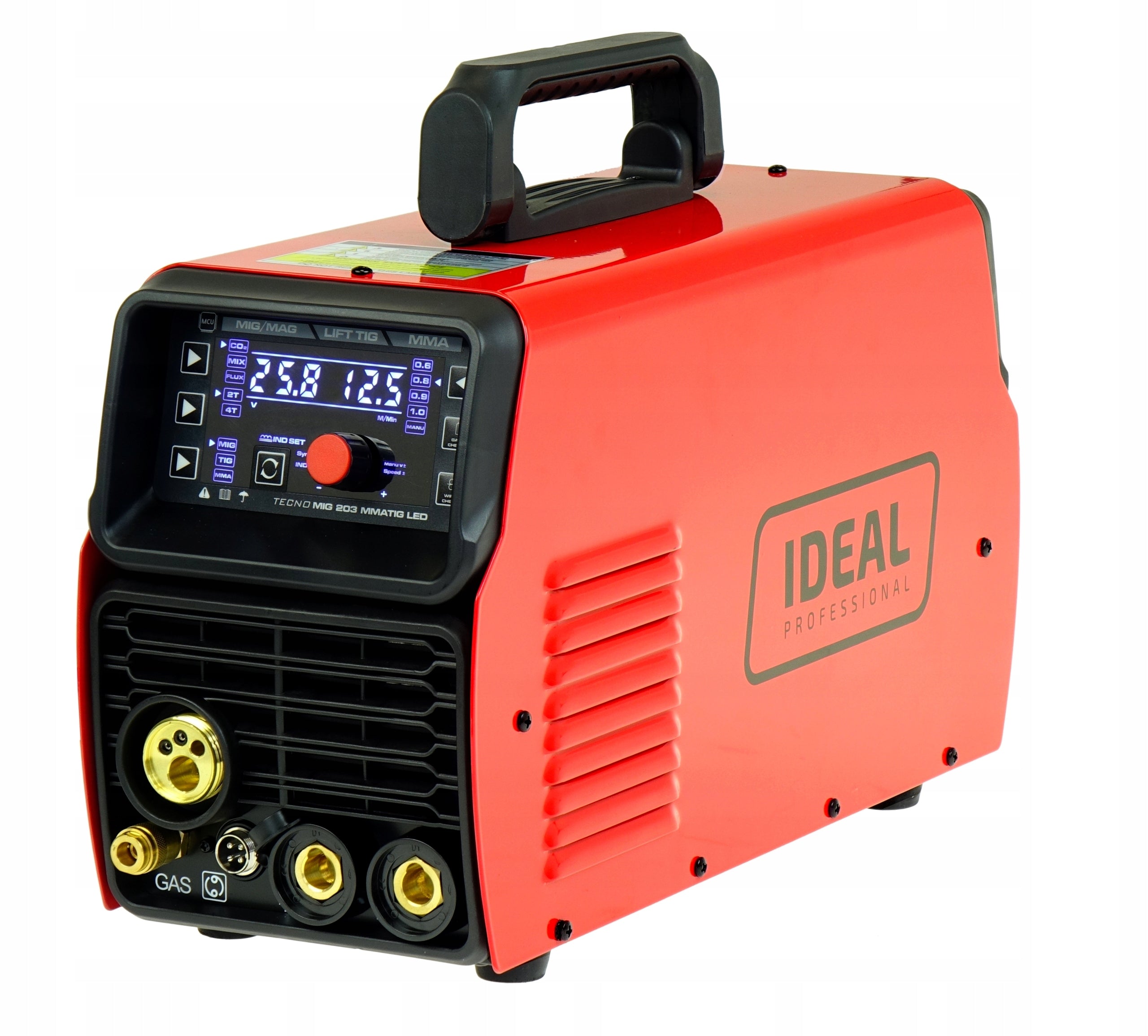

Suvirinimo aparatas IDEAL TECNOMIG 203 LED MIG/MAG/TIG, pusiau automatinis inverteris

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNOMIG 203 LED MIG/MAG/TIG, pusiau automatinis inverteris. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG203MMATIG
• Ilgis: 440 mm
• Plotis: 170 mm
• Aukštis: 290 mm

WELDING MACHINE IDEAL TECNOMIG 203 LED

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG SYN - MIG/MAG welding with synergistic settings,
• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-consumable electrode ( tungsten ) in an inert gas ( Argon ) shield using an additional torch. In the TIG DC Lift mode, the arc is ignited when the electrode touches the workpiece (the button in the handle does not ignite the arc, the gas is connected directly from the regulator to the torch and is regulated by a valve on the torch handle) . In TIG Lift DC mode, the current is constant.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

IDEAL TECNOMIG 203 LED is used for welding:

✔ low alloy steel

✔ low carbon steel

✔ alloy steel

✔ other weldable metals and alloys

✔ aluminium and its alloys

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

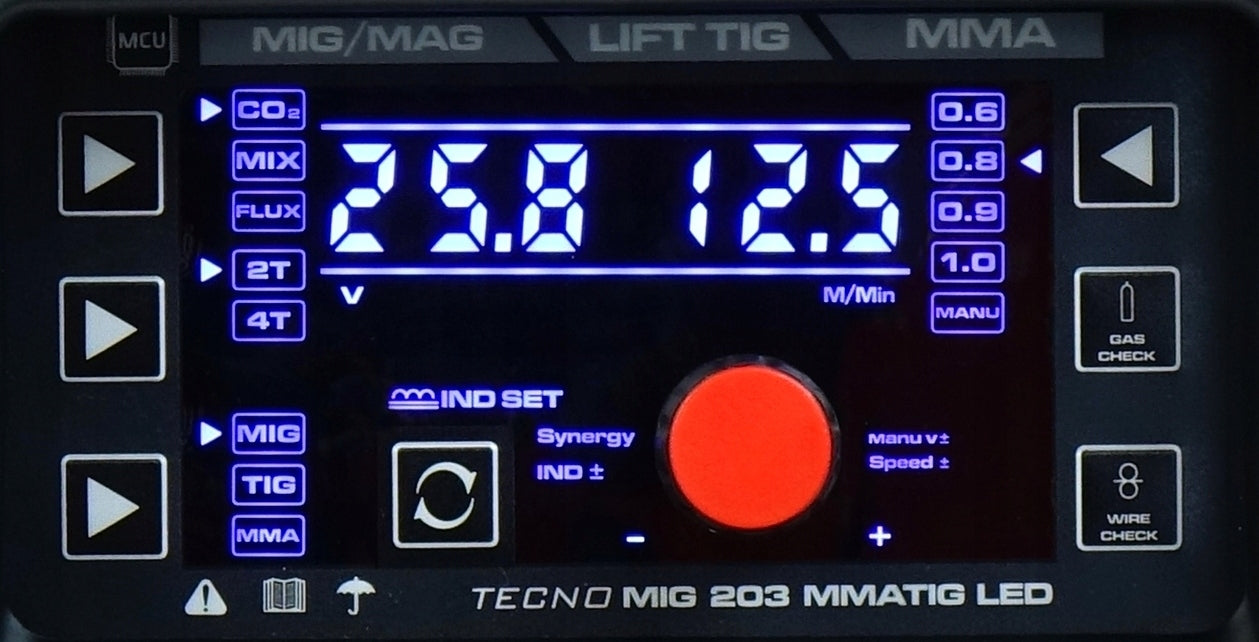

The TECNOMIG 203 welder has a very simple control panel, the device is equipped with automatic selection of parameters.

The welding machine also allows welding in manual mode.

➖➖➖➖➖➖➖➖➖➖➖➖➖➖

The easy-to-read display enables accurate adjustment of the device, even in very strong lighting.

On the panel is m.in.

1 - Shield selection button for welding only MIG/MAG:

• CO2 - shielding gas is carbon dioxide
• MIX - shielding gas is carbon dioxide with argon admixture
• FLUX - self-shielding wires

2 - Handle type bot button: Button mode selection:

• 2T - mode of pressing and holding the button during welding, after release there is a break in welding
• 4T - press mode, without having to hold the trigger during operation, interruption of work occurs after pressing again
• Function VRD (voltage reduction device) reduces idle voltage

3 - Welding method selection button:

• MIG - hot melt electrode
• TIG LIFT - non-melting electrode
• MMA - wrapped electrode

4 - Displaying welding parameter values, divided into left (L) and right (P) window

5 - Select button wire diameter

6 - Button to check the correctness of gas flow

7 - Button to check the correctness of wire feeding

8 - Adjustment knob

9 - Functional button

✔ REPAIR WORKSHOP

✔ LOCKSMITH WORKSHOP

✔ FARMS

✔ HOMEWORK

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SYNERGY - is a very helpful feature available in professional welding equipment class PREMIUM. By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

⭐ SOLDERING - is a method that is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work.

⭐ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

⭐ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

⭐ PROFESSIONAL WIRE FEEDER - enables precise extension of the welding wire excluding its slippage, guarantees stability and continuity of operation of the device.

⭐ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and LED display, so it can be used even by amateurs.

⭐ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

⭐ CONTROL SOCKET - when connecting the TIG handle to a special input. This allows us to control the parameters of the welding machine, such as the impact of shielding gas to the handle

⭐ GAS TEST - function that allows you to switch on the solenoid valve itself without switching on the power source and wire feeder (this function is used to determine the value of the shielding gas flow and check the patency of the gas circuit.

⭐ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work

⭐ IGBT INVERTER TECHNOLOGY - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

⭐ARC FORCE - makes it easy to transfer a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

⭐ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

⭐ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after finishing welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ IDEAL TECNNOMIG 203LED is an intuitive welding device characterized by simplicity, which will certainly be appreciated by novice welders. Thanks to its light weight and compact design, it is perfect as a portable semi-automatic welding machine. Any renovation work in the field is an ideal task for this machine.

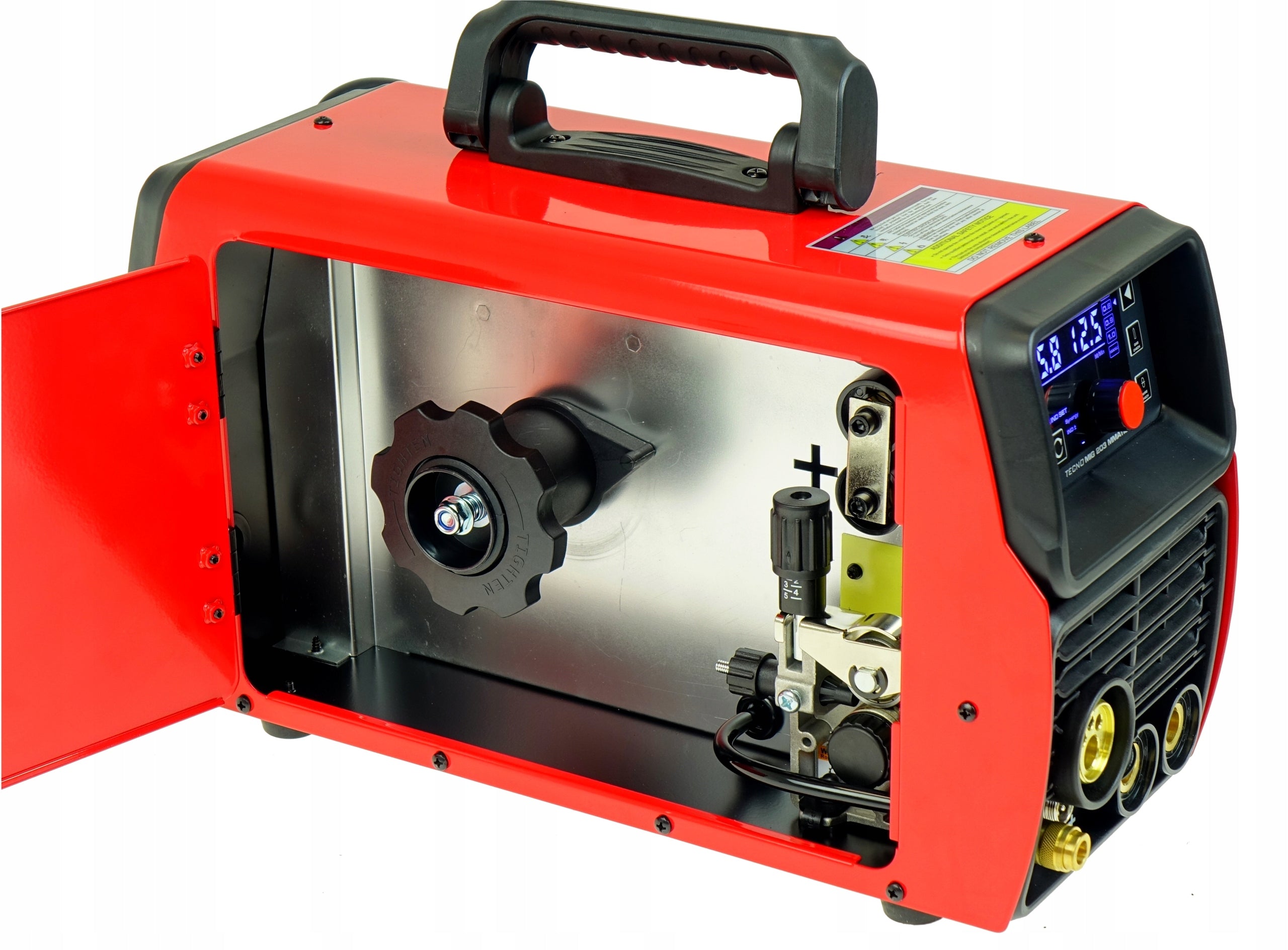

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a professional wire feeder, which guarantees stability and continuity of operation of the device.

The 2-roll feeder allows precise extension of the welding wire excluding its slippage.

The feeder has a quick wire change knob as well as a wire feed roller.

The device has a quick wire extension function. Pressing the WIRE CHECK button on the panel causes a quick extension of the wire allowing it to be easily inserted into the handle

The welder supports D200 wire spools.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: × 230 V; 50Hz (1ph)
• Maximum power consumption: 5,9 kVA
• Voltage without load: 50V
• Wire diameter: 0,6 - 1,0
• Diameter of welding electrode: 1,6 - 4,0 mm
• Maximum power consumption : 32 A
• Network security : 25 A

⏩ MIG PARAMETERS:

• Welding current MIG [A]: 50 - 200 A
• Type of feeder: built-in, 2 - roller
• Wire spool: ≤ 5[kg], ø200
• Spool diameters with wire: 100mm, 200mm
• Power at work 100% - 155A
• Power at work 60% - 200

⏩ PARAMETERS OF TIG:

• TIG welding current [A]: 10 - 200
• Power at work 100% - 155A
• Power at work 60% - 200
• Welding TIG: Tig DC Lift

⏩ MMA PARAMETERS:

• MMA welding current [A]: 10 - 160
• Power at work 100% - 125A
• Power at work 60% - 160

⏩ OTHER:

• Weight: 12 kg
• Dimensions [mm]: 440x170x290 mm
• Degree of protection: IP21S

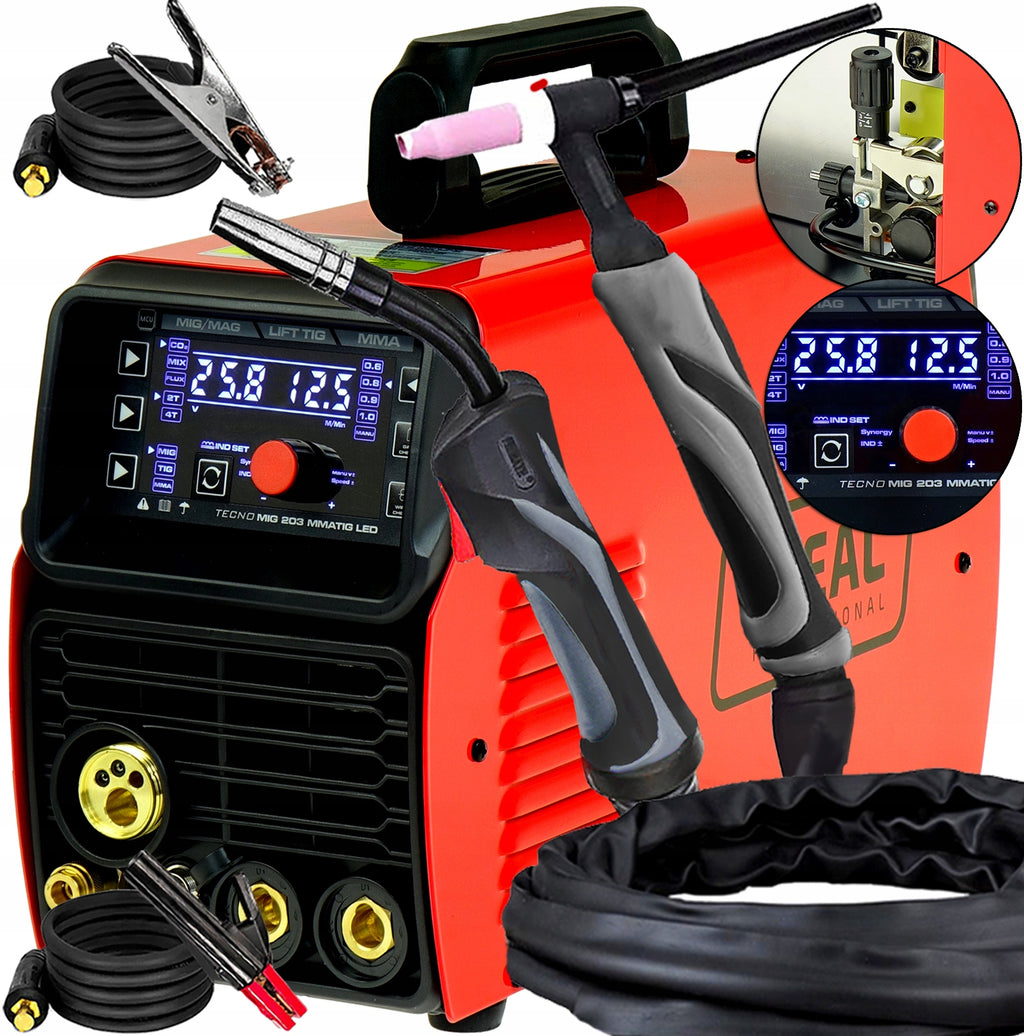

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• IDEAL TECNNOMIG 203 LED
• WELDING TORCH MIG/MAG MB15 - 3m
• WELDING TORCH TIG-17V - 4m
• ELECTRODE HOLDER MMA - 3M
• MASS HANDLE - 2M
• INSTRUCTION FOR in Polish
• WARRANTY CARD

SET OF 1
