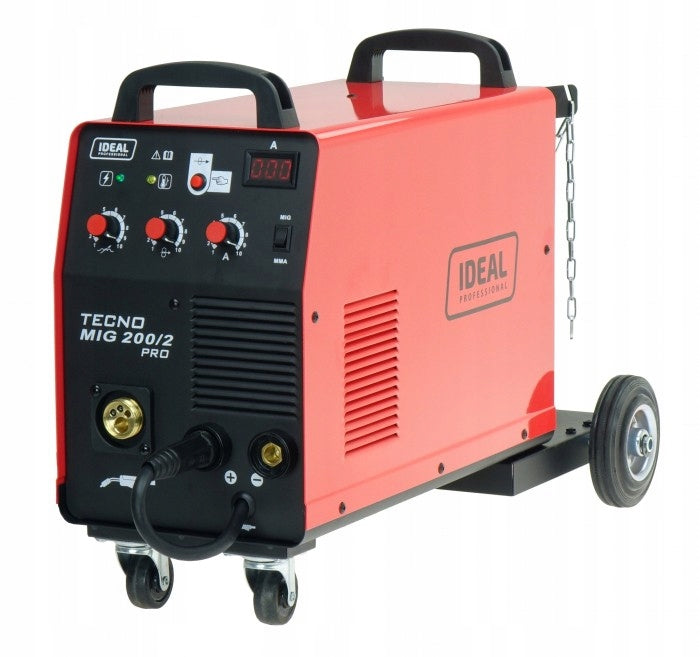

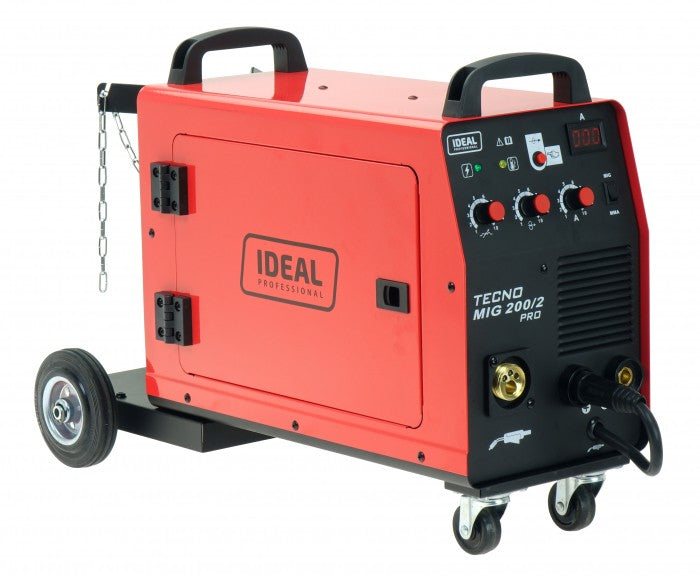

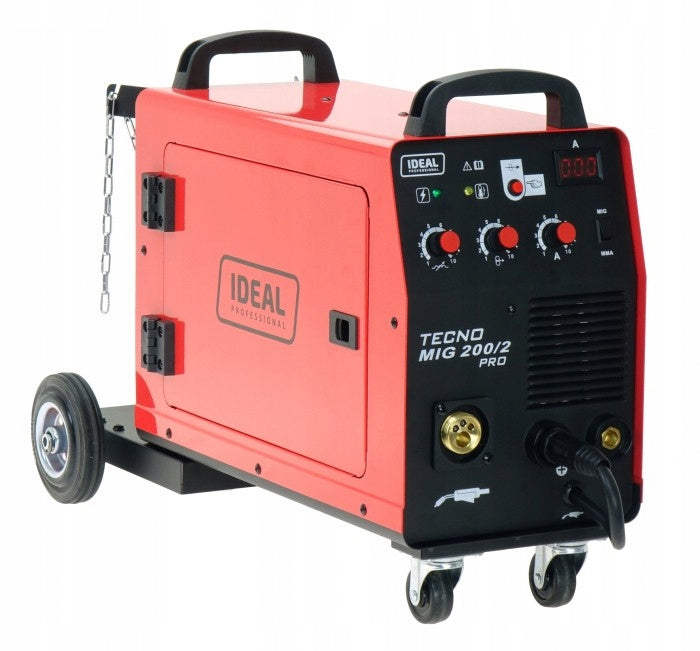

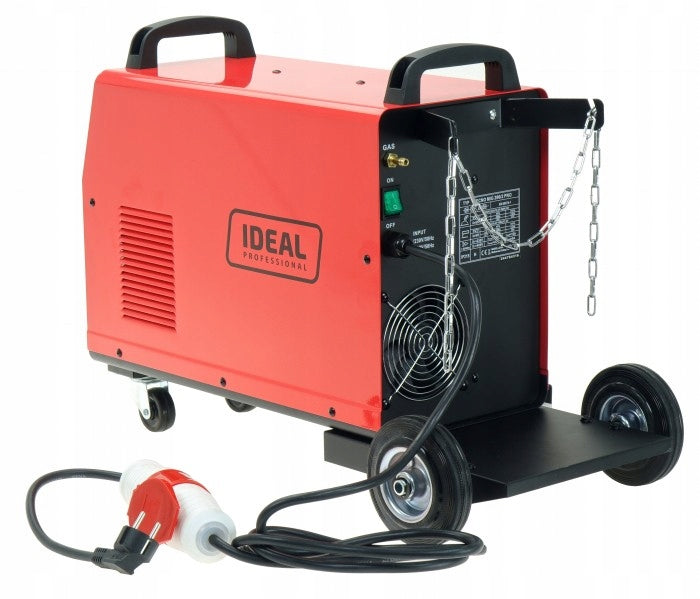

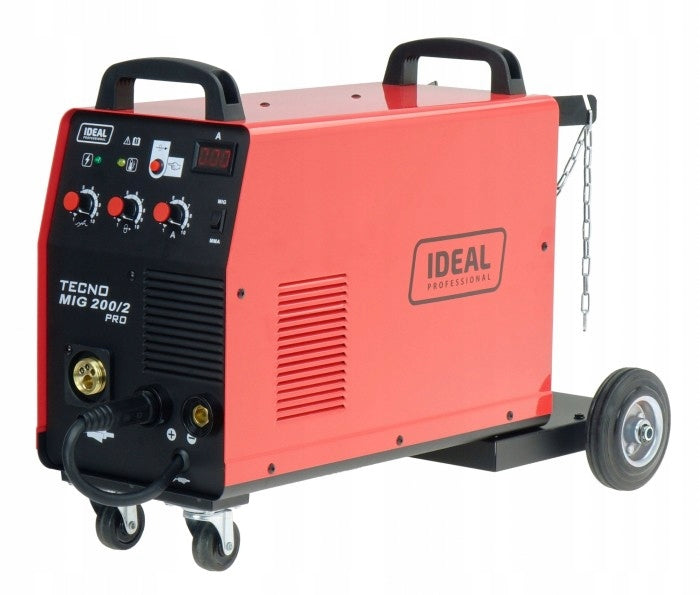

Suvirinimo aparatas IDEAL TECNOMIG 200/2 PRO, 200A, 230/400V, MMA

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNOMIG 200/2 PRO, 200A, 230/400V, MMA. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG200/2PRO

Inverter semi-automatic welding machine 230/400V

TECHNICAL PARAMETERS

• Power supply network protection C25A (230V) / C16A (400V)
• Rated supply voltage 230/400 V; 50Hz (1ph/2ph)
• Power 5,6 kW
• Idle voltage 56 V
• Maximum current 200 A
• Current at work 100% 130 A
• Current at operation 60% 200 A(MIG) / 180 A(MMA)
• Diameter of aluminium wire 0,8 - 1,0 mm
• Diameter of self-shielding wire 0,8 - 1,2 mm
• Steel wire diameter 0,6 - 1,0 mm
• Welding electrode diameter 1,6 - 4,0 mm
• Degrees of welding current regulation Gradually
• Welding current adjustment range 30 - 200 A
• Wire spool size D200 (2kg and 5kg)
• Degree of protection IP 21S
• Weight of the device / set 15/16 kg
• Overall dimensions L x W x H 650x320x450 mm
• Package dimensions L x W x H 650x260x410 mm

TECNOMIG 200/2 MMA PRO is an inverter semi-automatic welding machine designed for arc welding using the MIG/MAG, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.

TECNOMIG 200/2 MMA is used for welding carbon and low alloy steels and aluminium. Welding is carried out in an inert gas shield, active or mixture, and with reverse polarity without gas.

The device is equipped with inductance regulation.

PRODUCT CHARACTERISTICS

• Single-phase power supply 230 V and interphase (400V)- allows you to work with the device practically anywhere with access to the electrical network

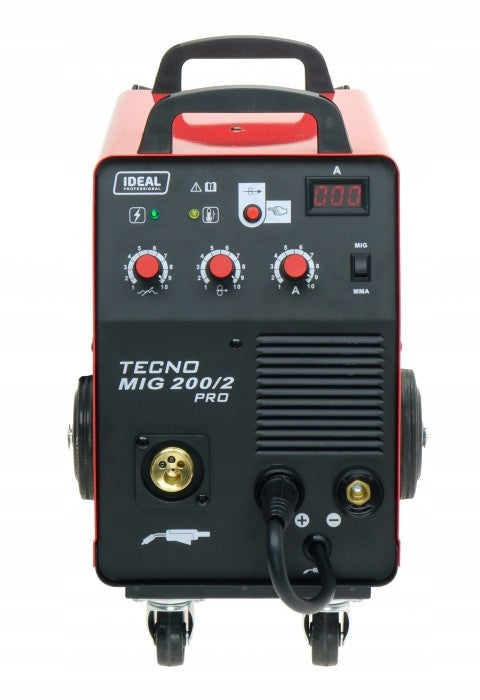

• Readable display : welding current, welding voltage, wire feed speed
• Device equipped with EURO socket for connecting a welding torch
• Maximum spool with wire - 5 kg
• Polarity change for FLUX welding without shielding gas
• Accurate adjustment of welding arc length
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• The device is equipped with overload protection, which increases its reliability

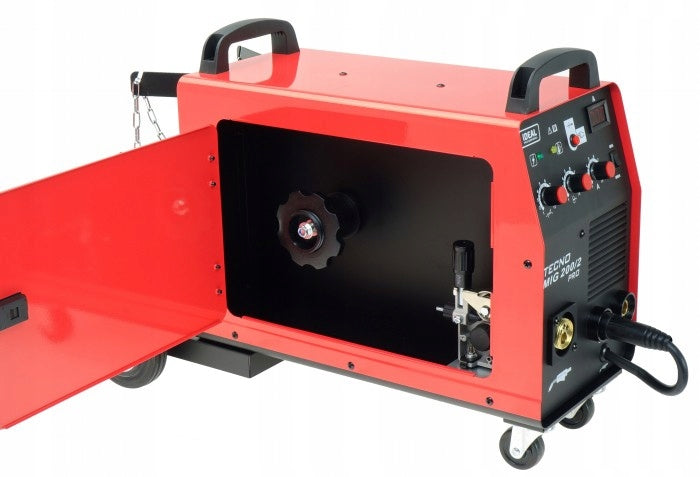

• Professional wire feeder: internal, 2-roll
• The device has a fan cooling system which significantly increases its efficiency
• Compact and lightweight

Has functions to facilitate the welding process:

HOT START: hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

ARC FORCE: short-circuit current adjustment - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

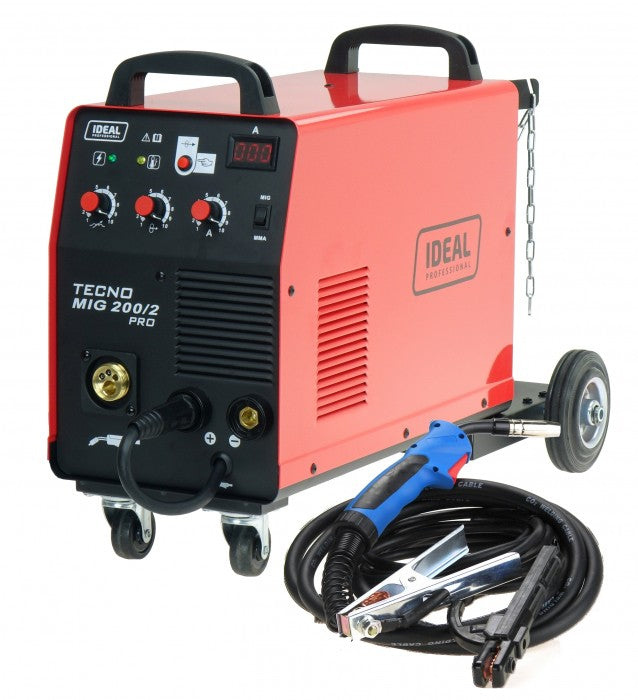

DELIVERY INCLUDES

Semi-automatic welding machine

MBI 15 welding torch with a length of 3 meters

Electrode cable 2 m

Mass cable 2 m

Chain for fixing cylinders on the trolley

Operating instructions

Warranty card
