Trumpai apie prekę

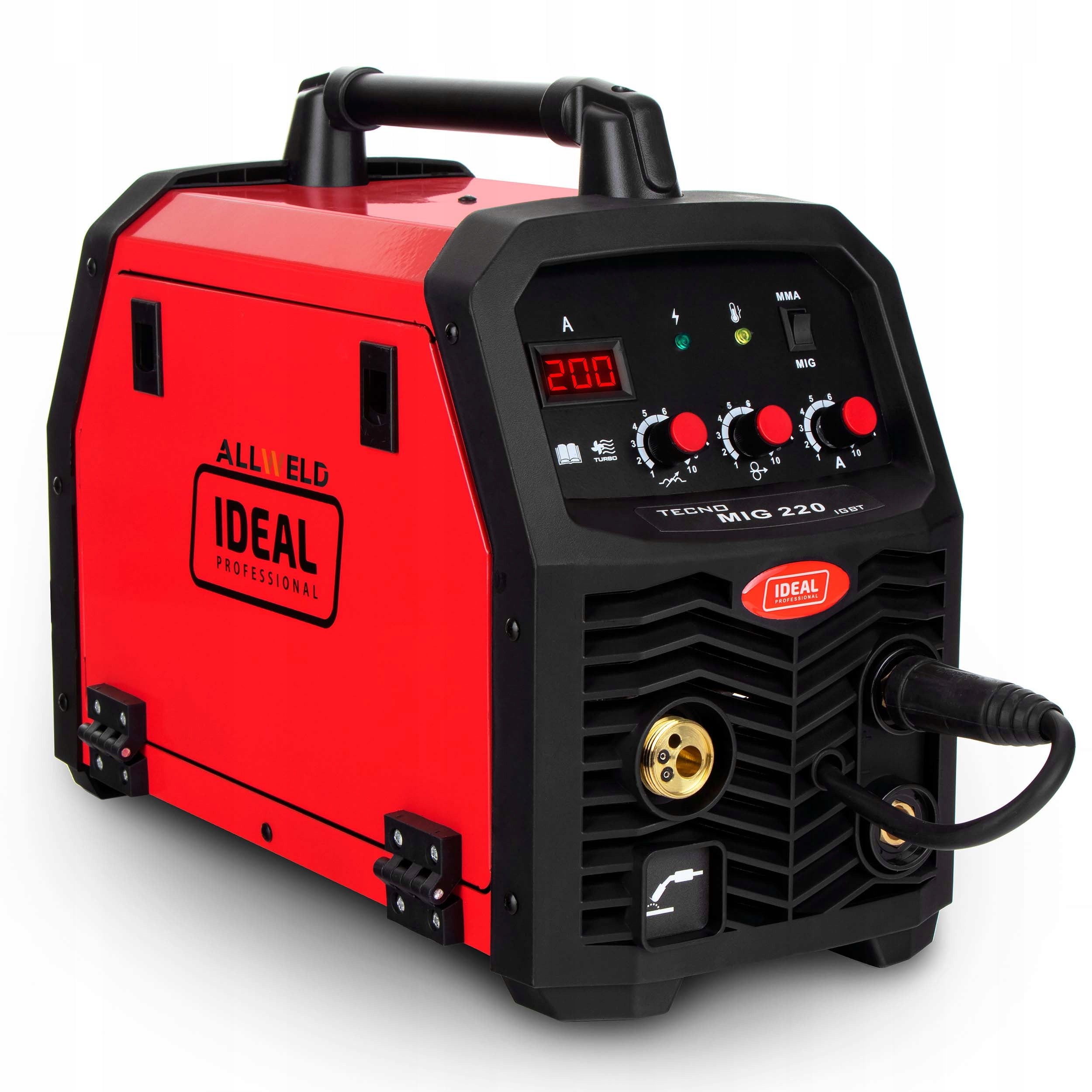

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 220 MMA DIGITAL FLUX 220A 230V ALU IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: TMIG220V2 MAPR2-15-N
- Ilgis: 510 mm
- Plotis: 230 mm
- Aukštis: 370 mm
Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 230V ║ Welding current: 220A ║ Efficiency: 60%
IDEAL TECNOMIG 220 is an easy-to-use inverter welding machine, designed for work both in small workshops and in professional work. It allows welding using the MIG/MAG method, FLUX and electrodes wrapped with MMA maximum current 220A with efficiency 60%. The welder does not overheat and allows you to work in long cycles without worrying about turning off.
The versatility and level of workmanship of the device enable a wide range of applications both in small workshops, households and professionally in assembly works, as well as car body repairs.
IGBT - the welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.
REG. INDUCTION - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.
LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, i.a. acid-resistant steel of ordinary quality steel or copper with steel.
FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.
EUROCONNECTOR - allowing the interchangeable use of various types of handles.
OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.
Strong source
The IDEAL TECNO MIG 220 welding machine is a semi-automatic welding machine designed for welding steel using the MIG/MAG method and aluminum and its alloys. The device has a power of 220A and guarantees a melt with a maximum thickness of 5mm (the maximum thickness of the welded material is 10mm). The welder has an efficiency of up to 60% at maximum current and allows you to work in long cycles without worrying about turning off.
Full functionality
Thanks to the variable polarity, self-shielding powder wires (FLUX) can be welded, but also MMA can be welded using hot melt coated electrodes. Adjustable INDUCTANCE allows for welding without chipping of both thin sheets and thick profiles and conducting the LUTOSPELING CuSi process.
Intuitive control

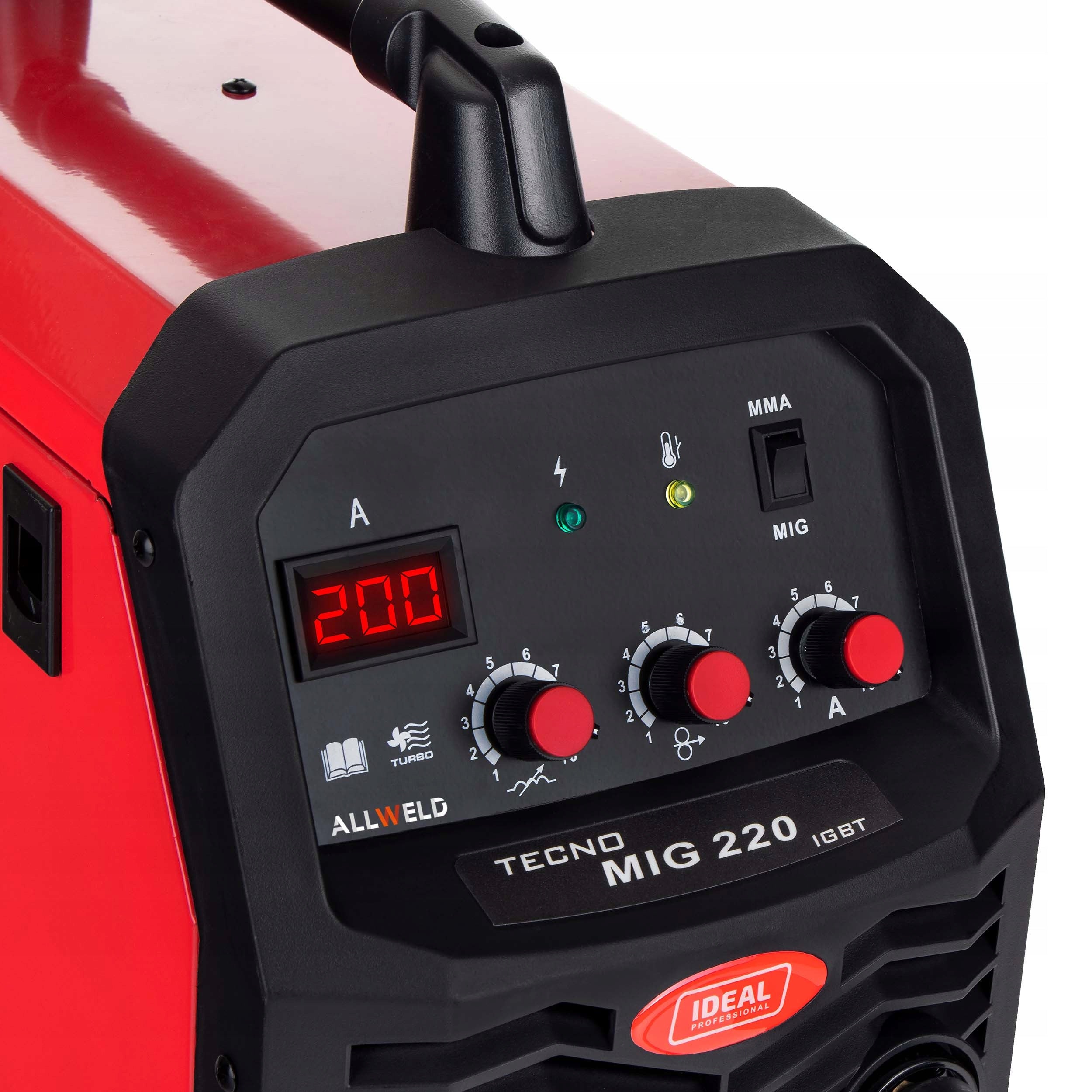

The IDEAL TECNOMIG 220 welder has an easy-to-use integrated function panel with knobs for smooth adjustment of welding current, wire feed speed and inductance. This solution guarantees simplicity and ease of use.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Number of phases: 1ph
- Frequency: 50Hz
- Network security: 25C
TECHNICAL PARAMETERS
- Welding current adjustment range: 10-220 A
- Idle voltage: 50 V
- Efficiency: 60%
- Feeder: 2-Roll
- Max. Spool size: 5kg
PHYSICAL PARAMETERS
- Security enclosure: IP21
- Cooling: fan
- Dimensions: 510 × 230 × 370 mm
- Weight: 14 kg

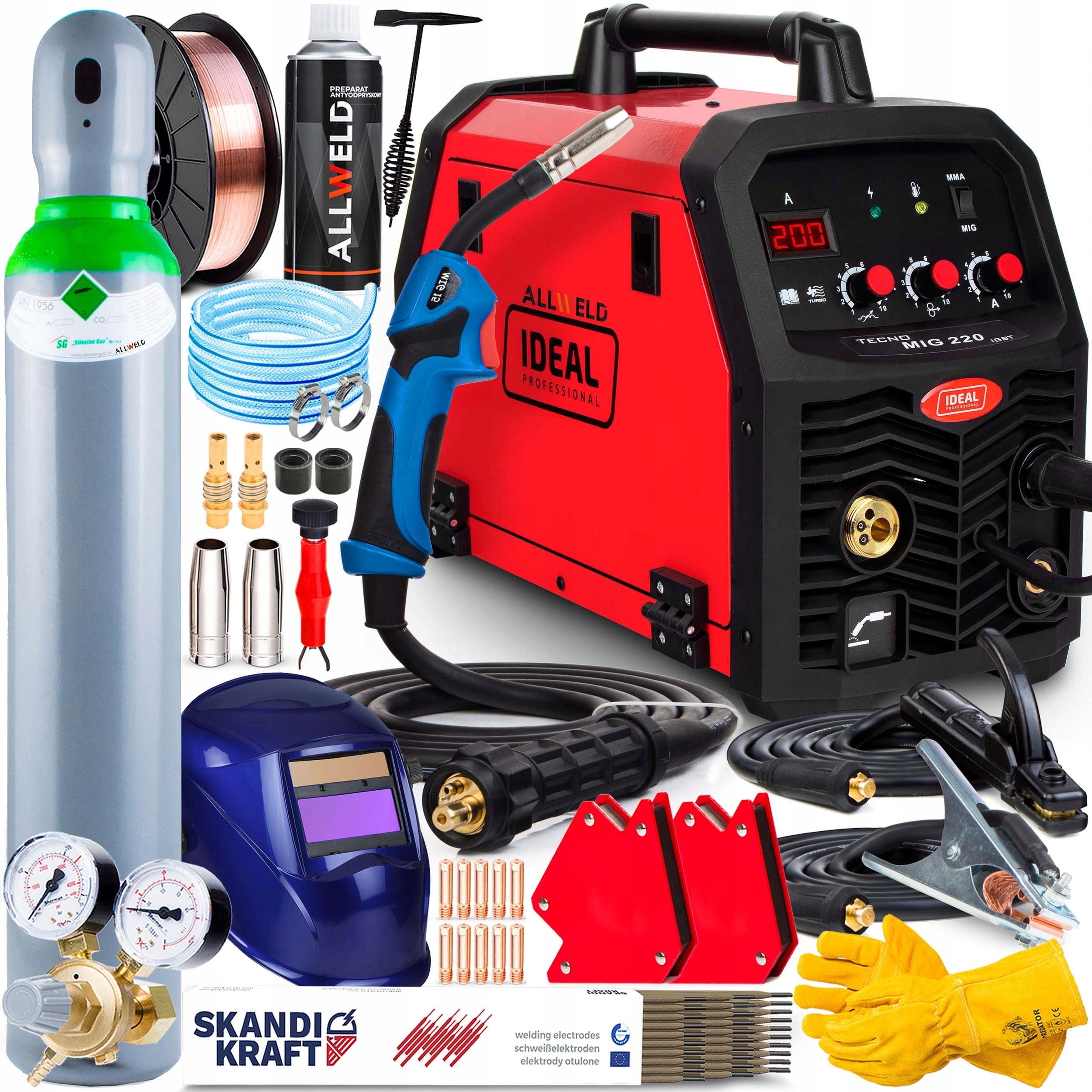

- Ideal Tecno MIG 220 MMA Digital
- Welding torch MIG/MAG type MB15 - 3 m
- Electrode holder - 2 m
- Bulk holder with clamp - 2 m
ADDITIONAL ACCESSORIES:
- Welding visor MAGNUM NOVA
- Bottle with gas mixture Argon/CO2
- Reducer cylinder Ar/CO2 MINI with two pressure gauges
- Welding wire SG2 0,8mm - 5kg
- Preparation anti-chipping ALLWELD
- Angle magnetic 11kg. - 2 pcs
- Electrodes SKANDI KRAFT - 1kg
- Flame-retardant gloves for welding
- Gas hose - 2m
- Clamp bands - 2 pcs
- Scraper for gas nozzles
- Hammer welding spring
+HANDLE CONSUMABLE PARTS:
- Gas nozzles - 2 pcs
- Current connectors - 2 pcs
- Ends current - 10 pcs
- Gas distributor - 2 pcs
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 5.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 10–220 A |
| Parametry | Height | 370 mm |
| Parametry | Length | 510 mm |
| Parametry | Width | 230 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 16 kg |
| Parametry | Manufacturer code | TMIG220V2 MAPR2-15-N |
| Parametry | EAN (GTIN) | 5905214999520 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA |
