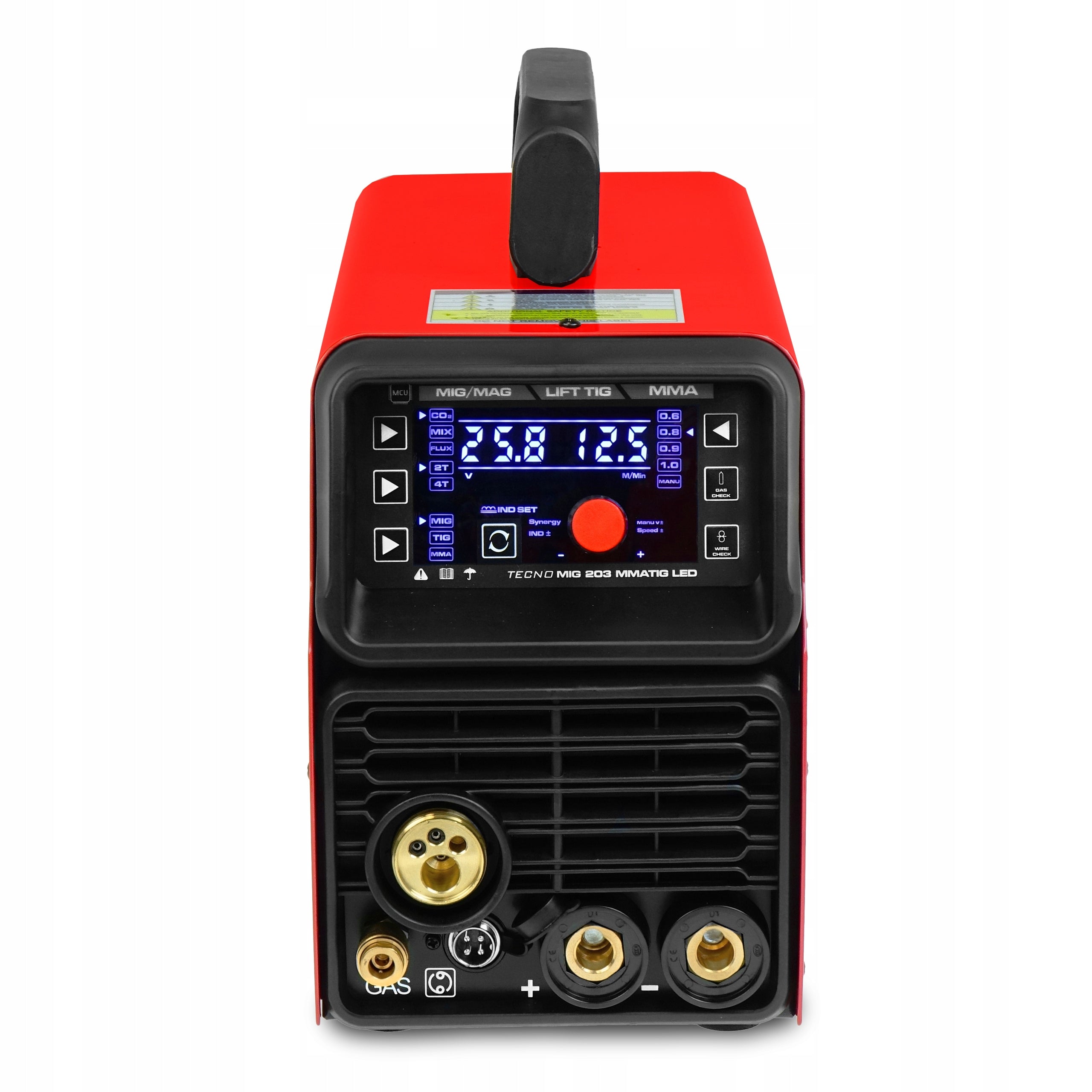

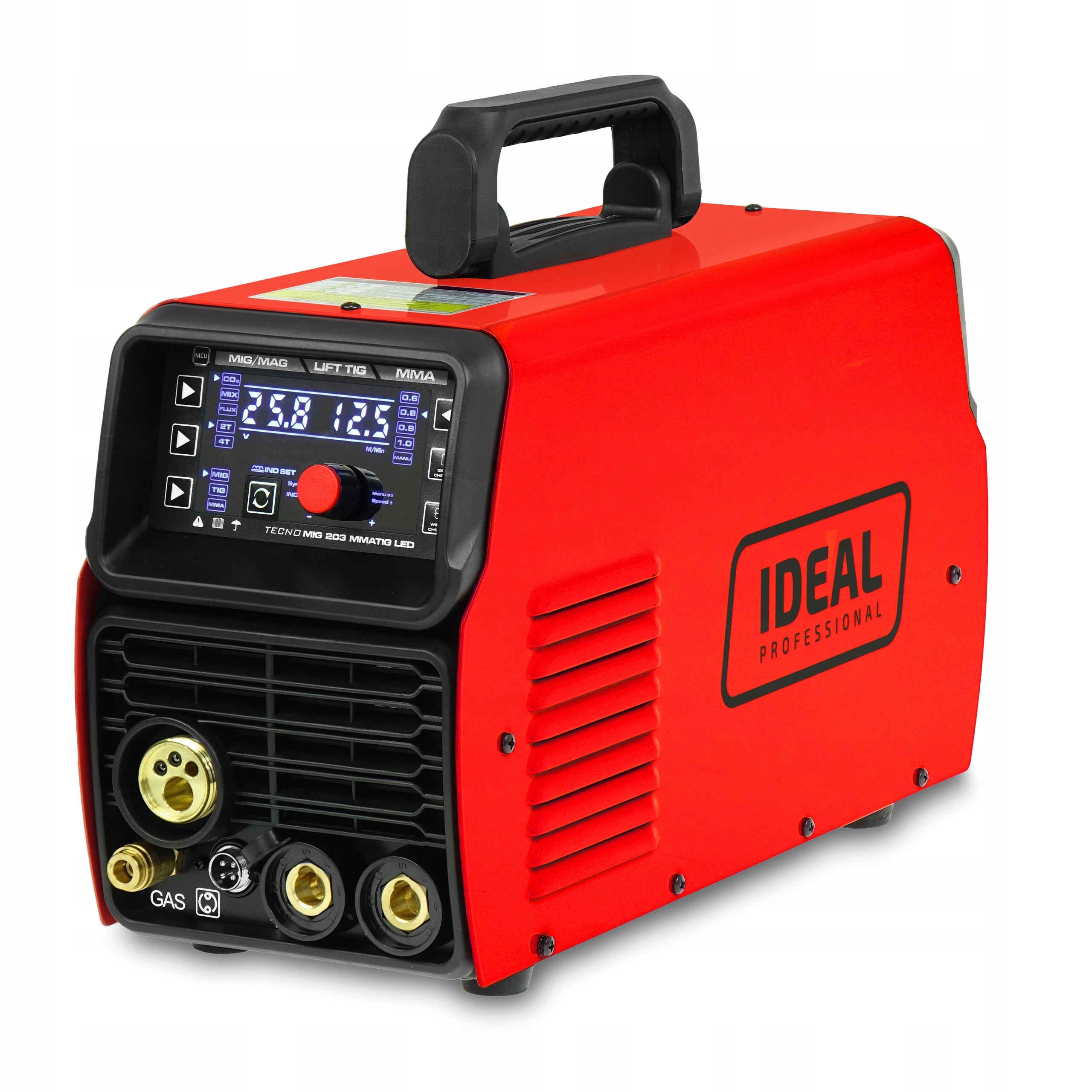

Suvirinimo aparatas IDEAL TECNO MIG 203 LED SYNERGY MMA TIG 200A 4T ALUMINIUM

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 203 LED SYNERGY MMA TIG 200A 4T ALUMINIUM. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TECNO MIG 203 LED
• Ilgis: 440 mm
• Plotis: 170 mm
• Aukštis: 290 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG LIFT, FLUX, Soldering ║ Power supply: 230 V ║ Welding current: 200 A ║ Efficiency: 60 %

─ ...

By buying from us, you gain ⭐ ENGINEER SUPPORT ⭐, which can be envied by the competition!

In our store, buying a welding machine is just the beginning! Because we know that a wise choice is not only a matter of the lowest price, but also of certainty and support after the transaction. It is a comprehensive solution with invaluable after-sales support, which is in vain to look elsewhere.

🧠CHOOSE WISELY 🧠

⏬ See details below ⏬

────────────────────────────────────────────────────────────────────

• Designed for welding a variety of metals, from low carbon steel and low alloy, through stainless steel and acid-resistant, to aluminium alloys
• Synergy automatically selects wire feed based on wire diameter and gas type. Especially useful for novice welders.
• Lutowelding is particularly useful when combining galvanized sheets and thin materials (repair of car bodies). Most importantly, the lower operating temperature ensures that the galvanized layer remains intact. This means that the plate retains its anti-corrosion properties.
• Inductance adjustment allows you to set the “hardness” of the arc and the heat associated with it. The smaller the value, the more stable the arc, more heat, but also more chipping. At a higher value, the arc is less stable, the heat is less, and the amount of chipping decreases. Prevents is also deformation of thin welded materials.
• Professional 2-roll wire feeder
• Manual mode for experienced welders who prefer full control over the welding process. Allows independent selection of all parameters

• FLUX - arc welding with powder wire, not requiring the use of gas cylinders. The wire itself is filled with flux or a chemical that produces protective gases during welding.
• 2T/4T increases the convenience and flexibility of work. In two bars, welding is carried out as long as you hold the button in the handle. At four bars, pressing and releasing the button starts welding and ends the process the same way the next time you press and release the button.
• Hot Start increases the welding current for a fraction of a second at the moment of arcing.
• Arc Force automatically regulates welding current depending on arc length.
• VRD reduces the idle voltage on the electrode to a safe value.
• Compact i solid construction – only 12 kg weight, 230 V power supply and durable housing, ready to work in all conditions
• Simple and clear control panel

Ideal Tecno MIG 203 MIG/TIG/MMA Synergic LED is a compact, versatile 3in1 device that will revolutionize the work in your workshop. Thanks to intelligent synergy, intuitive control and the possibility of welding with three methods (MIG/MAG, TIG Lift, MMA), it is an ideal choice for hobbyists and professionals performing maintenance work.

Ideal TECNO MIG 203 Synergic LED is suitable for:

• Automotive and flashing workshops (welding thin sheets, soldering).
• Locksmith and assembly work (light structures, barriers).
• Households and agriculture (repair of equipment, DIY).
• Field work (thanks to the FLUX and MMA method).

It is a universal device, which thanks to synergy is beginner-friendly, and thanks to manual mode and inductance adjustment will also satisfy more demanding users.

────────────────────────────────────────────────────────────────────

Matthew J. ⭐⭐⭐⭐⭐

"Welding beautifully! For the amateur - mega recommend! Easy operation and solid workmanship. "

Victor T. ⭐⭐⭐⭐⭐

"The eye works flawlessly."

Paweł P. ⭐⭐⭐⭐⭐

"I am a welder and this welder wins price and quality! 🏆 In the home workshop it is doing great. I recommend 100%! ✅"

────────────────────────────────────────────────────────────────────

In our store, buying a welding machine is just the beginning! We want you to fully use its potential, which is why each customer after purchase, giving the number of their order, receives access to an individual consultation with our experienced welding engineer!

How to use the dedicated support of the Engineer?

1. 📞 Contact us!
2. # Enter your order number: This is the key that will open the door for you to talk to our expert.
3. 🧯 Prepare questions: Think about what you need help with – whether it is the first start-up, selection of parameters for a specific project or advanced welding techniques.
4. 💬 Talk directly to the Engineer: Our specialist will take the time to answer your questions, help you set up your welding machine and share practical tips.

Why is our Engineer Support MORE than just a phone call to the store?

• ✅ Expert on the other side: After verifying your order number, you can be sure that you are talking to an experienced welding engineer and not just general customer service. This is a practitioner with in-depth technical knowledge.
• ⌚ Focused attention on your needs: This is not a rushed answer. Our engineer will take the necessary time to understand your problem or question and provide comprehensive assistance.
• 🔍 Tailor-made consulting: The assistance is tailored to your level of advancement and specific applications of the welding machine in your projects – from minor repairs to more complex structures.
• 🚀 Faster results, fewer errors: Instead of long searches and trial and error methods, you get professional tips that will allow you to achieve the intended results faster and avoid costly mistakes.
• 💡 Solutions for unusual challenges: The general hotline may not be enough for more complex issues. Our engineer will help you with unusual problems or advise you on advanced welding techniques.

With us you can be sure that your investment in a welding machine will bring the best results, and you will gain a partner ready to support you at every stage of work! 🏅😎

POWER SUPPLY PARAMETERS

• Power supply: 230 V
• Number of phases: 1 ph
• Frequency: 50 / 60 Hz
• Power protection: 25 A type C

TECHNICAL PARAMETERS

• MIG/MAG welding current: 50 ÷ 200 A
• MMA welding current: 10 ÷ 160 A
• TIG welding current: 10 ÷ 200 A
• Aluminum wire diameter: 0,8 - 1,0 mm
• Diameter of soldering wire: 0,8 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,6 - 1,0 mm
• Diameter of welding electrode: 1,6 - 4,0 mm
• Degrees of welding current adjustment: Gradually
• Idle voltage: 50 V
• Efficiency: 60%
• Feeder: 2R
• Max. Spool size: 5 kg
• Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm

PHYSICAL PARAMETERS

• Housing protection: IP21
• Cooling: Fan
• Weight: 12 kg
• Dimensions: 440 x 170 x 290 mm

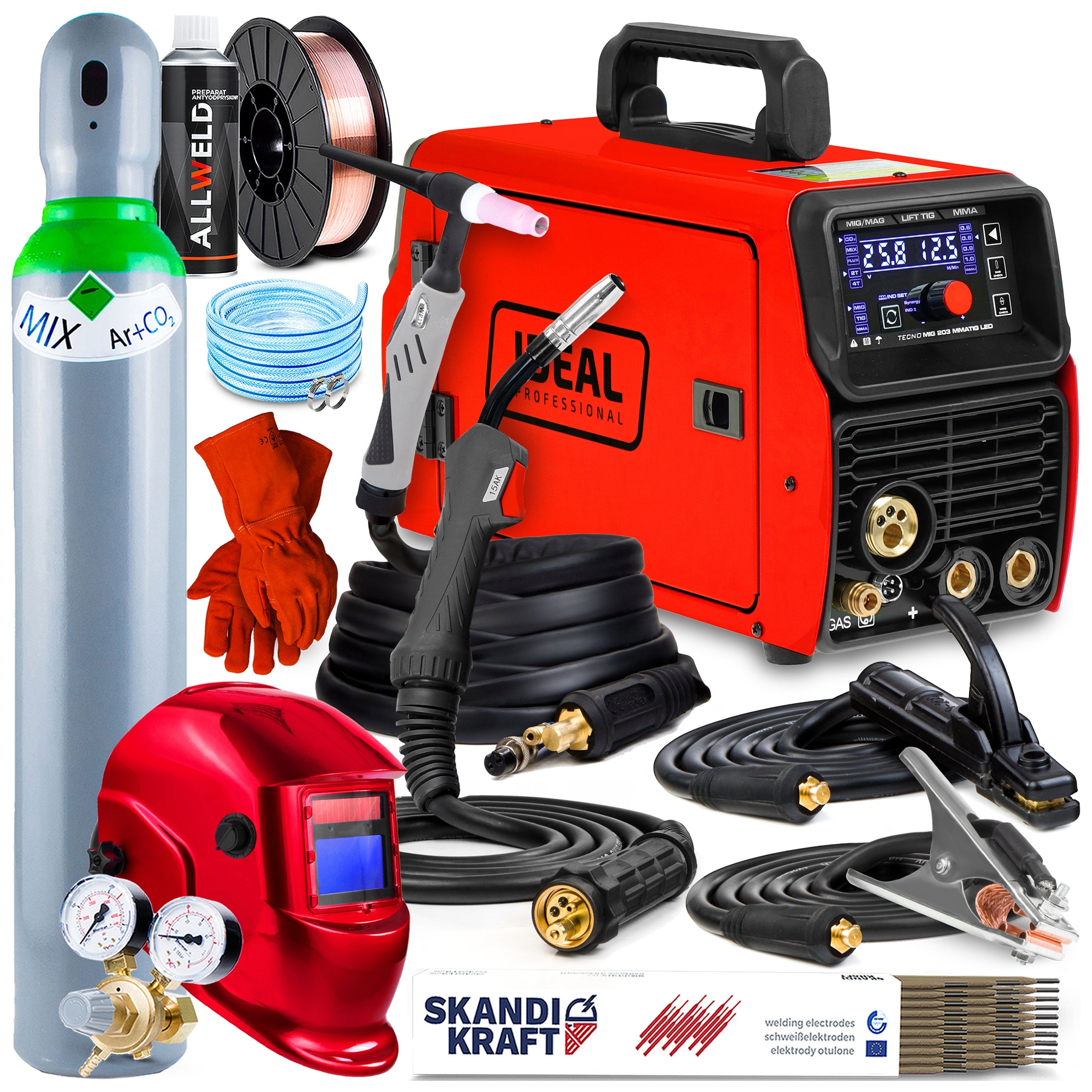

• Ideal TECNO MIG 203 LED SYNERGIC
• Welding torch MIG/MAG type MB 15 - 3 m
• Welding torch TIG type SR 17 - 4 m
• Electrode holder - 3 m
• Bulk holder - 2 m
• User manual in Polish

ADDITIONAL ACCESSORIES:

• Visor self-tinting
• Cylinder with gas mixture Argon/CO2
• Cylinder reducer Ar/CO2 MINI with two pressure gauges
• Welding wire SG2 - 5 kg
• Anti-chipping preparation ALLWELD
• Gas connection hose - 1 pcs
• Clippers - 2 pcs
• Electrodes SKANDI KRAFT 1 kg - 1 pc
• Gloves welding - 1 pair
