Suvirinimo aparatas IDEAL TECNO MIG 200 PULSE LCD MIG/TIG/MMA SYNERGIC ALU

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL TECNO MIG 200 PULSE LCD MIG/TIG/MMA SYNERGIC ALU. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG200P
• Ilgis: 590 mm
• Plotis: 250 mm
• Aukštis: 455 mm

IDEAL TECNO MIG 200P PULSE LCD MIG/TIG/MMA SYNERGIC ALU

TMIG200P code

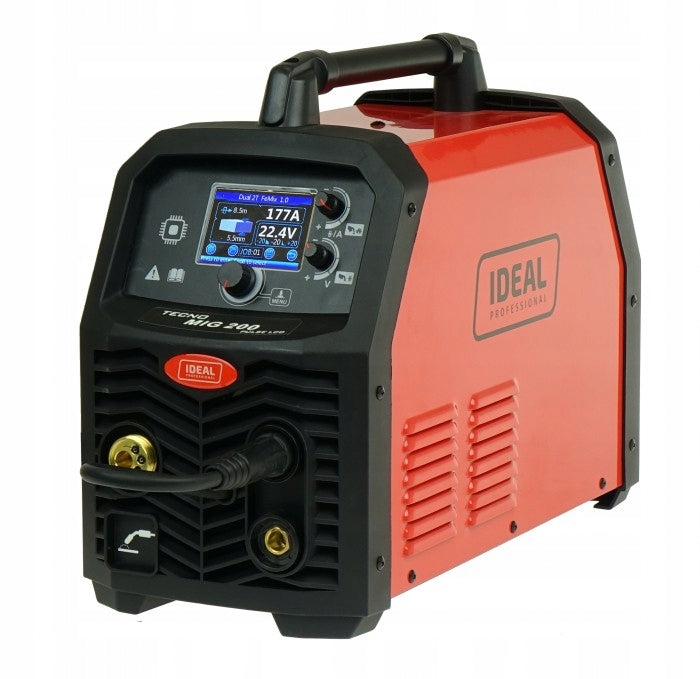

ECNOMIG 200P PULSE is an inverter synergistic semi-automatic welding machine designed for MIG/MAG, MMA, TIG Lift arc welding and soldering of galvanized sheets. The device is designed for use in professional use.

The device has three synergistic MIG/MAG welding modes: MIG, MIG PULS, MIG DOUBLE PULS.

TECNOMIG 200P PULSE is used for welding aluminum and its alloys, stainless steel, carbon and low alloy steels and soldering galvanized sheets. Welding is carried out in an inert gas shield, active or mixture depending on the program selected on the control panel.

Set parameters manually or choose one of 52 synergistic MIG/MAG programs for welding: AlMg, AlSi, Al99,5, CuSi3, CuAl9, 308LSi, 316LSi and FE.

Thanks to the MIG pulsation, the amount of heat introduced into the welded element is increased. It is possible to obtain a better weld, regardless of the welding position and reduce the amount of spatter.

Both with the MIG method and the MIG PULS we have the ability to choose the button function in the handle between work in Spot mode (point welding), 2-bar and 4-bar (button lock for long welds).

The welding parameters recording function (35 slots) makes it easy to work on various materials without having to re-adjust the device when changing gas and wire.

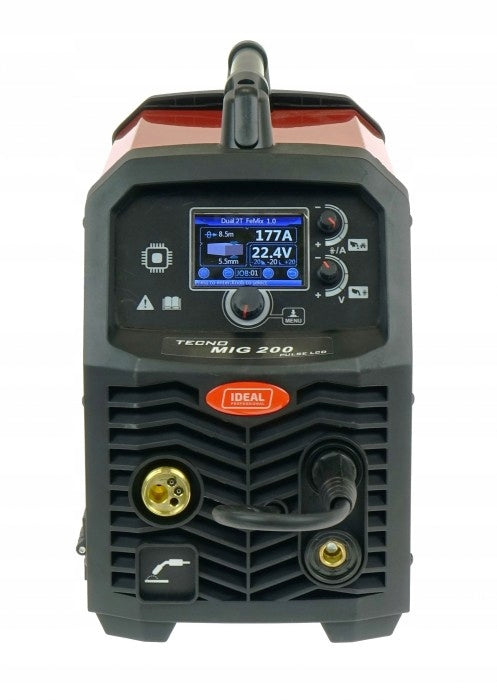

The clear and easy-to-use LCD display allows precise adjustment of MIG welding parameters such as:

• regulation of inductance
• regulation of current rise and fall (S2-bar, S4-bar)
• regulation of initial and final current
• regulation of wire burning and access
• voltage regulation at pulsation (peak)
• regulation of frequency and pulse cycle
• regulation of gas outflow time before and after welding?
• regulation of point weld time (SPOT) and interval between successive welds (CSPOT)
• regulation of frequency, cycle and pulse current in TIG LIFT

The welder also has functions to facilitate the MMA welding process with a wrapped electrode:

MMA PULSE: pulsation adjustment allows for higher weld quality and less chipping and welding dust by controlling the temperature and density of the welding current.

ARC FORCE: short-circuit current adjustment (manual) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake

HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.

ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc

VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

Physical parameters

The device has a fan cooling system which definitely increases its efficiency.

The device is equipped with overload protection, which increases its reliability.

Power supply parameters

Single-phase power supply 230VThe device is equipped with a power plug.

Equipment

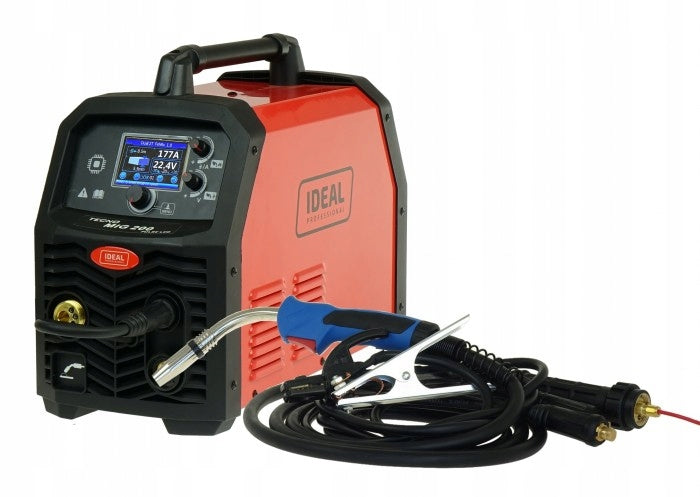

The delivery includes a device with a professional MIG 24 welding torch with a length of 3 meters armed under aluminum, an electrode cable with a length of 2 meters, a mass cable with a length of 2 meters, rollers feeding wire 1,0-1,2 to aluminum and 0,8-1,0 to steel.

Protection of the power supply network C25A

Rated supply voltage 230 V; 50Hz (1ph)

Power 6,5 kW

Idle voltage 71 V / 13 V (VRD)

Maximum current 200 A

Current at work 100% 160 A

Operating current 60% 200 A (MIG) / 180 A (TIG/MMA)

Diameter of aluminum wire 0,8 - 1,2 mm

Wire diameter for soldering 0,8 mm

Diameter of self-shielding wire 0,8 - 1,0 mm

Steel wire diameter 0,6 - 1,0 mm

Stainless steel wire diameter 0,6 - 1,0 mm

Welding electrode diameter 1,6 - 4,0 mm

Welding current adjustment range 28 - 200 A (MIG) / 16 - 200 A (MIG PULS) / 5 - 200 A (TIG/MMA)

Wire spool size D100 (0,45kg and 1kg), D200 (2kg and 5kg)

Degree of protection IP 23S

Weight of the device / set 12,5 / 16 kg

Overall dimensions L x W x H 510x230x370 mm

Package dimensions L x W x H 550x250x385 mm



Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.7 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	12 kg
Parametry	Welding range	40.00–197.00 A
Parametry	Height	455 mm
Parametry	Length	590 mm
Parametry	Width	250 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	200 cm
Parametry	Product weight with unit packaging	12 kg
Parametry	Manufacturer code	TMIG200P
Parametry	EAN (GTIN)	5903991101921
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,LCD display
