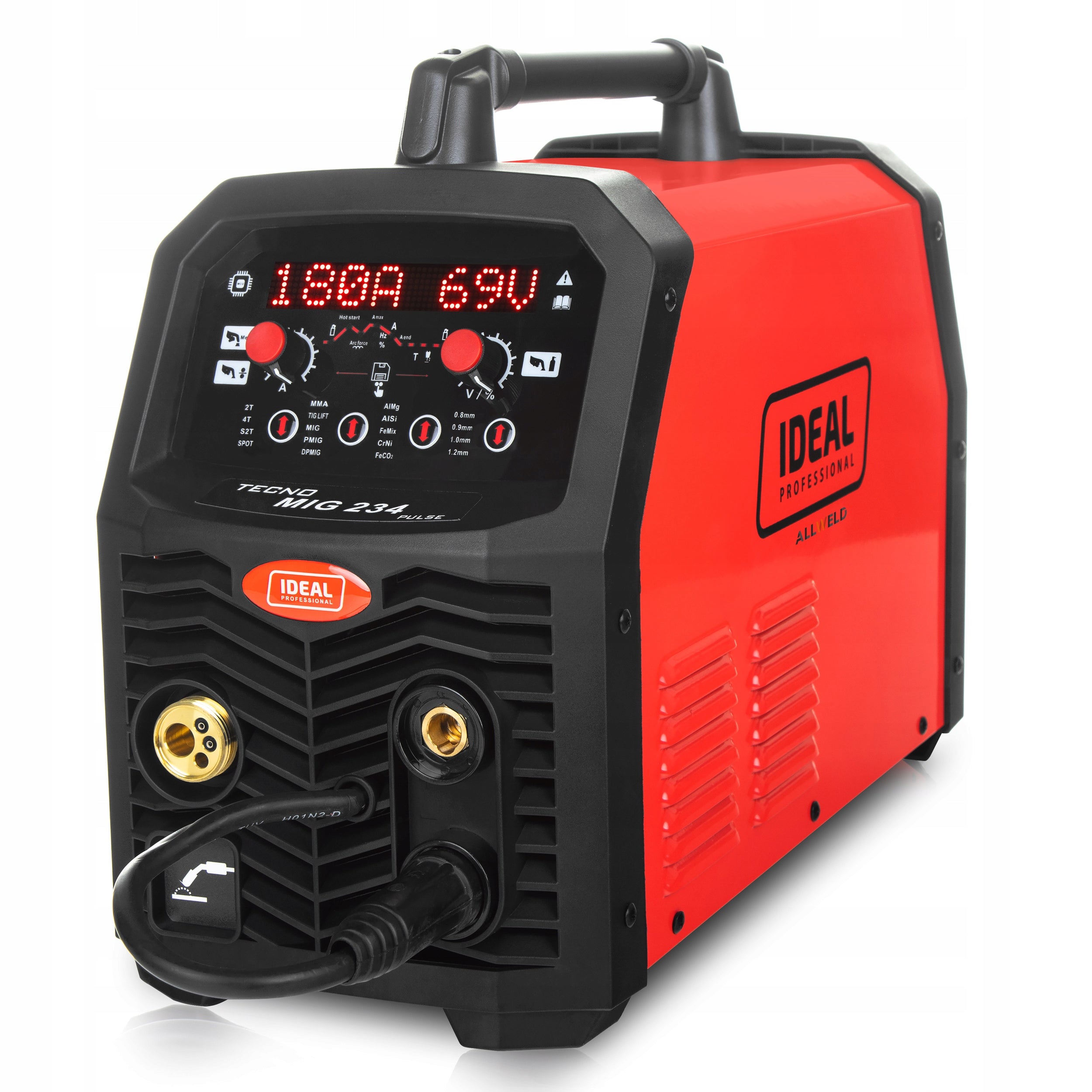

Suvirinimo aparatas IDEAL MIG 234 PULSE MAG MMA TIG SYNERGY ALUMINIUM 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL MIG 234 PULSE MAG MMA TIG SYNERGY ALUMINIUM 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: MIG 234
• Ilgis: 510 mm
• Plotis: 230 mm
• Aukštis: 370 mm

Manufacturer: IDEAL ║ Welding methods: MIG/MAG, MMA, TIG DC, FLUX ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

DISCOVER ALL THE ADVANTAGES OF THE IDEAL WELDING MACHINE

• Working in three methods: MIG MAG, MMA, TIG DC
• Welding with current 200A in cycle 60%
• Working with PULS and Dual PULS
• Easy-to-use soft control panel
• 4-roller feeder - gives you the opportunity to work with long handles up to 5 meters !
• Excellent synergic programs for black steel, stainless steel, aluminium
• Point welding
• 2T/4T mode
• Special S2T mode
• Welding without gas in the FLUX method
• 10 memory channels to save our settings
• ARC FORCE with regulation
• HOT START mode with adjustable
• Overload protection
• Excellent equipment for professional work
• Adjustable inductance
• Burn back - wire burning

O DO YOU GAIN BY CHOOSING A DOUBLE PULSE WELDING MACHINE?

• Excellent weld quality even at high efficiency
• The welder produces two currents, between which jumps - this translates into the appropriate shape of the weld
• Increased work efficiency compared to TIG
• High level of appearance face - husk effect
• Lower costs of work
• Regulation of gas outflow before and after welding
• Modification of frequency, balance, peak current, base current and descent current.

FULL DOUBLE PULSE CONTROL ALLOWS US TO PERFECTLY ADJUST THE WELDING MACHINE TO OUR NEEDS

The IDEAL welding machine is a multifunctional migomat that allows welding using the MIG/MAG, MMA and TIG LIFT methods. The device uses a soft control panel and synergistic mode, which significantly simplifies operation and allows for use by people with little experience.

The device allows welding with a maximum current of 200A with an efficiency of 60%. Such current allows you to obtain 5mm of melting at a time, which translates into welding elements up to 10mm thick. The welder has been made in inverter technology, thanks to which it is possible to smoothly adjust the welding current every 1A, a also guarantees the stability of the source and high resistance to interference or voltage drops.

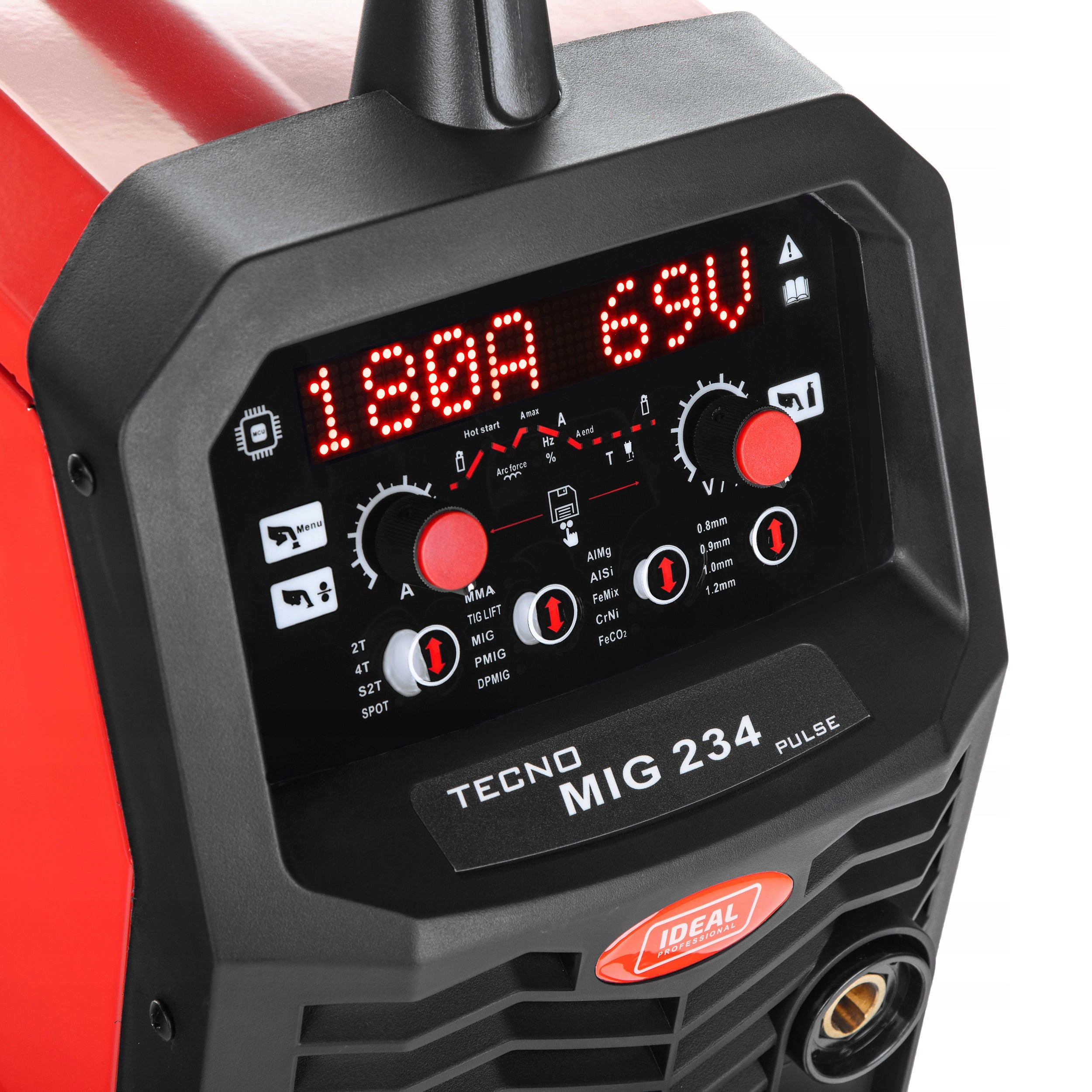

The device has synergic control, thanks to which the selection of parameters takes place automatically. Control of the device is carried out using two knobs and several buttons, Dedicated buttons select the appropriate method of operation, mode of operation. An additional advantage is a large display that perfectly shows all parameters.

SYNERGISTIC PROGRAMS OF IDEAL TECNO MIG 234 PULSE 4x4

• FeMIX - MAG welding of carbon steels in Ar/CO2 shield
• AlMg / AlSi - Welding of aluminium alloys with magnesium or silicon, by MIG method, in argon sheath.
• CrNi - welding of stainless steel sheets

Additionally, in AlMg / AlSi/ FeMix / CrNi methods, we can use the slingshot in PULS or DUAL PULS mode.

SPOT WELDING - point joining of elements with the possibility of setting the time and welding at the point

S-2T - two-bar operation mode with hot start, useful when welding materials that require preheating.

LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc.

2T/4T - at two bars after pressing the start button, the welding process takes place after releasing the button, the welding process is stopped - at four bars after the first press and release of the button, the welding process stops at the second press. This is a more convenient solution for longer welds.

MEMORY CHANNELS - The welding machine has a built-in settings memory, so we can save them and return to them at any time. This solution is helpful for people who have repeatability of cycles and do not want to re-set the welding machine every time.

BURNBACK precise regulation of wire end burning time. Eliminates the risk of welding wire sticking to the current tip

ARC FORCE “arch dynamics” – shortening the arc length is accompanied by an increase in welding current, which stabilizes the arc, regardless of its length.

POWER SUPPLY PARAMETERS

• Power supply: 230V
• Frequency: 50/60Hz
• Number of phases: 1ph
• Security required: 25A type C

TECHNICAL PARAMETERS

• MIG/MAG welding current: 20 - 200A
• MMA welding current: 5 - 200A
• TIG welding current: 5 - 200A
• Efficiency: 60%
• Idle voltage: 64V
• Type of feeder: 4R
• - Subwoofer Spool size: 5kg
• Spool diameters with wire: 200mm
• Wire diameter: 0.8/0.9/1.0/1.2mm

PHYSICAL PARAMETERS

• Housing protection class: IP23S
• Dimensions: 510 × 230 × 370 mm
• Weight: 16 kg

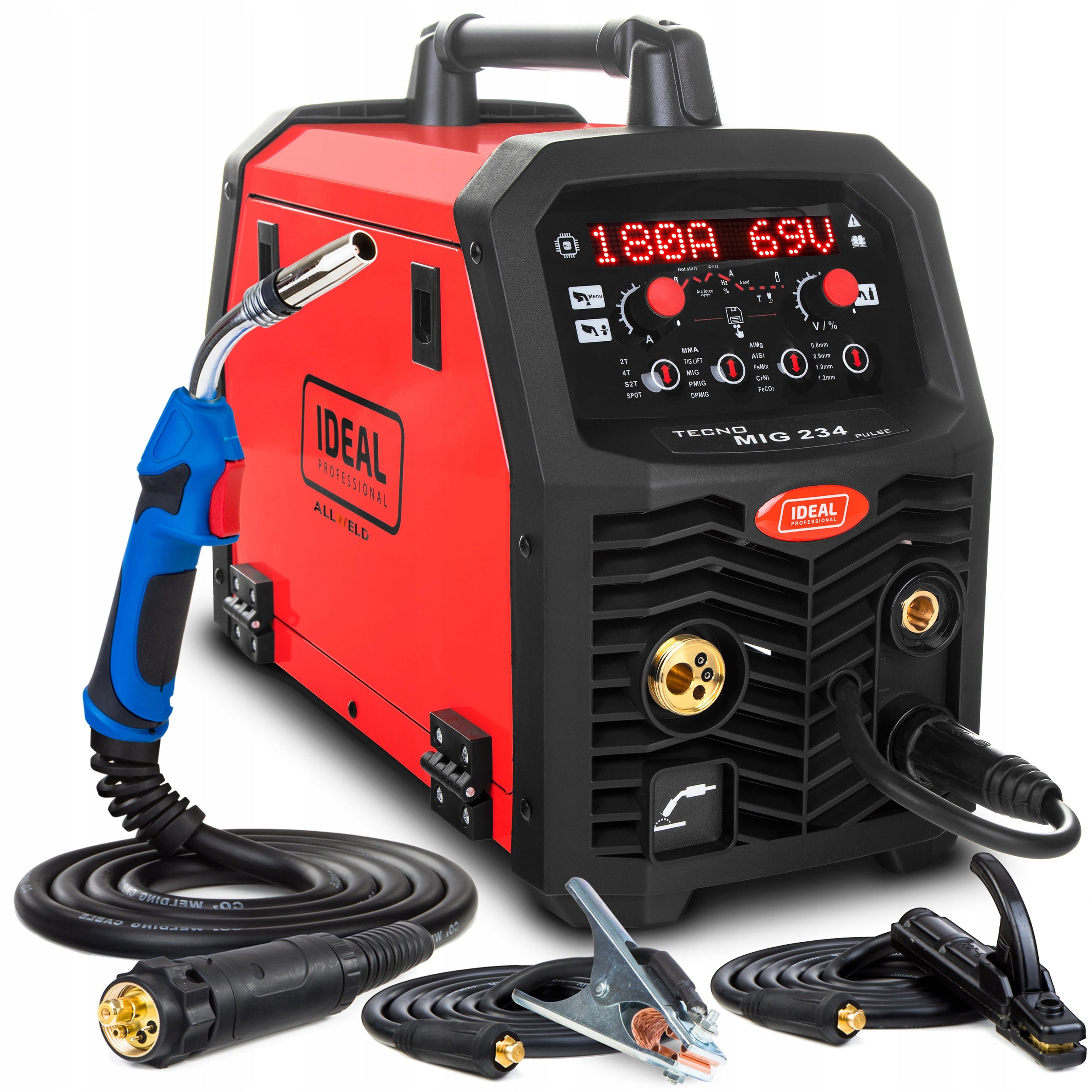

THE SET INCLUDES:

• Welding machine IDEAL TECNO MIG 234 PULSE 4x4
• Welding torch MIG/MAG type MB 24 - 3m
• Electrode holder - 2m
• Bulk holder - 2m
• Additional roll for wire feeder V 0,8/1,0mm - 1pcs
• Additional roll for wire feeder U 1.0/1.2mm - 1pcs
• User manual in Polish

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	6.53 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	16 kg
Parametry	Welding range	20–200 A
Parametry	Height	370 mm
Parametry	Length	510 mm
Parametry	Width	230 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	16 kg
Parametry	Manufacturer code	MIG 234
Parametry	EAN (GTIN)	5903991108425
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
