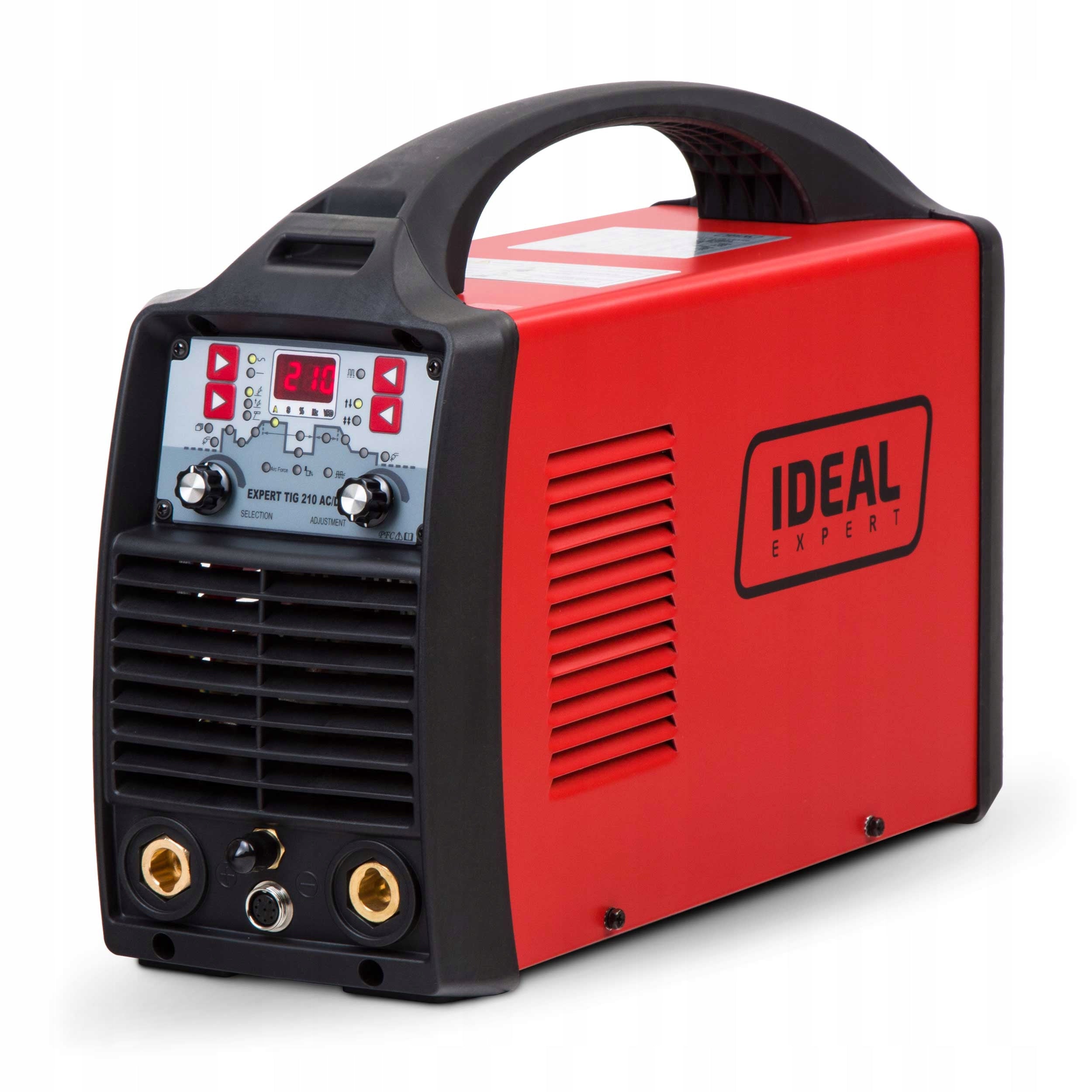

Suvirinimo aparatas IDEAL EXPERT TIG 210 AC DC PULS MMA 230V 210A HF LIFT IGBT PFC

Trumpai apie prekę

Prekė: Suvirinimo aparatas IDEAL EXPERT TIG 210 AC DC PULS MMA 230V 210A HF LIFT IGBT PFC. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXPERT TIG 210 AC DC
• Ilgis: 160 mm
• Plotis: 300 mm
• Aukštis: 460 mm

• Welding methods: TIG AC/DC, PULS, MMA, SPOT WELDING (TIG)
• Power supply: 230V
• Operating cycle 60% at maximum welding current 210A
• For welding: steel, copper, stainless steel, acids, aluminium, magnesium
• Contactless HF and tactile LIFT
• Smooth adjustment of welding parameters
• Settings memory - 10 memory channels
• Possibility to connect the pedal remote control
• Modes and functions: 2T/4T mode, TIG MIX, BI-LEVEL, PRE-GAS/POST-GAS, HOT START, ARC FORCE, VRD
• Clean, aesthetic welds
• Made in IGBT technology with PFC chip

✔ FEATURES AND ADVANTAGES:

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again; more convenient with longer welds,

• TIG MIX - combining the advantages of AC welding with DC current; welds are of very good quality on thin and thick materials,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• HF - contactless arc glow through built-in ionizer; uses high frequency current; the weld is free from tungsten contamination,

• PULS - welding of very thin elements, reducing arc linear energy and the risk of overheating/burning of materials; welds are better quality,

• SPOT WELDING - point joining of elements; allows for fast, precise, durable connections, minimizing deformation and wear of materials,

• HOT START - temporary increase in welding current during arc ignition; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• PRE-GAS/POST-GAS - protects the welding lake from the harmful effects of atmospheric air,

• BI-LEVEL - allows you to switch between two welding current values, without interrupting operation; used for aluminum, for greater temperature control of the material,

• PFC - stable operation for voltage drops,

• IGBT- bipolar transistors increase the efficiency and reliability of the device, ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Network security: 16A “C”
• Max. power consumption: 5.7kW
• Max. input current: 25A
• Effective input current: 14A
• Welding current: TIG DC: 3 - 210A | TIG AC: 5 - 210A | MMA: 10 - 170A
• Idle voltage: TIG: 60V | MMA (VRD): 13.2V
• Diameter of electrode: 1.6 - 4.0mm
• Protection rating: IP23 "F"
• Dimensions: 43 x 16 x 30 cm
• Weight: 11.5kg

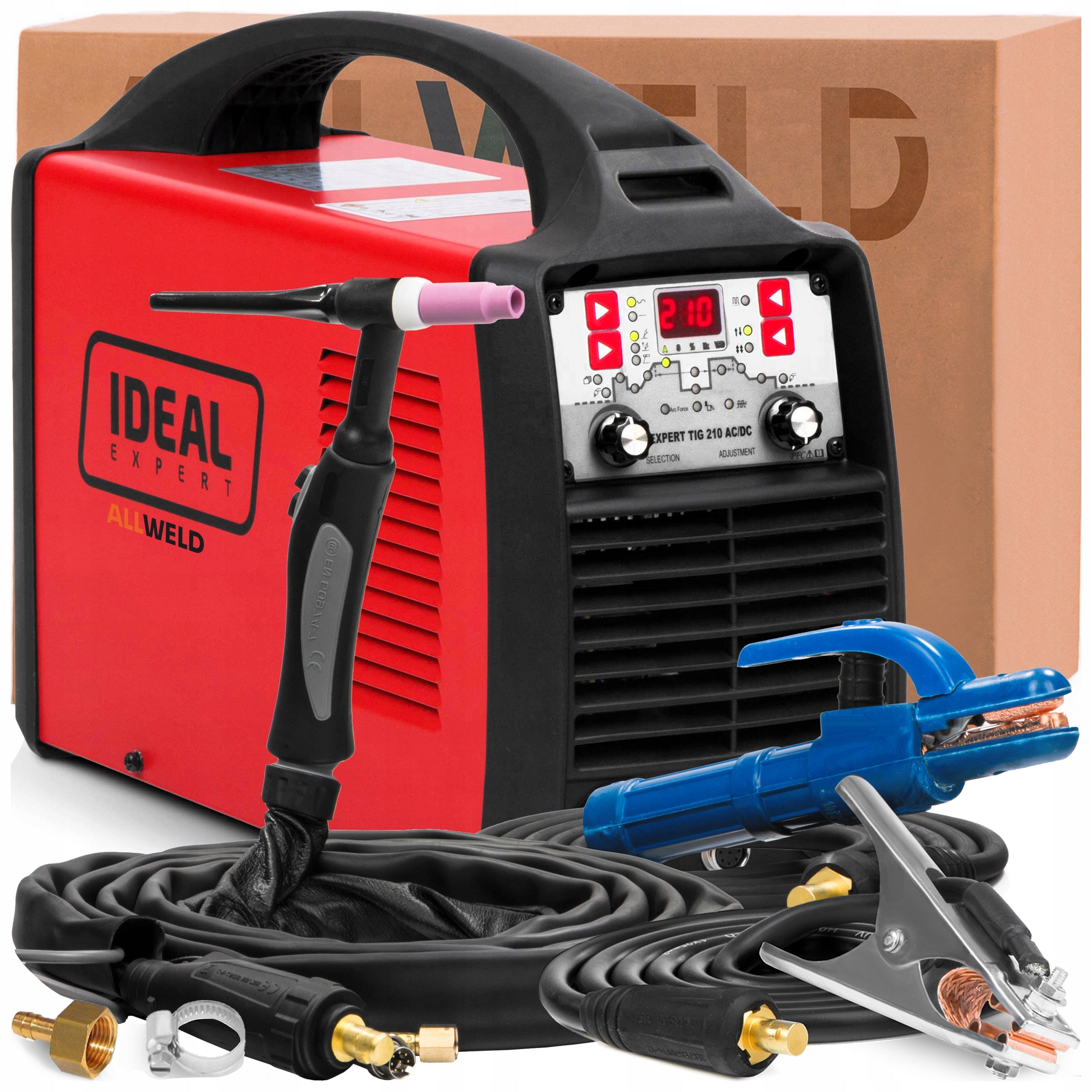

THE SET INCLUDES:

• Welding machine IDEAL EXPERT TIG 210 AC/DC,
• Welding torch TIG type SR26 - 4m,
• mass handle - 3m,
• electrode handle - 3m,
• Clamp band - 1pcs ,
• Hose connector - 1pcs ,
• Operating parts of the handle (long stopper, nozzle, bushing, connector),
• User manual and warranty card.
