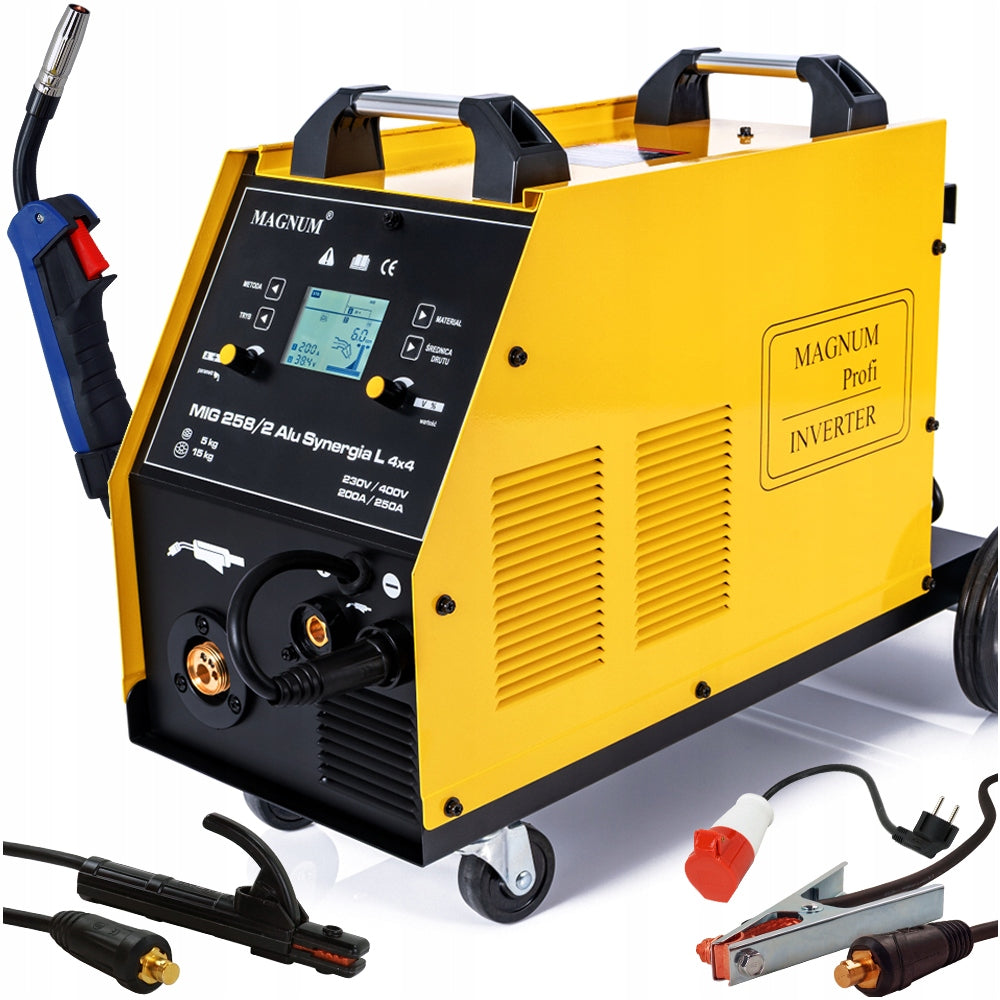

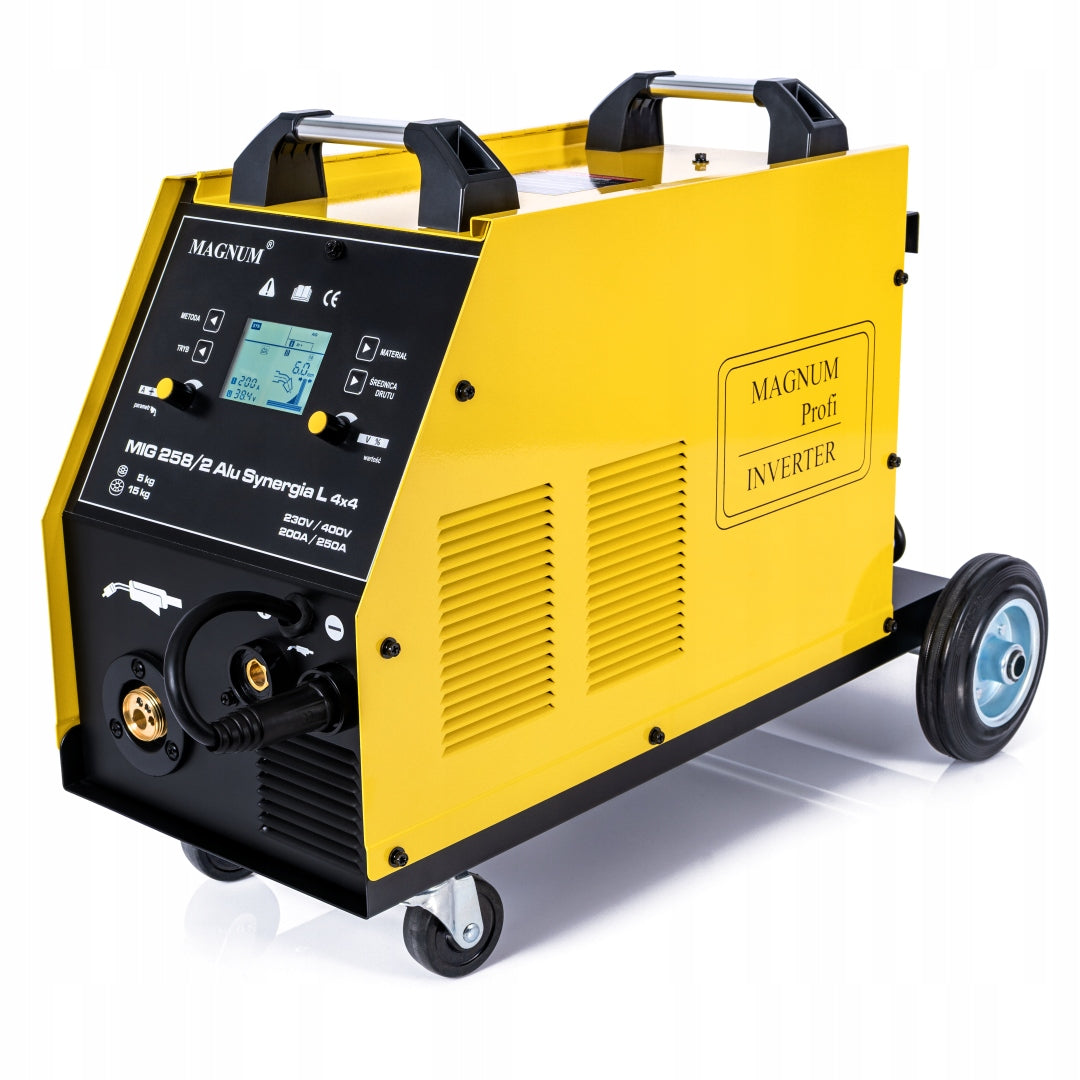

Suvirinimo aparatas 250A Magnum MIG 258/2 MMA synergy 230V/400V 4R 2T 4T S4T

Trumpai apie prekę

Prekė: Suvirinimo aparatas 250A Magnum MIG 258/2 MMA synergy 230V/400V 4R 2T 4T S4T. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: Spawarka MIGOMAT MIG MAG MMA TIG 3W1 PODAJNIK 4X4
• Ilgis: 760 mm
• Plotis: 290 mm
• Aukštis: 530 mm

✅smooth adjustment of all welding parameters,

✅synergy - built-in synergy programs Fe, AlMg5, AlSi5, CuSi3,CuAl8, E308, E316

✅Functions 2T/4T/S4T,

✅ adjustable wire access speed,

✅ adjustable wire burning height (BURN BACK),

✅ regulation of the initial current value (HOT START),

✅regulation of gas outflow time after welding,

✅ adjustable spot welding time,

✅regulation of the final current (crater filling)

✅regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,

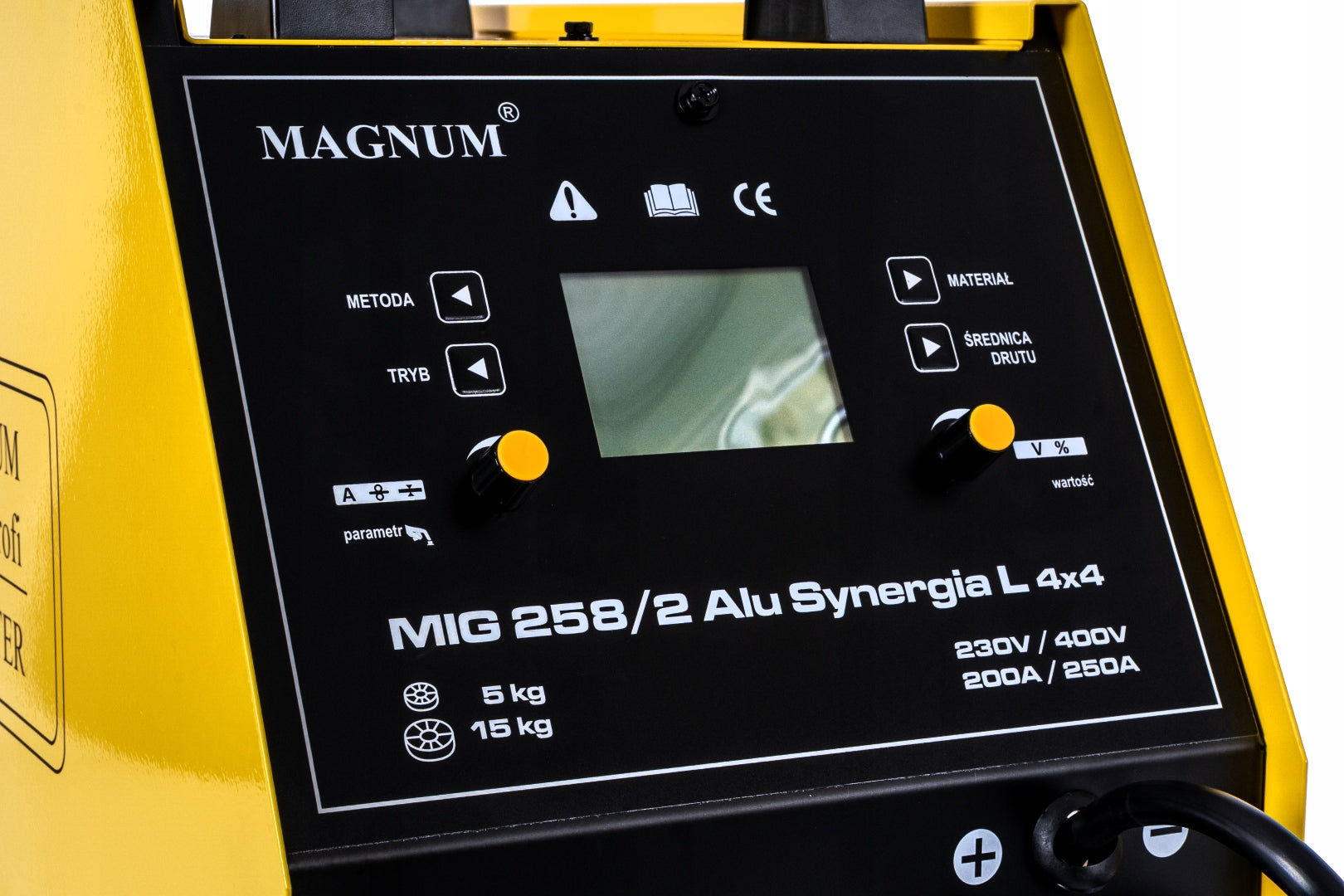

✅readable LCD display, showing all parameters,

✅ TIG DC Lift welding capability,

✅ MIG spot welding,

✅ chassis,

✅solid metal feeder 4x4.

⏩WHAT WILL YOU FIND IN THE PACKAGE?

✔ Welding machine MAGNUM MIG 258/2 Alu Synergy L 4x4

✔ MIG MB 15 welding torch - 3m

✔ Bulk cable

✔ MMA electrode cable

✔ User Manual PL

➡ Reduction / power adapter from 400V to 230V

➡ Teflon insert for wire 1,0/1,2 (in working handle)

➡ Feed rollers for steel 0,8/1,0

➡ Feed rollers for aluminium 1,0/1,2 (mounted in feeder)

MAGNUM MIG 258 ALU SYNERGY L 4×4 is an advanced welding device designed for professionals and demanding workshop users. The welding machine is designed for manual, electric MIG/MAG, MMA, TIG LIFT, FCAW and spot welding, as well as for solder welding. Powered by 230V or 400V.

The device allows welding of all weldable metals and their alloys, including low- and high-alloy carbon steels, stainless steels, aluminum, copper and their alloys. The use of modern IGBT transistors translates into high efficiency, reliability, reduction of electromagnetic interference and lower electricity consumption.

⏩Useful features

The device has been equipped with advanced welding programs that increase work efficiency and improve the quality of welds:

⏩COLD WELD - a program designed for precise welding of thin sheets and small-thickness elements. It minimizes the amount of heat introduced, reducing the risk of overheating of the material, deformation and discoloration, which translates into an aesthetic and durable weld.

⏩FAST MIG - a mode that allows fast welding with deep melting and stable arc. It ensures high work efficiency while reducing the amount of chipping, which reduces post-processing time and improves operator comfort.

⏩Functions to improve work in the MMA method

• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.
• Arc Force: facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.
• Hot Start: facilitates the ignition of the electrode by providing more welding current with each arc.

⏩Advanced synergy mode

MIG 258 ALU SYNERGIA L 4X4 offers MIG/MAG welding in manual and synergistic mode, with ready-made programs dedicated to:

✅constant,

✅stainless steels,

✅aluminium,

✅lutowelding.

⏩Chassis with space for cylinder

The shielding gas cylinder is placed directly on the chassis of the device, which allows its full mobility within the workplace.

This solution allows you to move a complete welding source with gas without the need for additional transport trolleys.

The welding wire feeder performs one of the key functions in MIG/MAG welding machines. In Magnum devices, proven constructions are installed.

The MIG 250/2 DP Synergy uses a wire feeder with a 4-roll mechanism. Two guide rollers and two pressure rollers make an excellent team.

Stable feeding of welding wires of various types and the ability to work with MIG handles 3m/4m/5m.

Possibility of welding with self-shielding wire without gas.

⏩POWER SUPPLY PARAMETERS

• Power supply: 230V and 400V
• Technology: IGBT INVERTER
• Welding methods: MIG, MAG, MMA, FLUX, TIG DC LIFT
• Maximum welding current per 230V: 200A (MIG/MAG)
• Maximum welding current per 400V: 250A (MIG/MAG)
• Working cycle: 60%
• Network Security 230V: 25A C
• Network Security 400V: 16A C
• Net weight: 25kg

⏩ MIG/MAG welding parameters:

• Welding Current at 230V: 30 - 200A
• Welding Current at 400V: 30 - 250A
• Idle Voltage: 77V
• Wire diameter: 0,6/0,8/1,0/1,2mm
• Wire spool weight: max 15kg
• 2T/4T welding mode: YES
• Wire Feeder: Metal Professional 4R
• MIG/MAG welding polarity change: YES
• Synergy: YES (Fe, AlMg, AlSi, CuSi,CuAl, E308, E316)

⏩ MMA welding parameters:

• Welding Current at 230V: 20-170A
• Welding Current at 400V: 20-190A

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• SYNERGY - By setting the appropriate program or entering parameters, the device will independently select most welding settings, such as wire feed speed or appropriate voltage, according to the programmed data.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• INDUCTANCE - weld face width control and reduction of welding chipping,

• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

• S-4T - Four bars with HOT Start and end current (crater filling),

• LUTOSPELING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Magnum
Parametry	Power consumption	7.4 kVA
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	5 mm
Parametry	Wire diameter (mm)	0,8-1,2
Parametry	Device weight	25 kg
Parametry	Welding range	40–250 A
Parametry	Height	530 mm
Parametry	Length	760 mm
Parametry	Width	290 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	35 kg
Parametry	Manufacturer code	MIG MAGNUM 250/2 KPW2
Parametry	EAN (GTIN)	5904624042321
Parametry	Packaging status	original
Parametry	Model	Spawarka MIGOMAT MIG MAG MMA TIG 3W1 PODAJNIK 4X4
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Supply voltage (V)	230,400
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle,LCD display
