Sukamasis lazeris LAMIGO Spin Rotary 305, 500 m, su raudonu imtuvu RC300

Trumpai apie prekę

Prekė: Sukamasis lazeris LAMIGO Spin Rotary 305, 500 m, su raudonu imtuvu RC300. Kategorija: Optiniai nivelyrai.

• Gamintojas: Lamigo
• Modelis: SPIN 305

✅ Included:

• ➡ LASER SPIN 305 rotary laser
• ✔ Receiver with patch holder RC300
• ✔ Pilot
• ✔ Charger with USB cable
• ✔ Glasses
• ✔ Targeting disc
• ✔ Suitcase with contoured interior
• ✔ Instruction manual in Polish

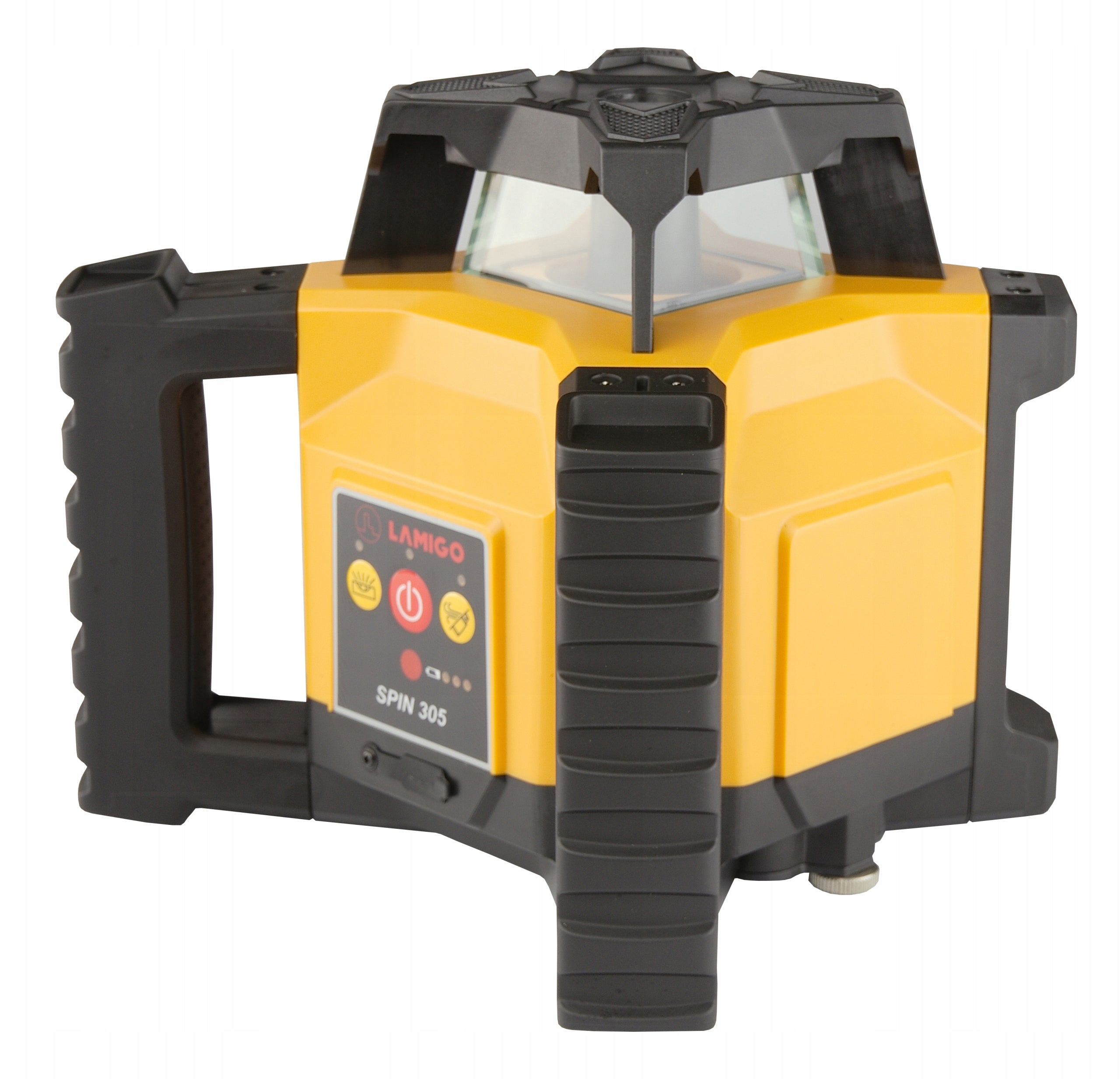

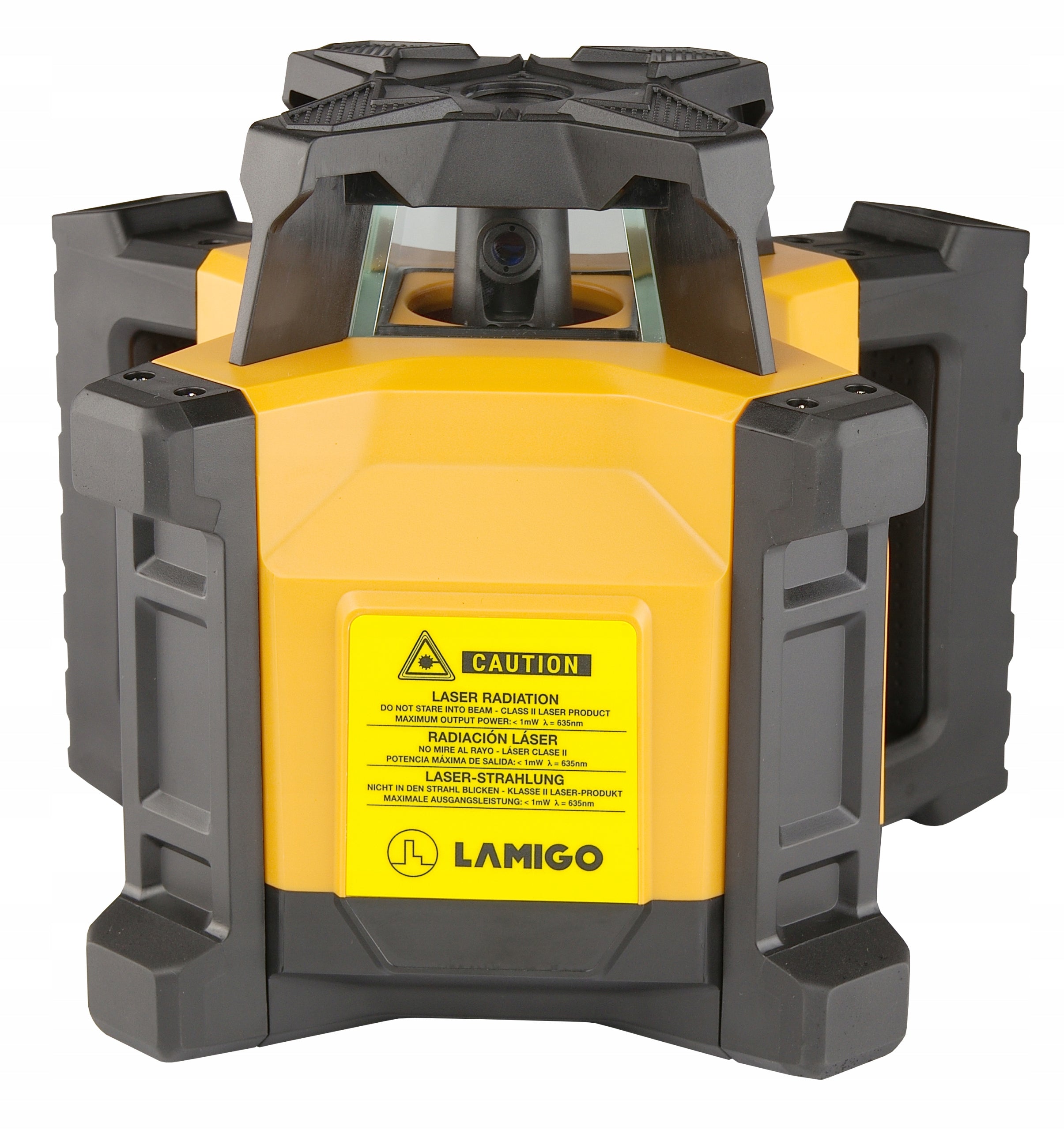

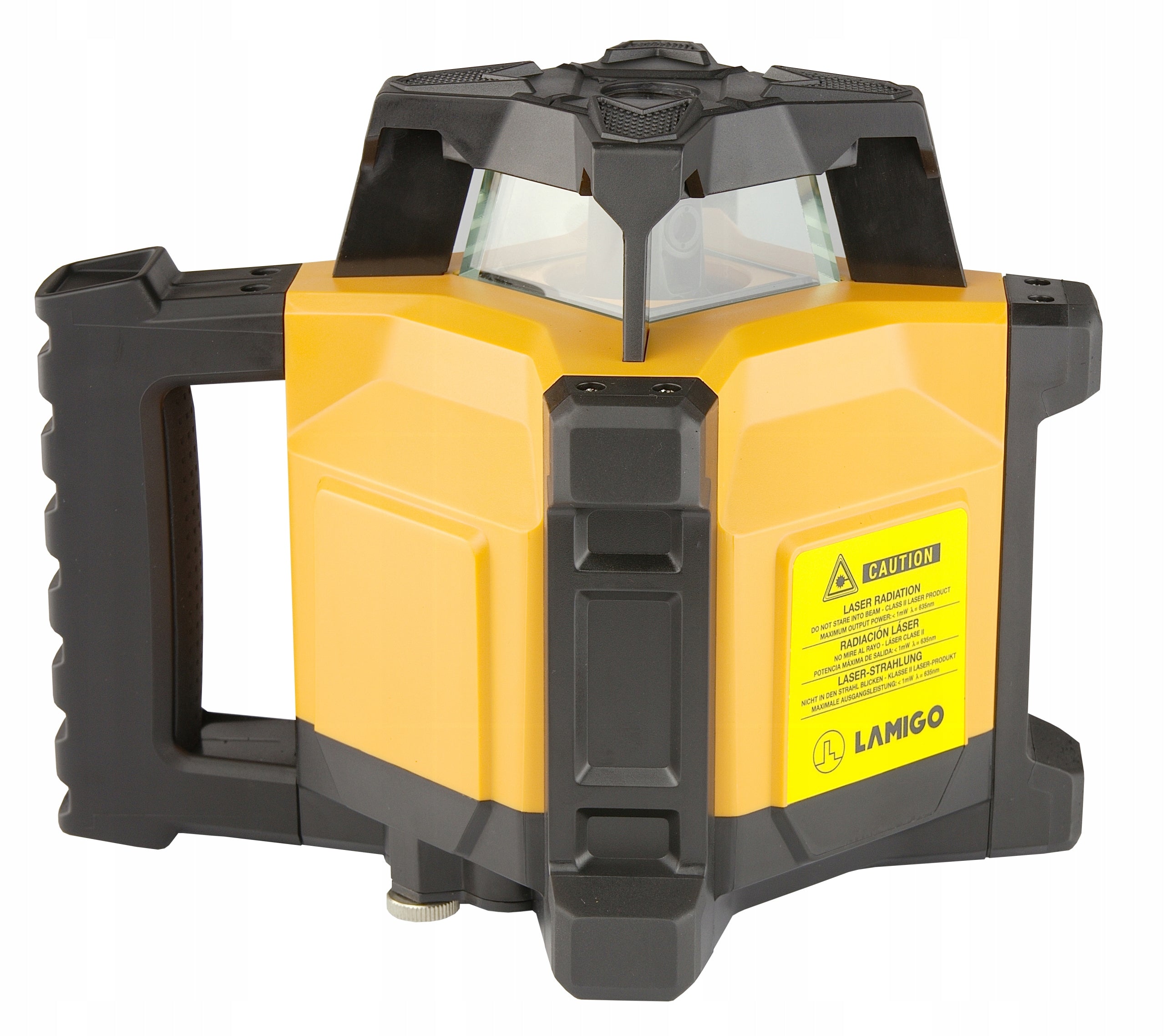

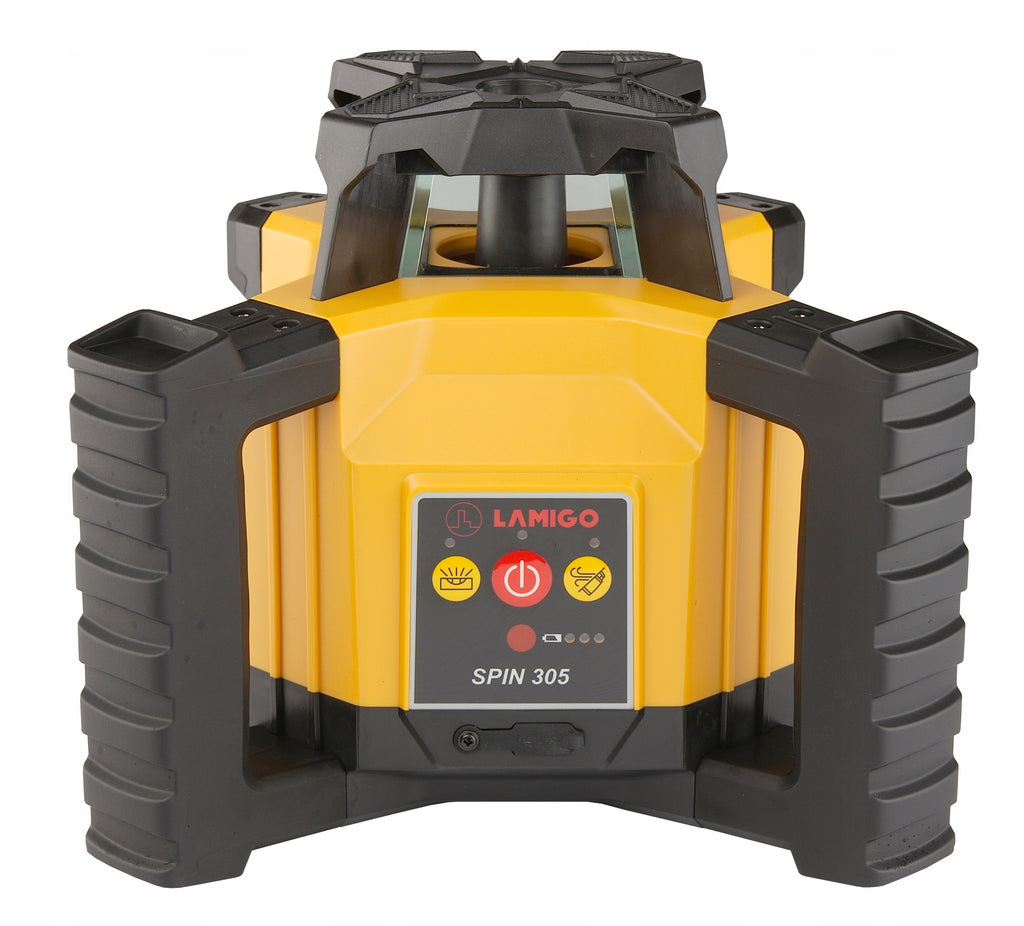

✅ Spin 305 rotary laser – precise leveling on any surface

➡ Automatic and precise leveling

• ✔ The Spin 305 rotary laser provides full leveling automation, which significantly facilitates its operation. The device allows you to quickly and accurately determine levels on large surfaces, working well in both construction and finishing works.

➡ Rugged and reliable construction

• ✔ Spin 305 is designed to work in harsh environments. Thanks to the IP54 tightness class, the device is resistant to dust and moisture, which allows for both indoor and outdoor use. The robust housing ensures durability and resistance to mechanical damage.

➡ Laser beam color: red

❗ We extend service life to 5 years ❗

✅ Advanced features for greater precision

• ✔ Drop function – the ability to set the slope to ±7% in both axes (X and Y).
• ✔ Rotation speed control – selectable 300 or 600 rpm /min depending on your needs.
• ✔ Wind function – reduces the impact of vibrations and shocks when working in open terrain.
• ✔ Scanning function – increases the visibility of the laser beam within a certain range, which facilitates work indoors.

✅ Ergonomic design and long working time

✔ Spin 305 is equipped with a 7.4V/2.6Ah Li-Ion battery, which provides up to 25 hours of continuous operation on a single charge. Thanks to its light weight (1,5 kg) and compact dimensions, the device is convenient to transport and use.

➡ Wide application

The Spin 305 rotary laser is suitable for various industries and jobs:

• ✔ Construction works – leveling, height control of screeds.
• ✔ Electrical installations – precise determination of assembly points.
• ✔ Interior finishes – installation of suspended ceilings, partitions.
• ✔ Laying paving stones – precise determination of slopes and levels.
• ✔ Land measurement – gardens, lawns, leveling of surfaces.

✅ Properties

• ✔ Visible laser beam
• ✔ Function determining inheritance
• ✔ Head tilt function up to ±5o (±7%) in both X and Y axes
• ✔ Two rotating speeds of the head
• ✔ Powered by Li-Ion battery
• ✔ Wind function
• ✔ scanning function
• ✔ Leak-proof class: IP54

✅ Technical data:

• ✔ Horizontal accuracy: ±1,0mm/10m
• ✔ Operating range: up to 500m with detector
• ✔ Laser: Red
• ✔ Head rotation: 300, 600 rpm
• ✔ Possibility of determining drops: ±7% in each axis, in total no more than 7% in both axes.
• ✔ Laser diode: Visible light, 635-650nm
• ✔ Compensator operating range: 5o
• ✔ Tripod socket: 5/8"
• ✔ Remote control range: about 20m
• ✔ Operating temperature: -20oC - +50oC
• ✔ Power supply: Li-Ion battery 7.4V/2.6mAh
• ✔ Working time between charges: about 25 hours
• ✔ Protection class: IP 54
• ✔ Dimensions: 244×200×177mm
• ✔ Weight: 1,5kg

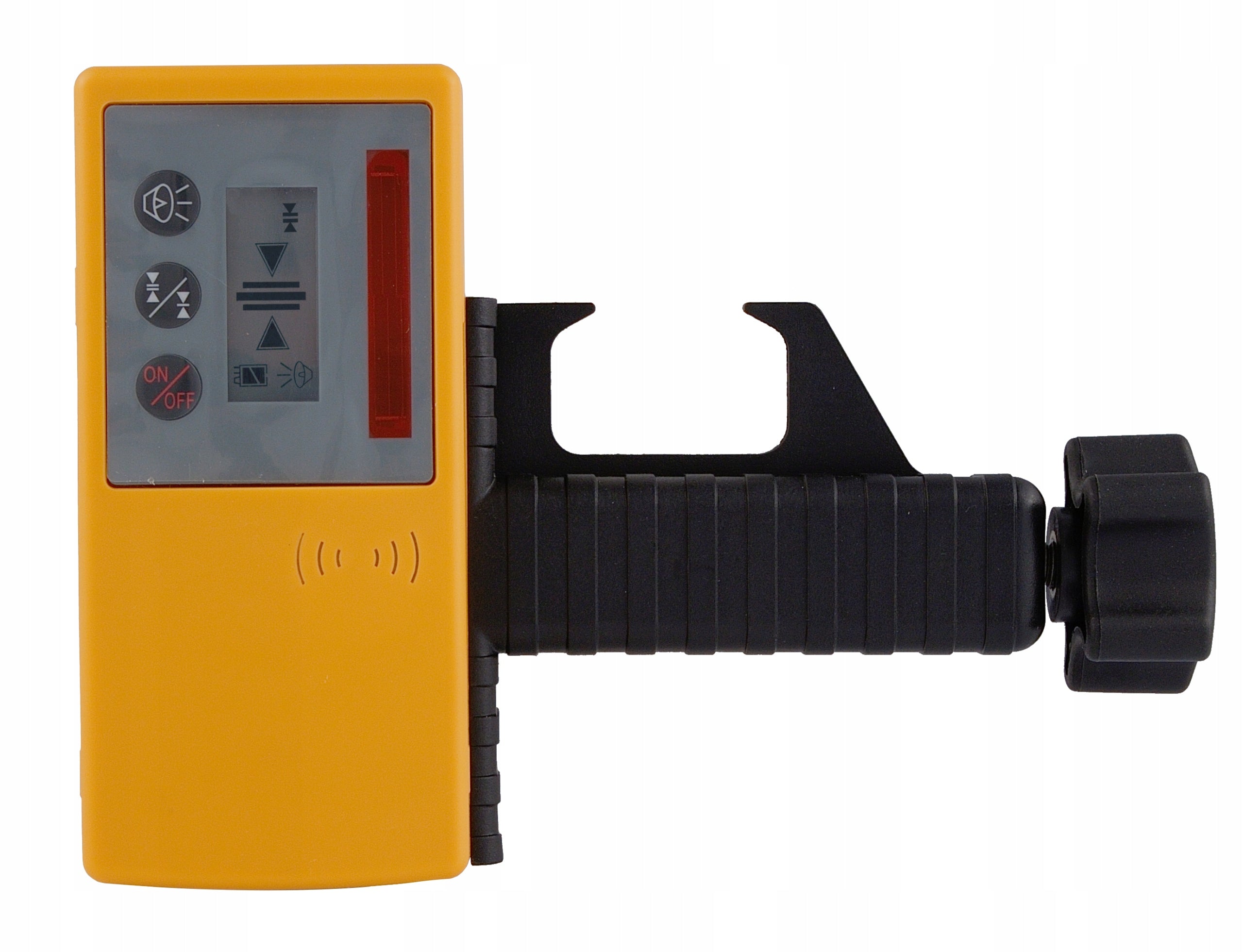

✅ RC 300 Laser Receiver

➡ Lamigo RC 300 with patch holder – effectively replaces the human eye when tracking the laser beam.

• ✔ Laser sensor window height: 50mm
• ✔ Accuracy: Precision mode: ±1mm; Rough mode: ±2mm
• ✔ Power supply: 9V battery (6F22)
• ✔ Automatic shutdown: when idle after about 20 minutes
• ✔ Operating temperature: from -20℃ to +50℃
• ✔ Dimensions: 150m × 72mm × 24,5mm
• ✔ Weight: 0.2kg (incl. battery)

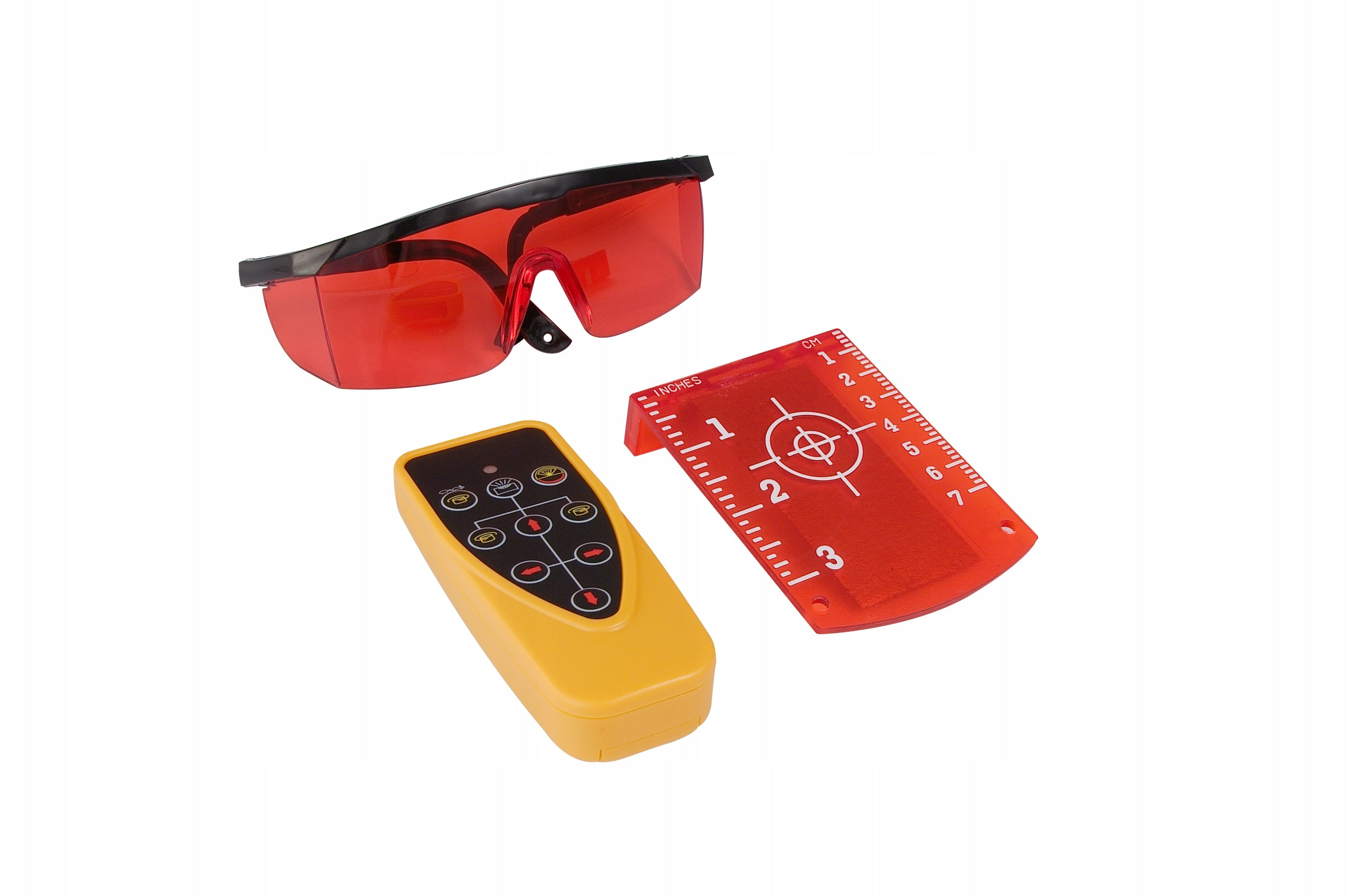

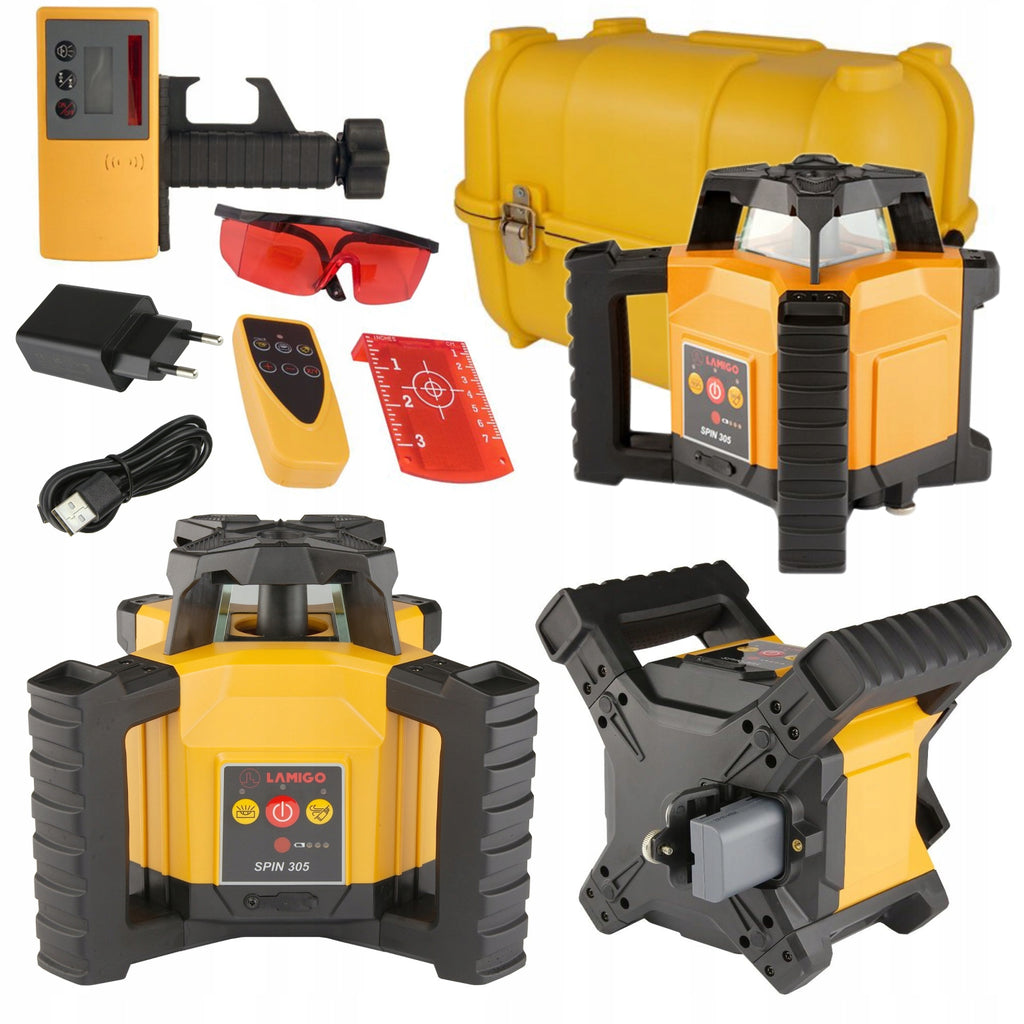

✅ Included:

• ➡ LASER SPIN 305 rotary laser
• ✔ Receiver with patch holder RC300
• ✔ Pilot
• ✔ Charger with USB cable
• ✔ Glasses
• ✔ Targeting disc

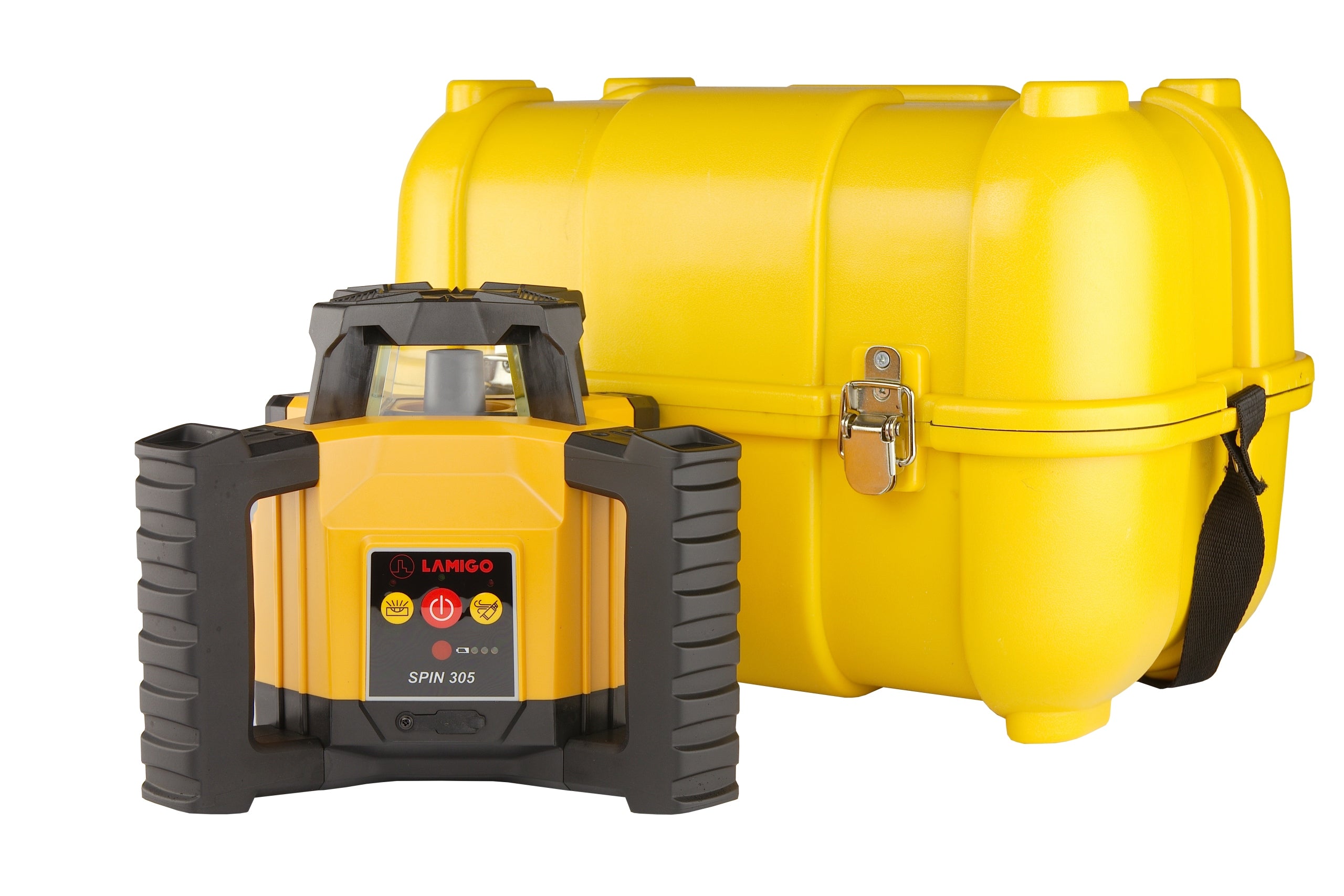

• ✔ Suitcase with contoured interior
• ✔ Instruction manual in Polish

Specifications
