Stumdomų vartų automatikos komplektas 800 kg su 4 pulteliais, LED lempa ir WIFI

Trumpai apie prekę

Prekė: Stumdomų vartų automatikos komplektas 800 kg su 4 pulteliais, LED lempa ir WIFI. Kategorija: Kietieji diskai.

• Gamintojas: Veltrix
• Modelis: V2-S-800-WIFI
• Įtampa: 230 V

Comfort and convenience all year round

Automatic gate is a guarantee of convenience and safety. Rain, snow, frost or heat – just one press of the button on the remote control to open the gate itself, and you without getting out of the car safely entered the property.

VELTRIX V-S-800 WIFI:

✅ For gates sliding with a maximum length of 20 m and a total weight of up to 800 kg.

✅ The drive works in all conditions - ensures smooth, quiet operation and does not lose efficiency even under intensive use. With its robust construction, it guarantees reliability for a long time.

VELTRIX V-S-800 WIFI - universal set for sliding gates

✅ Ideal for all types of sliding gates - both domestic and light industrial.

✅ Simplicity of installation - designed for ease of installation, while maintaining reliable operation and comfort of use.

✅ Engine with adequate power - with a power of 370W will cope with the opening of most entrance gates.

✅ Maximum gate size - total length up to 20m and total weight up to 800kg.

Quiet, fast and reliable

✅ Smooth operation – precise transmission made of high quality metal alloys, quiet operation, without and unnecessary vibrations.

✅ Quick opening of the gate – the high-power 370W motor enables efficient opening of the gate.

✅ Durability for years – transmission and external housing resistant to all weather conditions.

✅Compact, slim shape – ideal for installation in all conditions, even with limited space.

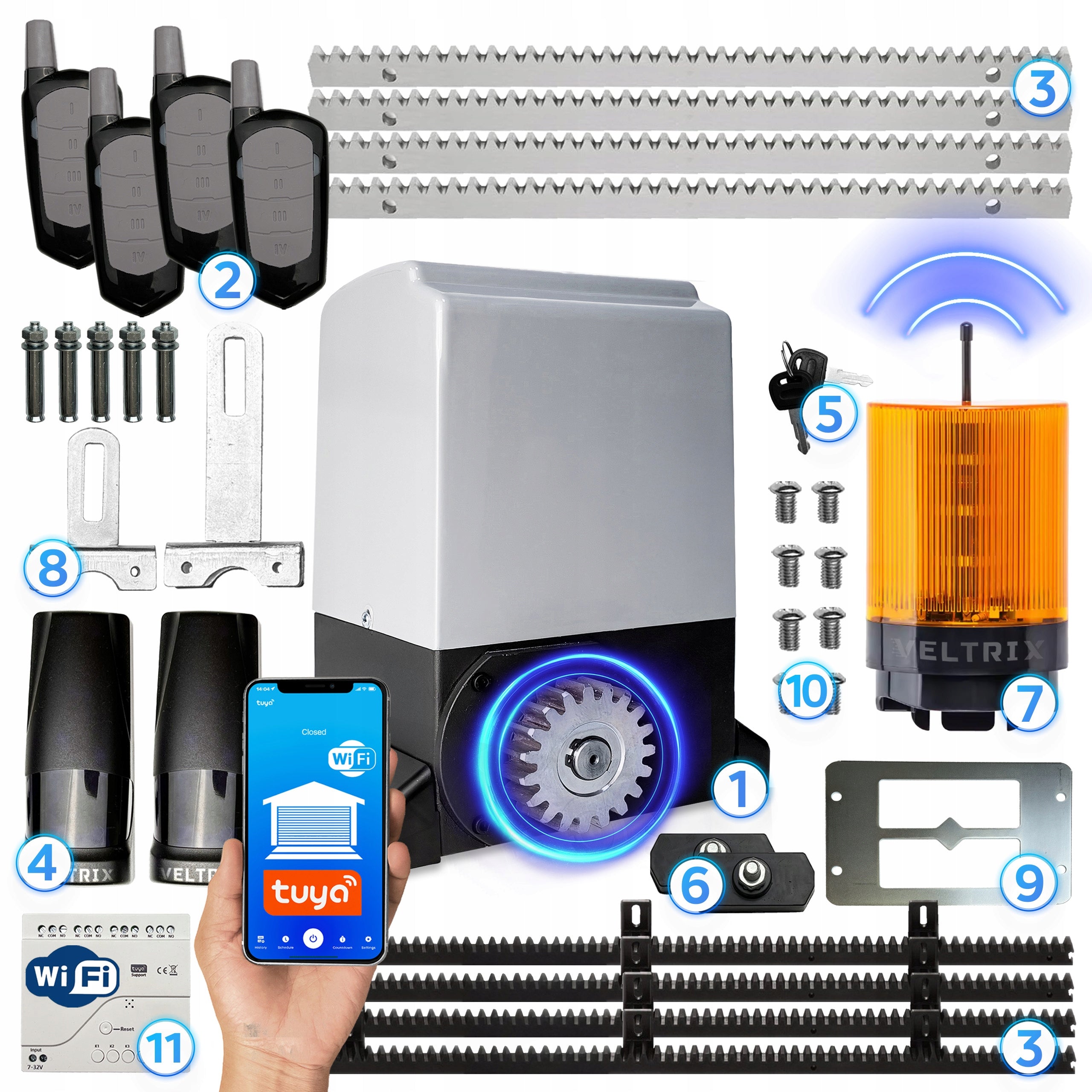

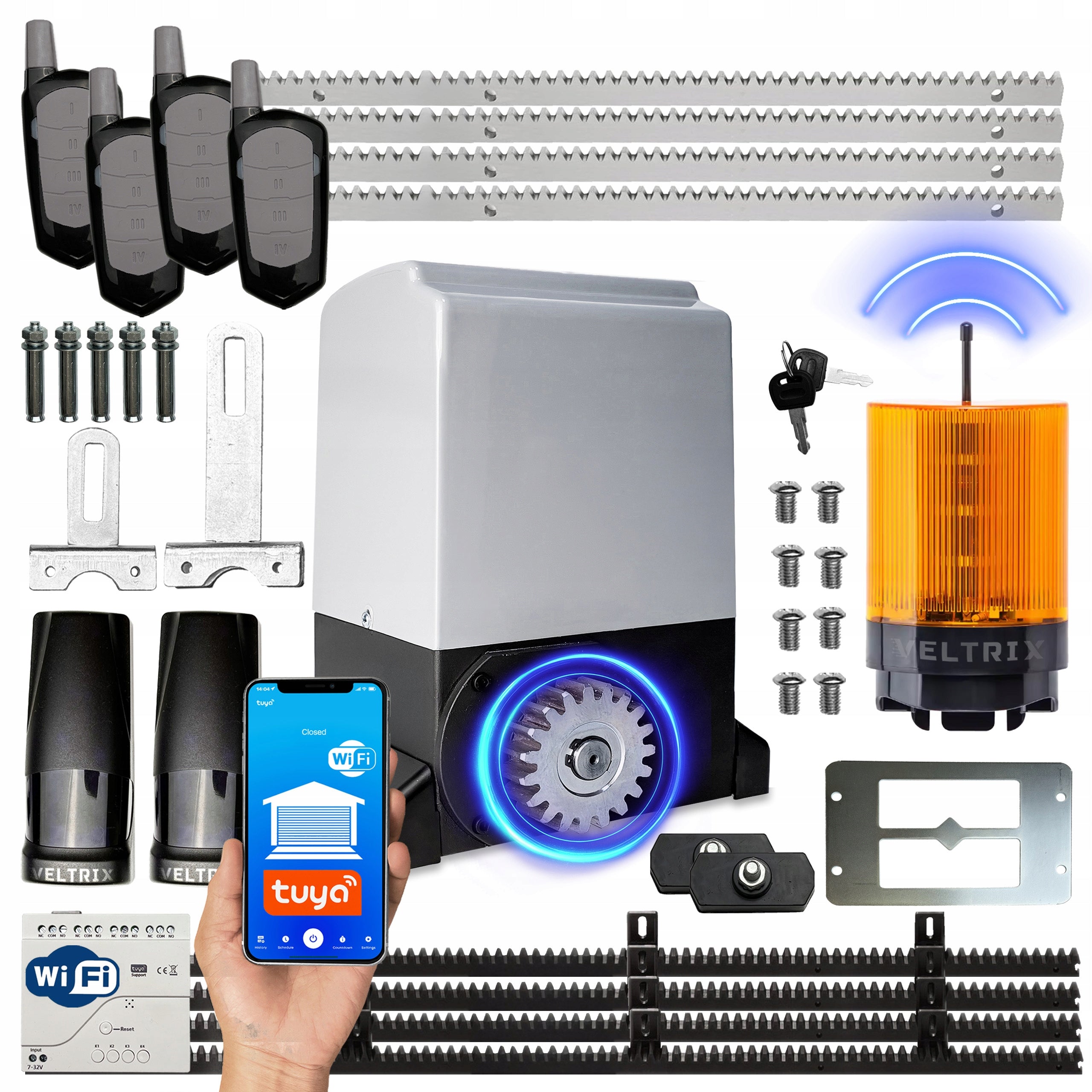

Set contents:

1. Drive unit.
2. 4 remote controls with additional antenna.
3. Steel strips to choose from (4 pcs. ) or composite (4 pcs. ).
4. 2 pcs. Photocell (rotation angle 180°)
5. 2 pcs. keys for emergency gate opening
6. 2 pcs. magnetic limit switches
7. LED warning lamp
8. Complete set of mounting elements for the drive unit
9. Mounting brackets for strips
10. All necessary mounting accessories
11. WIFI module

Detailed instructions in Polish included.

Tell us what slats you need! In the absence of information about the material of the gear bar, we attach a steel strip.

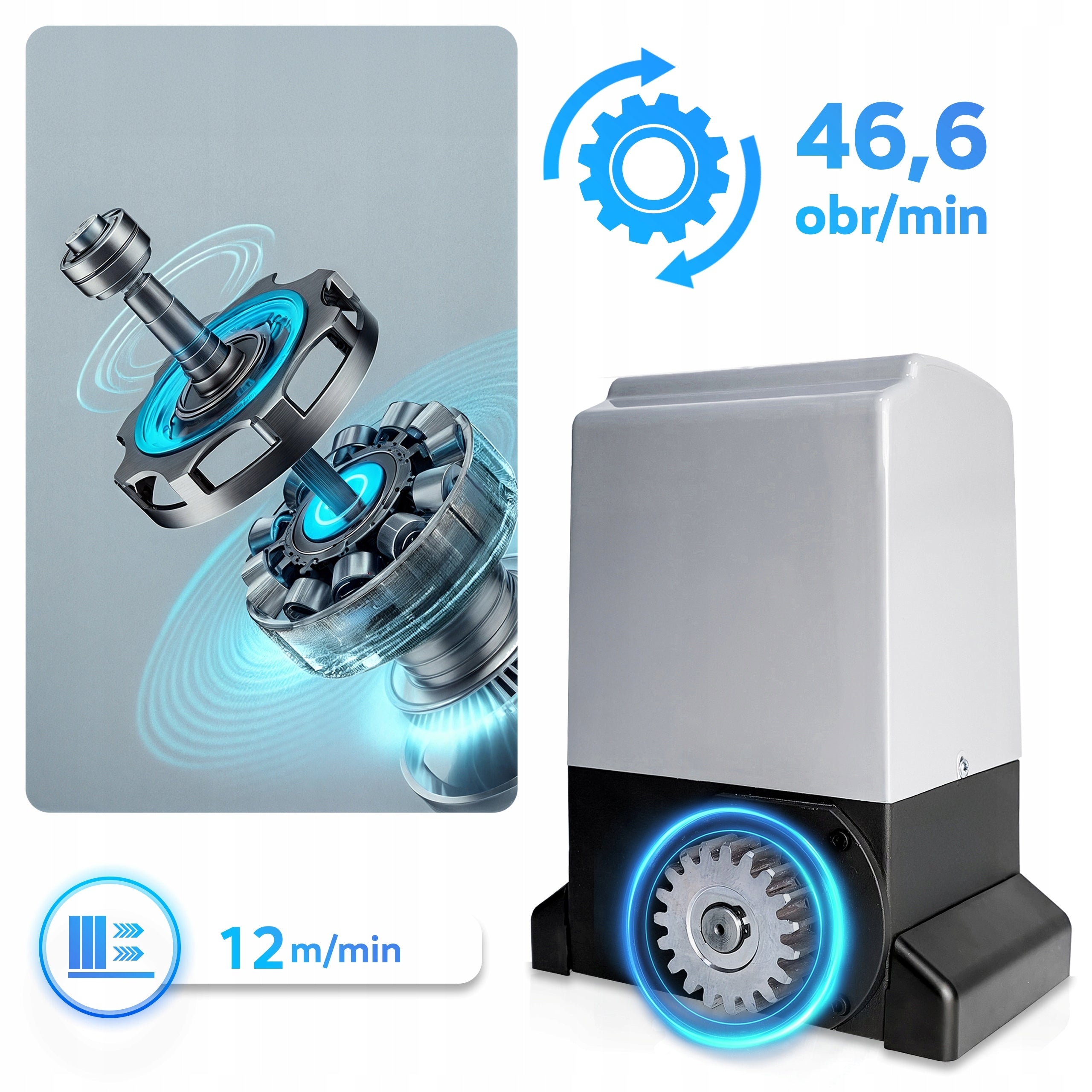

Power unit - technical parameters:

• Power Supply: AC 230V
• Engine power: 370W
• Maximum gate weight: up to 800kg
• Entry light: 20m
• Gate leaf travel speed: 12 m/min
• Rotary speed of gear: 46,6 rpm
• Engine speed: 1400 rpm
• Fuse: 10A
• Water resistance rating: IP55
• Working temperature: from -25° to +65°
• Weight of the device: 12,7 kg
• Radio frequency: 433,92 MHz
• Transmission type: made of high quality metal alloy
• Housing: weather and corrosion resistant

SOFT-GEAR technology – durable transmission with high working culture:

✅ Maxial durability - even under intensive use.

✅ Oresistance to abrasion and loads - transmission made of brass and hardened steel.

✅ Ctheir smooth operation without jams and slacks - without the risk of cracks, noise and vibrations.

BLIM-DRIVE technology – powerful 230V AC motor:

✅ High torque - precise torque adjustment allows you to set the force with which the motor is to work for the sliding gate

✅ Low energy consumption - efficient and energy-efficient motor.

✅ Stable and quiet operation - maximum working culture without loss of precision.

✅ Increased resistance to overload and overheating - even at low temperatures and under heavy loads.

In addition:

• The actuators are designed for intensive work – they are suitable for both light gates and heavier steel structures.
• Funckja Soft Start / Stop - soft start and stop technology at any time.
• Any direction of movement – the ability to set the direction of travel according to demand.
• Intelligent impact protection – adjustable crush protection system.
• Automatic closing - automatic closing of the gate after a specified period of time after its opening.

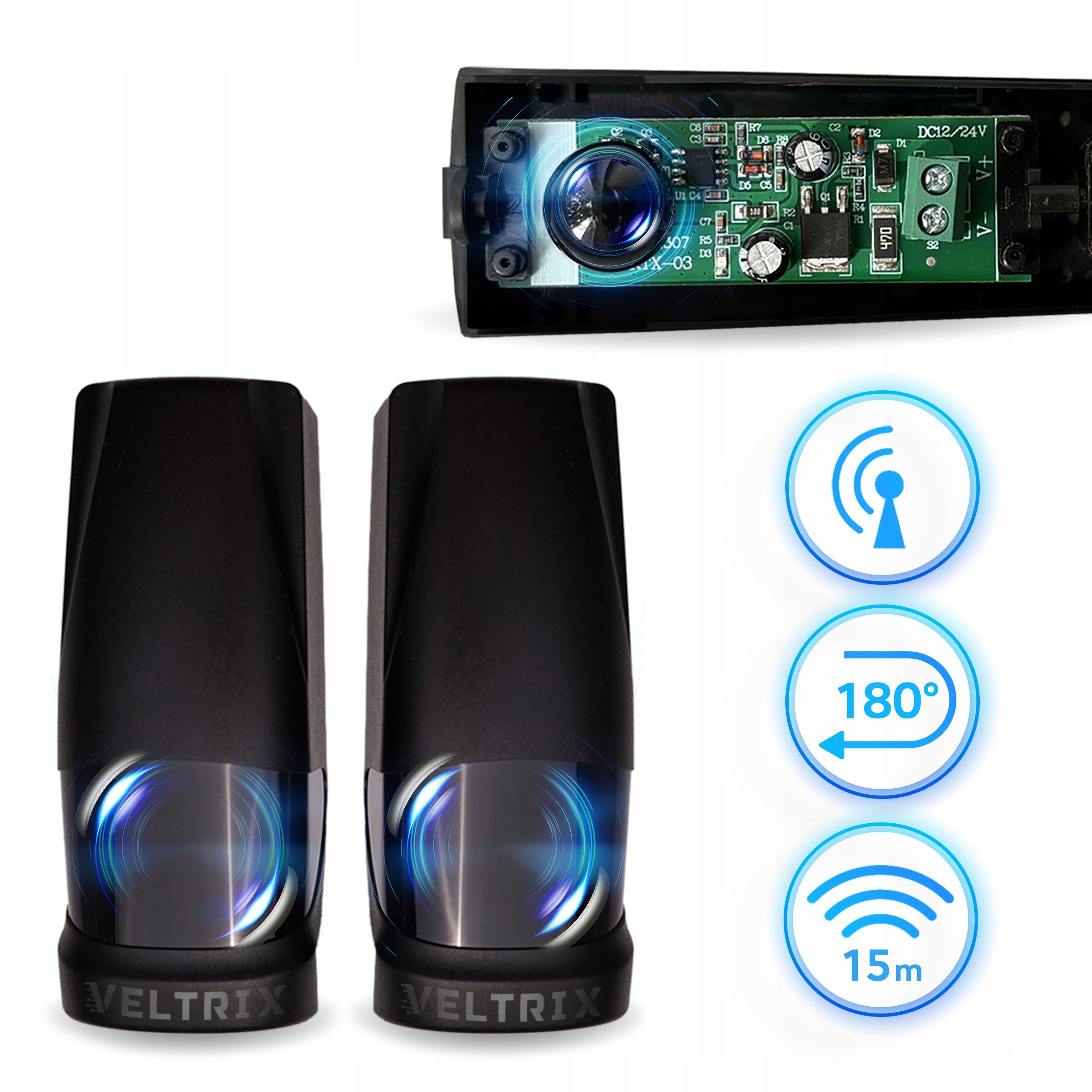

Photocells - technical parameters:

• Dimensions: 108 mm x 35 mm x 30 mm
• Power supply: 12 – 24V AC/DC
• Range of operation: up to 15 meters
• Power consumption: RX – 15 mA / TX – 30 mA
• Relay: 1A / max 36V
• Working frequency: 1,92 kHz
• Infrared wavelength: 940 nm
• Working temperature: from –20°C to +55°C
• Weight: 105 g
• Angle of view: 180 degrees
• Rotating head
• Wide detection angle

Rotary photocells – compact design, wide detection angle and freedom of installation:

✅ Rotating photocell head – allows precise positioning of the optical path regardless of the position of the housing.

✅ 180° viewing angle (adjustable) – provides installation flexibility and accurate adjustment to local conditions.

✅ Action from all angles – possible installation vertically or horizontally, without loss of functionality.

✅ Convenient installation on narrow posts – photocells can be fixed on the outer plane of the post (from the road side), and then rotate the optical element by 90° for an optimal line of view.

✅ Assembly pins included – ready for immediate assembly without the need to buy additional components.

WIFI Module - Control via App

✅ Remote gate opening and closing - from anywhere in the world, at any time of day or night.

✅ Additional settings configuration - Change drive settings without needing physical access to the control panel.

✅ Current gate status (open/closed) – thanks to the included gate leaf position sensors.

✅ Compatible with smart home systems – e.g., Tuya Smart Home – enabling integration with other smart devices.

Remote control for the gate - with an additional antenna extending the operating range

✅ Constructively durable - solid and handy.

✅ 4-channel - with dynamically variable code (rolling code) with a frequency of 433,92 MHz.

✅ Unique identification code - allows you to copy it to another remote control of the same type (pilot-pilot function).

✅ Additionally built-in antenna - significantly increases the range and signal strength of the remote control.

✅ Opening the gate from greater distances - even despite terrain obstacles.

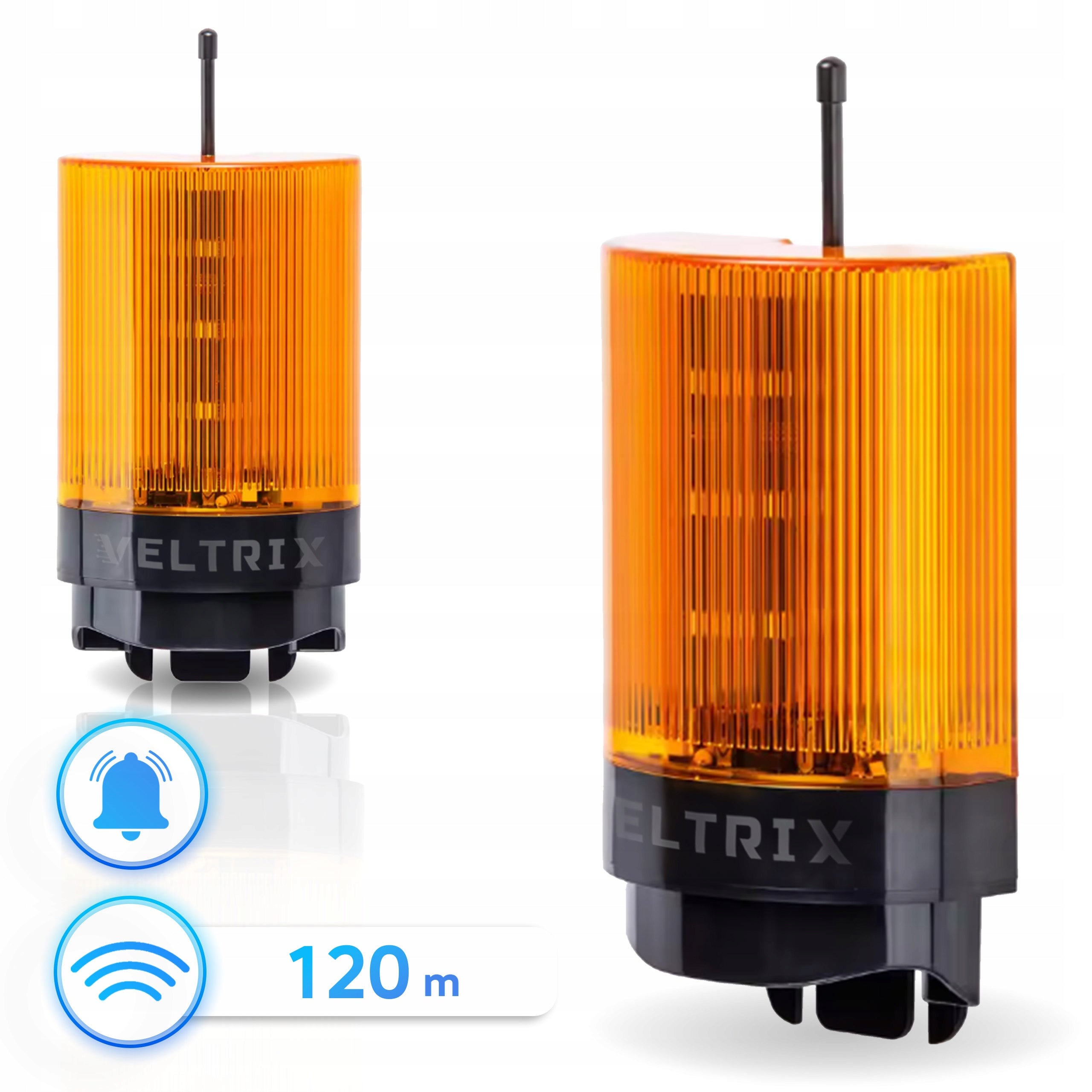

Signal lamp with additional antenna

✅ Enhances the signal of pilots thanks to the antenna - increasing their range and reliability.

✅ Direction of illumination 360° – light visible from all sides.

✅ Universal mounting base – vertical and horizontal installation possible.

✅ Low power consumption – only 2,5 W with continuous illumination.

✅ Light pulsing frequency - 1 Hz/0 Hz (60 flashes per minute/continuous light).

✅ Lamp made of durable materials - resistant to weather conditions.

Manual unlocking and emergency power supply – operation even in the event of a power outage

✅ Operation of the set in all conditions - even in unusual situations.

✅ Full safety and independence - in the event of a power failure.

✅ Two emergency keys - for quick and easy manual unlocking of actuators.

✅ Opening the gate manually, without the use of electricity - this possibility is very useful in the event of a power outage.

Mounting brackets – factory, multi-position, galvanized

✅ Mounting brackets for drive, gear strips and limit switches - adapted to various installation configurations.

✅ A set of anchors and mounting screws - made of stainless steel.

✅ Keys for manually unlocking the drive - in case of power outage.

✅ Gear rails - to choose from 4 pcs. (steel or composite with metal reinforcement)

Multi-functionality and wide possibilities:

✅ Soft Start & Soft Stop - the engine starts and ends work gently, which translates into smooth and quiet closing of the gate.

✅ Automatic closing - the ability to set the time after which the gate closes automatically.

✅ LED Signaling - LED control panel informs about the operating status of the system and facilitates configuration and diagnosis of errors.

✅ Transformer 230V - toroidal transformer eliminates voltage spikes and protects electronic components.

The control panel allows you to connect devices such as:

• intercom
• videophone
• code keyboard
• internal button
• WiFi module – remote gate control from anywhere in the world
• universal radio receiver – compatibility with remote controls of other brands

Safety first and foremost:

✅ Obstacle protection – in case of encountering an obstacle (e.g. car) the gate stops automatically.

✅ Optical protection (photocells) - infrared beam interruption between photocells causes immediate gate stop, even before physical contact.

✅ Auto-lock actuator after closing - the gate after closing is mechanically locked, which eliminates the need for additional locks and increases resistance to forced attempts.

Assembly? You'll do it yourself!

✅ Created so that everyone can mount it themselves - without having to call a professional.

✅ Simplicity – thanks to the multi-position mounting brackets, the installation of the drive is simple, fast and adapted to different gate configurations.

✅ Transparent instruction - will guide you step by step through the entire installation process, even if you are doing it for the first time.

✅ Questions in assembly? – Our technical team is at your disposal, ready to provide assistance by phone and dispel any doubts.

Service - Our support!

✅ We have our own technical service - which is available to help at every stage, from assembly to configuration. Our specialists are available to answer all your questions and provide professional support.

❌ Beware of sellers who do not offer service support - lack of technical support may result in installation problems, difficulties with configuration and the inability to effectively complain in the event of a failure.

✅ Buy from reliable suppliers with experience and service facilities.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Veltrix
Parametry	Product weight with unit packaging	15 kg
Parametry	Drive type	for sliding gates
Parametry	Maximum wing weight	800 kg
Parametry	Maximum wing length	20 m
Parametry	Maximum number of cycles per day	100
Parametry	Supply voltage	230 V
Parametry	Engine power	370 W
Parametry	Manufacturer code	V2-S-800-WIFI
Parametry	Packaging status	original
Parametry	Batteries included	yes
Parametry	Certificates of conformity	CE,WEEE
