Stumdomų vartų automatika FORCE 2000 KG su WiFi

Trumpai apie prekę

Prekė: Stumdomų vartų automatika FORCE 2000 KG su WiFi. Kategorija: Kietieji diskai.

• Gamintojas: Force
• Modelis: FORCE2000

Key features:

• high efficiency - thanks to the use of a worm gear matched to the engine power, the drive performance for the sliding gate has been significantly optimized
• soft start - stop - reduce noise and increase the durability of moving parts and achieve a higher working culture
• automatic closing - the ability to turn on the automatic closing of the gate after a set time from its opening
• gate function - partial opening of the sliding gate allows you to use the gate as a gate for pedestrians or cyclists
• smooth torque adjustment - allows precise setting of the force with which the motor is to work for the sliding gate
• impact protection - smoothly adjustable sensitivity of the amperometric crush protection system (overload protection)
• setting the directions of movement - the ability to determine the direction of opening and closing the sliding gate makes the drive to the gate can be mounted in two ways
• easy programming of the remote control - remote controls can be easily programmed for sliding gate drives

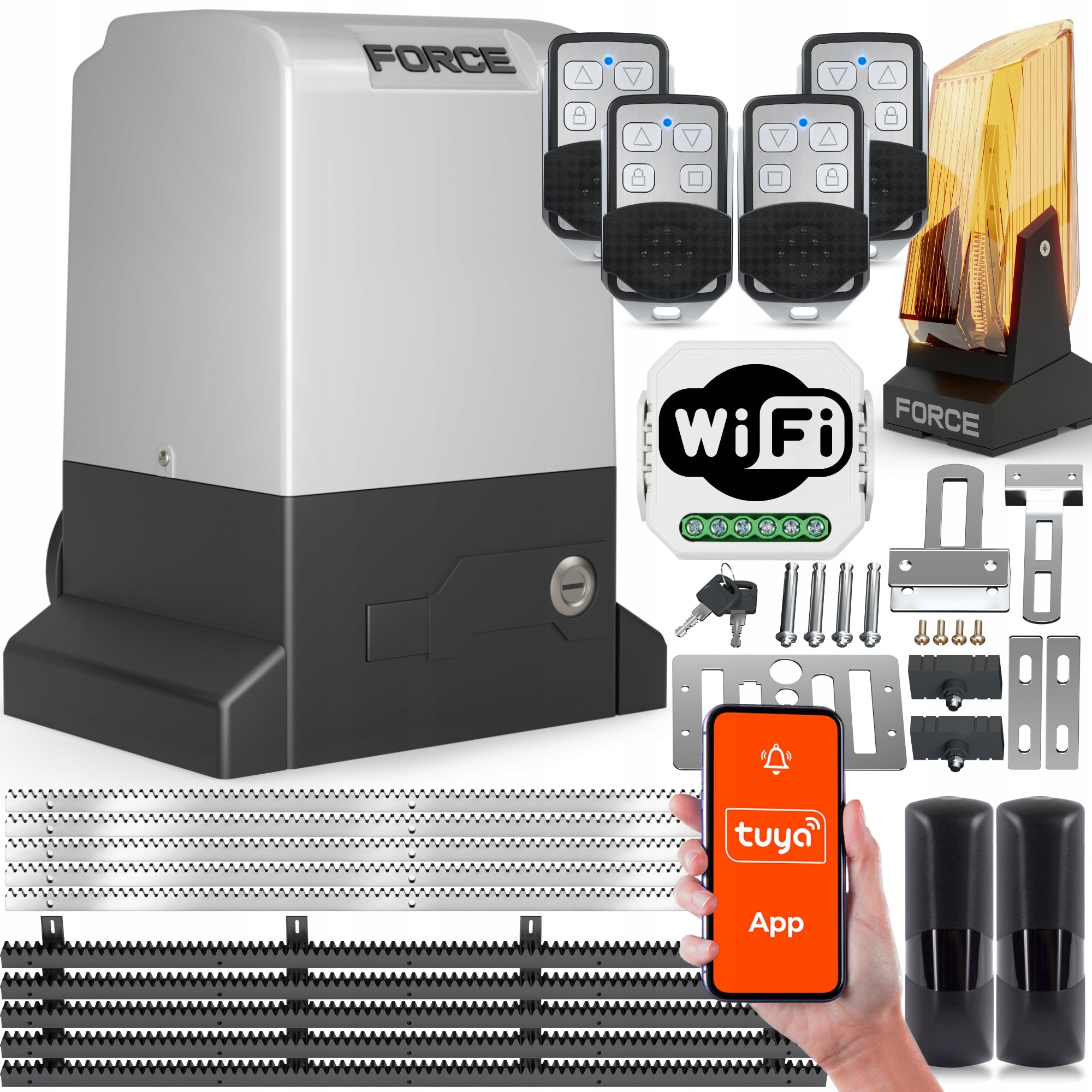

COMPOSITION OF THE SET FORCE 2000:

• FORCE 2000 drive (built-in control panel)
• Force Smartbox Wifi (control via smartphone)
• 4 x 4-channel remote control (with button protection flap)
• Indicator lamp with antenna for increased remote control range
• Receiver radio 433 MHz, built-in on the control panel
• 180 degree rotating photocells
• 5x gear bar (5 meters)
• Mounting base
• Set of mounting elements (anchors, nuts)
• 2x unlock key (when power is out)
• Set of magnetic limit switches for gear bar
• Warranty card
• Assembly and programming instructions in Polish download

The main advantages of the FORCE 2000 drive:

• clear and easy to program control panel,
• induction brushless motors characterized by high strength and durability,
• modern drive design,
• speed of action.

An additional 96 remote controls can be uploaded to the control panel to the gate, due to the backyard use. The big advantage of the drive for sliding gate 2000 is a durable body with a decoupling lever and the ability to easily and quickly mount the drive on a solid base plate.

Another advantages of the drive for the Force 2000 gate are extremely aesthetic, even ascetic design, excellent operating parameters and high reliability. The drive is quiet because its design takes into account the needs of the most demanding users. Many years of experience in the gate automation industry has allowed us to introduce to our collection the highest quality product that meets the expectations of our customers.

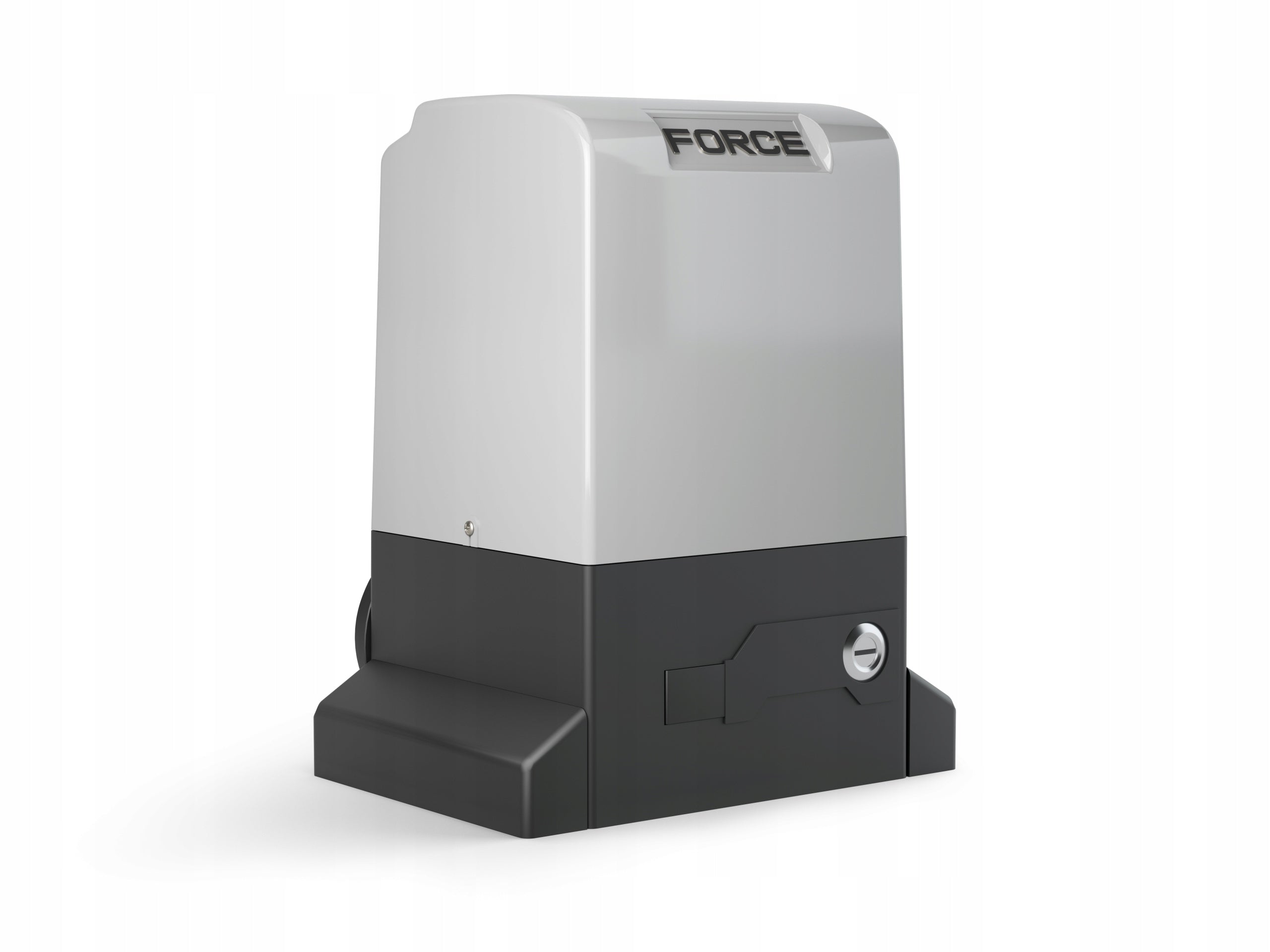

TECHNICAL DATA OF THE FORCE 2000 DRIVE WITH BUILT-IN CONTROL PANEL:

• Maximum gate weight (kg): 2000 !
• Entry light to (m): 20
• Engine power (W): 750W
• Gate leaf travel speed: 12 m/min
• Rotary speed of gear: 48 rpm
• Engine speed: 1400 rpm
• Fuse : 10 A
• Working temperature: from -20 ° to 55 °
• Weight of the device: 18 kg
• Dimensions (L. x width x H ) (mm): 155 x 200 x 315 mm
• Power type: 230 V
• Pilot range (m): up to 200 m
• Number of rememberable remote controls (pcs): 96

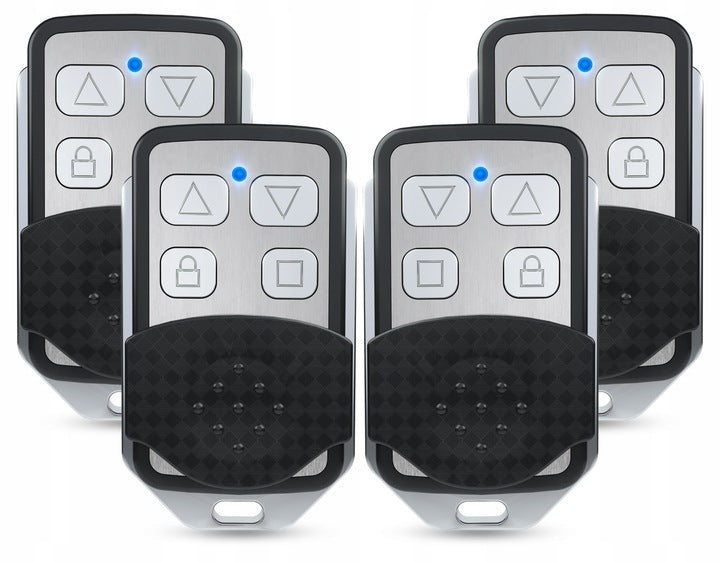

FORCE 4-channel remote control, with dynamically randomly variable code with a frequency of 433.92 MHz.

Key features of appearance:

• Chrome border: A sturdy metal frame surrounding the body, providing a sleek shine and durability.
• Housing: black, high-quality matte plastic, resistant to scratches and everyday use.
• Appearance: compact, ergonomic design that fits comfortably in your hand.
• Buttons: 4 buttons, designed in a subtle and aesthetic way.

Functionality and technical features:

• Range: Provides an excellent range of up to 120 meters, allowing you to conveniently open the gate without driving up to it.
• Convenience: The practical pendant allows you to use it as a keychain.
• Protection: zippered flap to protect against accidental button press

Technical parameters:

• Frequency: 433,92 MHz
• Number of buttons: 4
• housing: chrome-plated metal with plastic
• zippered flap to protect against accidental pressing
• Battery: NM27 12V (included)
• dimensions: 33 x 9 x 60 mm
• Remote control range: up to 120 meters

Rotary photocells - viewing angle F180 degrees (adjustable)

Technical specification:

• Dimensions: 108 x 35 x 30 mm
• Power supply: 12-24 V DC/AC
• Range: max 15 m
• Current Consumption: RX 15Ma - TX 30mA
• Relay: 1A, max 36V
• Frequency: 1,92 KHz
• Wavelength: 940 nm
• Operating temperature: -20 to +55°C
• Viewing angle: 180 degrees (adjustable)
• Operation: from all angles (vertical and level)
• Weight: 105g
• Pins for mounting included

Convenient to install, because on narrow metal posts they can be mounted on the planes of the post from the outside (from the side of the road) and only rotate the electronics element 90 degrees towards the second photocell so that the photocells "see each other".

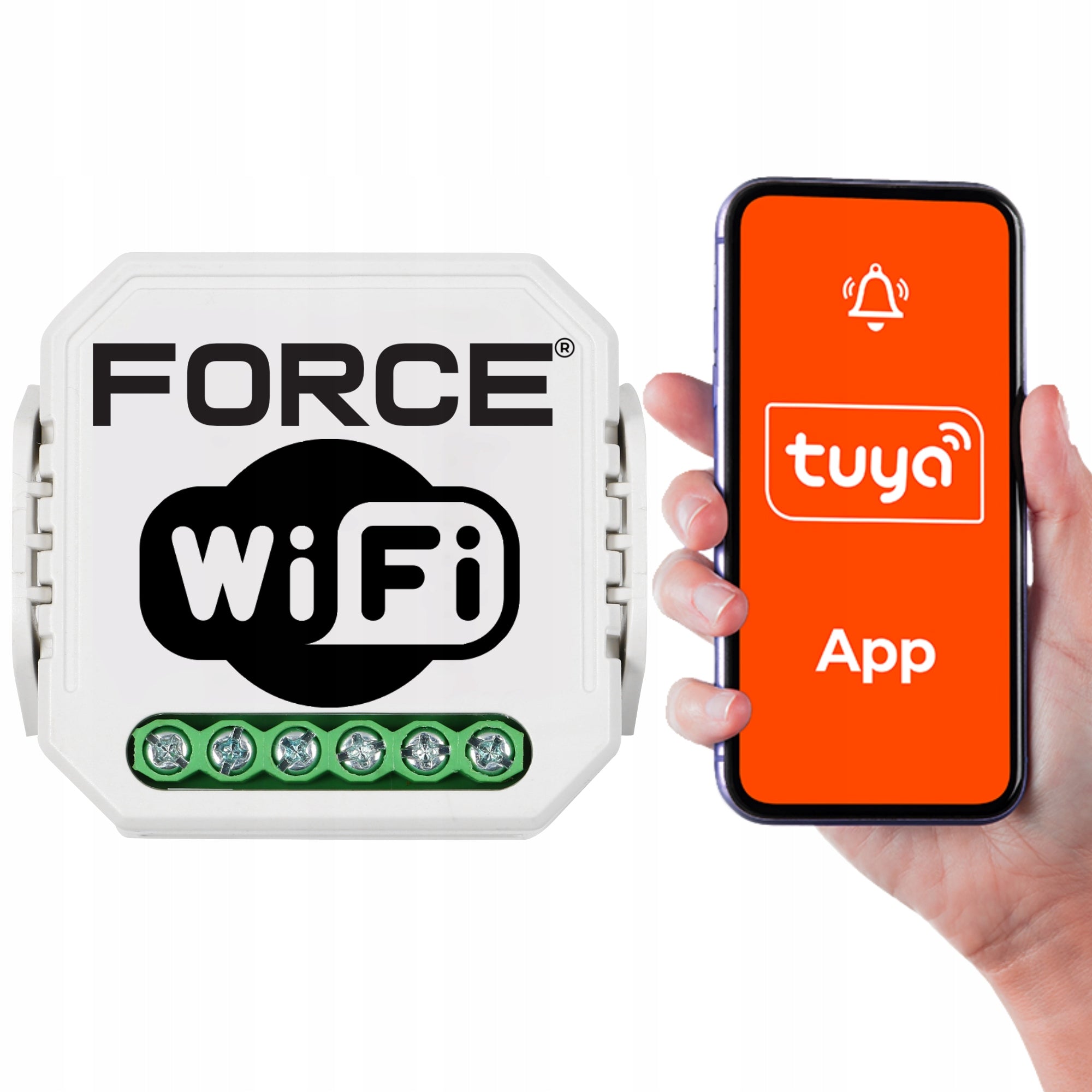

Control is carried out via the TUYA application, which is available for smartphones and tablets (Android and iOS, Play Store and AppStore). It allows you to connect multiple devices that have a TUYA controller, so you can control devices such as: entrance and garage gates, roller shutters, cameras, alarm, lighting, heating, air conditioning, power sockets, etc. with one application from your phone. We can control the application from anywhere in the world with Internet access. You can control the gate while being away from your property, e.g. at work or on vacation.

Thanks to the built-in sensors in the control unit, we can observe in the application whether the gate is closed or not.

The WiFi controller is factory-built into the control unit, so there is no need to run power cables to the WiFi controller and then control cables from it to the control unit, which is a great convenience and makes installation easier and faster.

The service application is available in Polish

Specification:

• Input Voltage: AC 100v ~ 240 V
• Operating Frequency: 2.4G~2.4835GHz
• Safety mechanism: WPA/WPA2
• Working environment: temperature:-10 ℃ ~ + 55 ℃ humidity: 20% ~ 93%
• Dimensions: 46x46x18 mm

The set includes:

• WiFi Controller
• 1x reed
• User manual in PL
• Packaging

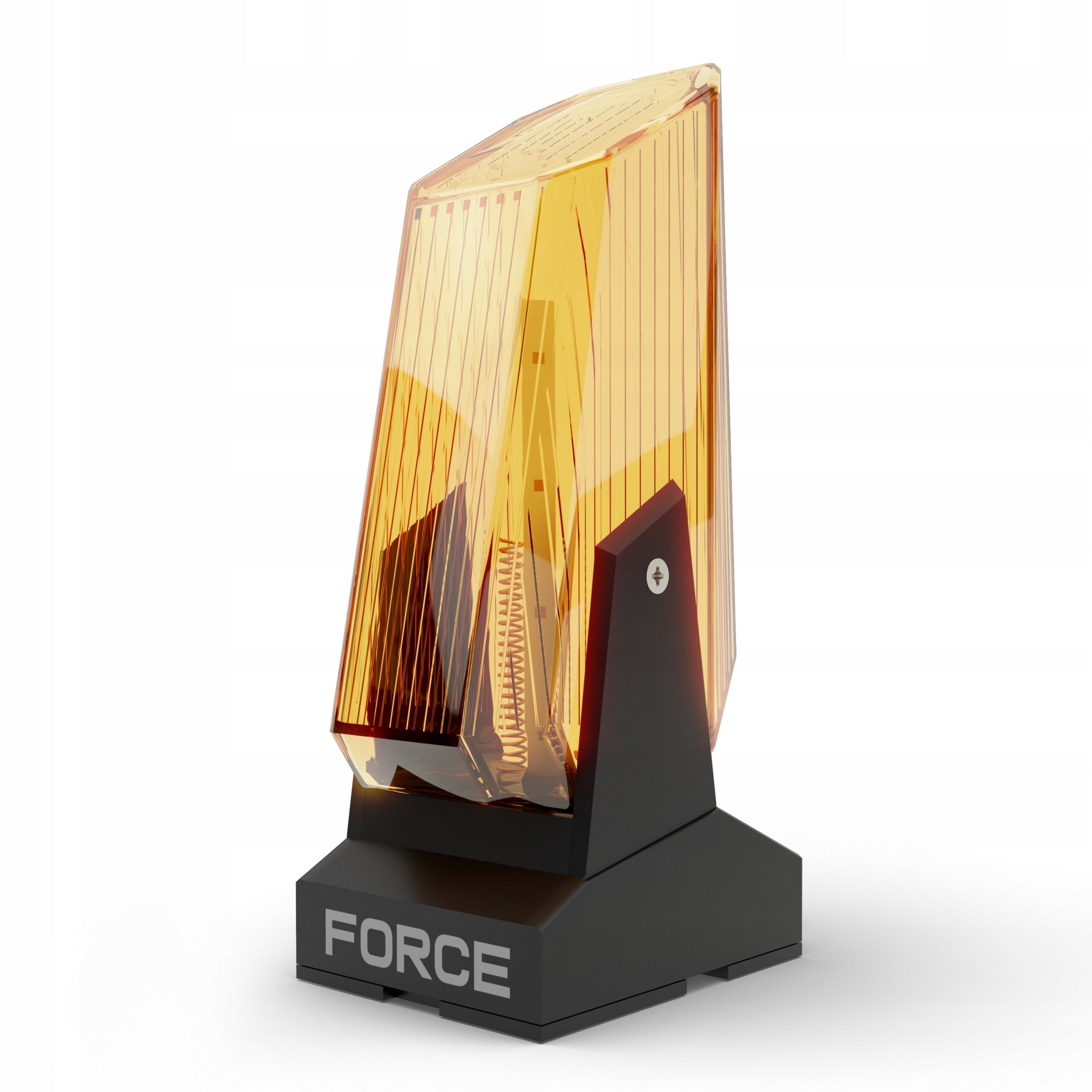

Indicator lamp FORCE Crystal

Tasteful design, quartz crystal inspired shape. The modern Crystal lamp will be the crowning achievement of your beautiful fence.

• High-brightness LEDs for very good visibility and long life
• Built-in antenna for increased remote control range
• Mounting base for mounting to a vertical plane under different accounts
• 360 degree direction of illumination
• Operating mode: continuous illumination/pulse illumination
• Light pulsing frequency: 1 Hz/0 Hz (60 flashes per minute/continuous light)
• Power consumption (continuous illumination): 2,5 W

Polyamide strips with metal core.

• Quiet operation
• mounting method: farmers (sheet screws)

Galvanized Metal Gear Strip

• set of spacers for each strip
• thickness of gear bar 8 mm
• method of fastening: welding

• Factory prepared holes for screwing the base
• Factory prepared holes to carry wires
• Anti-corrosion protection: galvanized

2x Unlocking Keys

To manually unlock the gate drive in case of an interruption in the supply of electricity

In the absence of information about the gear strip, we attach a polyamide strip with a steel core.
