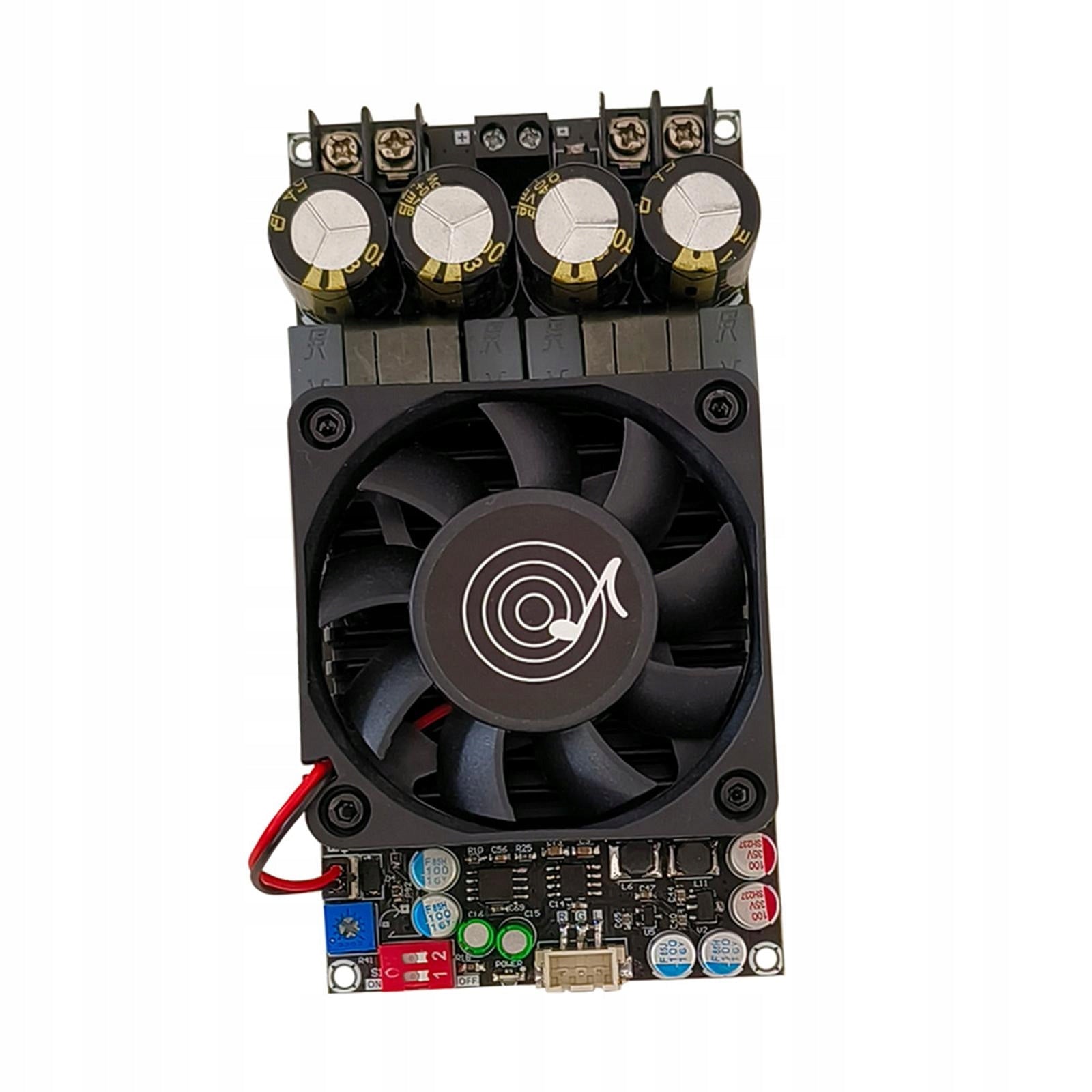

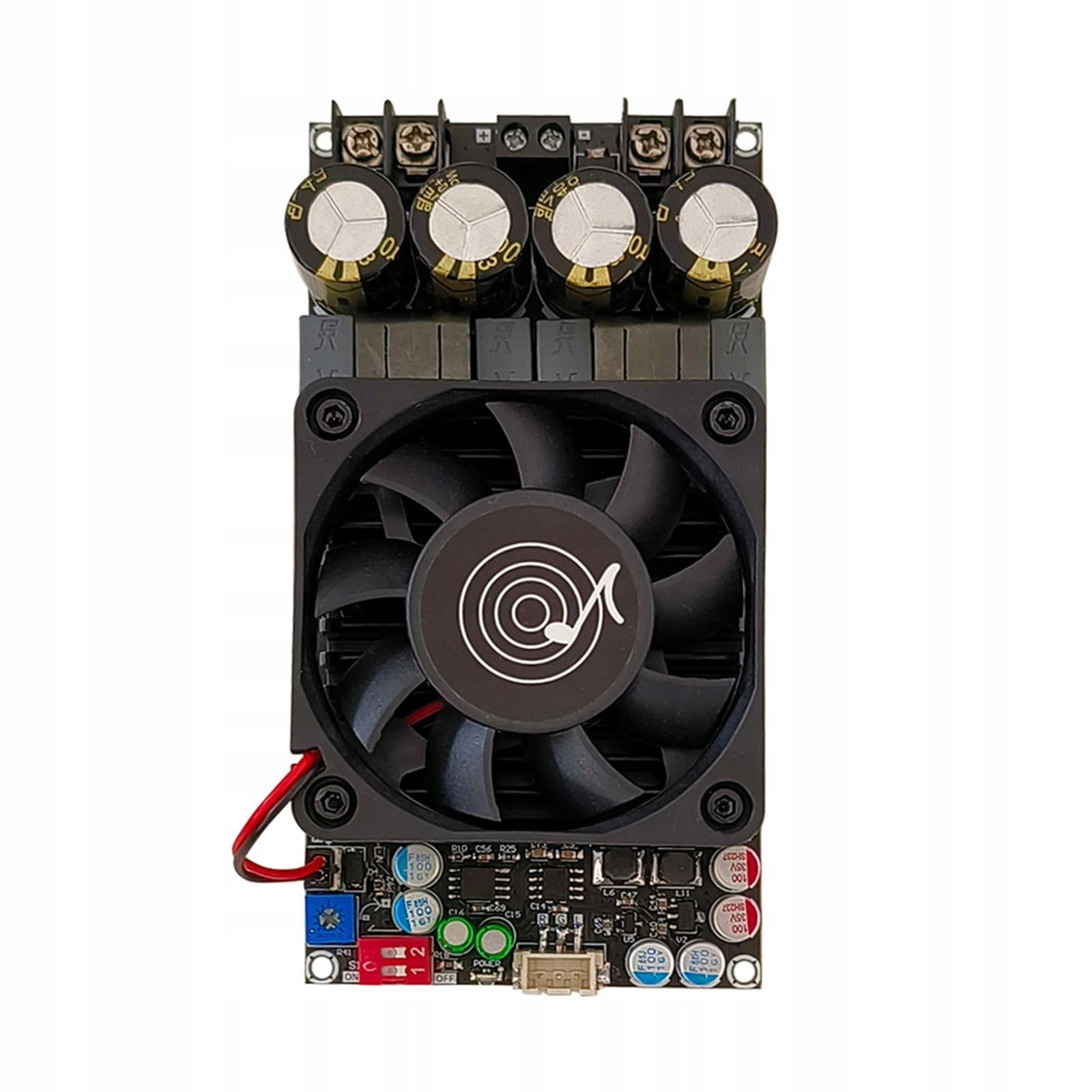

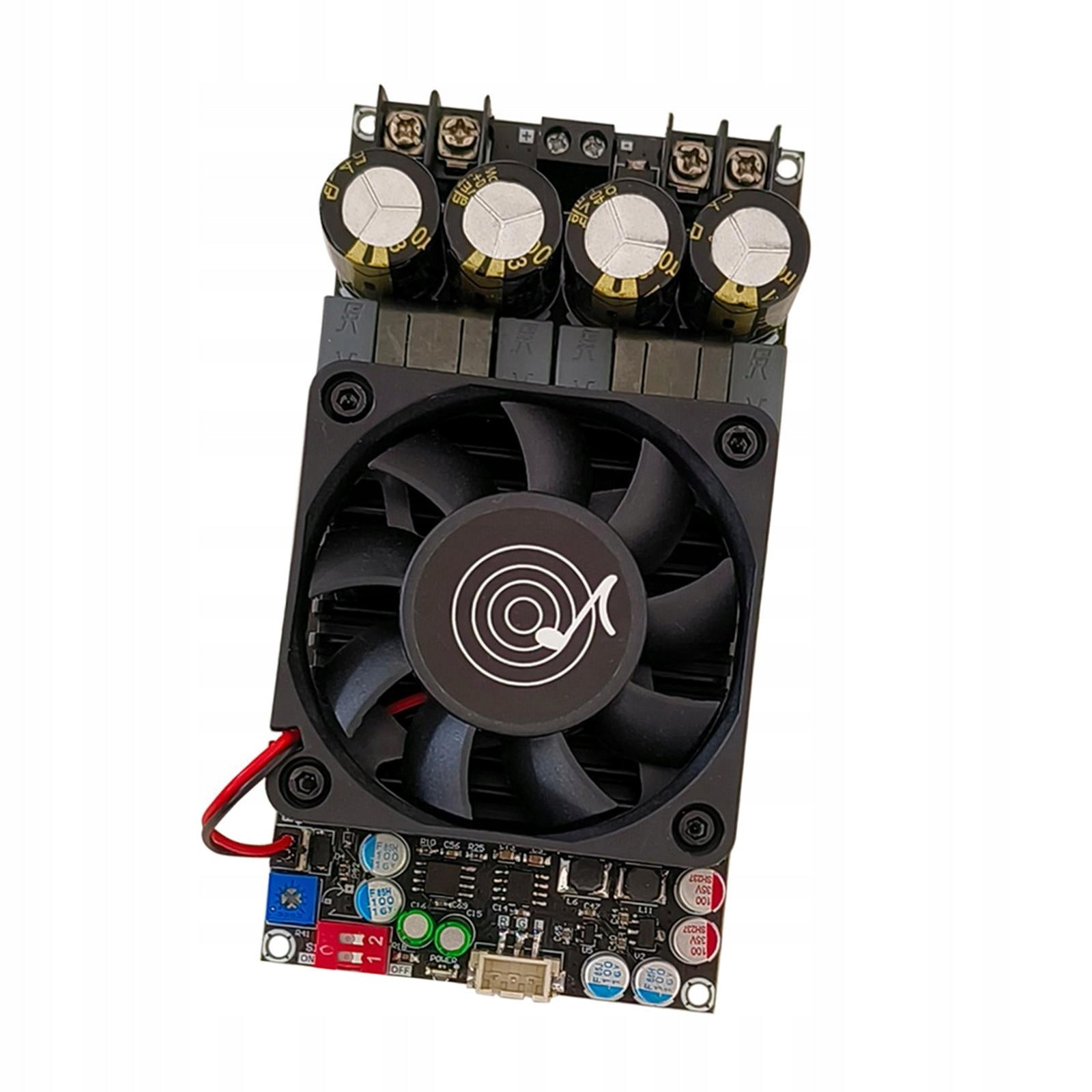

Stiprintuvo plokštė 2x300W skaitmeninė žemųjų dažnių stiprintuvo plokštė

Trumpai apie prekę

Prekė: Stiprintuvo plokštė 2x300W skaitmeninė žemųjų dažnių stiprintuvo plokštė. Kategorija: Laidų tvarkyklės.

• Gamintojas: no brand
• Modelis: Pure Rear Stage Digital Power Amplifier Board

Amplifier Board Audio Accessories for Sound System Square DIY Speakers Store

Description:

[TPA3255 Digital Power Amplifier Board]:Pure Rear Stage Digital Power Amplifier Board.

[High power]: Digital Power Amplifier Board, bridge type single channel 600W, channel 300W add 300W, high power, stable performance, and good sound quality output. With front end amplification, 26 to 36dB is adjustable.

[ Material]: The audio Amplifier Board is made of PCB material, which is reliable and , with quality, and can be used for a long time.

[Protection]: The Amplifier Board has input Undervoltage, overheating, overcurrent, and short circuit protection functions, making it a practical . Easy to use, automatic air cooling with temperature control, or manual fan selection to keep running.

[Application]: Digital Stereo Amp Module is suitable for home theaters, DIY sound systems, street music, square music, etc.

Specification:

Adaptable power supply: Working range 18 to 50VDC, limit 53V. It is recommended to use a DC power supply with a of 36 to 48V and a current of more than 10A.

Compatible speakers: 3 to 8 Ω, 5 to 300W in BTL channel mode; 2 to 8 Ω, 100 to 600W in PBTL mono mode

Gain selection: 10 level potentiometer adjustment, 26dB to 36dB

Bridge connection method: First cut off the power supply, turn the 1 dial switch to the ON position, short circuit the output terminals + for parallel output, and shortcircuit R L for parallel output.

Size Chart:

12.5cmx3.8cmx6.5cm/4.92inchx1.50inchx2.56inch

Package Includes:

Power Amplifier Board
