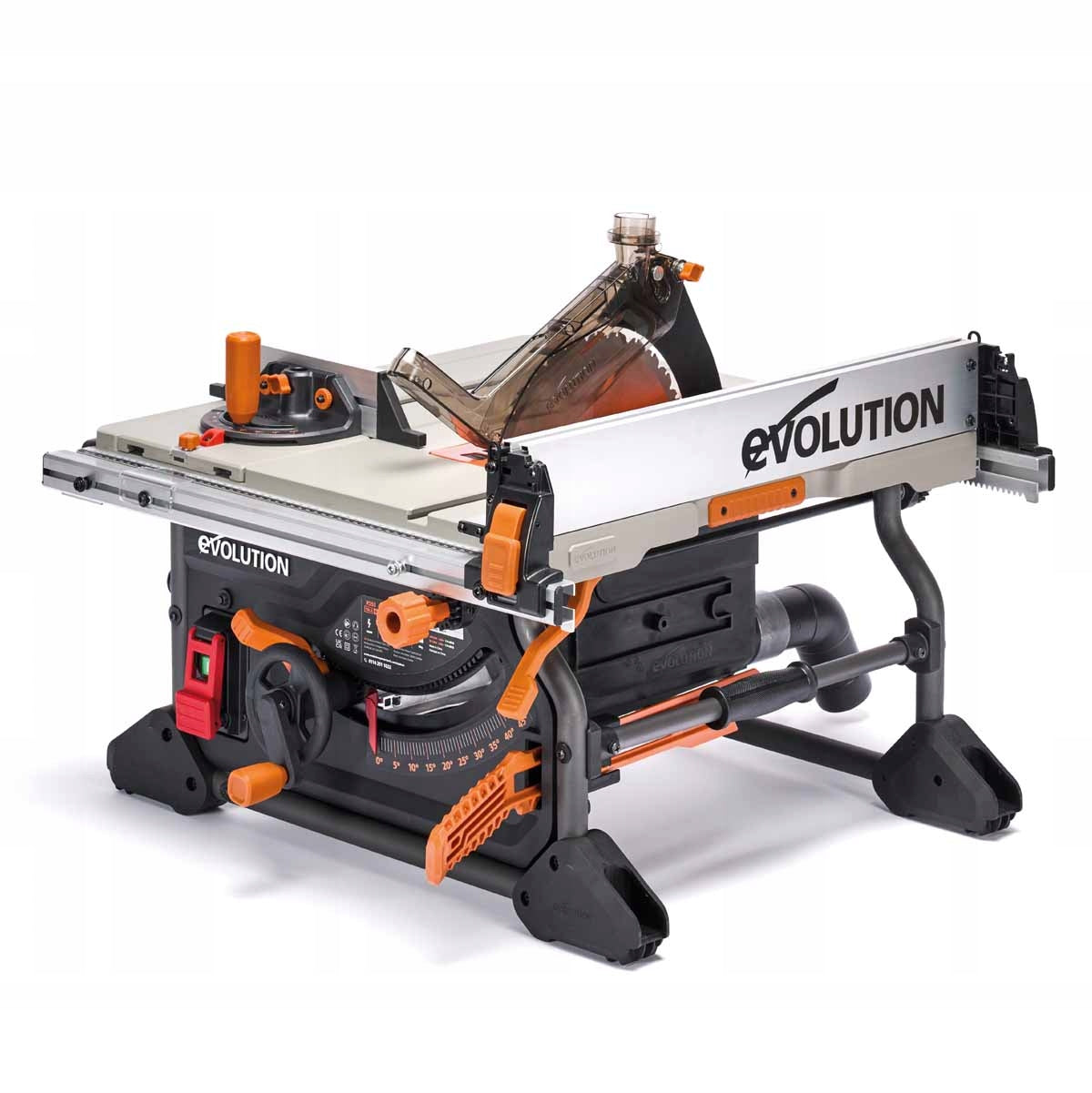

Staliniai pjūklas Evolution R255TBL, 1650 W, 255 mm

Trumpai apie prekę

Prekė: Staliniai pjūklas Evolution R255TBL, 1650 W, 255 mm. Kategorija: Staliniai pjūklai.

• Gamintojas: Evolution
• Modelis: 119-0003
• Įtampa: 240 V

The next generation portable R255TBL table saw from Evolution is here. Designed to replace the RAGE5-S and other 255mm saws, it is ready to deliver new standards of accuracy, reliability and efficient cutting in a variety of materials.

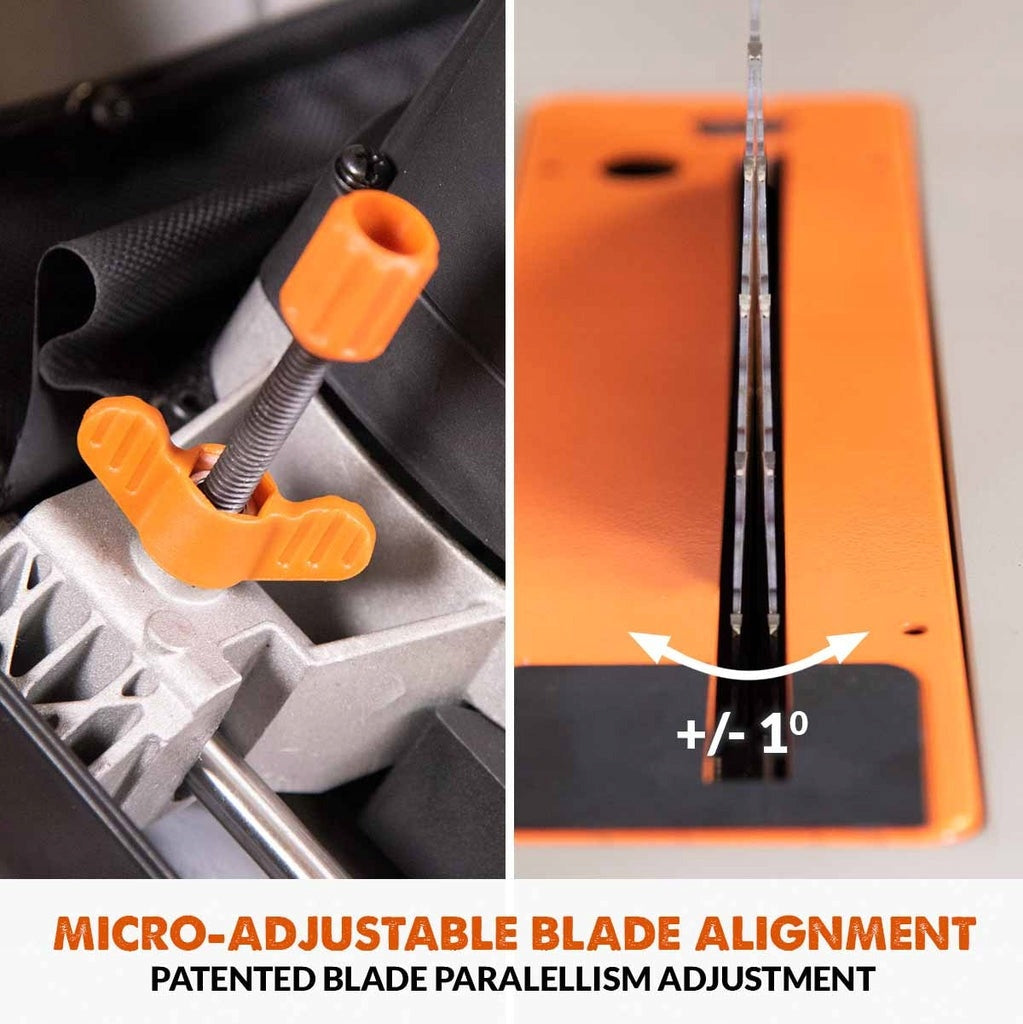

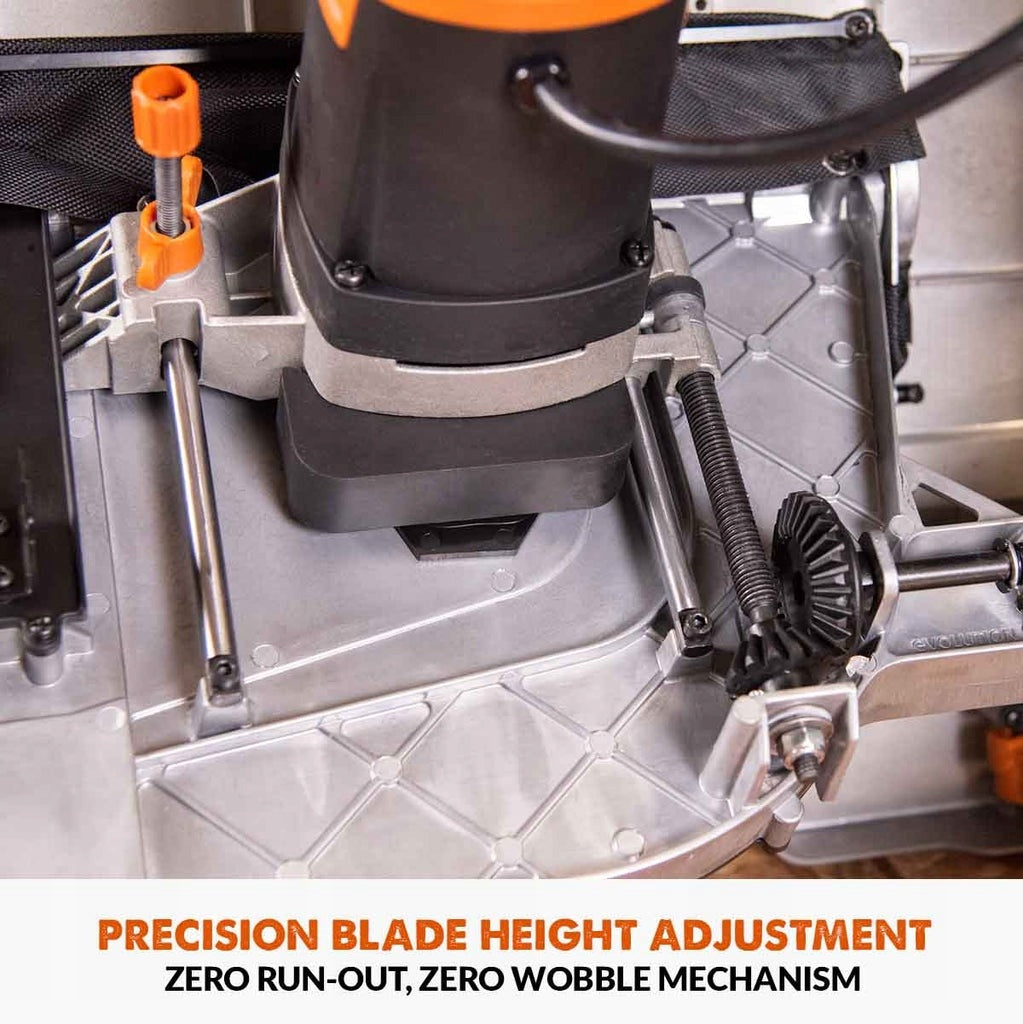

The R255TBL table saw is more accurate. A clean top-to-bottom design with dual rack and pinion gear and anti-bending protection ensures accurate, repeatable cuts. A new blade height and miter angle micro-adjustment mechanism provides wobble-free adjustment. Our patented blade-to-fence parallelism adjustment allows for perfectly aligned cuts in full-size sheets. The R255TBL also features a metal throat plate with corner height adjustment.

The R255TBL is more versatile. The integrated miter guide uses an industry-standard channel profile for compatibility with third-party accessories, as well as our own miter guide. It offers a cutting depth of 85mm at 90 degrees and 58mm at 45 degrees. It has a wider, cast table designed to handle 8x4 sheets, but still weighs less than the RAGE5-S. Add to that improved dust extraction, multi-material cutting, tool-free setup and adjustment, and you have the most versatile table saw we’ve ever made.

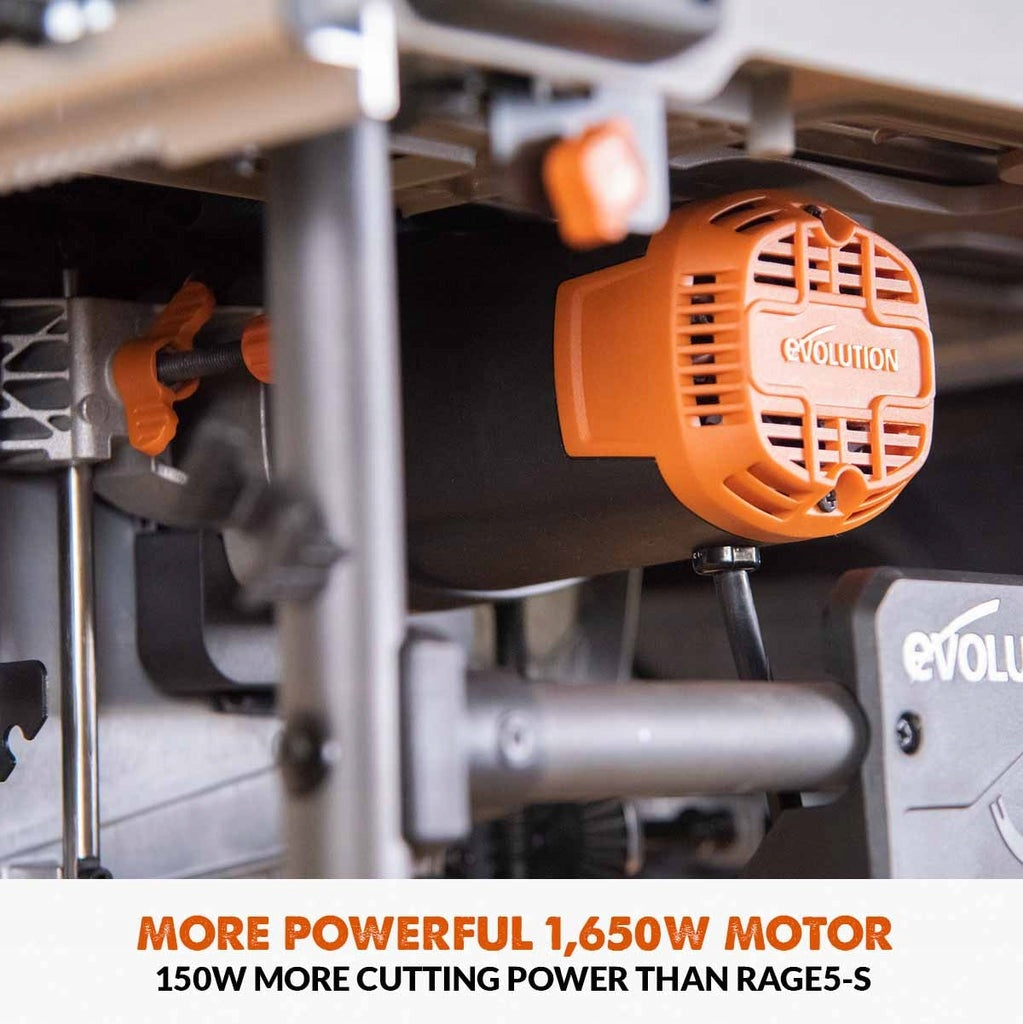

The R255TBL is safer. The more powerful 1650W motor features thermal overload protection and a paddle-style emergency stop. The blade guard provides improved cut visibility, and the quick-change blade design with bevel and side adjustments provides safer cutting. The new motor housing provides improved dust extraction, improved cleaning access, and blade changes are easier than ever before.

The R255TBL 255mm portable table saw is built to tackle any home project or jobsite cutting task. It is stronger, more accurate, safer to use and significantly faster and easier to set up than the RAGE5-S table saw it replaces. It is ready to deliver our "one blade cuts all" technology for cutting multiple materials, as well as the accuracy and quality of finish required for woodworking projects.

*The R255TBLX comes standard with a new tubular steel wheeled support. Secured to the table with 4 screws, it gives you the flexibility to use your new table saw as a table-mounted or stand-mounted machine, and can be swapped between the two in less than a minute.

• More portable, efficient, accurate and easier to adjust and calibrate.
• Increased accuracy for any type of cut and easy to set up.

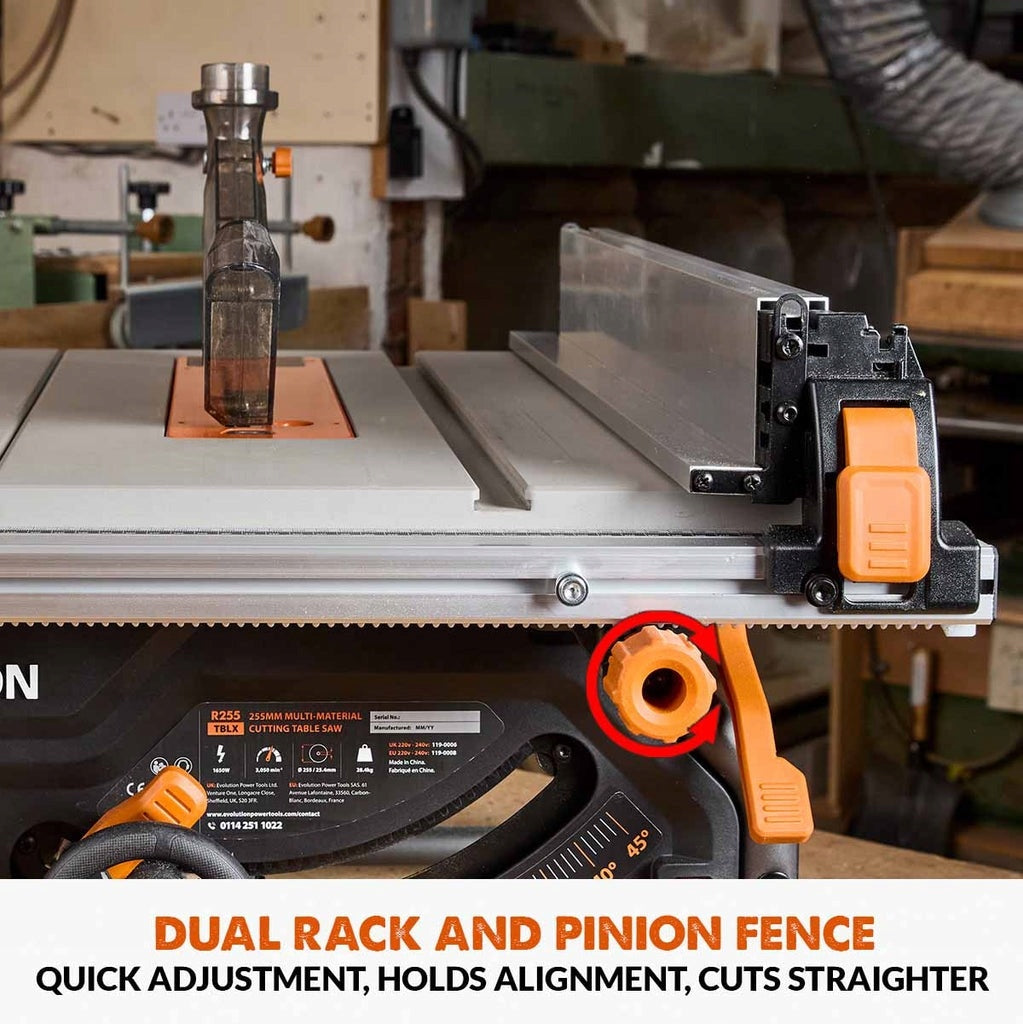

• Dual rip fence with rack and pinion for precise rip cuts.
• Quick-release rip knife with offset angle adjustment and lateral adjustment.

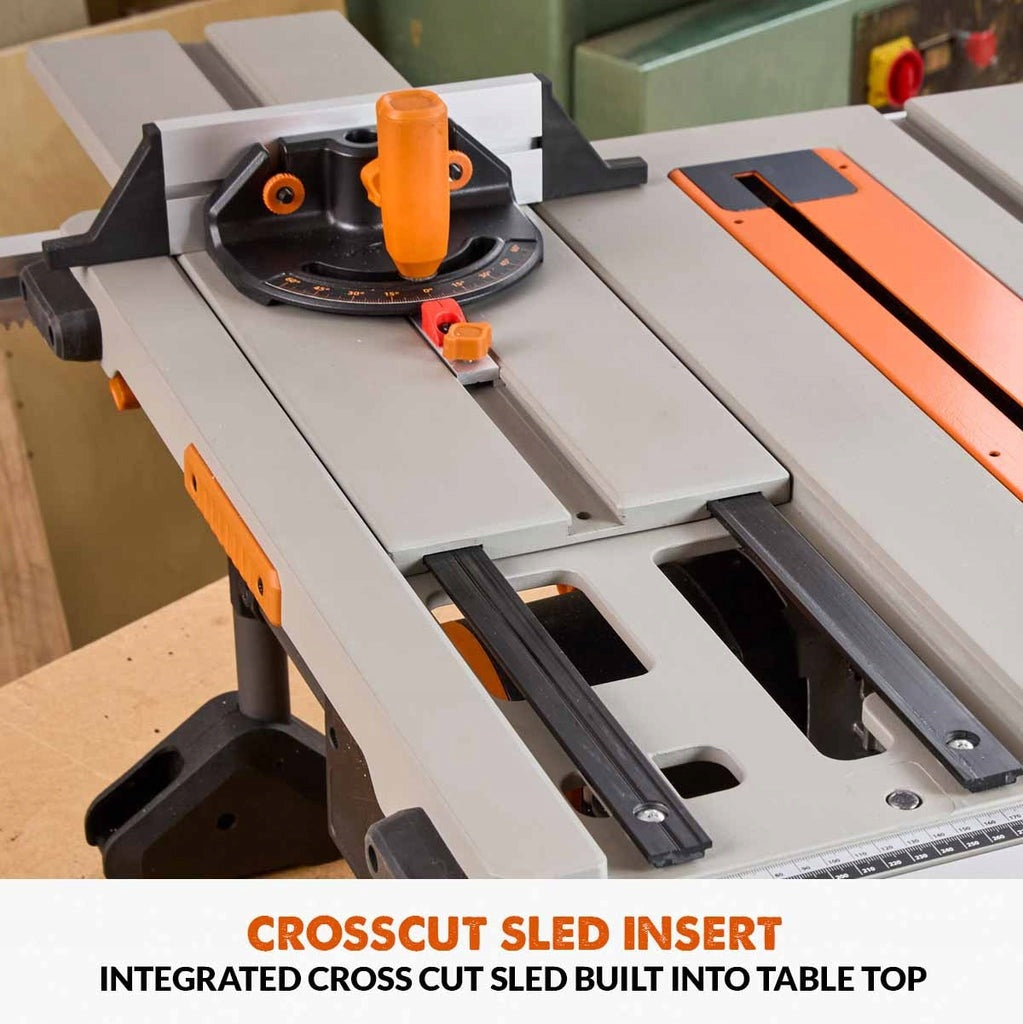

• Cross slide insert - Industry standard accessory channel profile for the miter saw.
• Bevel angle switch with micro-adjustable gearing at 45° (+ and - 2°)

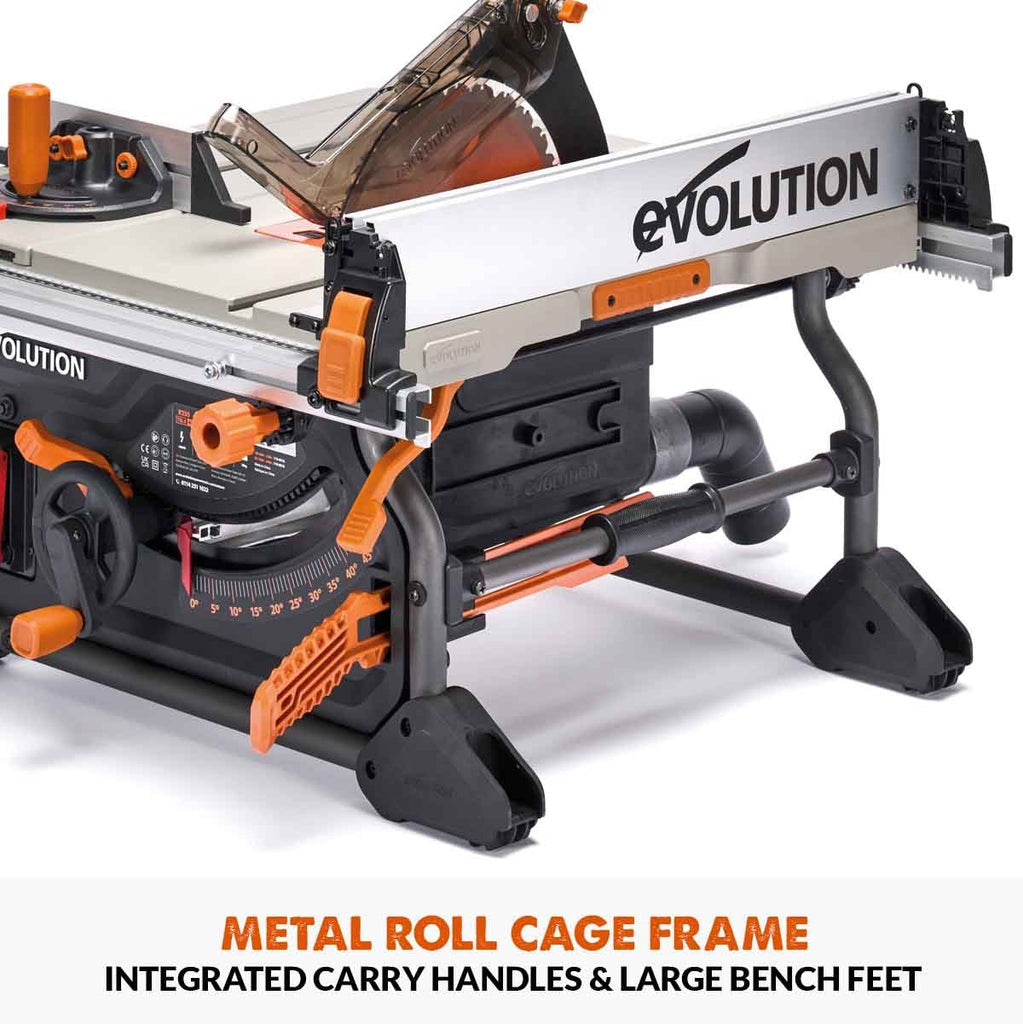

• Metal housing with built-in carrying handles.
• Increased cutting depth of 85mm at 90° and 58mm at 45°.
• New blade guard. Easier adjustment and better visibility of the cut & dust extraction.
• More compact and portable wheeled support - drives through standard width doorways.
• Active Dust Collection ADC. Improved dust extraction and release (all new dust protection system).
• Intelligent motor overload protection.
• Paddle-type emergency stop for improved user safety.
• Reduced packaging and storage size.

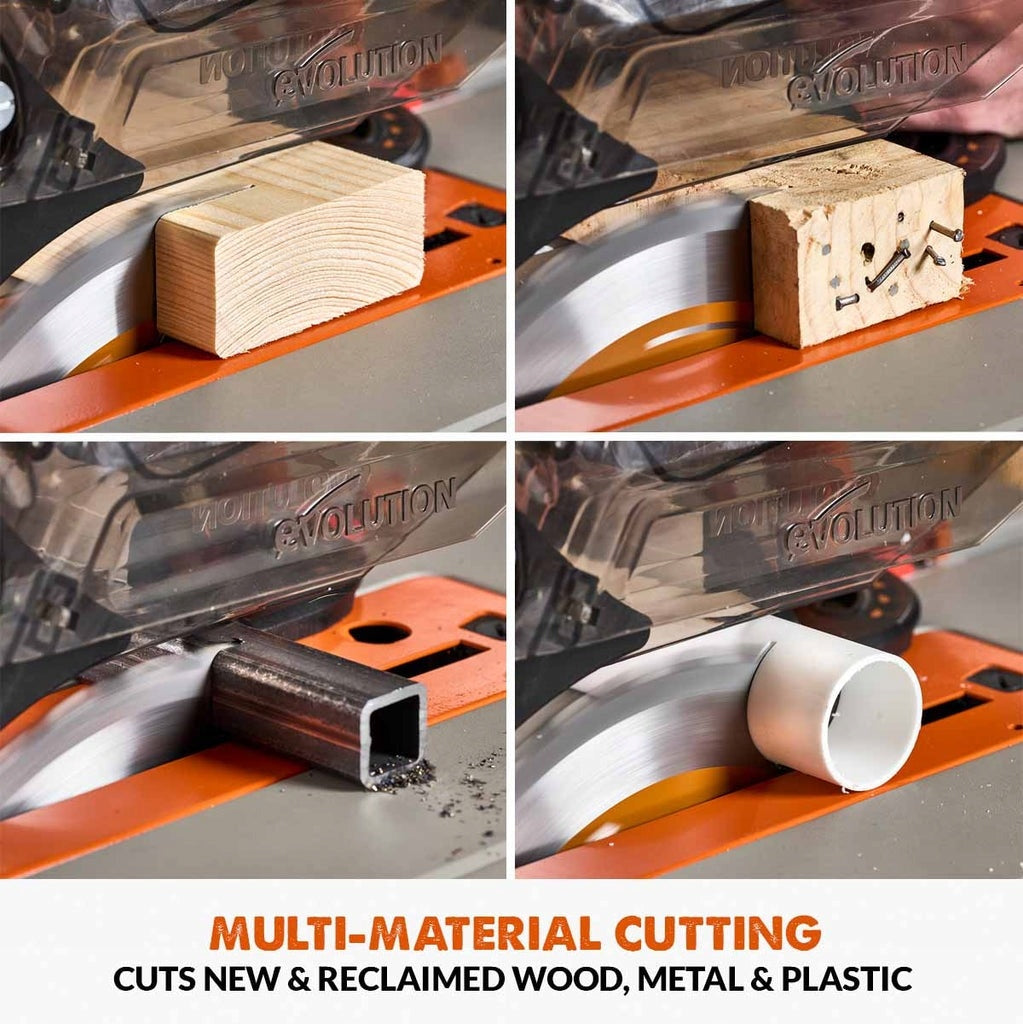

• Multi-material cutting technology. One saw, one blade, cuts everything*. More powerful 1650W high torque motor.
• 45° and +/-60° mitre guide covers typical, compound cutting angles.
• 4m heavy duty cable with built-in cable holder.
• All tools and accessories stored on the tool frame.
• Multi-material cutting capability, 255mm 28T Japanese Tungsten Carbide (TCT) blade included.
• Available with or without a foldable accessory stand on wheels.

Specifications

• Motor (240V 50Hz): 1650 W
• No Load Speed: 2500 RPM
• Maximum Bevel (Left): 45° (-2 to 47° with thrust washers removed)
• Blade Diameter: 255 mm
• Number of Teeth: 24
• Bore: 25.4 mm
• Notch: 2 mm
• Maximum Cutting Depth (0°): 85 mm
• Maximum Cutting Depth (45°): 58 mm
• Mild Steel Sheet (Maximum Thickness): 6 mm
• Ripping Capacity - Right of Blade 650 mm
• Ripping Capacity - Left of Blade 371 mm
• Riving Knife Thickness 1.8 mm
• Product Dimensions: (With Leg Assembly) 1050 mm x 750 mm x 940 mm
• Dimensions product: (Without leg set) 880 x 730 x 330 mm
• Maximum table dimensions 1200mm x 640mm
