Stabdžių nuorinimo įrenginys YATO YT-06833

Trumpai apie prekę

Prekė: Stabdžių nuorinimo įrenginys YATO YT-06833. Kategorija: Įrankių rinkiniai.

• Gamintojas: Yato
• Modelis: YT-06833

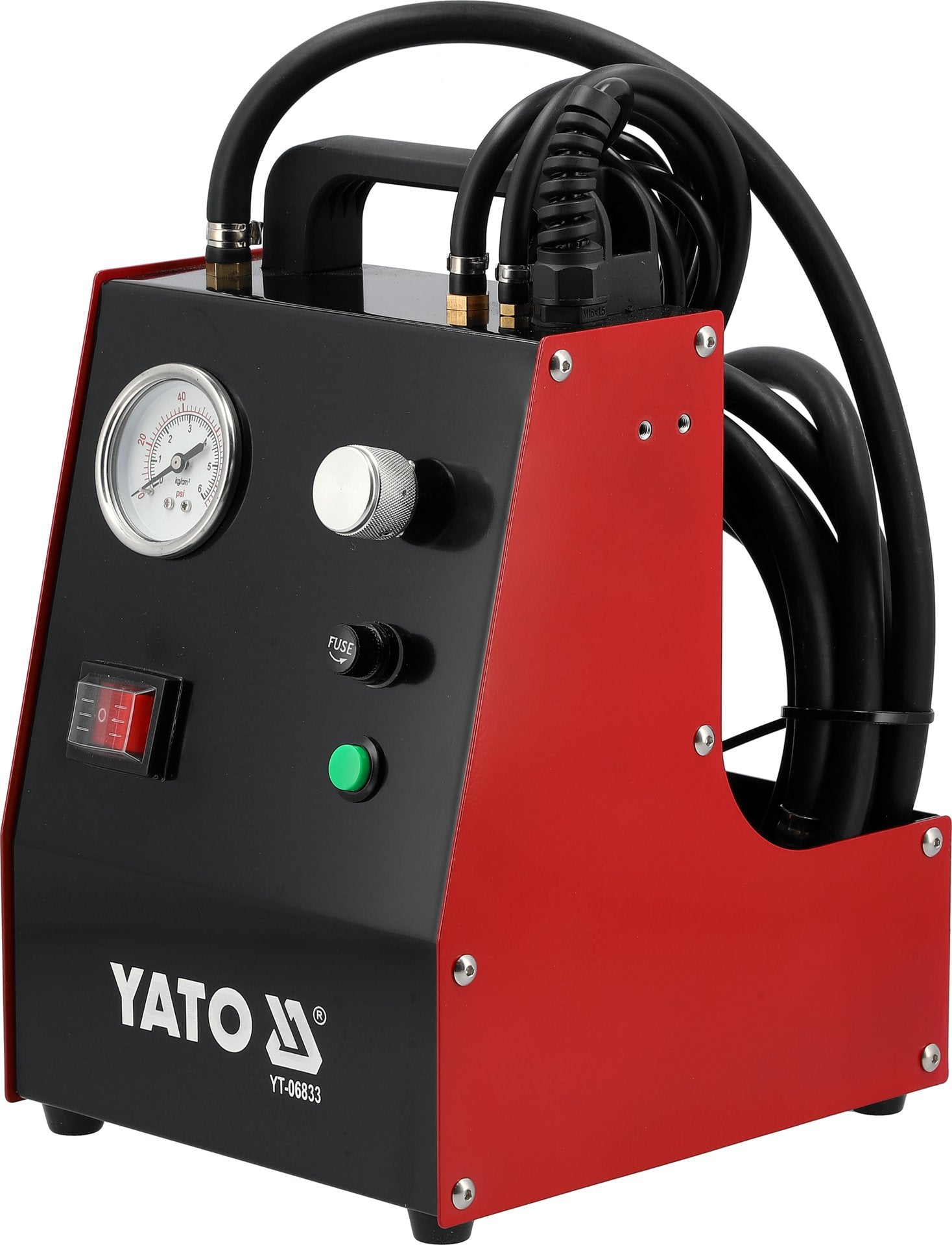

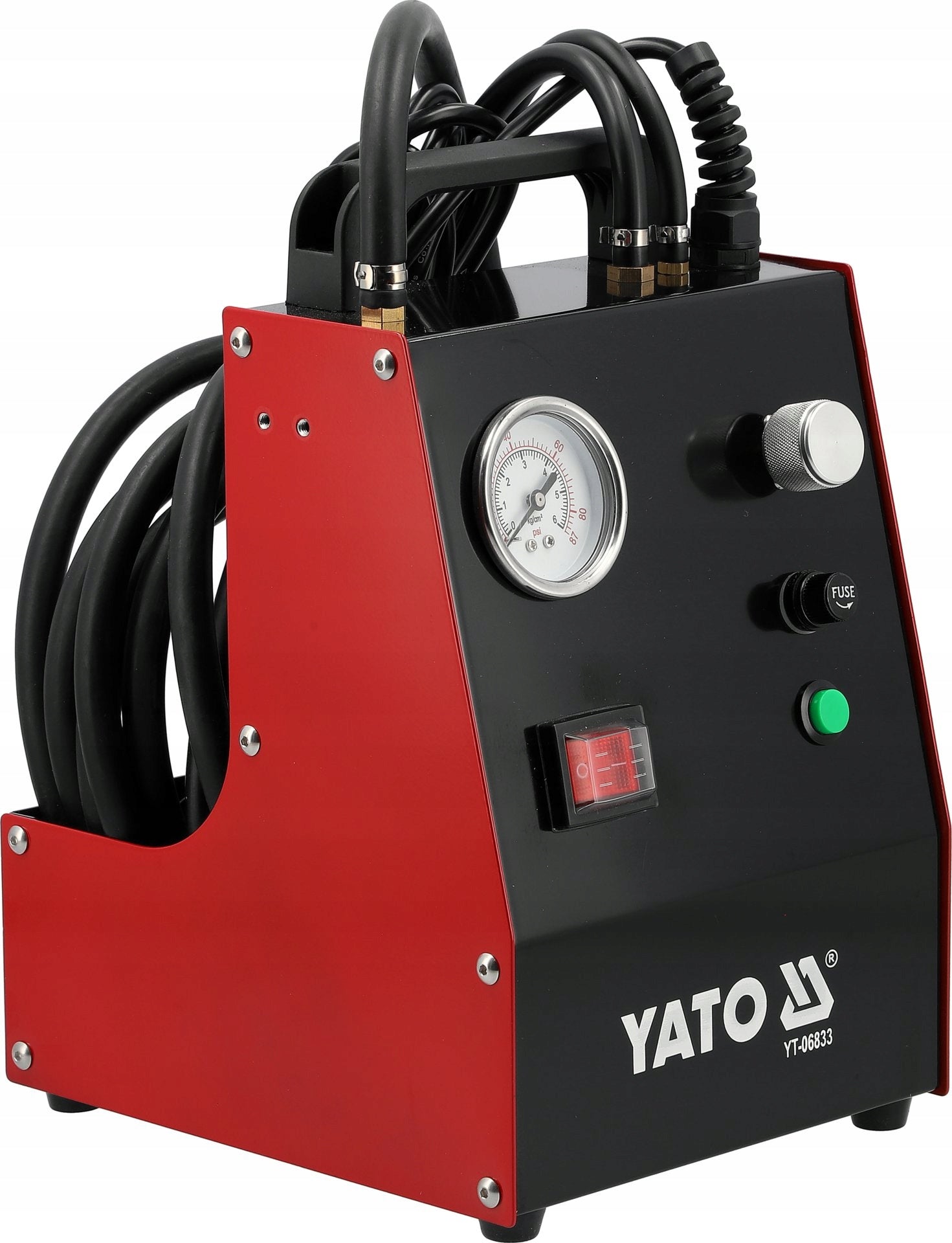

BRAKE VENTING DEVICE

The YT-06833 brake venting device is a professional service tool designed for comprehensive service of brake systems in passenger and commercial vehicles. It allows you to vent, fill and replace brake fluid in a controlled manner, eliminating the risk of system protection. The use of an automatic pump with pressure regulation allows for one-person operation, significantly improving and accelerating the service process.

The device operates on the basis of a stable operating pressure, which forces the flow of new brake fluid through the system, while removing used fluid and air bubbles. The built-in pressure gauge and adjustment knob allow you to precisely set the operating parameters within the range recommended for your vehicle. The pressure monitoring system and automatic shutdown in the absence of its production increase the safety of use and protect the system from damage. Thanks to the continuous circulation of fluid, the risk of moisture absorption is reduced, which is crucial for maintaining the properties of the braking system.

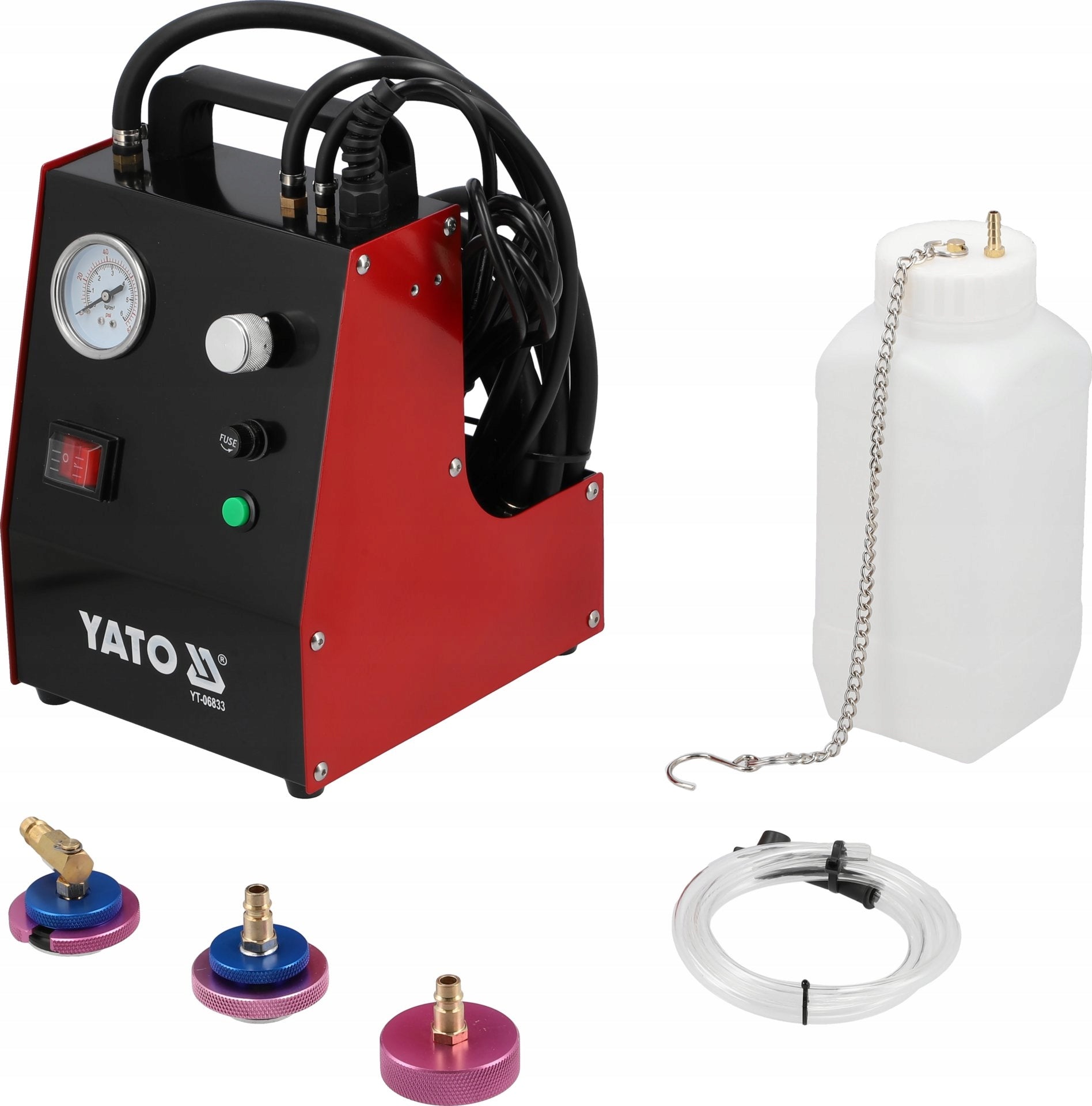

The design of the device includes a waste fluid tank, a hose system with quick couplers, and a set of adapters for compatibility with various types of expansion tanks. A well-thought-out arrangement of working elements, including suction hose and pressure equalization hose, enables stable operation and real-time process control.

The most important features and technical parameters:

• type: brake fluid venting and replacement device
• application: brake system service – venting, filling, fluid change
• Power: 35 W
• maximum pressure: 0,3 MPa / 3 kg/cm² / 43,5 PSI
• Operating pressure: 0,16-0,20 MPa / 1,6-2,0 kg/cm² / 23,2-29,0 PSI
• maximum fluid flow: 1,2 l/min
• automatic pressure pump – stable operation and fast fluid change
• pressure adjustment with a knob – adapting to the requirements of the vehicle
• built-in pressure gauge for ongoing control of operating parameters
• pressure monitoring system and automatic shutdown in case of irregularities
• possibility of one-person service
• Waste liquid tank with drainage system
• brake fluid hose and quick coupler hose
• suction hose and pressure equalisation hose – process control
• set of adapters – wide compatibility with vehicle systems
• Weight: 5 kg

The device significantly improves the process of replacing and venting brake fluid, ensuring repeatability of parameters and high efficiency of operation. Thanks to precise pressure regulation, continuous fluid flow and the ability to work by one operator, it is a reliable equipment for car workshops and specialist services.

YT-06833

Specifications
