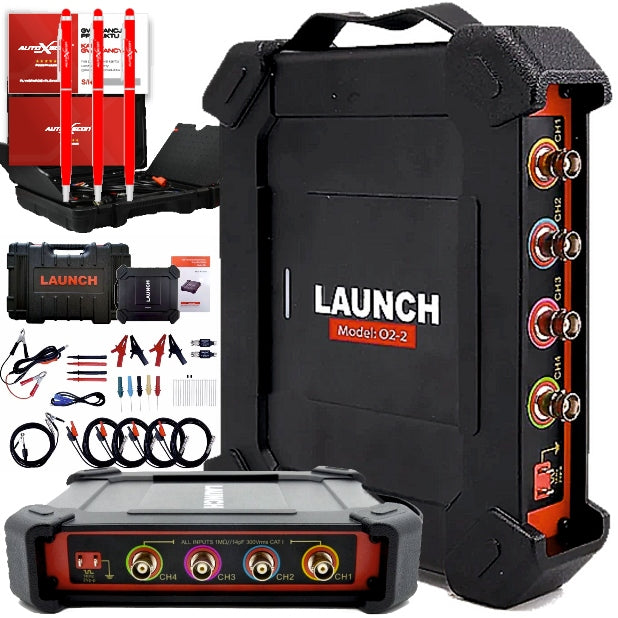

Skaitmeninis osciloskopas LAUNCH X-431 O2-2 Scope Box, 4 kanalai

Trumpai apie prekę

Prekė: Skaitmeninis osciloskopas LAUNCH X-431 O2-2 Scope Box, 4 kanalai. Kategorija: Multimetrai.

• Gamintojas: Launch
• Modelis: X-431 O2-2 Scopebox 100MHz 4 kanały

Full set in case with adapters

EQUIPMENT FROM AUTHORIZED DISTRIBUTION LAUNCH!!!

NOW INCLUDED IN THE PRICE TESTER HAS 2 YEARS OF UPDATES, NOT LIKE THE OLDER VERSION WITH THE ANNUAL UPDATE!!!! !

Scope Box O2-2 is an updated version of the 4-channel Scope Box oscilloscope from Launch.

LAUNCH O2-2 has undergone minor hardware changes, besides it is completely identical to the previous model O2-1. The O2-2 oscilloscope is an additional module for the Launch PRO and PAD series diagnostic scanners. With its help, you will carry out diagnostics at a deeper level of car sensors, communication buses, actuators, etc. Using this module will allow you to extend the functionality of your scanner and locate faults faster.

Diagnoscope works in Polish, with an additional option wi-fi translator

Functionality of the Launch Scope box O2-2

• Multiple automotive tests including circuits, sensors, actuators, ignition tests and more
• Captures and plays back high-resolution waveform data for analysis
• Zoom/diminish function to see fine details
• Self-calibration function optimizes the oscilloscope signal path for maximum measurement accuracy
• Transfer data via USB to external devices such as laptop, tablet, etc.

Features of the Launch Scope Box O2-2

Includes an integrated library of standard signals

Automatic waveform adjustment on all 4 channels

Each channel can operate independently, providing a clear signal without interference

High-quality BNC connectors

Simple and clear interface

The ability to directly enter names and symbols by clicking on the virtual keyboard, this operation simplifies the process and helps increase productivity by up to 90%

Includes a set of standard ignition adapters

Allows pre-selecting of ignition settings

Extremely fast detection of “errors” thanks to advanced triggers

Built-in rectangular wave generator for accuracy and calibration verification

All saved waveforms can be recorded, saved and printed

Access 23 automatic measurement options, all displayed on one screen for easy switching

The one-key switch-on feature allows you to capture a specific waveform, making the process 70% more efficient than other oscilloscopes

20 MHz bandwidth

Buffer memory up to 50 MB

DC accuracy +/- 1% .

Advantages

• It has the ability to record and play back high-resolution waveform data for future analysis
• The key feature allows users to capture a specific waveform, making the process 70% more efficient compared to other oscilloscopes
• Access to 23 variants of automatic measurements displayed on one screen for easy switching
• The ability to directly enter names and characters by clicking on the virtual keyboard, this operation speeds up the process and contributes to 90% efficiency
• With zoom/diminish function for viewing accurate details
• Configurable system settings that can be saved as configuration files for viewing
• Automatic calibration function allows you to optimize the oscilloscope signal path for maximum measurement accuracy
• Extends mathematical operations on the waveform, such as addition, subtraction, multiplication, and FFT function to analyze high-level waveform

Scope box O2-2 oscilloscope compatibility with Launch scanners

The Launch Scope box O2-2 oscilloscope works with the following devices. Run the scanners:

PRO Series : X431 PRO v4.0, X431 PRO v5.0, X431 IMMO PRO v5.0, X431 PRO 3 V4.0, X431 PRO 3 V5.0, X431 PRO 5 Smartlink (To connect to this series of scanners, except X431 V5.0, you will need a USB Type-A/micro USB or Type-C adapter, depending on your scanner configuration, adapter not included)

PAD Series : X431 PADV, X431 IMMO PADV, X431 PADVII

For the oscilloscope to work, select the application for your scanner from the "Download" tab, download it to your scanner and install it.

Scope box O2-2 oscilloscope compatibility with Android tablets

The Launch Scope box O2-2 works stably with tablets:

Based on Android operating system version 7 and later

Tablet screen resolution must be at least 1280*800

To connect the oscilloscope to the tablet, you will need adapters from USB Type A to micro USB or Type C.

For the oscilloscope to work, select the application for your tablet from the "Download" tab, download it to your tablet and install it.

Characteristics

• Number of Channels: 4
• Broadband: 100 MHz
• Rising time: 3,5 ns (typical)
• Accuracy: ±3%
• Input Impedance: 1M ± 1,5%
• Input Type: Single Sided BNC Connector
• Input Coupling: DC, AC
• Overload protection: ±200V on single input

Time base ranges:

• 1ns ~ 1ks (1 channel)
• 1ns ~ 1ks (2 channels)
• 1ns ~ 1ks (4 channels)
• Vertical Resolution: 8 bits
• Buffer memory: 10M (for 4 channels)
• Power Interface: USB Port, DC Input Port
• Data exchange via USB
• Shooting mode: normal, automatic and single
• Advanced Triggers: Slope, Pulse Width

Technical characteristics of the Launch Scope Box O2-2 oscilloscope

Accessories

• Silencer 20:1
• BNC Measuring Cables: 4mm
• Cable with crocodile clamp
• Crocodile Clamps
• Commencement of secondary ignition
• multimeter probes
• Rear Probe Pin Set
• USB cable

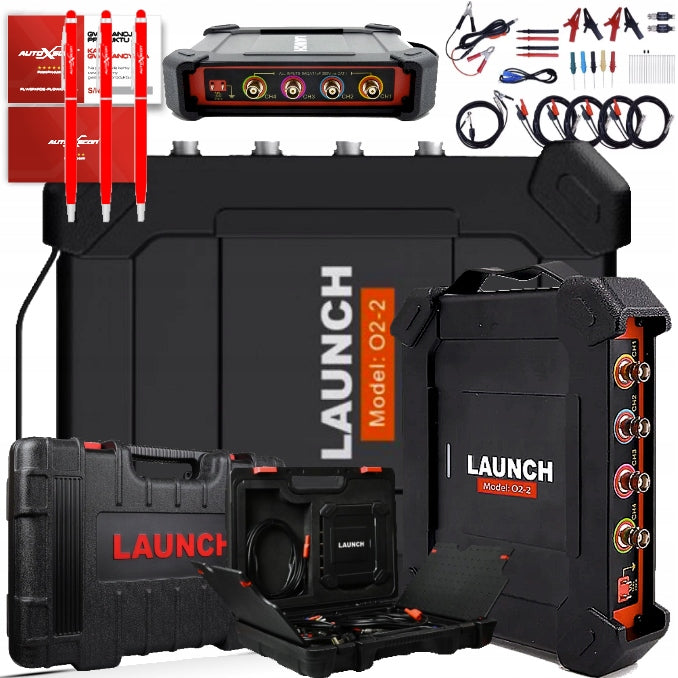

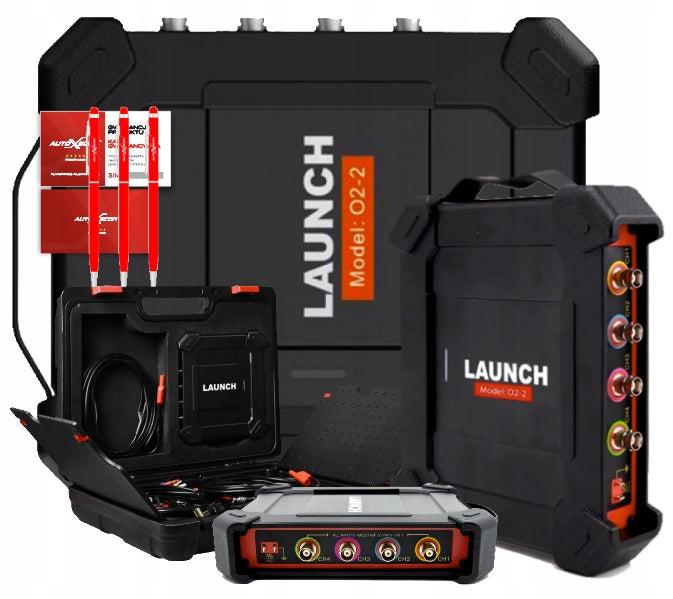

The set includes:

1. OSCILLOSCOPE LAUNCH X-431 OS-2
2. Cardboard packaging
3. USB cable
4. Suitcase with compartments
5. Silencer 20:1
6. BNC Measuring Cables: 4mm
7. Cable with crocodile clamp
8. Crocodile Clamps
9. Commencement of secondary ignition
10. multimeter probes
11. Rear Probe Pin Set
12. 3pcs pen for touch screens
