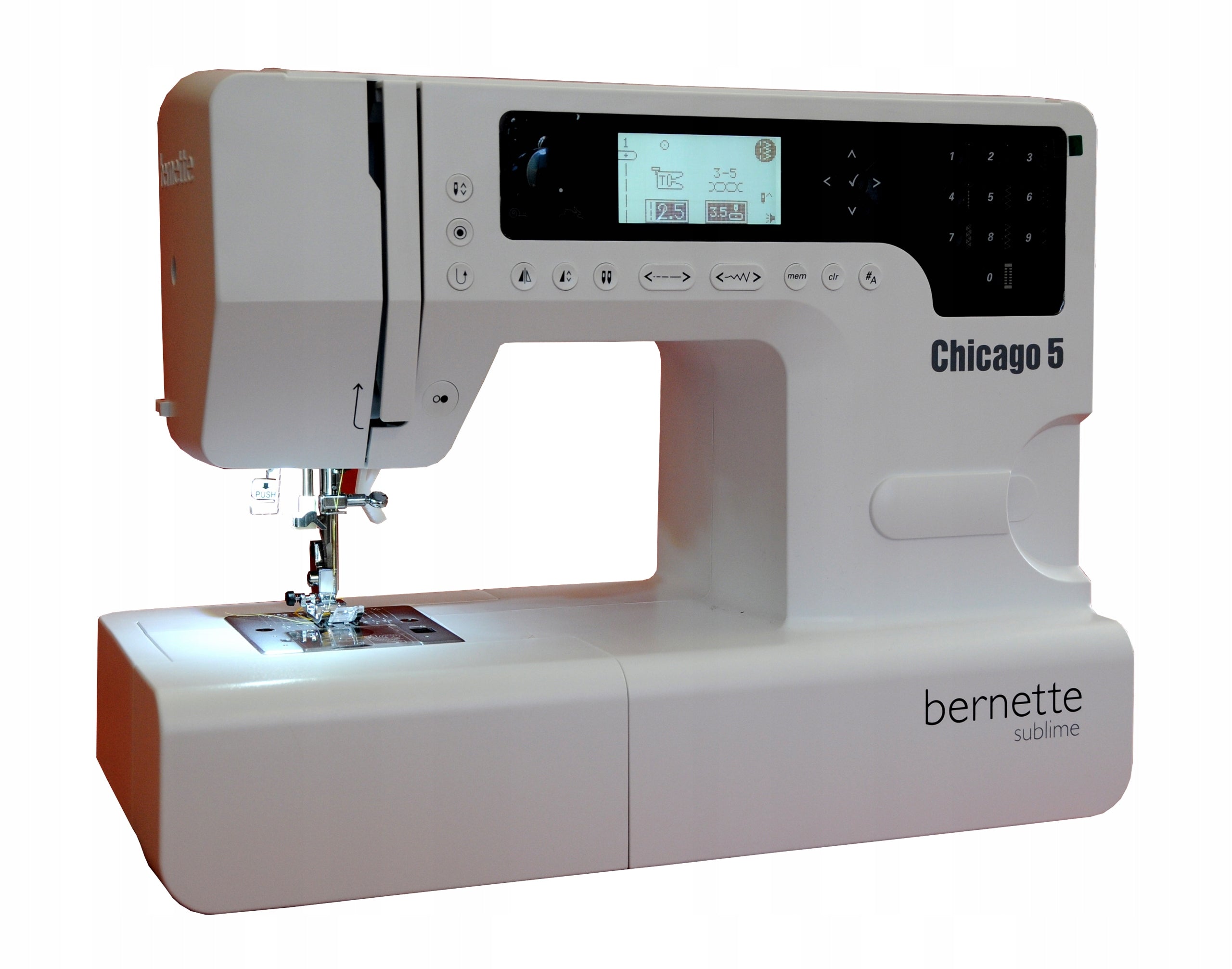

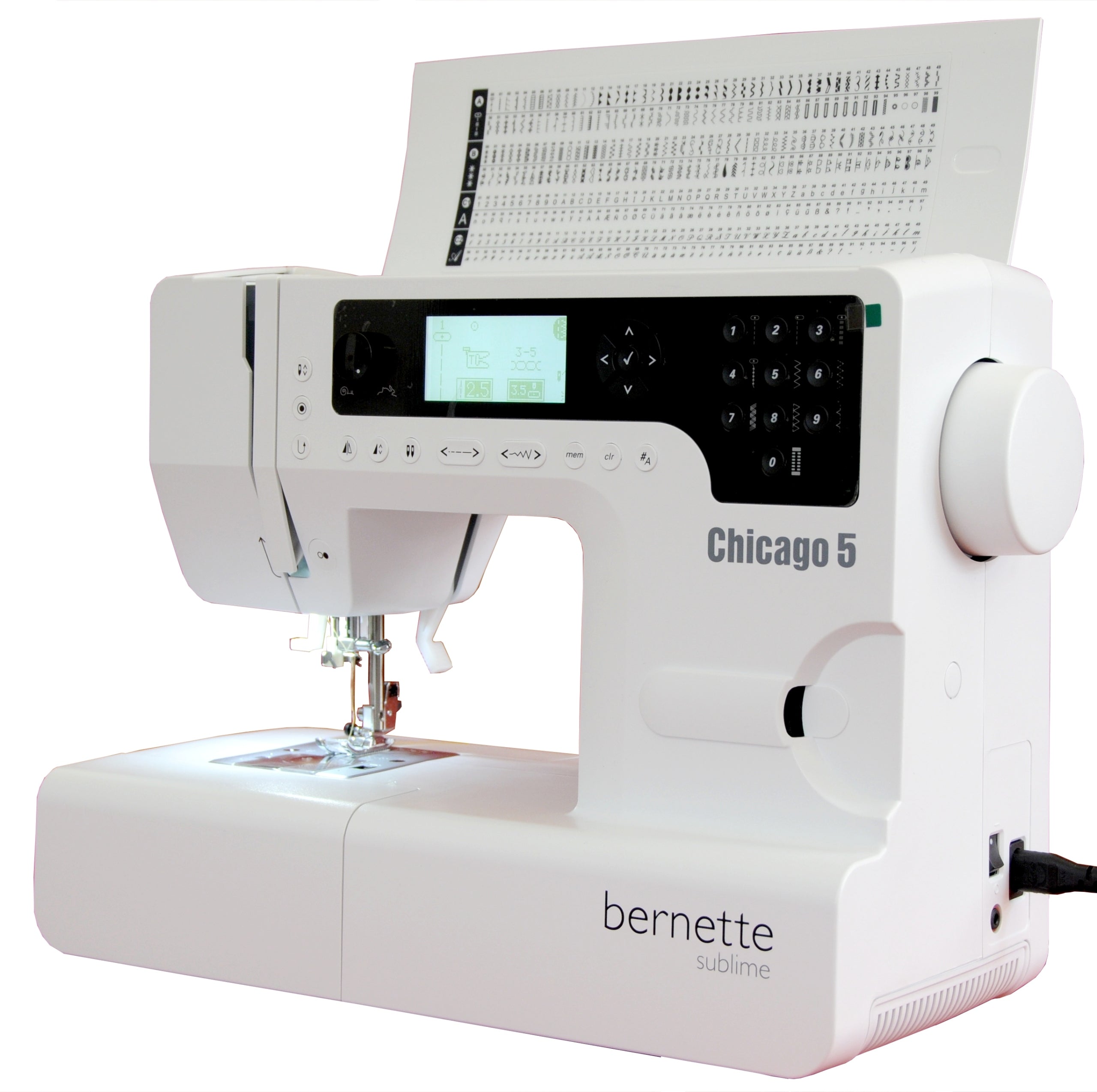

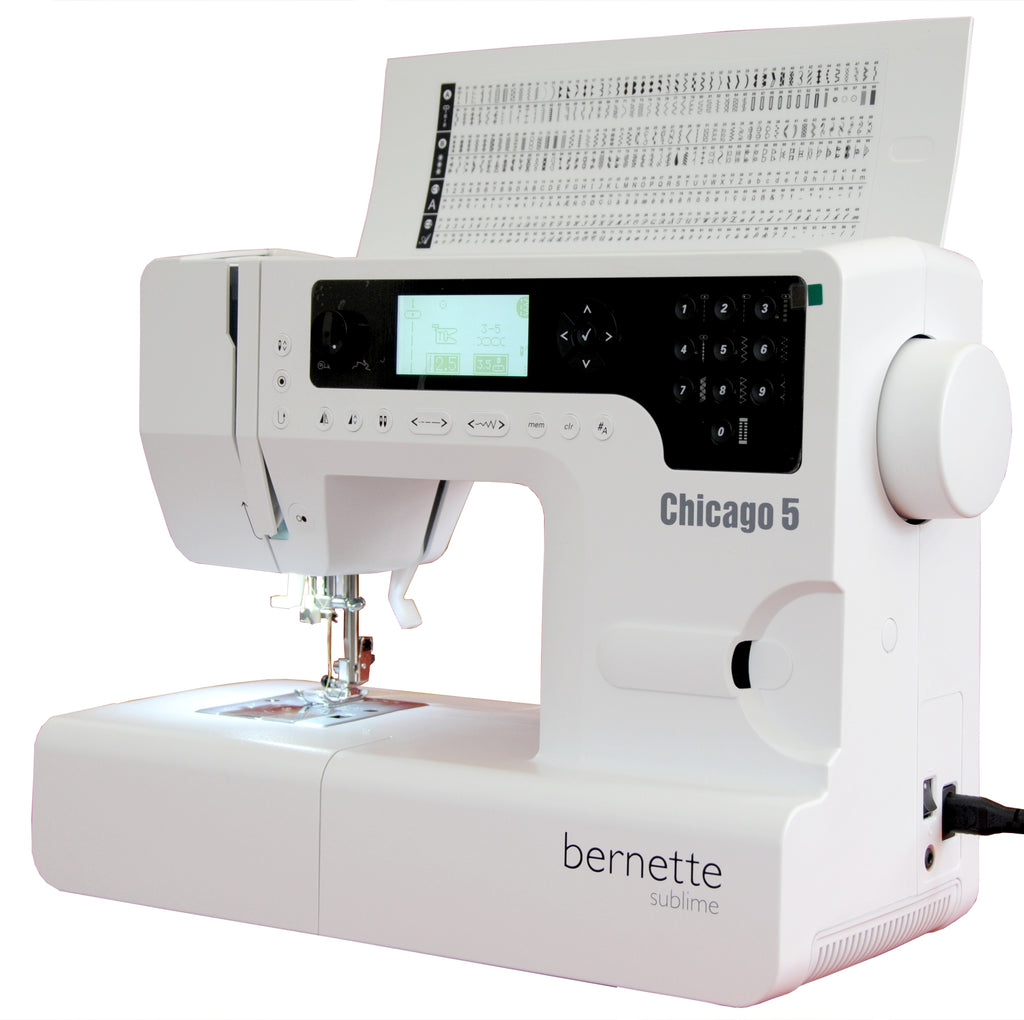

Siuvimo mašina BERNETTE CHICAGO 5

Trumpai apie prekę

Prekė: Siuvimo mašina BERNETTE CHICAGO 5. Kategorija: Siuvimo mašinos.

• Gamintojas: Bernette
• Modelis: Chicago 5
• Medžiaga: metal

Easy Operation | Advanced Features | Robust, Proven Design

The Chicago 5 is the perfect device for those looking for a durable and robust sewing machine that combines Advanced Features with easy and intuitive operation.

200 stitches, 2 alphabets, 11 automatic buttonholes, all controlled by multi-function buttons. Large and easy to read LCD screen displays all necessary information and parameters.

The Chicago 5 Sewing Machine is the perfect solution for sewing enthusiasts who want to use their creative features in their work.

Great machine, top quality proven for years of construction and modern, visually attractive housing. All this makes Chicago 5 sewing machines a hit for people who value Modernity and Reliability of construction.

Chicago 5 is equipped with 394 Sewing Programs, including utility stitches, decorative stitches, quilting stitches, 11 automatic buttonholes and lettering - 2 alphabets of 97 characters: uppercase and lowercase letters, numbers, special characters.

The choice of stitches is made in a simple and quick way thanks to the numeric keyboard, just enter the stitch number and we can already use it. Individual stitches can be stored in the memory of the machine and combined into sequences. The parameters of each stitch (such as length, width, mirror reflection, lengthening, double needle sewing) can be individually changed by the user.

In addition, after setting the desired parameters, you can save them in memory to use them at a later time. Combination of stored stitches (e.g. inscription) can be stored permanently, so that after restarting the machine, they can be re-embroidered.

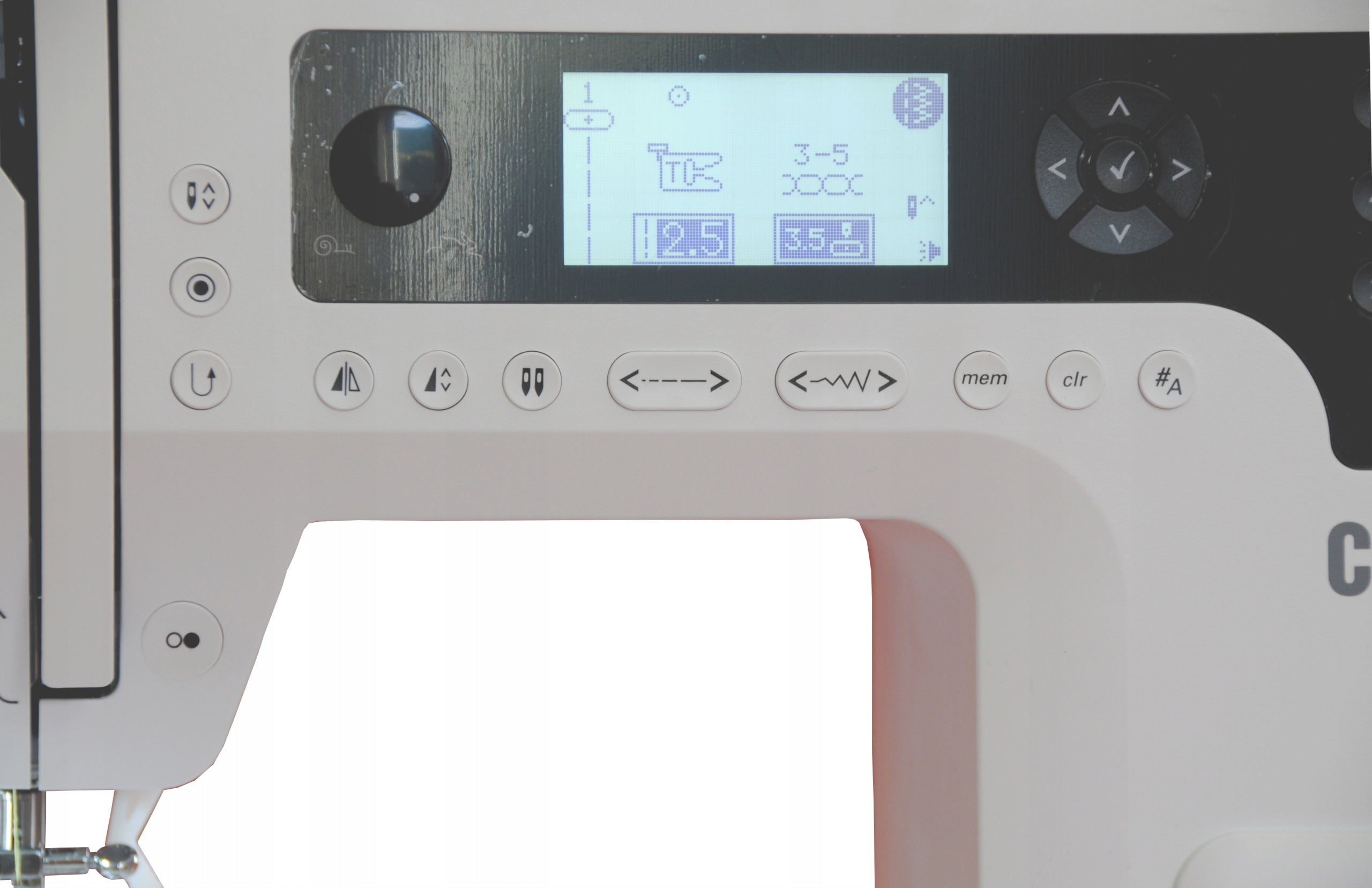

The clear and transparent LCD screen contains all the information we need to work. After selecting the stitch you need, its graphic pattern will appear on the LCD display screen. The screen will also show the recommended stitch parameters, which we can of course edit using the buttons on the housing.

The speed control knob and electronic motor control of the machine make the sewing speed adjustable smoothly and steplessly.

This model has an automatic hole to the size of the (11 types) button, as a result of which, in just a few seconds we will get the perfect hole without the need to laboriously measure the contours of the button and mark them on the material. Thanks to this, we can quickly make a series of holes perfectly matched to our button.

The needle positioning function means that with the push of a button we can determine whether the needle is to be completely driven into the material or pulled out of it after stopping the machine.

The machine has full adjustment of stitch length (ranging from 0-4,5 mm) and width (ranging from 0-7 mm) and very many super stretch stitches for delicate and flexible materials. Both settings are adjusted using the buttons on the machine housing.

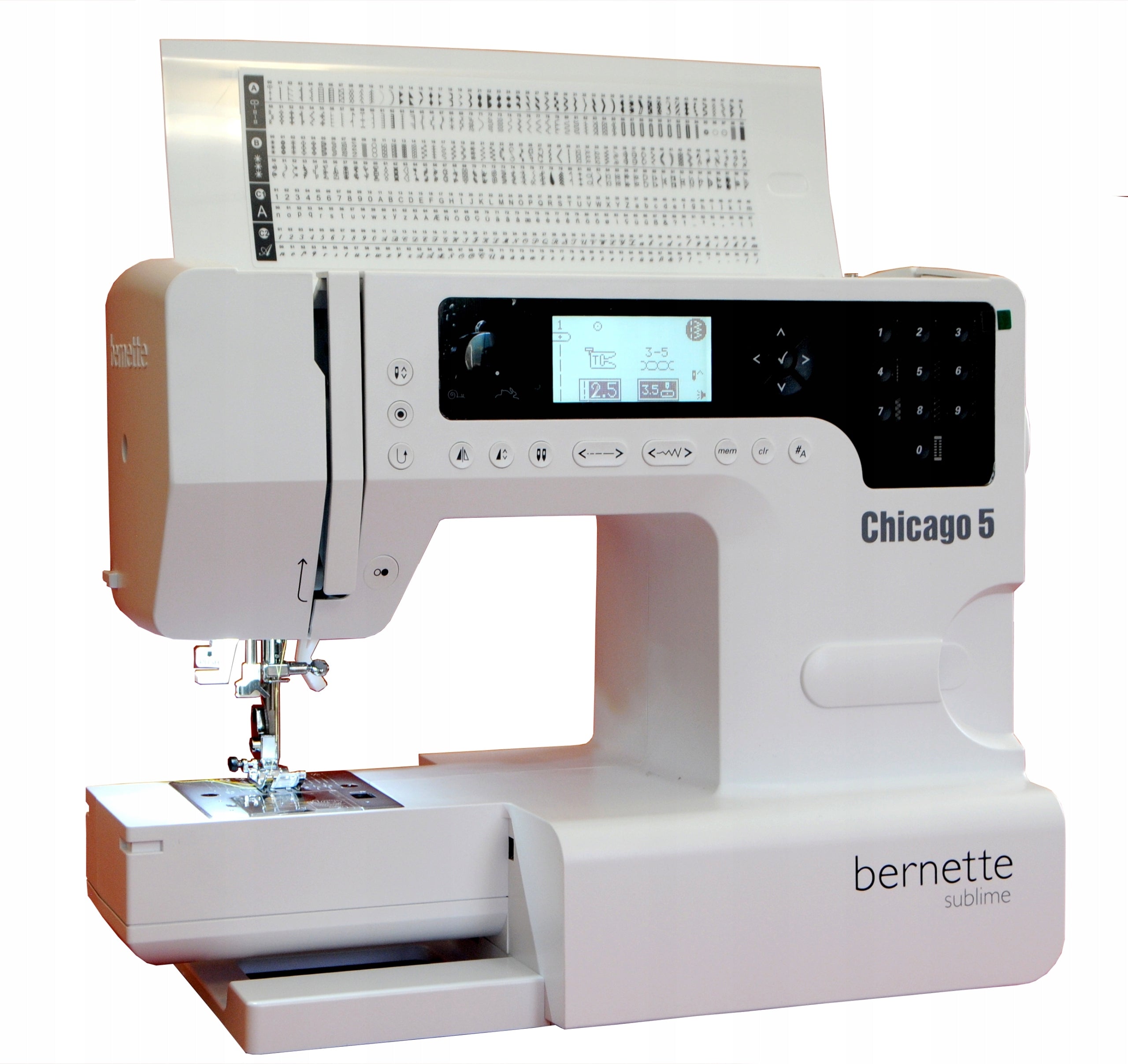

The Chicago 5 model is equipped with the most modern rotary gripper, which has proven itself in industrial machinery. This modern solution provides bernette machines with fast, quiet and comfortable operation, without having to pull out the bottom thread before sewing (Quick System). In addition, thanks to this construction, putting on and removing the bobbin is simple and hassle-free.

On the reconstruction we find special thread cutters that make it quick and precise to cut off excess thread during threading or after finishing sewing.

Chicago 5 also has the ability to turn off transport teeth. This feature is useful when sewing buttons, mending or embroidering.

The manufacturer also used Needle threading machine, thanks to which threading is quick and easy, and after a while we can start working.

Bernette in the Chicago 5 model used modern LED lighting. Built-in LEDs guarantee a powerful stream that perfectly illuminates the work area. Thanks to this, the user has excellent visibility on the material under the foot.

The machine allows sewing with double needle. In order to optimally guide the 2 upper threads, independent pins are used so that the threads will not get tangled when working on the machine.

In this model you will also find such amenities as: top and bottom thread cutter, adjustment of the tension of the upper thread, adjustment of the needle position and snap foot fastening system.

• Computer Machine
• 394 sewing programs
• number of patterns of automatic buttonhole - 11
• number of alphabets - 2 (194 characters)
• memory function
• rotary gripper
• double smooth stitch adjustment (length and width)
• max stitch width - 7 mm
• max stitch length - 4.5 mm
• needle positioning function (up/down)
• possibility of 15 different needle positions
• Sewing speed up to 680 injections/min
• START/STOP button + speed control slider
• free arm - 15 cm
• automatic stitch protection
• snap-on foot attachment system (s-matic)
• easy selection of stitches
• back sewing button
• LED lighting
• Simplified threading system
• needle threader
• external thread cutter
• foot pressure adjustment
• needles of the system 130/705H semi-flat stock
• possibility of sewing with a double needle
• possibility of sewing without transport teeth
• built-in spooler
• 6 feet on equipment

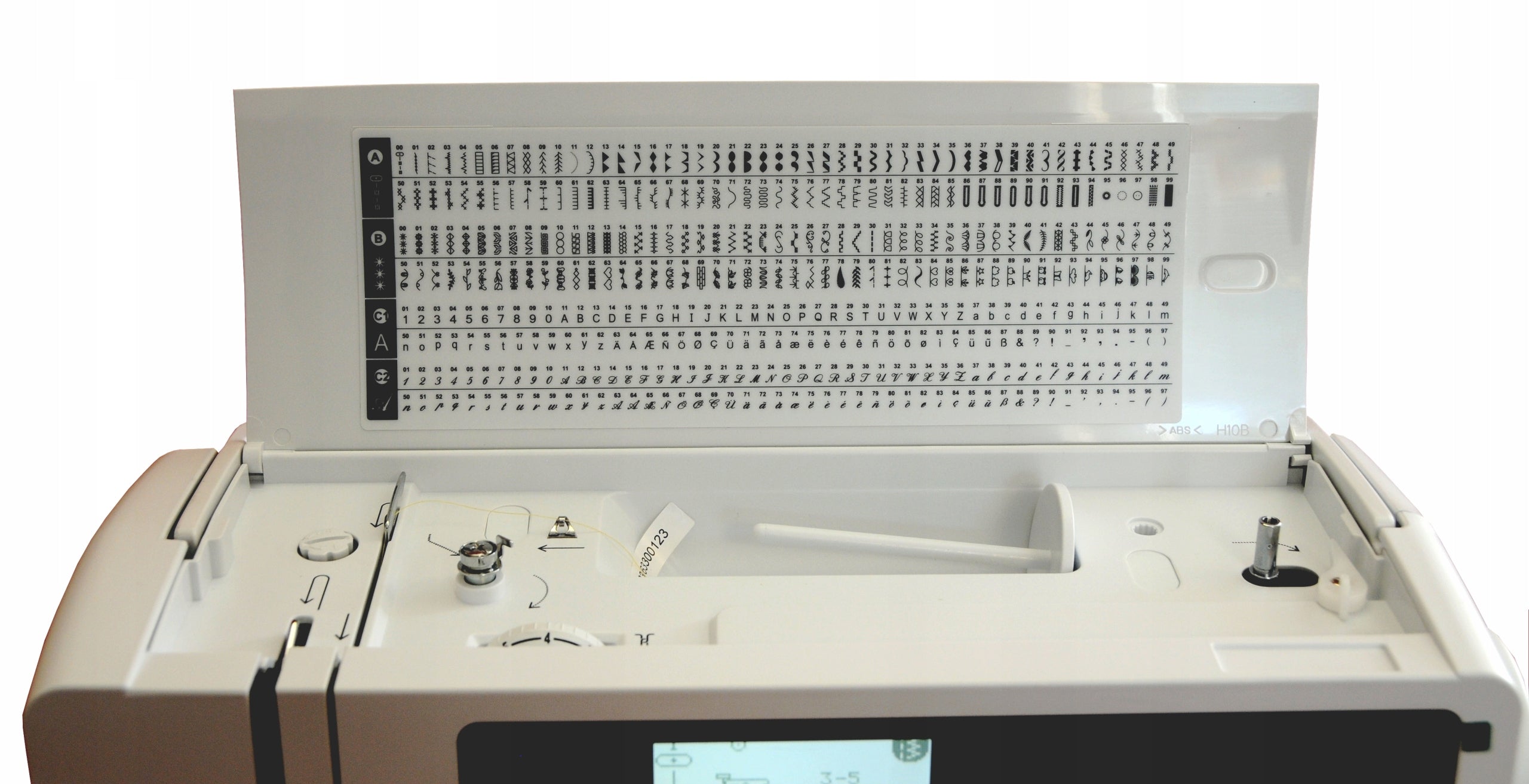

Available stitches:

Standard Equipment

1. Standard foot

2. Foot for embroidering holes (automatic)

3. Foot for covered stitch

4. Foot for sewing buttons

5. Overlock foot

6. Double-sided foot for sewing zippers

10. Cleaning brush and hole cutter

11. Set of needles (3 pcs. )

12. Spools

13. Screwdriver

14. Edge guide

15. Screwdriver - L

16. Additional thread shank (V)

17. Felt under the bobbin

18. Spool lock (large)

19. Spool lock (small)

20. Case for the machine

21. Spool netting

22. Scissors

Dimensions and technical data:

• Machine dimensions: 37 cm x 17cm x 29 cm
• Machine dimensions per package: 46 cm x 24 cm x 36 cm

• Volume: 0.042 m3
• Machine weight: 6.4 kg
• Weight of the machine with packaging: 8.4 kg

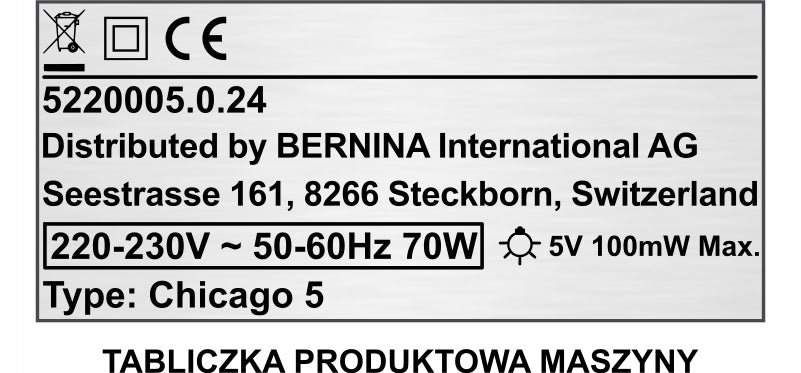

• Max. Machine power: 70W
• Power supply: 220-230V, 50-60Hz
