Šablonų rinkinys FESTOOL VS 600 SZO 20 kregždės uodegos sujungimams, 491153

Preis:
€268,17
Lagerbestand:
Auf Lager

Trumpai apie prekę

Prekė: Šablonų rinkinys FESTOOL VS 600 SZO 20 kregždės uodegos sujungimams, 491153. Kategorija: Frezavimo staklės.

  • Gamintojas: Festool
  • Modelis: 491153

A set of templates for making open attachment connections of the so-called. Swallow tail.

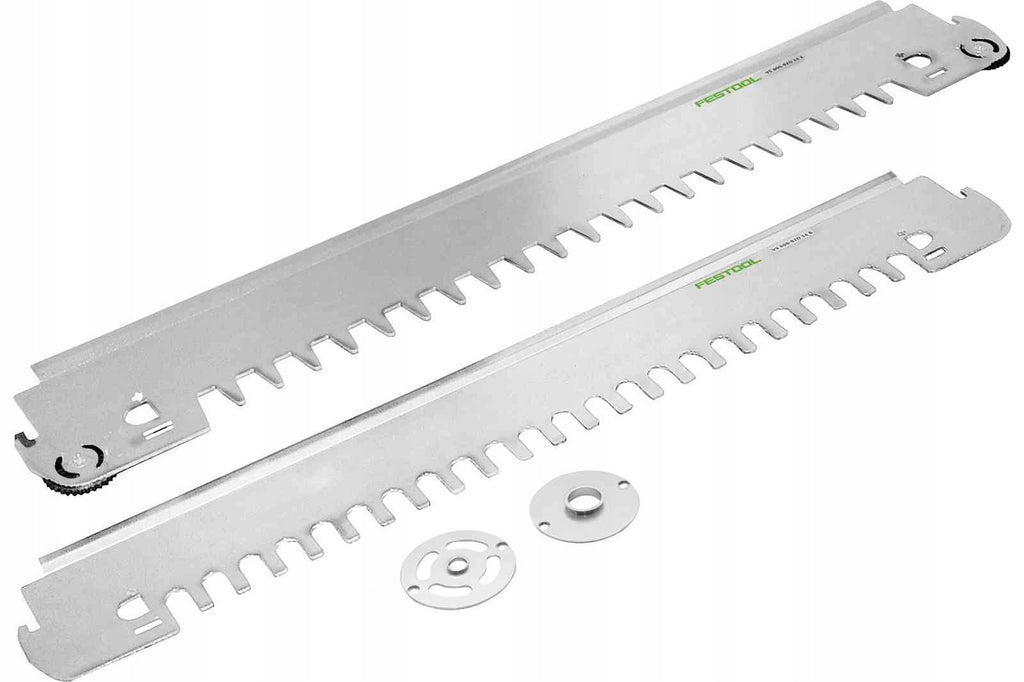

Scope of delivery:

  • copy ring Ø 13,8 mm (to OF 1010) No 484176
  • copy ring Ø 24 mm (to OF 1010) No 490771
  • milling template

Technical data:

  • Workpiece thickness: 14 - 25 mm
  • for milling machines OF 900, OF 1000, OF 1010, OF 1010 R, OF 1400

Technical data:

  • D: 13,80 mm
  • d: 10,80 mm

This copy ring is essential for milling wedge trailers and an open connection to the "swallow tail". It is exactly matched to the system templates for making VS 600 calls.

  • Fits SZO 20 Template With VS 600 Connection System
  • Fits FZ 10 template of VS 600 connection system
  • Fits DS 32 VS 600 connection system template
  • Using the centering spigot 492187 it is possible to accurately center the copy ring

Technical data:

D: 24,00 mm

This copy ring is used for milling a semi-covered connection on the "swallow tail" SZ 20 and an open connection on the "swallow tail" SZO 20.

  • Perfect for a system with templates for semi-covered or open connections on the "swallow tail"
  • fits SZ 20 and SZO 20 templates of the VS 600 connection system
  • Using the centering spigot 492187 it is possible to accurately center the copy ring

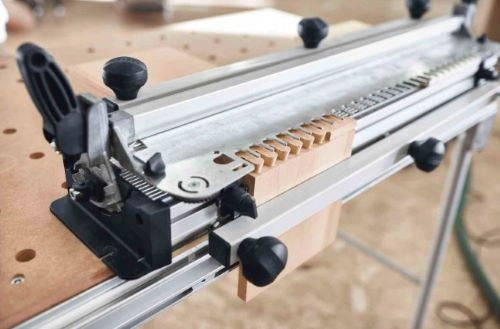

A set of templates, which in combination with VS 600 allows you to make an open connection to the "swallow tail" of 20 mm.

  • Simply insert the template into the base unit VS 600 so that repetitive corner connections can be made at any time
  • The template for trailers can be adjusted with 2 eccentric wheels
  • for exposed connections with the "swallow tail" trailer, 20 mm trailer size
  • Copy rings for OF 1400 must be ordered separately

Key applications

  • Suitable for devices of type: OF 1010, OF 1400
  • For making open swallow tail type sling connections
  • Corner joints for solid wood

Specifications

Group Name Value
Parametry Condition new
Parametry Invoice With VAT invoice
Parametry Brand Festool
Parametry Milling machine type other
Parametry Power supply mains
Parametry Maximum no-load speed 0 RPM
Parametry Manufacturer code 491153
Parametry EAN (GTIN) 4014549075340
Parametry Packaging status original

Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
