Rūkymo įrangos rinkinys: elektrinis valdiklis, termoporos jutiklis, 2,7 kW kaitintuvas

Trumpai apie prekę

Prekė: Rūkymo įrangos rinkinys: elektrinis valdiklis, termoporos jutiklis, 2,7 kW kaitintuvas. Kategorija: Rūkyklos.

• Gamintojas: CudNatury
• Modelis: 334rfv
• Medžiaga: metal

Electric Smoker Complete Equipment Set

MOST POWERFUL PUMP FOR GENERATOR UP TO 600 L/H

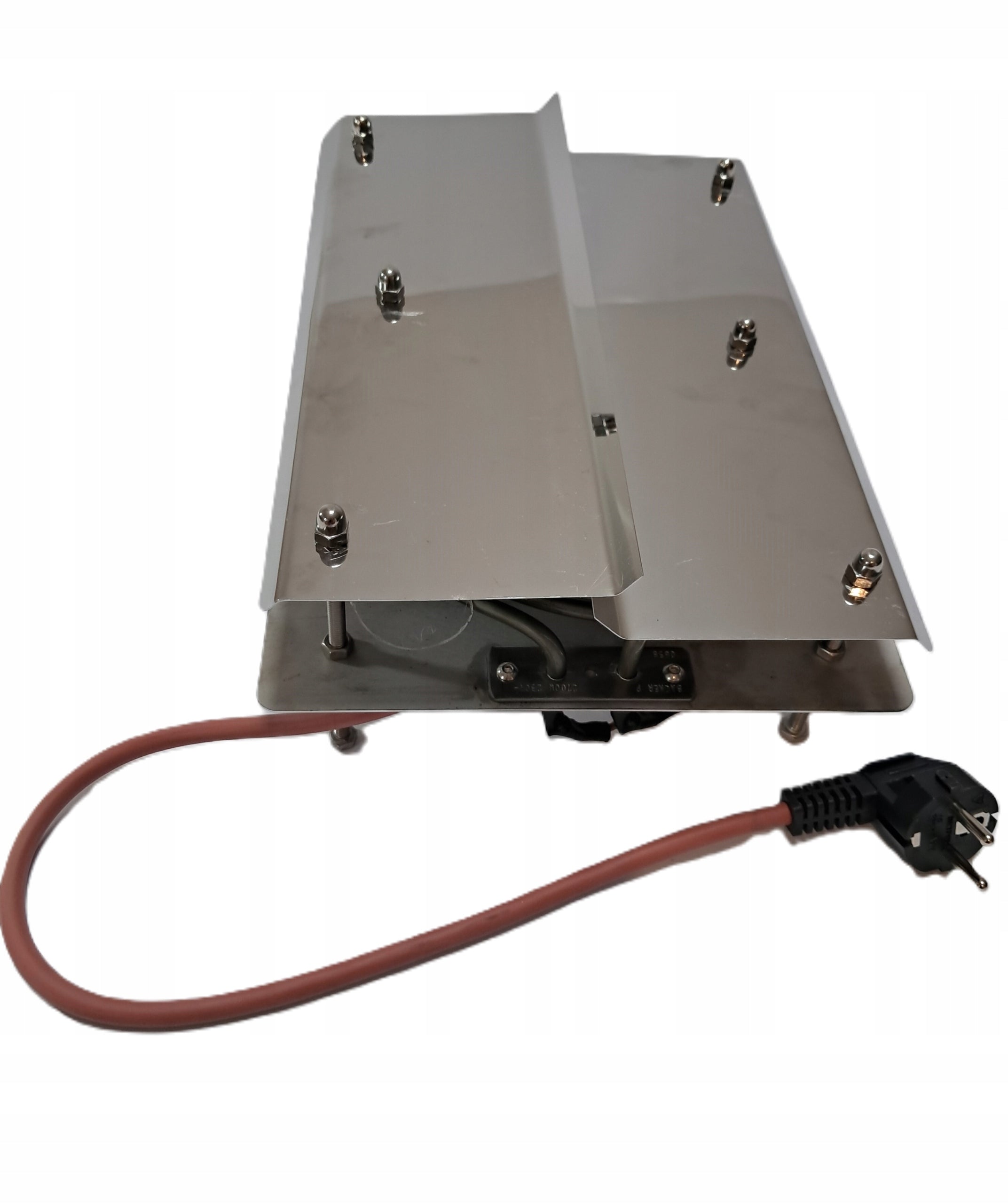

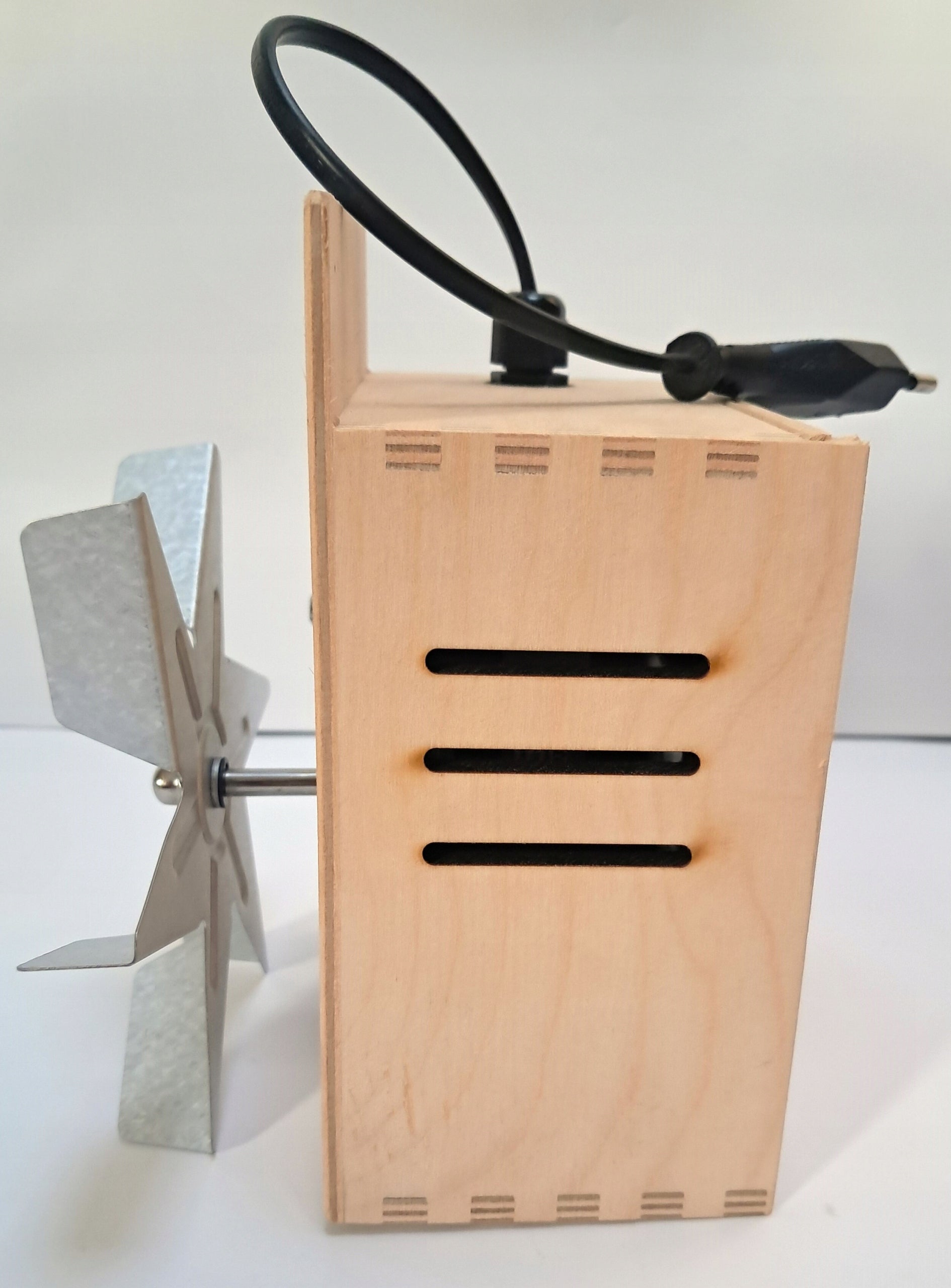

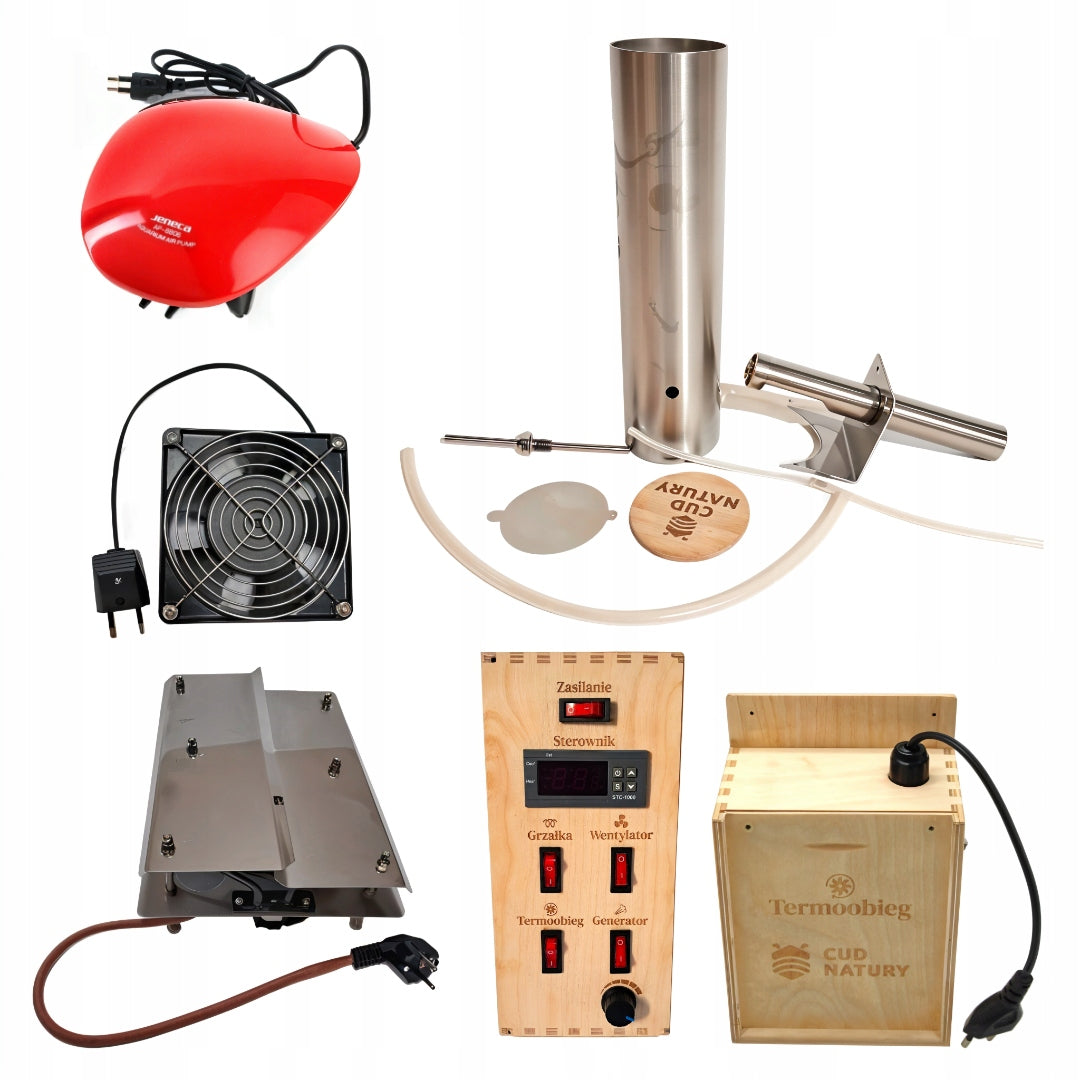

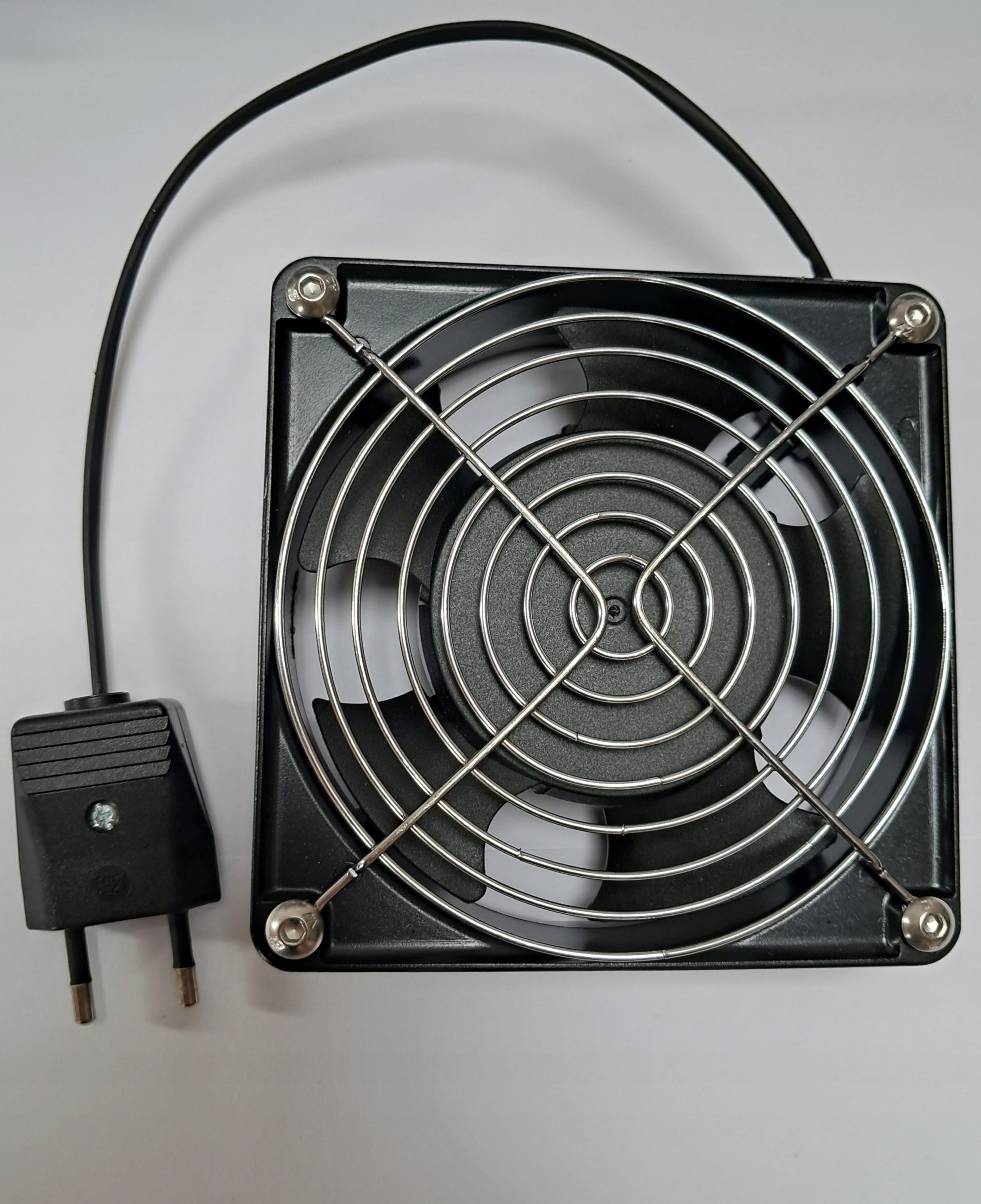

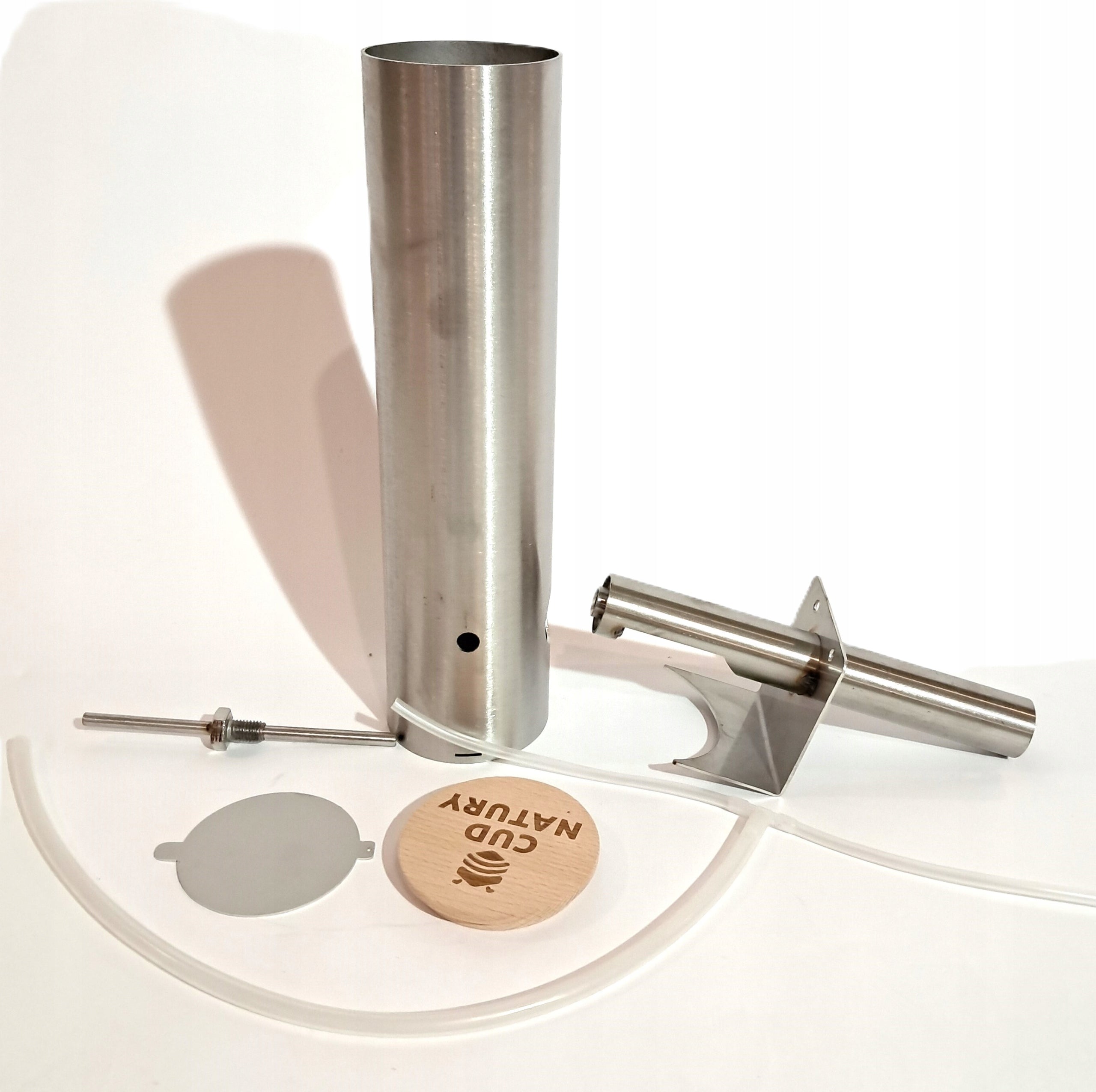

Set Includes: - Smoker controller with sensor and 4 sockets, with pump speed adjustment via potentiometer - Smoke generator with a very powerful pump, capacity 600 liters per hour - Smoker fan - 2.7 kW heater with a 0.8-meter high-temperature cable - Convection fan (convection pin length 30 mm - for use in smokers with a maximum wall thickness of 25 mm!!!

(It is possible to order a longer 1.5-meter cable for the heater. If you wish to do so, please include this information in a message to the seller after purchase.)

Functions

- Temperature control by regulating the heater (max 4000 W) - controlled by a relay

- Fan control for drying meats (included)

- Smoke generator control (included)

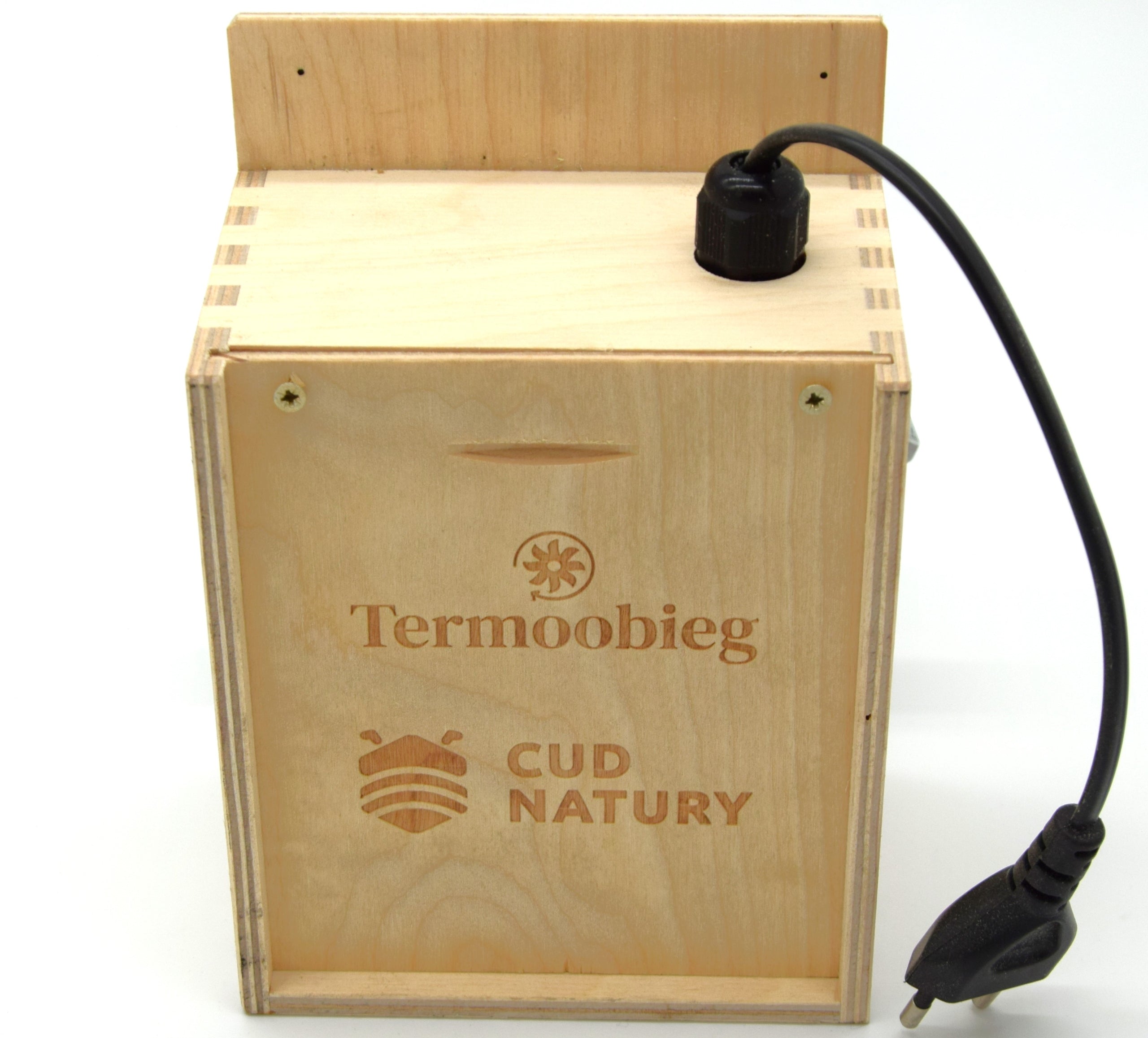

- Convection fan control

HEATER THERMOSTAT - Smoker Temperature Setting

The module has heating and cooling capabilities

• Heating - The relay is activated when the temperature is lower than the set point by the hysteresis value. When the temperature reaches the set point, the relay is deactivated.
• Cooling - The relay is activated when the temperature rises above the set point, taking hysteresis into account. The relay will deactivate when the temperature drops to the set point.

Instructions

S - settings button

Power button - turn on and off

Up - set, increase

Down - set, decrease

Pressing and holding the power button will turn the device on/off.

Pressing and holding the "S" button for approximately 3 seconds activates the temperature setting mode. "F1" will appear on the display, and the SET LED will be lit.

F1 - temperature value (default 10°C)

F2 - hysteresis value (default 0.5°C)

F3 - compressor delay (default 3 minutes)

F4 - temperature calibration (default 0°C)

To change the set value, press and hold the "S" button, adjust the setting using the Up or Down button, and release the "S" button when finished. If no operation is performed within 10 seconds, the device will automatically return to normal operating mode.

Cooling starts when the "cool" LED is lit. When the LED blinks, it indicates a compressor delay.

Heating starts when the "heat" LED is lit.

The electrical diagram (connection instructions) is located on the product casing.

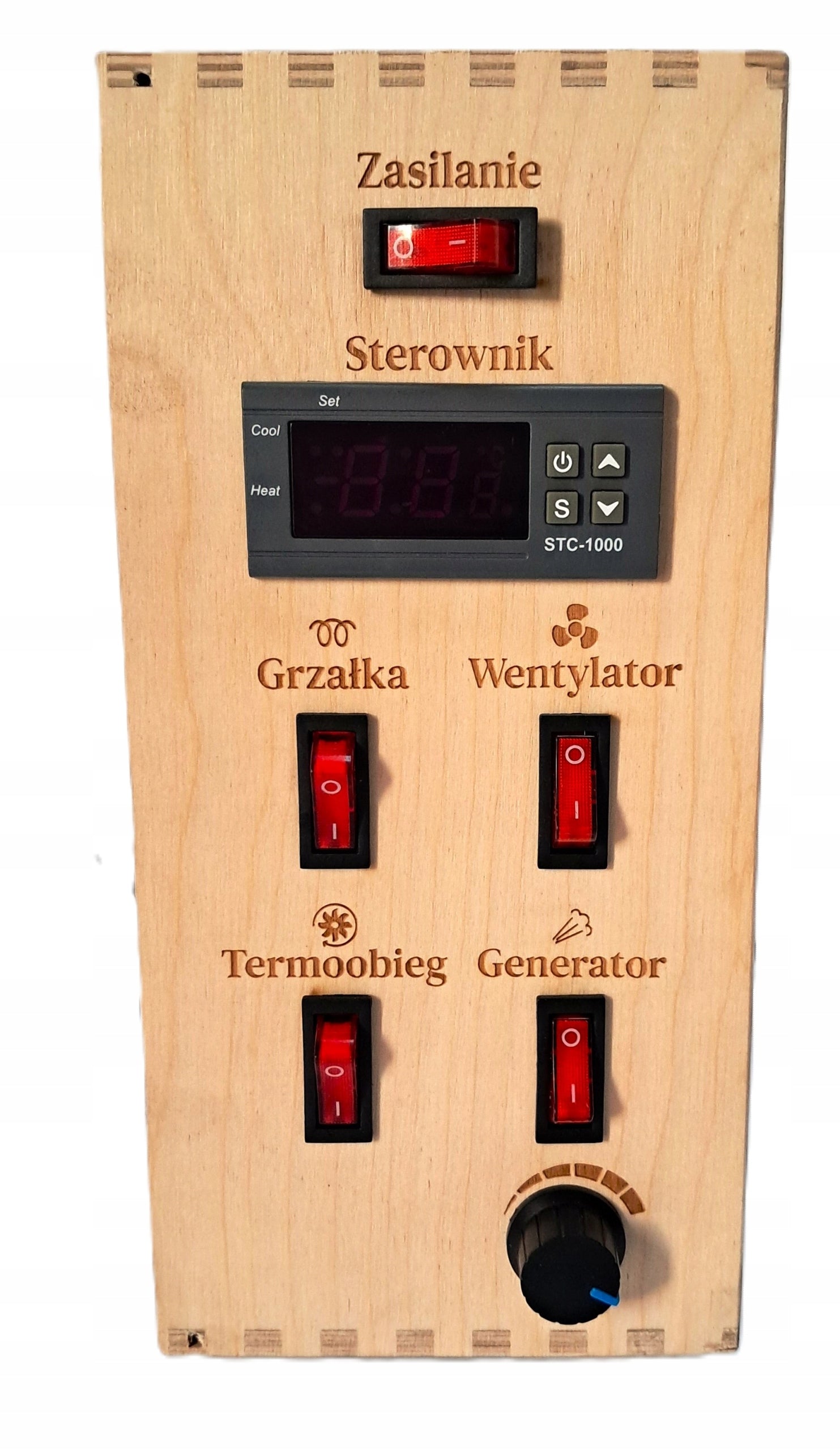

Controller equipped with switches for each device:

First main power switch

Second heater switch

Third drying fan switch

Fourth convection fan switch

Fifth smoke generator switch with adjustment

There are 4 device outputs installed underneath.

Specifications
