RFID programavimo įrenginys OBDSTAR P001 su raktų atnaujinimo ir EEPROM funkcijomis

Trumpai apie prekę

Prekė: RFID programavimo įrenginys OBDSTAR P001 su raktų atnaujinimo ir EEPROM funkcijomis. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: HKSK-218

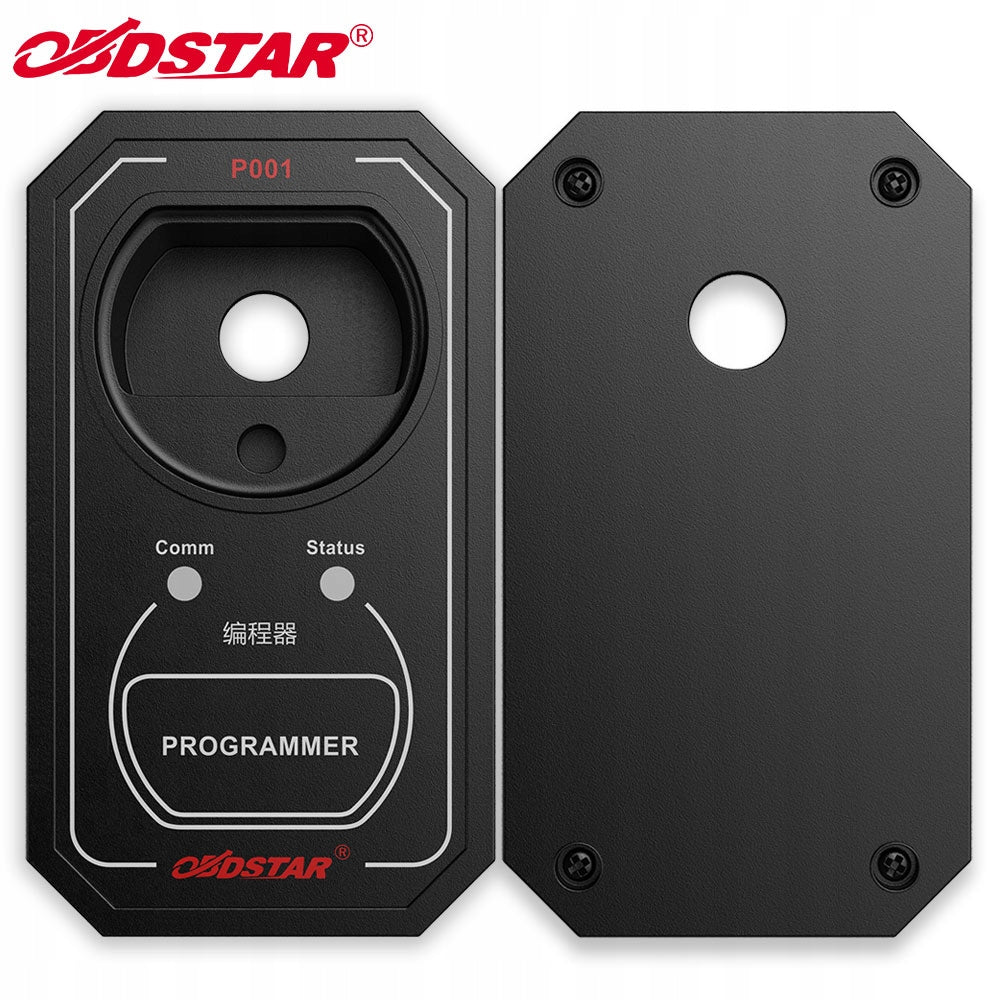

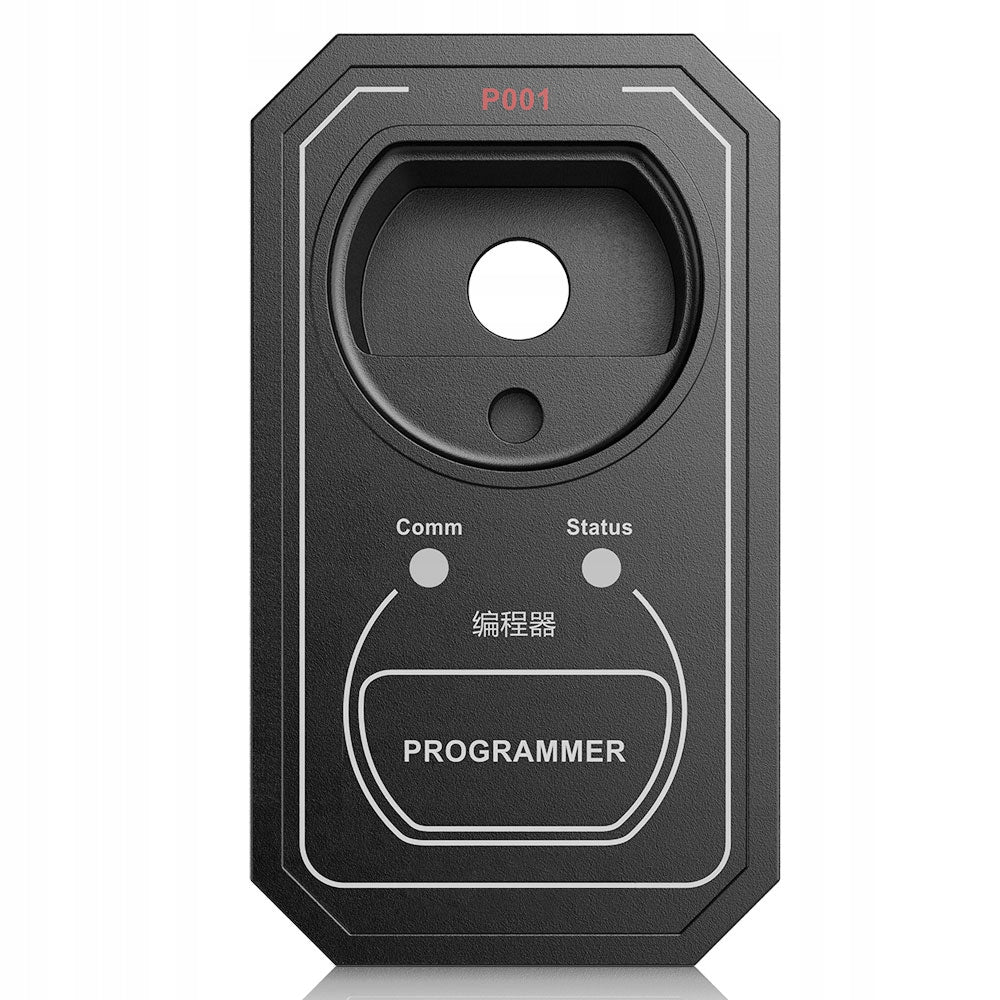

OBDSTAR P001 RFID Programmer and 3-in-1 EEPROM Key and Function Renewal Cooperation with OBDSTAR X300 DP Master

Based on the original adapter features, the P001 programmer, integrated with EEPROM adapter, RFID adapter and key renewal adapter, is a multifunctional programmer.

It brings a whole new experience that not only allows car mechanics to reduce more cumbersome procedures.

List of vehicles supporting the P001 programmer:

IMMO for VW AUDI SKODA SEAT 4 and 5 GEN (same function as RFID adapter)

Added 4. and 5. generation for VW/AUDI/SKODA/SEAT programming as follows:

1. Types of CDC+24C32

2. Types of NEC+24C32

3. Johnson Types 2013;

4. Types Motorola 9S12XHZ512;

5. Colour screen NEC+24C64 — type 1

6. Colour screen NEC+24C64 — type 2

7. White screen NEC+24C64 —

type 8. Type NEC+24C64 (VDO -12)

9. Type NEC+95320

10. Type NEC+35XX

11. Type Magotan/ CC

12. Type Q7/A6L(C6)9S12DT(G)128

13. Type Q7/A6L(C6)9S12DT(G)256

14. Added Lifan Marvell models, which include features for adding/cleaning keys, programming/removing ESCL.

15. Added Jiangling MU-X models as key programming and key cleaning.

Change the key used to empty to program a new key. (Same function as PCF79XX refurbished key adapter) Immobilizer board

Audi

5. generation

233.453.111-02

315MHZ 8T0959754A

315MHZ 8T0959754C

315MHZ 8T0959754J

Tile 233.453.111-05/06

315MHZ 4G0959754G

315MHZ

4G0959754J 315MHZ 4H0959754G

315MHZ 4H0959754J

315MHZ 8T0959754A

315MHZ 8T0959754C

315MHZ 8T0959754G

315MHZ 8T0959754J

433MHZ 8T0959754

868MHZ 4G0959754K

868MHZ 4H0959754K

868MHZ 8T0959754D

Board 233.453.211-01/02

315MHZ 4G0959754J

315MHZ 8H0959754DB

315MHZ 8K0959754

315MHZ 8K0959754C

315MHZ 8K0959754G

BMW

E chassis

ono-original key_OEM_KEY

original key_315MHZ

original key_868MHZ

F chassis

315MHZ

IN-Circuit-5WK49663

IN-Circuit-HUF5662

434MHZ

IN-Circuit-5WK49662

IN-Circuit-HUF5663

IN-Circuit-HUF5767

868MHZ

IN-Circuit-5WK49661

IN-Circuit-HUF5661

Porshe

315MHZ

7PP959753BM

7PP959753BQ

433MHZ

7PP959753BN

7PP959753BS

7PP959753AJ

Peugeot

21676652

E25CI009

E28CI01B

E33CI002

VW

Touareg

433MHZ 7P6959754AO

868MHZ 7P6959754L

868MHZ 7P6959754AT

Volvo

smart card

900MHZ

5WK49266

Chrysler

1YZ-C01C-ChipMarking

567_738_031

Keylessgo 567_373_061

IN-Circuit-0HT692427AA

IN-Circuit-0HT692713AA

IN-Circuit-K0B0T04A

IN-Circuit-M3N5WY72XX

IN-Circuit-M3N5WY783X

Renault

Dual button 433MHZ ChipMarking 2244706

Remote Control 433MHZ ChipMarking Smart Card F7945MC2200

433MHZ ChipMarking

Smart Card F7953MC2200 433MHZ ChipMarking 049621C03

Landrover

315MHZ YWX000061

315MHZ YWX000071

smart key 434MHZ 5E0U40247

Opel

Dual button 433MHZ 13500235

triple button 433MHZ 13500234

Corsa dual button 433MHZ 13188281

Corsa triple button 433MHZ 13188284

Astra/Zafira dual button 433MHZ 13149645

Astra/Zafira dual button 433MHZ 13149658

Kia

Keylessgo_ChipMarking 049620C03

7952CMFCH02

CMFEU03

HMFEU04

HMFKR04

HMFNA04

Mitsubishi

434MHZ G8D_644M_KEY_434MHZ_F7952A

GM

Buick smart key 315MHZ

Keylessgo_13500224_13584825_5keys

Keylessgo_13500225_13584825_4keys

Cadillac smart key 315MHZ

Keylessgo_NBG009768T

GM samrt key

433MHZ Keylessgo_3keys

433MHZ Keylessgo_4keys

433MHZ Keylessgo_5keys

Chevrolet

Dual button 433MHZ 13500218

four buttons 315MHZ 13500222

five buttons 315MHZ 13500221

315MHZ smart card

Keylessgo_13500318_13584828_4keys

Keylessgo_13500319_13584829_5keys

Hyundai

Keylessgo_ChipMarking 049620C03

7952CMFCH02

CMFEU03

HMFEU04

HMFKR04

HMFNA04

Citroen

21676652

E25CI009

E28CI01B

E33CI002

EEPROM function List of supported models (same as EEPROM adapter)

Add the read/write/write/recovery function of the system 24C01/02/04/08/16/32;

Added the function of reading/writing/writing/recovering data of the system 93C46/56/66/76/86;

Added the function of reading/writing/writing/recovering system data 25010/020/040/080/040/080/040/080/256;

Added the function of reading/writing/writing/recovering system data 95010/020/040/080/040/080/040/080/256;

Added Audi security code reading function;

Added Baic E150, E130 security code reading function;

Added Buick security code read function;

Add Cadillac SLS, SRX security code reading function;

Add Changan CM8, Yue xiang, Zhi xiang,benben security code read function;

Add Changhe security code read function;

Add the Chery STEC immobilizer and DIAS immobilizer security code read function;

Add the function of reading the security code Chevrolet Cruze, Trax;

Add Chrysler security code read function;

Add the Citroen Elysee security code read function; Add the security code read function

Dflz and security code;

Add Dfpv S3 security password read function;

Add Geely Emgrand security code read function;

Add Great Wall security code read function;

Add Hafei security code read function;

Add Hnmazda security code read function;

Add Hawtai security code read function;

Add Huapu security code read function;

Add MG3 security code read function; Add code read function

Jiangling safety;

Add Liebao security code read function;

Add Skoda safety code reading function;

Add VW safety code reading function;

Add Zznissan security code read function;

Add Zotye to the security code read function;

Note: To read the password from EEPROM, you must delete the code.

The P001 programmer uses two coils with a stronger signal, supporting a wider RFID range. It is also required for the latest models, such as:

Ferrari 458/F12/F149

Maserati mechanical key;

Fiat 500/Viaggio/Palio/Siena/Boyue/Pailang/Ottimo etc.;

Iveco;

Alfa Romeo;

Volkswagen MQB;

BMW;

Porsche.

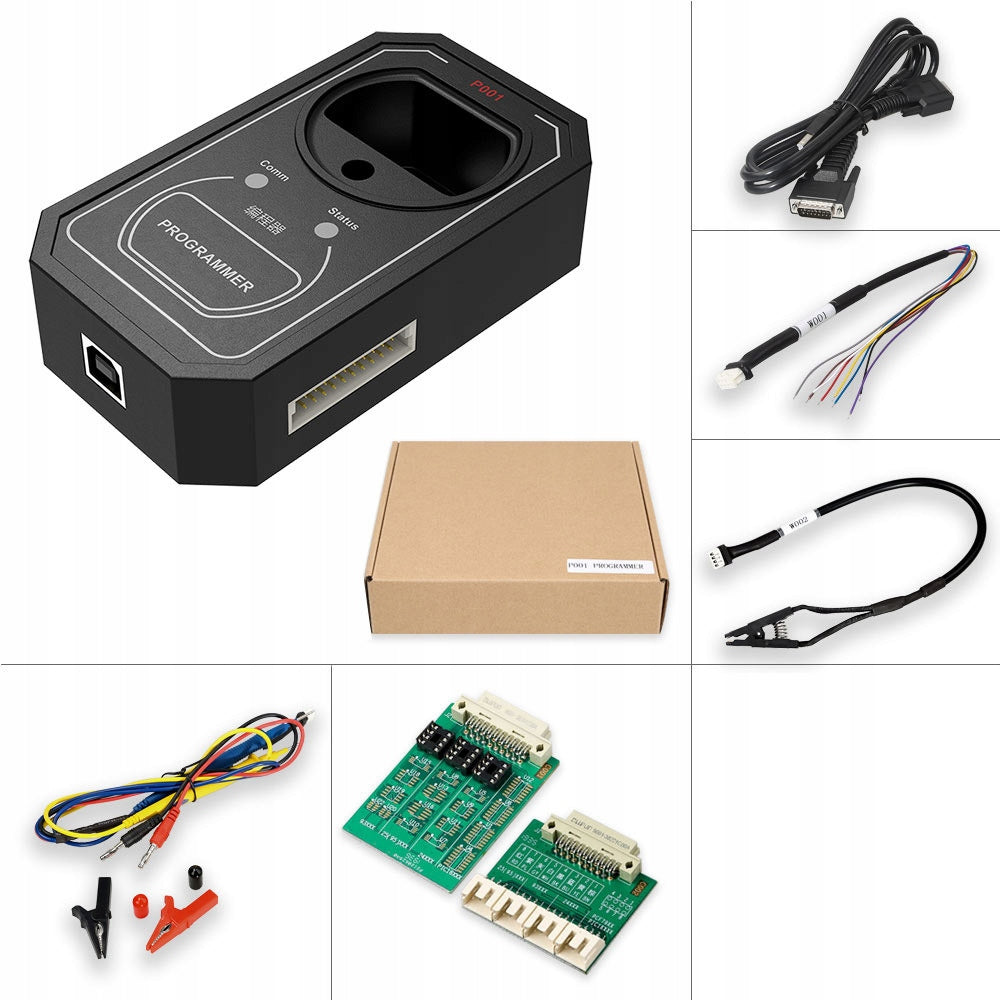

Content of the package:

1 x programmer P001,

1 x C001 printed circuit board,

1 x C002 printed circuit board,

1 x CW003 data cable.
