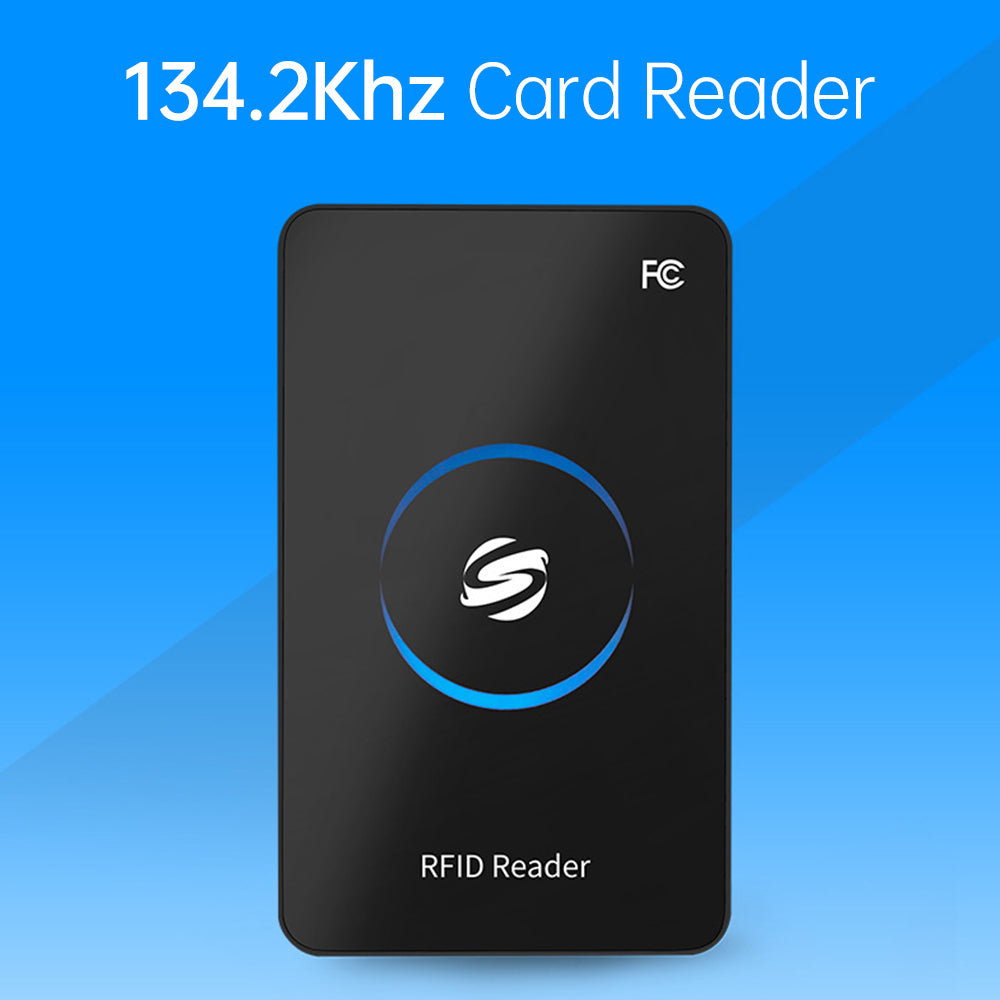

RFID kortelių skaitytuvas 134,2 kHz id fortemo JF

Trumpai apie prekę

Prekė: RFID kortelių skaitytuvas 134,2 kHz id fortemo JF. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 9554ZSSP

Feature:

1. The card reader complies with the ISO 11784/5 international standard protocol, the working frequency is 134.2KHz, and the stability is high. It can recognize all EMID and FDX-B format tags.

2. Support USB cable to connect, plug and play, compatible with Win XP\Win CE\Win 7\Win 10\LIUNX\Vista\Android other system.

3. Design LED light with 2 colors, green for reader status, blue for power status. And built-in operation buzzer, easy to use, small in appearance, compact and portable.

4. Made of high-quality ABS material, strong and durable, and can be used a long time.

5. It is widely used in animal management, fish management, automatic feeding equipment and other fields.

Specifications:

• Features:
• The card reader complies with the ISO 11784/5 international standard protocol, the working frequency is 134.2KHz, and the stability is high. It can recognize all EMID and FDX-B format tags.
• Support USB cable to connect, plug and play, compatible with Win XPWin CEWin 7Win 10LIUNXVistaAndroid other system.
• Design LED light with 2 colors, green for reader status, blue for power status. And built-in operation buzzer, easy to use, small in appearance, compact and portable.
• Made of high-quality ABS material, strong and , and can be used a long time.
• It is widely used in animal management, fish management, automatic feeding equipment and other fields.
• Specifications:
• Model: W81
• Working frequency: 125Khz&134.2Khz
• Card reader type: EMID, FDX-B, etc.
• Operating Voltage: 5V
• Reading distance: 0~150mm (There will be differences due to different labels)
• Card reading speed: 0.2s
• Dimensions: 105x65x15mm
• Communication Interface: USB
• Operating temperature: -20℃~70℃
• Working current: 100mA
• Card reading time: ＜100ms
• Weight: 120g
• Operating system: Win XPWin CEWin 7Win 10LIUNXVistaAndroid other
• Status indicator: 2-color LED ("blue" power LED, "green" status indicator)
• Built-in horn: buzzer, can control LED and buzzer
• Package Size: 12.5x8.5x3.8cm/4.9x3.3x1.4in
• Package Weight: 150g/5.2oz

1. How to use/install

• ① Connect one end of the data line to the corresponding interface of the computer, and the other end to the communication port of the card reader, the card reader will enter the self-test and initialization with a beep;
• ② When the indicator light of the card reader is "blue", it indicates that the card reader enters the state of waiting for card swiping.

Package List:

• 1 x Card Reader
• 1 x USB Cable
