Remonto rinkinys KARCHER HD 10/25 10/21 10/23 2.883-902.0 plovimo įrenginiams

Trumpai apie prekę

Prekė: Remonto rinkinys KARCHER HD 10/25 10/21 10/23 2.883-902.0 plovimo įrenginiams. Kategorija: Aukšto slėgio plovyklos.

• Gamintojas: Kärcher
• Modelis: HD
• Įtampa: 0 V

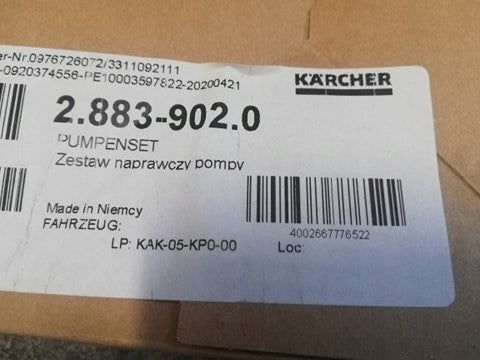

KARCHER 2.883-902.0 REPAIR KIT

Description of the item:

The set is made of the best quality components, thanks to the perfect fit ensures 100% tightness of the head.

Compatibility:

(S, S PLUS, 4S, 4S PLUS, 4SX, 4 Cage series)

• HD 10/21
• HD 10/23
• HD 10/25

Technical data:

• Producer - Karcher
• Type - original
• Catalog No. - 2.883-902.0
• Piston diameter 20mm

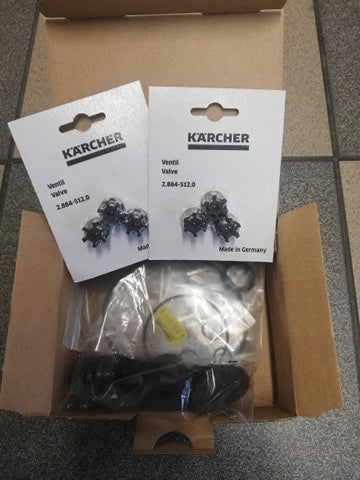

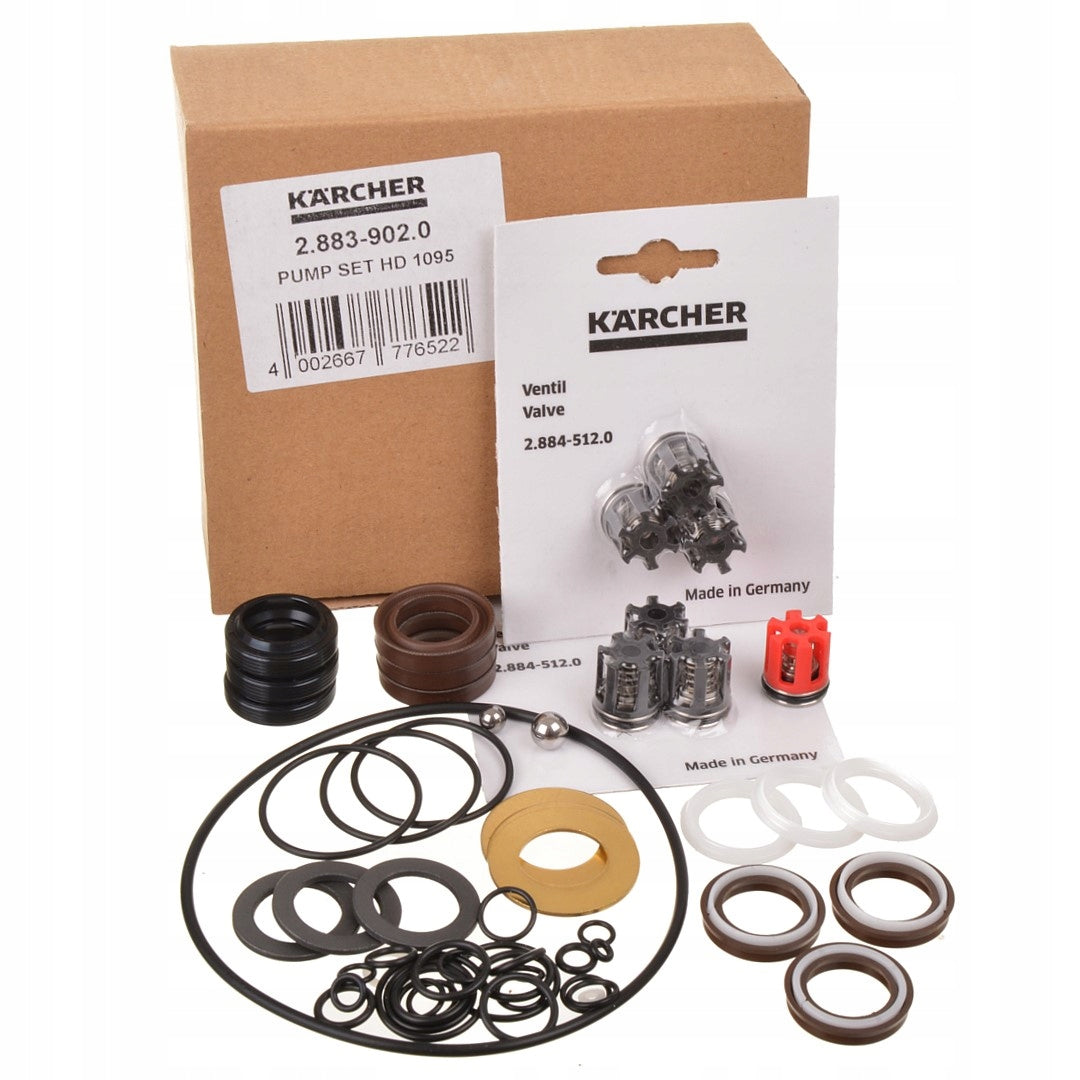

The set includes:

• 2x valves 3pcs. (2.884-512.0)
• 1x non-return valve (4.580-594.0)
• 1x Resistance Ring (5.114-512.0)
• 1x Resistance Ring (5.114-513.0)
• 3x Washer (5.115-537.0)
• 3x Washer (5.115-538.0)
• 3x O-Ring 36,0 X 2,0-NBR 70 (6.362-092.0)
• 1x O-Ring 6,0 x 2,0 NBR 70 (6.362-113.0)
• 2x O-Ring 10 x 2 NBR 70 (6.362-151.0)
• 1x Seal ring. 5,28 x 1,78 (6.363-597.0)
• 6x O-Ring 9x1,5 - NBR 70 (6.362-384.0)
• 2x O-Ring 21,95X 1,78 (6.362-469.0)
• 4x O-Ring 14,0 x 2,0 NBR 80 (6.362-481.0)
• 1x Seal ring. 8,73 x 1,78 -NB (6.363-611.0)
• 1x Seal ring. 11 x 1,5 -NBR70 (6.363-615.0)
• 1x O-Ring 17,0 X 2,0-NBR 70 (6.362-580.0)
• 3x O-Ring 6,0x1,5-NBR 70 (6.362-703.0)
• 1x O-Ring 114 x 3 (6.363-228.0)
• 1x Seal ring 2,90x1,78 (6.363-241.0)
• 3x Seal ring 20x28x6/8 (6.365-052.0)
• 3x Seal ring 20x30x6 (6.365-377.0)
• 3x Resistance Ring 20x30x4,2 (6.365-378.0)
• 3x Seal ring 20X28X2,8 (6.365-380.0)
• 1x ball 7.401-908.0
• 1x ball 7.401-910.0
